Unit UT528 Manuel utilisateur

P/N:110401109985X

Overview - UT528/528AU

UT528/528AU from.

UT528/528AU Main Unit

UT528/528AU

2

Earth Nulling Block 1 x

＊

Neck strap 1 x

＊

IEC Lead 1 x

＊

Safety Information

Warnings - Please be aware of the following warnings.

●Before using the unit and test leads inspect both items. Do not use the unit

and test leads if they are damaged or the case is broken or damaged as this

could result in electrical shock.

●Replace the battery as soon as the battery indicator “ ”appears. Low

battery levels may produce inaccurate readings.

●Do not use or store the unit in high temperature, humid, flammable or

electromagnetic environments as damage and incorrect readings may result.

●If the tester requires repair or replacement please contact your local service

center.

Declaration of Conformity

Uni-T manufactures this product and declares that this product conforms to the

UT528/528AU

2013

2010

4

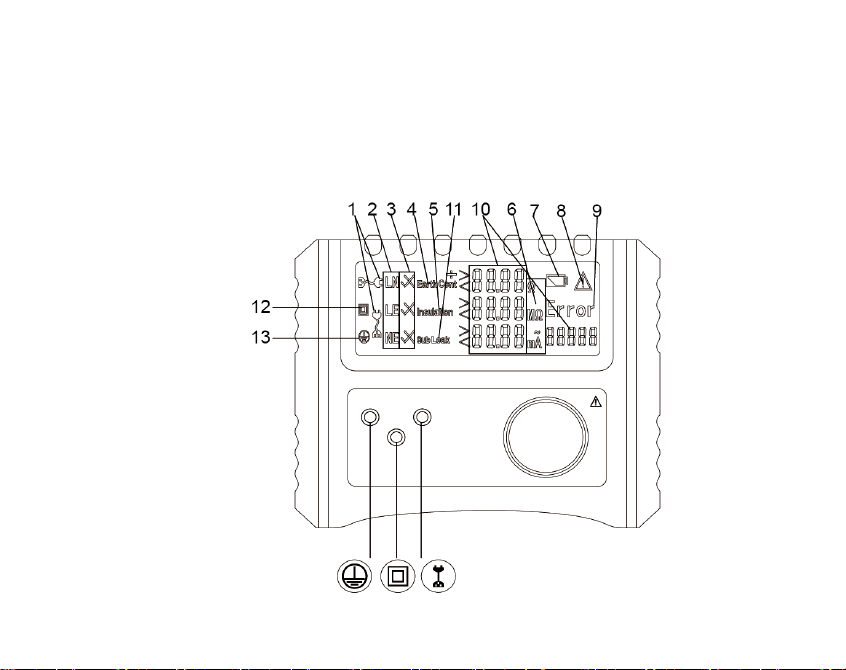

8.Warning Symbol

9.Unit Error

10.Readings and Cable Results

11.Leakage Current

12.Double Insulated / Class II Test

13.Class I Test

5

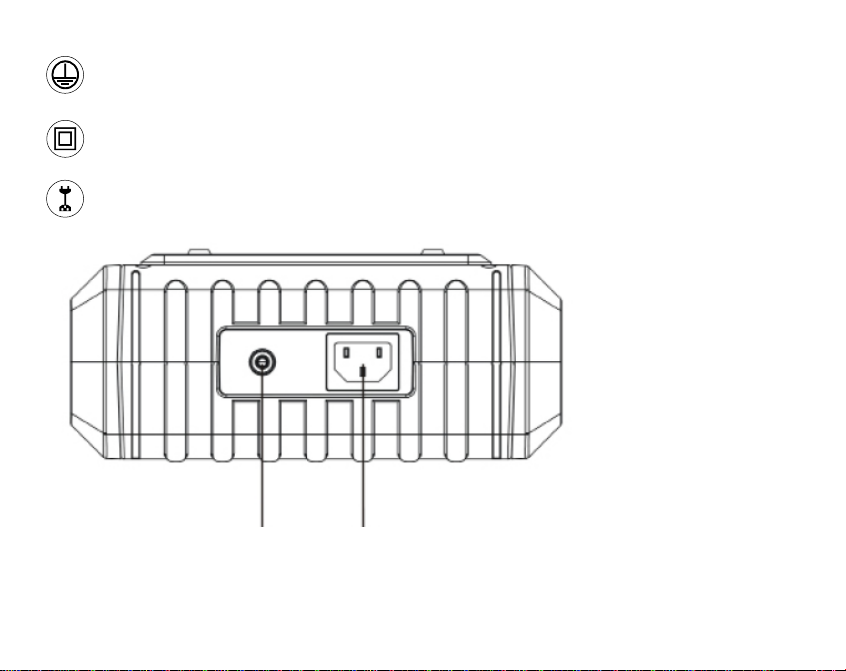

Class I Test Button + Zero/Null Selection

Class II Test Button + 250V/500V

Insulation

Selection

IEC / Cable Test Button +30m Long Lead Selection

Earth Probe Mains / IEC testing

6

Front Panel Operation

1: Press + button to Power ON / Power OFF.

2: Press button when testing a CLASS I Appliance.

3: Press button when testing a CLASS II Appliance.

4: Press button when performing Cord / Extension Lead testing.

Advance Features

5. Press and hold the buttons to activate the 250V/500V and

0.1Ω/0.2Ω/0.3Ω earth continuity Pass/Fail Values setup.

+

7

Before Testing - Zero the Earth Bond Test Lead!

Plug the earth probe into the rear of the unit and connect it to the earth nulling

adapter. Plug the earth nulling adapter into the front panel earth socket to

complete the circuit.

Press and hold the button for 5 seconds to zero the earth bond reading

using the earth bond lead and the nulling adapter together in the front test socket.

This will null the earth reading of the test lead and “GOOD” will be displayed once

complete. It is good practice to do this once prior to carrying out testing.

Auto Switch Off

The unit will automatically switch off after approximately 2 minutes if no buttons

are pressed.

Testing a Class 1 Appliance

Plug the appliance into the UT528/528AU panel main socket. Plug the earth test lead into

the socket on the UT528/528AU end panel. Connect the earth crocodile clip to an

8

exposed metal part on the appliance as shown in Diagram 3.

1. Earth / Protective Conductor Test

Press the Class 1 test button to start the test. The earth resistance test will

begin.

9

LOAD”. Press the button to proceed to the insulation test.

If this is not detected the unit will display a flashing symbol and also “LO

If the earth resistance meas

ured is greater than

the selected PASS limit for

earth bond (0.1Ω/0.2Ω/0.3Ω), the meter will display “×Earth Cont”, which is a

FAIL. If this occurs, re-check the connections between the pin of the plug to the

bodywork of the appliance and that the crocodile clip is attached to clean earthed

metalwork on the appliance (try attaching the clip to analternative piece of

metalwork). If all connections are OK the appliance earth connection may be

faulty.

The PASS limit for the earth bond test can be set to 0.1Ω, 0.2Ω or 0.3Ω for a

Class 1 appliance. (See page 17.)

If the reading is less than the selected PASS limit,the meter will display “√ Earth

Cont”, which is a PASS.

The unit will then automatically attempt to proceed to the insulation test. If it

detects that the appliance’s power switch is in the ON position it will carry out the

insulation test automatically.
