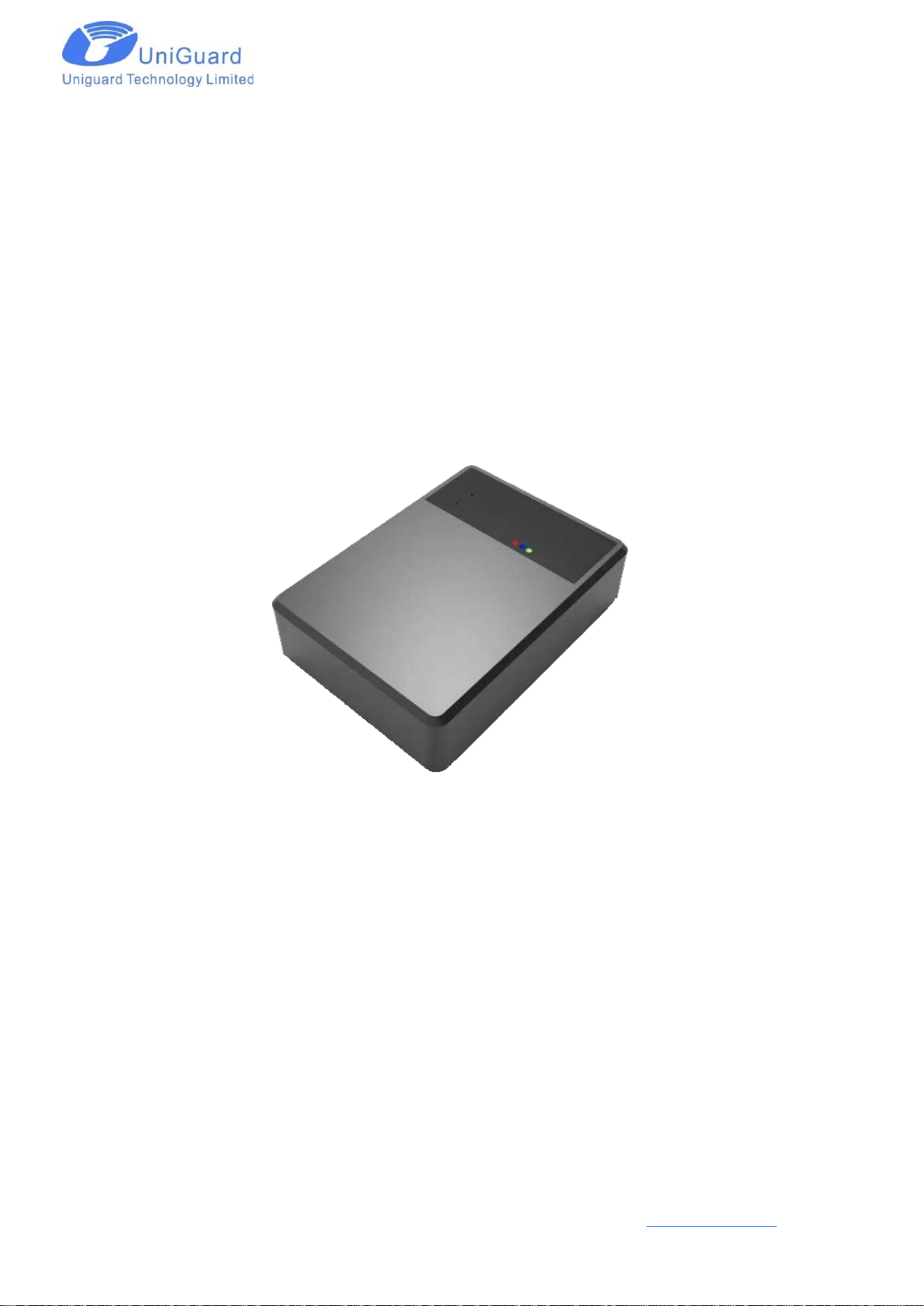

GL700 GPS Tracker
User Manual
(Version V1.1)
Thank you very much for using GPS TRACKER, the user manual will guide how to operate this
product, please read it carefully before using it in order to get the correct method of operation. If
the appearance, color and accessories of this product are modified, please refer to the actual
product. The manufacturer is not liable for faults and omissions in the user manual.
www.uniguardgps.com
UniGuard Technology Limited
1、Product functions & Parameters
1.1 Product functions
Location inquiry, geo-fence, over-speed alarm, power-off alarm, historical route playback,
voice monitoring
1.2 Parameters
Position mode
GPS+BD+LBS+AGPS
Location Accuracy
≤10
Size
101*67*25 mm
Battery
10,000 Mah
Standby
15 to 100 days
Charging
USB Type-C 5V
Charging current
Max 2A, default 1.5A
Working current
GPS ON: 35 mAh, GPS OFF: 5mAh
Working temperature
-20 to 70°C
Storage temperature and humidity
-40 to 90°C / 5%~95% non condensing
2、Product accessories and interface
2.1 Accessories:
Standard: device, user manual
2.2 Device interface
1
LED: GPS singal (Blue) / GSM signal (Green) / Power LED (Red)
2
MIC for voice monitoring
3
SIM slot
4
Power switch
5
USB Type-C charging port
www.uniguardgps.com
UniGuard Technology Limited
3、SIM Installation
3.1 Preparation before installation:
1, Open the box and check whether the device and the accessories are complete, otherwise please
contact your dealer.
2, SIM card selection, the device works with Micro SIM card, and support full Netcom band.
3, SIM card installation
Note: (1) Before installing or removing the SIM card, please switch off the device;
(2) Should activate the GPRS function of the SIM card;
(3) Should activate the caller ID function; (activate or not according to the
functions you chose.)
(4) If your SIM card required you to input the SIM PIN, please refer to your
mobile phone user manual to turn off the SIM PIN function.
(5) Please ensure that the SIM card is valid.
4、Device Operation
4.1 LED light
Switch on: Long press the switch button till all LEDs turn on
Switch off: Press the switch button for 3 seconds, all LEDs turn off
Force restart: Press the switch button for 7~8 seconds to force restart the device.
Status
Flashing every second
ON
OFF
Flashing twice every second
GPS (Blue)
Searching GPS
GPS Located
GPS Sleep
GSM (Green)
Searching GSM
GPRS Online
Do not read card
Power (Red)
Charging
Fully charged
If blue and green LED keeps flashing please put the device out of the house at an
open place.
4.2 Installation attention
Metal shall shield or weaken GPS signal. Please avoid these areas.
www.uniguardgps.com
UniGuard Technology Limited
l
5、SMS commands and instructions:
Send SMS command from user’s SIM card number to the SIM card number which inside the
GPS device.
The commands in the following SMS command list are in English input format, and the letters
are case-sensitive according to the instruction requirements.
Common commands
SMS command format
Remark
Check parameter
PARAM#
Version, ID, IP, etc…
Set IP and Port
IP,www.gpspos.net,8800#
No need send, Preset.
Set APN
APN=apn name, user, password#
If no APN user and password, no need set.
Set IP and Port
IP www.gpspos.net 8000
IP OK
Device restart
RESET#
Reset Success!
Set overspeed value
SPEED,80#
Speed Success!
Listen-in
SOS,A,1,2,3#
1,2,3 is voice monitoring number
Smart working mode
MODE,2,180,1,1,1,1#
If there is shock, work 3 mins and then sleep
Fixed updating mode
MODE,1,10,1,1,1,1#
Report to server every 10 seconds
Power saving mode
MODE,3,60,1,1,1,1#
Report to server every 60 minutes.
Reset device
RESET#
