UniGuard V26 Manuel utilisateur
UniGuard Technology Limited
- - www.uniguardgps.com
1
Solar Powered GPS Tracker V26
User Manual
UniGuard Technology Limited
- - www.uniguardgps.com
2
Important, please attention:
Due to external factors all GSM devices have position error, so the
position provides by this device just for reference only.
There may be delays caused by telecom operators at certain
circumstance. Our company doesn’t assume liability for users’ personal and
property safety
Solar Powered GPS Tracker Main Features:
GSM quad band network, LBS location
Solar Wireless charging
Waterproof IP66
Website/IOS APP/Android APP/SMS
SOS alarm, two way voice
History route/ Geo-fence
WIFI location and WIFI anti-lost alarm
Anti-remove alarm
Voice monitoring
Low battery alarm
SIM changing alarm
UniGuard Technology Limited
- - www.uniguardgps.com
3
Solar Powered GPS Tracker Specification:
GSM network: 850/900/1800/1900MHz
GPRS standard: Class 12, TCP/IP
Working temperature: -20℃~ +70℃
Working humidity: 5% ~ 95% RH
GPS locating time:
30sec with cold boot(under the open sky)
29sec with warm boot(under the open sky)
5sec with hot boot (under the open sky)
Host size: 60x50x17mm
Host weight: 64g
Battery capacity:1500mAh
Solar Powered GPS Tracker Packing:
1* GPS tracker
1*Magnet USB cable
1* Holder
UniGuard Technology Limited
- - www.uniguardgps.com
4
1* User manual

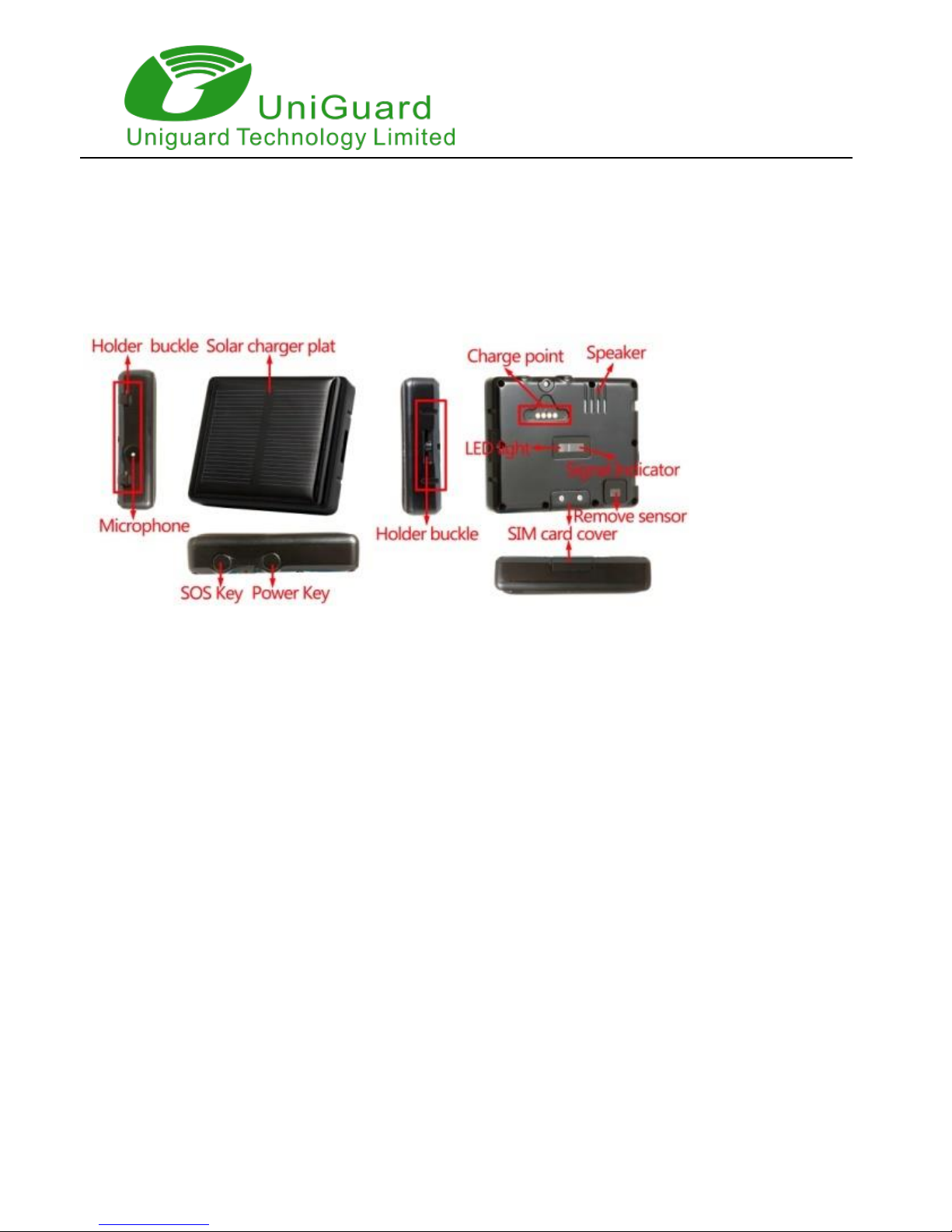

Solar Powered GPS Tracker Overview:
Step 1: Prepare for work:
Please choose 2G GSM network-based Micro-SIM card (same Iphone4) for
the product. And please note:
Please be sure the tracker is turn off before insert or take out the
Micro-SIM.
Please be sure the GPRS and Caller ID has been activated
Step 2: Power on
1. Open side card slot, insert the SIM card according to the instruction and
lock the slot with screw to ensure waterproof effect.
2. Press the POWER key for 3-5sec, then the tracker will light on with ring.
UniGuard Technology Limited
- - www.uniguardgps.com
5
3. In the state of power-on, press power button for 3 times, then the device
will ring and shutdown.
Indicator light show:
GPS indicator and GSM indicator:
Step
3: APP
binding
and
function setting:
1. Scan the manual cover QR code or search Anytracking in APP store
&Google play store to install the APP.
2. Enter the 10 figures ID number on the tags behind the device. The default
password is 123456, click log in, and enter into App, as shown below:
Light color
Function
Slow flash
Fast flash
Close
Blue
GPS indicator
Searching
success
Sleeping
Red
GSM indicator
Searching
success
Sleeping
UniGuard Technology Limited
- - www.uniguardgps.com
6
Real-time tracking: Show the last position and trace.
Historical route: Display the historical.
Geo-fence: Set and display Geo-fence area, when the device gets
into/out the Geo-fence then it will send an alert.
Wi-Fi fence: Set 2 Wi-Fi safe zones, when wearer leave safe Wi-Fi
zones, the App will alert you.
Command setting
Device info: Check and mark the device information.
Change password: Change the App and web login password.
Interval for uploading GPS location: Adjust the time interval of GPS
uploading location. Shorter time interval with shorter standby time, more accuracy
location.
Master number: The master phone number, used to send command
UniGuard Technology Limited
- - www.uniguardgps.com
7
and receive alarm.
SOS number: When press the S button, the device will call the SOS
numbers in 2 turn unit you answer.
The phone book: Only the phone numbers of phone book can call the phone
number of the device for monitoring.
Anti-remove alarm:
It will send alarm message to the master number when the device was removed
LED light: Open/close the bottom LED light, easy to find the cow/sheep
Answer mode:
a) Silent monitoring mode: All have set 5 phone numbers dialing the device; you
can remote listen to the voices around the device at the condition of no bell ring,
but can’t speak to the device the user.
b) Auto answer mode:
All setting phone numbers dialing the device,
after a bell ring, you can remote listen to the voice
around the device and speak to the user
c) Push to talk mode:
Any number dialing the device number, only after the user press the button, you
UniGuard Technology Limited
- - www.uniguardgps.com
8
can speak to the device user
Soft time zones:This is for APP time; users can set it according to local time
zone.
Device language time zone: This is for device alarm SMS language,
Chinese and English can be chosen. Time zone can set.
Remote reboot: Through App to power off device.
Remote power-off: Through App to power off device. It can’t remote restart
when power off.
Device message:List shows alert information of device.
Alarm setting:Get the remind via APP when alarm；
Log out: Log out the APP, and never get the alarm remind via APP.
Press S button for 5seconds, then make SOS alarm, it will send SMS to master
number, and then make call to SOS number 2 times in turn.
Answer incoming call:
Press S button will answer the incoming call, press power key will refuse the
incoming call.
All functions also can set by SMS command.
All command use in lowercase letters, without any blank space and ending by #.
Command for setting master number:
UniGuard Technology Limited
- - www.uniguardgps.com
9
pw,123456,center,number#
For example: pw,123456,center,180********#
The tracker will reply: 180******** has been set for the master number
successfully.
Remark：
Please make sure the solar panel upward when used, otherwise the solar
charger can't work .The tracker will boot automatically when it is charging. Put the
tracker in network signal better position when use.
In order to achieve the best effect, Please charge full the battery before use.
Standby time : Upload location date every 10 minutes ,the standby time is
220 hours ,talking time is 15 hours (Actual test)；2）Turn offAPP and web platform
function, the standby time is about 25 days. Note: Above test data is under the
status of strong GSM network.
This product is waterproof IP66, but still not suitable for soaking in the water
or wear to swimming.
Please do not open the case, So as not to affect the waterproof effect and
loss the warranty rights.
FAQ:
Q: After inserting a SIM card, it can get SMS command, but it display logoff or
offline on the platform and APP.
A: Please check that SIM Card has GPRS data plan.
UniGuard Technology Limited
- - www.uniguardgps.com
10
Q: After set white list, cannot monitor.
A: Please make sure the SIM card of the device has opened caller ID.
Q: Device show online, but it shows “wait for the device responses “when you set
instruction with APP.
A: a. Device signal is not good, so not smooth result of GPRS; b. Device is busy.
Q: The SIM card has GPRS data plan, but the
device still show “logoff“ or “offline”.
A: The tracker have pre-program all most APN, maybe the APN of the SIM card
you use don’t preset in the tracker, Please set master number first and then send
command to add you APN into the tracker.
The command is: apn,apndata#
