Magnetic GPS Tracker

User Manual

UM666

Attention:

Charge is forbidden.

24Hrs per locate: 3 Years (Default)

UniGuard Technology Limited

- - www.uniguardgps.com

1 GPS Tracking System Introduction

Portable GPS Tracker UM660 integrates GPS and GSM functions, which could

send vehicle location and status to mobile and Internet. It utilizes GPS and LBS double

locating. Its advantage is that the builtin battery can last 2 years at reporting interval

every 24hrs. No wires connection. Place and Work. The system structure is as below:

UniGuard Technology Limited

- - www.uniguardgps.com

2 Product Description

2.1 Specification

Content Specifications

Dimensions 66 x 52 x 36mm

Weight 105g

Network GSM/GPRS

Band 850/900/1800/1900Mhz

GPS chip UBLOX-7

GSM Module MTK6260D

GPS sensitivity -159dBm

GPS accuracy 5m

Time to First Fix Cold status 45-120s

Warm status 35s

Hot status 1s

Battery Non-rechargeable dry battery

6000 mAh

Standby 2 years

Storage Temperature -40 to 85 ℃

Operation Temperature -20 to 55 ℃

Humidity 5%-95% non-condensing

UniGuard Technology Limited

- - www.uniguardgps.com

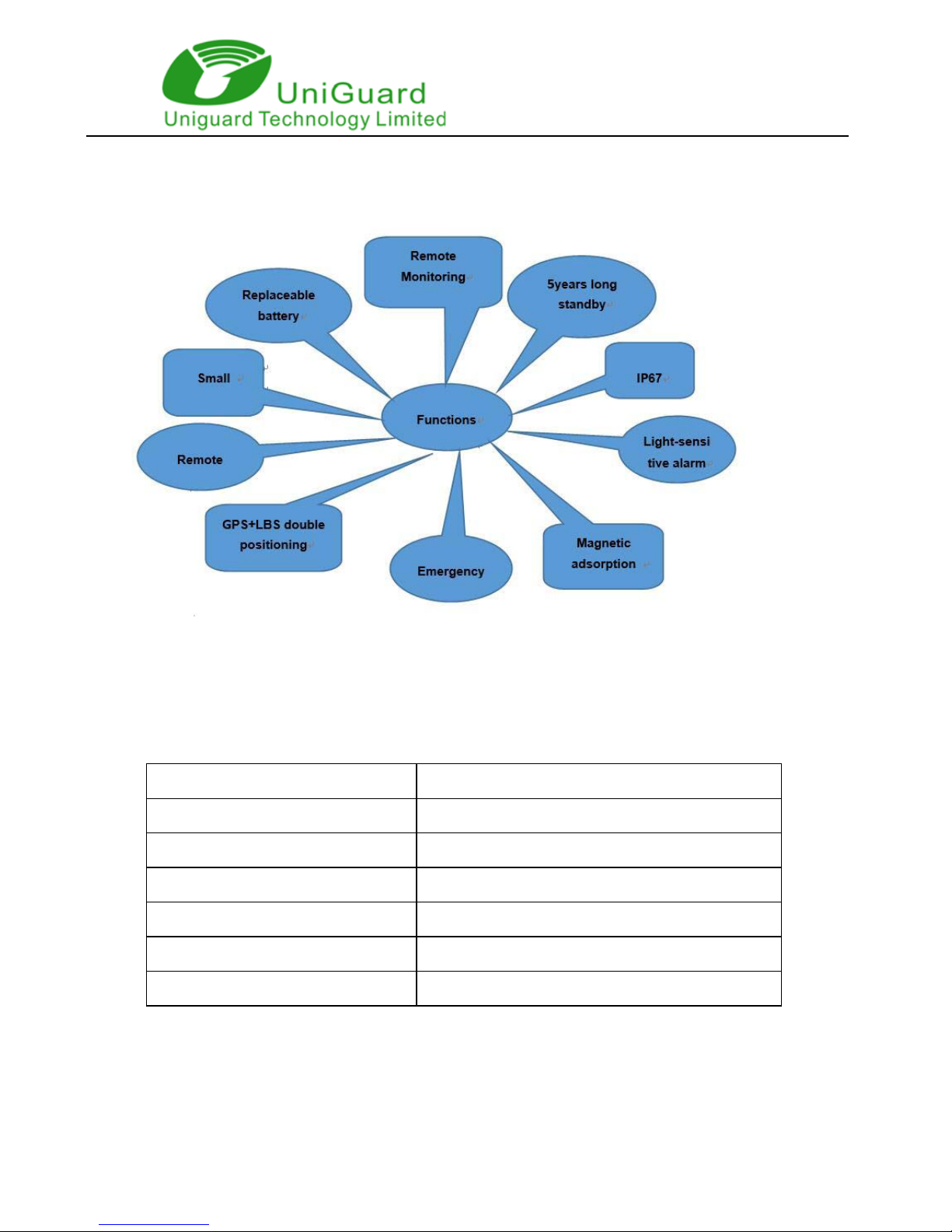

2.2 Picture and main functions:

3 Commands

Function SMS command

Set IP and Port adminip123456 104.243.132.242 8000

Set Domain and Port adminip123456 www.gpspos.net 8000

Set APN apn123456 aaa bbb ccc

Set Working Mode:1 2 3 RTC123456 2

Check Device Status check123456

Restart Device reset123456

Working Mode explanation:

LBS cannot locate out of China. Mode 2 is advised to use out of China.

【Mode 1-LBS Mode】：every 24 hours wakeup 1 time to send LBS data

UniGuard Technology Limited

- - www.uniguardgps.com

Send command: RTC123456 1

【Mode 2-GPS Mode】：every 24 hours wakeup 1 time to send GPS data

Send command: RTC123456 2

【Mode 3-Real time Mode】：every 60seconds time interval to send GPS data

Send command: RTC123456 3

Attention:

Attention: Don’t switch to Mode 3 randomly otherwise device

will out of battery very soon.Only use Mode 3 for urgent real time

tracking.

4 Web Tracking

5.1Login www.gpspos.net to start web tracking service with your own

account

5.2 Download wechat, register a wechat account, search

GPSCARTRACK and follow, login the system with your own account.

6 Cautions

6.1 Keep the unit dry.

6.2 Don’t use & store the unit in dusty places.

6.3 Don’t put the unit in overheated or overcooled places.

6.4 Handle carefully. Don’t vibrate or shake it violently.

6.5 Clear the unit with a piece of dry cloth.

6.6 Don’t paint the unit.

UniGuard Technology Limited

- - www.uniguardgps.com

UM666 Testing Guide

Before installing in vehicle, make sure all settings are ready to configure.

1) Device defaults 24 hours time interval LBS mode【Mode 1】

2) If need to switch to 24 hours time interval GPS mode【Mode 2】， steps as

below:

3) Note: device only working last 3 minutes after power on, user need finish

below SMS setting within 3 minutes; if failed then re-start device power on again to try.

Send IP SMS: adminip123456 104.243.132.242 8000

Send APN SMS:

apn123456+space+apn+space+name+space+password

Send GPS Mode SMS: RTC123456 2

Remark: If power on device at 09:00 am, then device will

wakeup for 3 minutes at 09:00 am everyday.

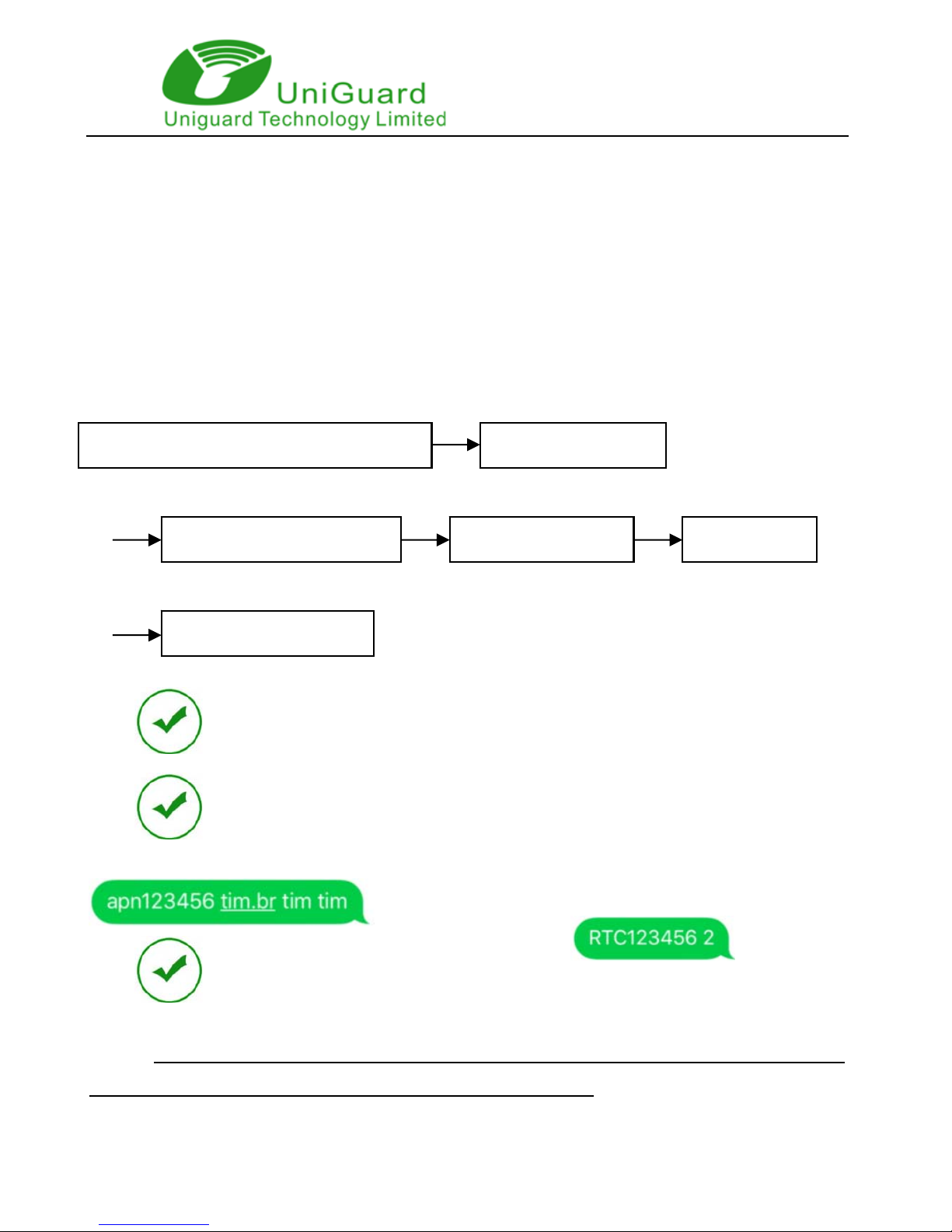

Insert SIM

Move device outside Turn on device

Send: RTC123456 2 Set IP and Port Set APN

Install in vehicle
