4G Magnetic GPS Tracker

User Manual

UM671/UM672

UniGuard Technology Limited

- - www.uniguardgps.com

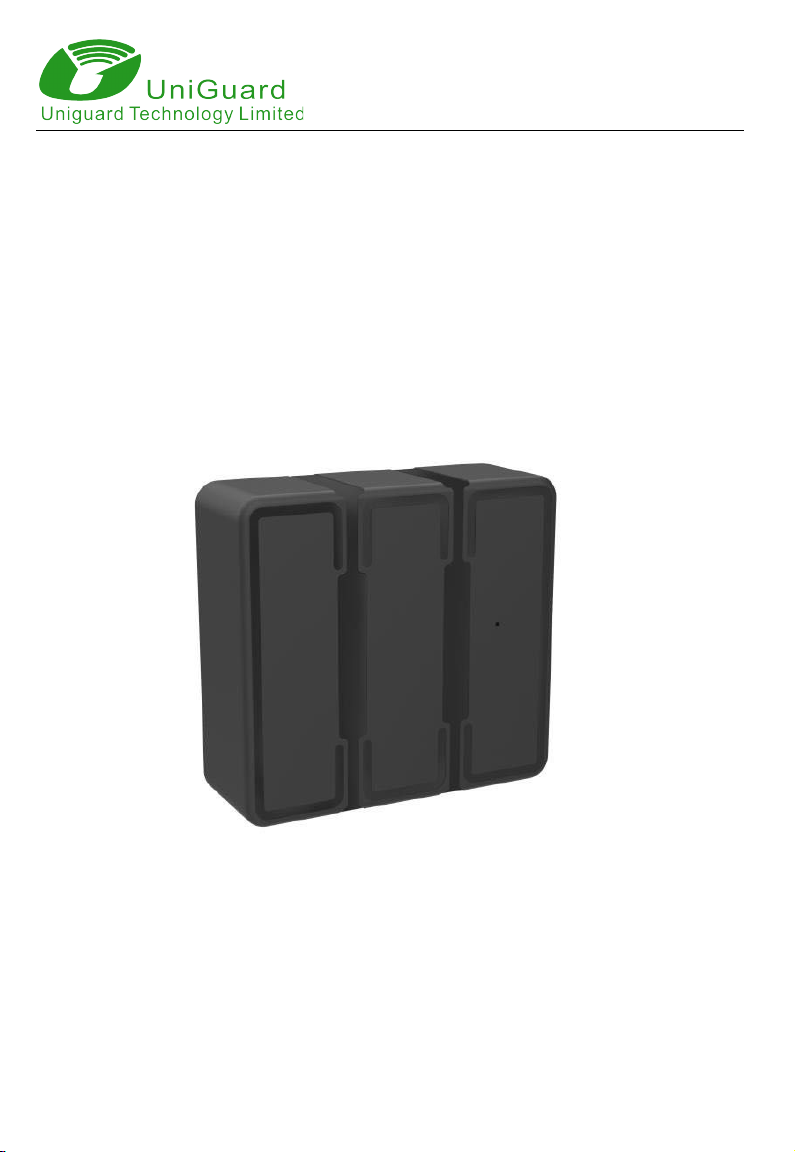

1 GPS Tracking System Introduction

Portable GPS Tracker UM671/UM672 integrates GPS and GSM functions, which

could send vehicle location and status to mobile and Internet. It utilizes GPS and LBS

double locating. Its advantage is that the device has built-in 5,000 and 10,000mAh backup

battery which standby mode last 50 and 100 days. No wires connection. Place and Work.

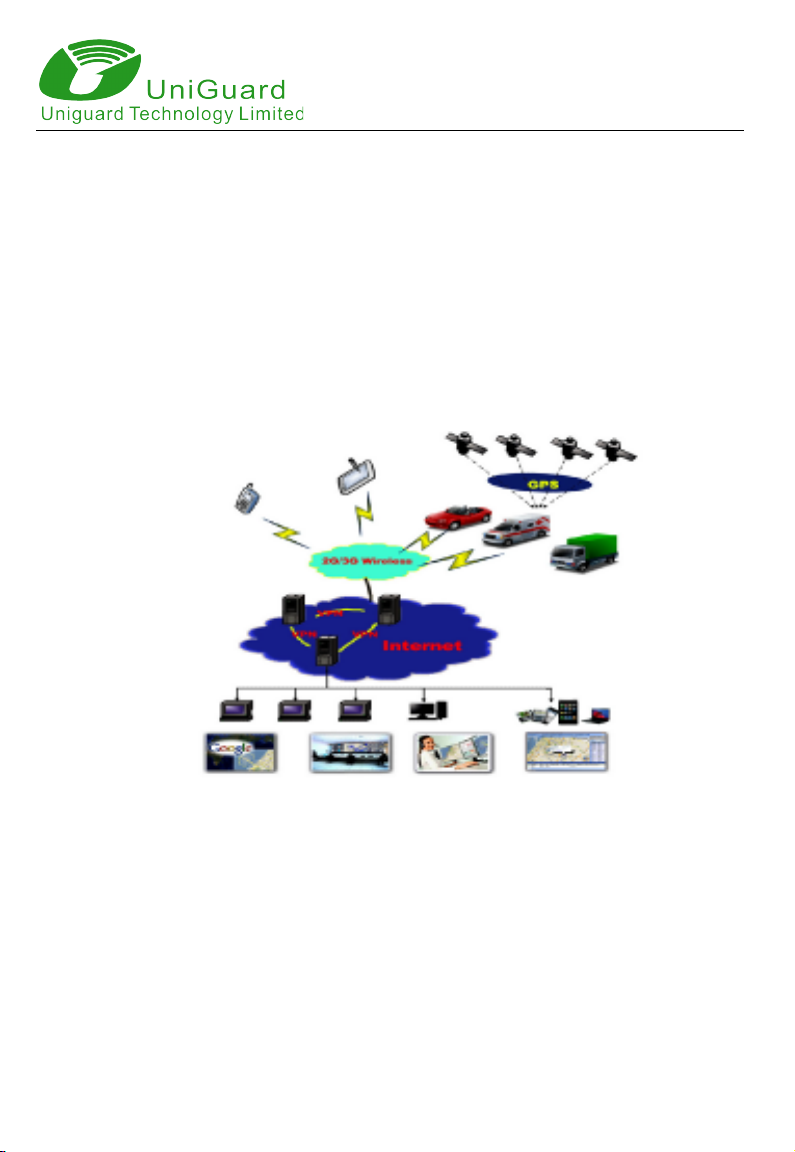

The system structure is as below:

UniGuard Technology Limited

- - www.uniguardgps.com

2 Product Description

2.1 Specification

Content

Specifications

Dimensions and Weight

5000mAh: 73.8*69*26.5 mm 160g

10000mAh: 73.8*69*35.5 mm 260g

Network

4G:LTE-FDD: B1/B3/B5/B8

LTE_TDD: B34/N38/N39/N40/B41

3G:WCDMA: B1/B8

TD-SCDMA: B34/B39

2G: 850/900/1800/1900MHz

GPS chip

AT6558D

GSM Module

Quectel EC20

GPS sensitivity

-162dBm

GPS accuracy

10m

Time to First Fix

Warm status 35s

Hot status 1s

Standby

50 or 100 days

Storage Temperature

-40 to 85 ℃

Operation Temperature

-20 to 55 ℃

Humidity

5%-95% non-condensing

Light sensor

YES

USB Charging Port

YES

Magnet

φ18mm*2.8mm *6 NdFeB Permanent

Magnet

UniGuard Technology Limited

- - www.uniguardgps.com

2.2 Functions:

1.Advanced web tracking service

2.IOS/Android APP

3.Anti-jammer

4.Super magnet for fast and easy installation

5.Water proof IP54

6.Geo-fence alarm set by APP

7. Overspeed alarm by web or APP

2.3 LED Status

Color

Status

Red for Power

Yellow for GSM

Blue for GPS

Charing / OK

GSM OK

GPS OK

OFF

Fully Charged /

Switched OFF

GSM Standby

GPS Standby

Flash

Searching GSM

Searching GPS

2.4 SIM Card Installation

1. Prepare a Micro SIM card with GPRS packet, Call, SMS and caller ID display

activated.

2. Insert SIM card with right direction and you shall hear a sound. Push-Push installation.

3. Put device at open place, wait for signal initialization.

4. Send SMS command to control device.

5. Add device to web tracking center with admin account and start to track it online.

UniGuard Technology Limited

- - www.uniguardgps.com

3 SMS Commands

Function

SMS command

Query current location

G1234

Set Domain and Port

IP www.gpspos.net 8000

Set APN

apn123456 apn

Set APN username

apnuser123456 username

Set APN password

apnpasswd123456 password

Set Admin number

101#Tel# (e.g. 101#150123456#)

Delete Admin number

D101#

Check Device Status

CXZT

Restart GPS

CQGPS

Restart Device

Restore Device

FORMAT

Interval Setup

Freq,123456,60

UniGuard Technology Limited

- - www.uniguardgps.com

4 Web and APP Tracking

1 Login www.gpspos.net to start web tracking service with your own

account

2 APP: Search GPSPOS at Appstore or POSGPS at Google Play.

5 Cautions

1 Keep the unit dry.

2 Don’t use & store the unit in dusty places.

3 Don’t put the unit in overheated or overcooled places.

4 Handle carefully. Don’t vibrate or shake it violently.

5 Clear the unit with a piece of dry cloth.

6 Don’t paint the unit.
