Uniden UH950S Manuel utilisateur

UH950S

Handheld UHF-CB Transceiver

For more exciting new products please visit our website:

Australia: www.uniden.com.au

WATERPROOF: JIS7

Uniden’s UH950S radio is designed to meet the water proong

standard of JIS7.

This Means:

Being dened as having no ingress of water when immersed at 1

metre for 30 minutes.

The UH950S will only meet this rating if fully assembled and all

rubber seals and covers are well maintained and correctly tted.

This means that the accessory jack cover is inserted, and

the battery pack and antenna are attached and securely

fastened.

LITHIUM ION BATTERY PACK WARNING

• This equipment contains a Lithium Ion Battery Pack.

• The Lithium Ion Battery Pack contained in this equipment may

explode if disposed of in a re.

• Do not short-circuit the Battery Pack.

• Do not charge the Lithium Ion Battery Pack used in this equipment in

any charger other than the one designed to charge this Battery Pack.

Using another charger may damage the Battery Pack or cause the

Battery Pack to explode.

• Lithium Ion batteries must be disposed off properly.

NOTE

USER LICENSE INFORMATION

The citizen band radio service is licensed in Australia by

ACMA Radio-communications (Citizen Band Radio

Stations) Class Licence and in New Zealand by MED

General User Licence for Citizen Band Radio and

operation is subject to conditions contained in those

licenses.

Warning

UNIDEN UH950S Handheld UHF-CB Transceiver

Introduction 4

Included in your Package 5

Controls and Indicators 6

Getting Started

Connect Drop-in Charger with the AC Adaptor 7

Attaching the Antenna 7

Attaching the Battery Pack 8

Attaching the Beltclip 8

Charging the Battery Pack 9

Battery Level Display 10

Accessory Jack Cover 11

Connecting the SPKR/MIC 11

Operation

Power On/Off 12

Volume 12

Setting the Squelch 12

Selecting Channel 13

To Transmit and Receive 13

To Operate in Duplex Mode 14

Transmit Power Select 15

Boost 15

Scanning 15

Master Scan (M.SCN) Mode 17

Open Scan (OS) Mode 20

Group Scan (GS) Mode 21

Priority Channel 22

Drop-Out Delay 22

Instant Priority Channel 22

Monitor 23

CTCSS 23

DCS 24

VOX 24

Busy Channel Lock-out (BCL) 25

Call Tone 25

Roger Beep 26

Key Beep 26

Scramble 26

Keypad Lock 27

Backlighting 27

CTCSS Codes and Frequencies 28

DCS Codes Table 29

UHF-CB Channel Guidelines 30

UHF-CB Channels and Frequencies 31

Warranty 33

Contents

UNIDEN UH950S Handheld UHF-CB Transceiver

Introduction

UNIDEN UH950S Handheld UHF-CB Transceiver

The UH950S is a JIS7 Waterproof, portable two-way UHF-CB radio. It is

compact, rugged and ts easily in your hand. This hand held UHF-CB radio

will give you consistent, outstanding performance in virtually all conditions

and situations. To ensure that you get the most from the UH950S features,

please read this operating guide carefully before using the unit.

FEATURES

• Narrow Band (NB) Radio

• Communicate with up to 80 Channels in the UHF-CB Band1

• 5W Max TX Power

• 1W/5W Switchable TX Power

• Waterproof (meets JIS7 waterproof specications)2

• 38 Built-in CTCSS codes & additional 104 DCS codes

• Backlit Keypad & LCD Display

• Instant Channel

• 10 Call Tone

• Boost

• Duplex Mode1

• Master Scan

• Open and Group Scan

• Busy Channel Lockout Function

• VOX Function

• Headset Jack

• Keypad Lock

• Battery Type: Lithium-lon Rechargeable

• Low Battery Alert

• Battery strength Indicator

• Auto Battery Save

• Battery Cover with charge contacts

• Roger Beep

• Scramble On/Off

¹ Refer to p.30 - p.32 for channel information

2 The UH950S radio meets waterproof (JIS7) specications only

when the battery, the antenna and accessory MIC jack cap are

correctly installed. The UH950S will retain its JIS4 rating when the

accessory Speaker MIC/Earphone MIC are connected correctly.

Accessory Speaker MIC is splashproof (JIS4).

Included in your Package

UNIDEN UH950S Handheld UHF-CB Transceiver

NOTE

If any of these items are missing from the box, contact your

place of purchase, immediately.

Optional Accessories

• Cigarette Lead Charger with Hang Up Bracket (CK950)

UH950S AC Adaptor

(PS-S12C0BL1)

Antenna

Drop-in Charger

(DT950A)

External Speaker

Mic (SM-950)

Lithium Ion Battery

(BP950)

Owner’s Manual

Belt Clip and

Wrist Strap

UH950S

Earphone Mic

(EM-950)

UH950S

DC Adaptor

Controls and Indicators

UNIDEN UH950S Handheld UHF-CB Transceiver

1 Antenna

2 Rotary Knob

3 MON/LOCK Key

4 LCD Dislay

5 SCAN][OS/GS/MS Key

6 MENU/MEM Key

7 Microphone

8 Speaker

9 LED

10 INST Key

11 UP and DOWN Keys

12 PTT Button

13 BOOST Button

14 CALL/SQL Button

15 Belt Clip

16 Battery

17 Battery Release Clip

DEF

A Priority

B Master Scan

C High Power

D Group Scanning

E Busy Channel Lock Out

F DCS

G CTCSS/DCS Channel

Numbers

H CTCSS

I Key Lock

J Battery Level Indicator

K Scramble

L Channel Numbers

M Memory

N Receive

O Transmit

P VOX

Getting Started

UNIDEN UH950S Handheld UHF-CB Transceiver

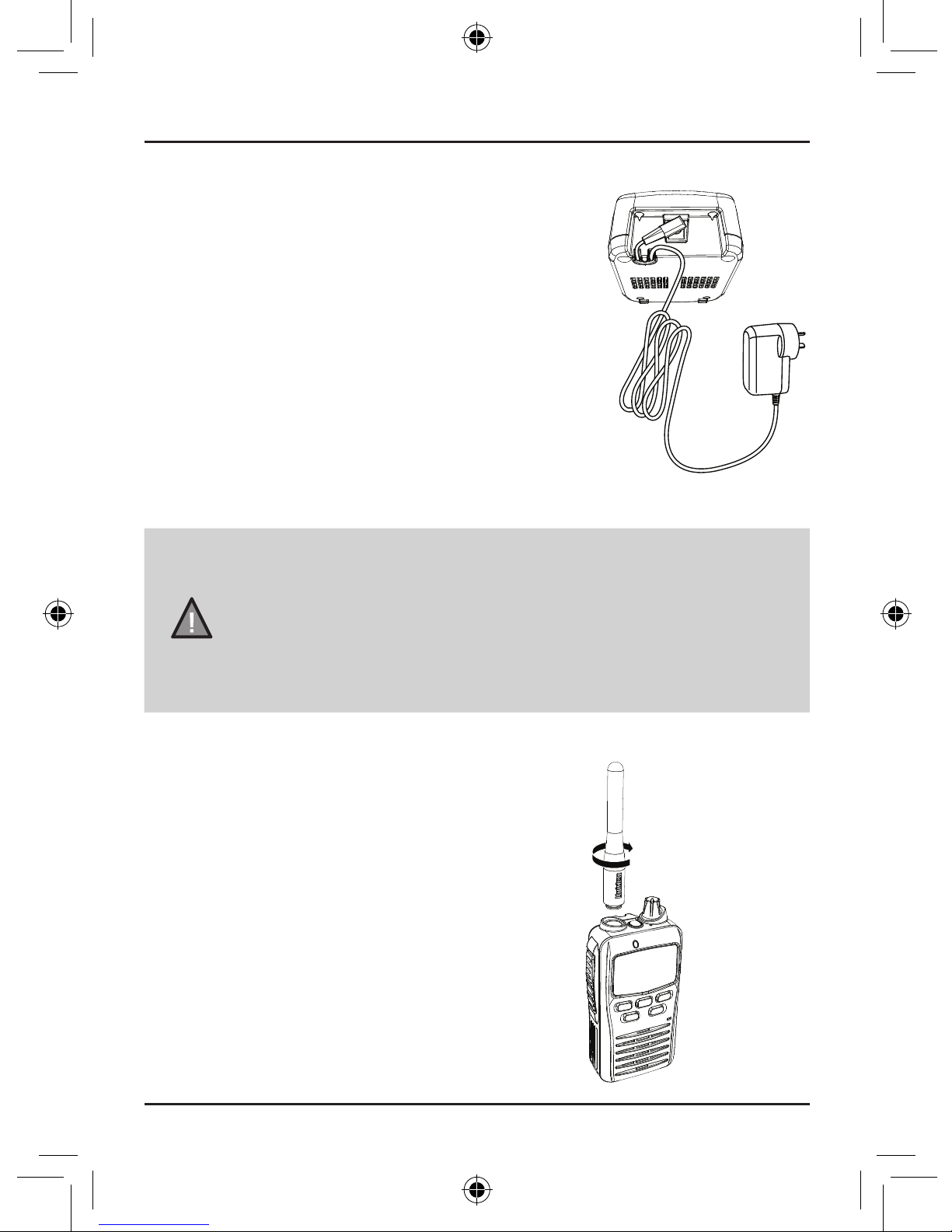

Connect Drop-in Charger with AC Adaptor

Plug one end of the AC adaptor into the wall

outlet and the other end into the drop-in charger.

Connect DC Charging Adaptor

to Cigarette Lighter Jack

OR...

Attaching the Antenna

Attach the antenna to the UH950S

Be sure the antenna is rmly seated.

NOTE

The drop-in charger and DC charging adaptor are not water

proof. Ensure the radio is dry before connecting to the char-

ger. Don’t use the chargers when the ambient

temperature is below 5º C (37º F) or above 40º C (108º F)

Input Voltage (Cigarette Lead Charger): +12VDC

to+24VDC. If Charge LED didn’t light up, please conrm the

above temperature.

K Scramble

L Channel Numbers

M Memory

N Receive

O Transmit

P VOX

Getting Started

UNIDEN UH950S Handheld UHF-CB Transceiver

Attaching the Battery Pack

1. Place the battery pack onto the back

of the radio. It will only  t in one way.

2. Snap the battery release clip until it clicks.

Be sure the battery pack  ts tightly against

the UH950S body.

CAUTION

Avoid exposing the Lithium Ion battery, attached or

unattached to the radio, in direct sunshine, heated cars, or

in areas with temperatures below –20°C (–4°F) or above

+60°C (+140°F).

Exposing the chemicals contained within the battery pack to

temperatures above +60 °C (+140°F) may cause the battery

to rupture, fail or reduce performance.

In case of exposure to cell contents, wash the affected area

thoroughly, and seek medical attention.

Additional battery cautions should be applied as described

on p.2.

Attaching the Beltclip

1. Hold the beltclip in the direction shown.

2. Apply it to the hanger piece on the back of

the radio. Then slide it up.

3. You will hear a click. The beltclip is  rmly

attached.

4. To take the beltclip off the radio, turn it

and slid it up.

Getting Started

UNIDEN UH950S Handheld UHF-CB Transceiver

Your radio is powered by a specially designed Lithium Ion battery pack.

• Before operating the UH950S, charge the Lithium Ion battery pack for 3

hours without interruption in the drop-in charger.

The drop-in charger can charge the Lithium Ion battery

pack attached to the UH950S, in the front charging

slot.

1. Place the UH950S, in the drop-in charger.

2. The red LED illuminates and stays ON, until fully

charged.

• The charger won’t overcharge the battery packs.

3. The green LED illuminates and stays ON after

charging is completed.

• Do not transmit when the UH950S, is in the drop-

in charger!

• You can monitor incoming calls while the UH950S, is

in the drop-in charger.

Charging the Battery Pack

NOTE

For the initial battery charge, make sure the radio is off for

optimum charging.

Getting Started

UNIDEN UH950S Handheld UHF-CB Transceiver

Battery Level Display

The BATTERY icon at the top of the screen indicates the battery level at

all times. The battery level is displayed in 4 levels.

LEVEL 4

Battery 100% full

LEVEL 2

Low Battery

At LEVEL 2, low battery alert will be sounded every 15 minutes.

NOTE

When (PTT) or (BOOST) is pressed at Level 1, an error

tone sounds and transmission is disabled. Once at Level 1

the unit will automatically shutdown after 30 seconds.

NOTE

Recharge the battery at any time. When the battery is

empty, it will take up to 3 hours to fully charge.

Battery Life : 27 Hours (Typical)

This is based on the following Duty Cycle:

Transmit (Low Power) 5%

Receive 5%

Stand-by 90%

LEVEL 3

Battery approx.

40% capacity

LEVEL 1

(ashing)

Empty Battery

LED Status

LED What it Indicates

Green Start Up/Power on

Green Monitor mode

Green Receiving Signal

Red Transmitting signal

LED
