Ubiquiti UAP-AC-PRO Manuel utilisateur

UAP-AC-PRO Quick Start Guide

https://dl.ubnt.com/qsg/UAP-AC-PRO/UAP-AC-PRO_EN.html[12/19/2019 1:27:41 PM]

UniFi AP AC Pro Mounting Bracket Ceiling Backing Plate

Flat Head Screws (Qty. 4) Keps Nuts (Qty. 4) Screws (Qty. 4)

Screw Anchors (Qty. 4) Cable Feed Plug Gigabit PoE* (48V, 0.5A) with

Mount Bracket

Power Cord*

Package Contents

UAP-AC-PRO Quick Start Guide

UAP-AC-PRO Quick Start Guide

https://dl.ubnt.com/qsg/UAP-AC-PRO/UAP-AC-PRO_EN.html[12/19/2019 1:27:41 PM]

* Included only in the single-pack of the UAP-AC-PRO

Installation Requirements

Phillips screwdriver

Drill and drill bit (6 mm for wall-mounting or 3 mm for ceiling-mounting)

Optional: Drywall or keyhole saw (to cut 18 mm hole for Ethernet cable feed)

Cat5/6 UTP cable for indoor installations

IMPORTANT: The UAP-AC-PRO requires the UniFi Controller v5.4 or higher, available

at: ui.com/download/unifi

Outdoor Installation Requirements

IMPORTANT: The UAP-AC-PRO may be installed outdoors under an eave or other

protected location. Do not install the UniFi AP in an open environment.

Mounting location should be at least 60 cm (2 ft) from the edge of the eave or ceiling.

Cable feed opening must be directed away from the open environment.

Cable feed must be pointed downwards when wall-mounted.

Shielded Category 5 (or above) cabling with drain wire should be used for all outdoor

wired Ethernet connections and should be grounded through the AC ground of the PoE.

We recommend that you protect your networks from harmful outdoor environments and

destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti. For

more details, visit ui.com/toughcable

System Requirements

Linux, Mac OS X, or Microsoft Windows 7/8/10

Java Runtime Environment 1.8 or above recommended

Web Browser: Google Chrome (Other browsers may have limited functionality.)

UniFi Controller software v5.4 or newer (available at: ui.com/download/unifi)

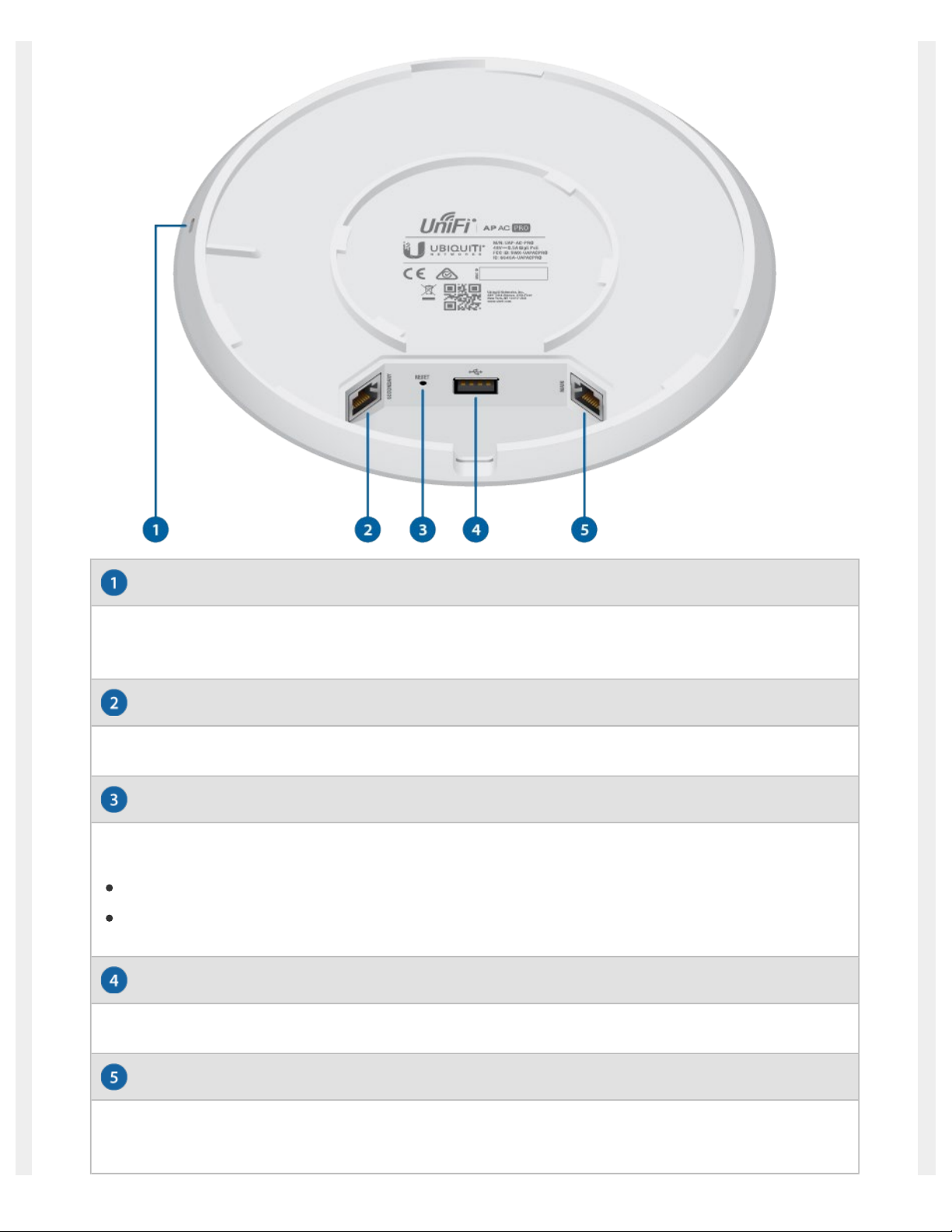

Hardware Overview

LED

Ports

UAP-AC-PRO Quick Start Guide

https://dl.ubnt.com/qsg/UAP-AC-PRO/UAP-AC-PRO_EN.html[12/19/2019 1:27:41 PM]

Security Slot

Secondary

Reset

USB

Main

If you need to remove the UniFi AP from the Mounting Plate, insert the included Release

Tool in the Security Slot to release the Lock Tab and turn the UniFi AP counterclockwise.

The Secondary port is a Gigabit Ethernet port used for bridging.

The Reset button serves two functions for the UniFi AP:

Restart Press and release the Reset button quickly.

Restore to Factory Default Settings Press and hold the Reset button for more than five

seconds.

The USB port is reserved for future use.

The Main port is a Gigabit Ethernet port used to connect the power and should be

connected to the LAN and DHCP server.

UAP-AC-PRO Quick Start Guide

https://dl.ubnt.com/qsg/UAP-AC-PRO/UAP-AC-PRO_EN.html[12/19/2019 1:27:41 PM]

Hardware Installation

The UniFi AP can be mounted on the wall or ceiling. Perform the steps for the appropriate

installation:

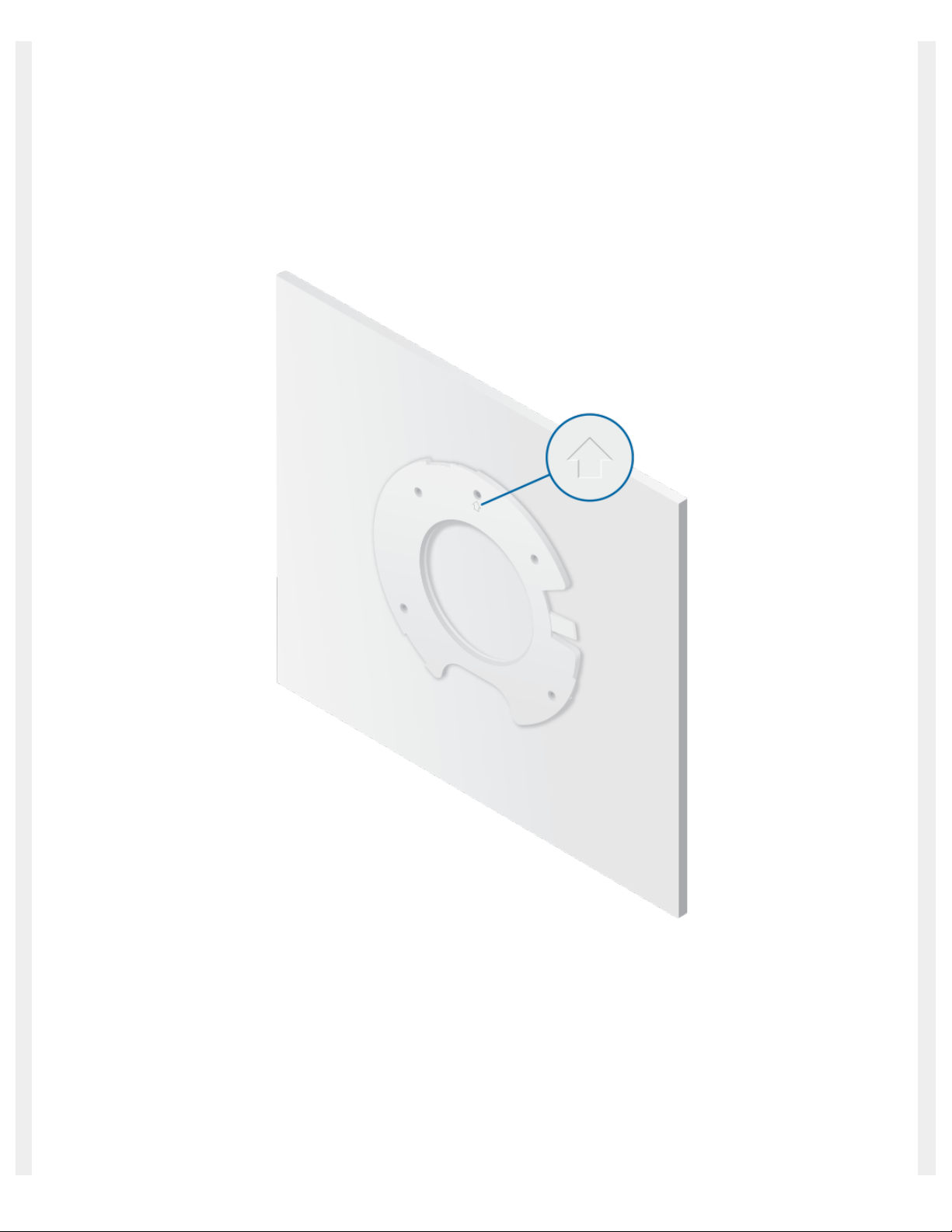

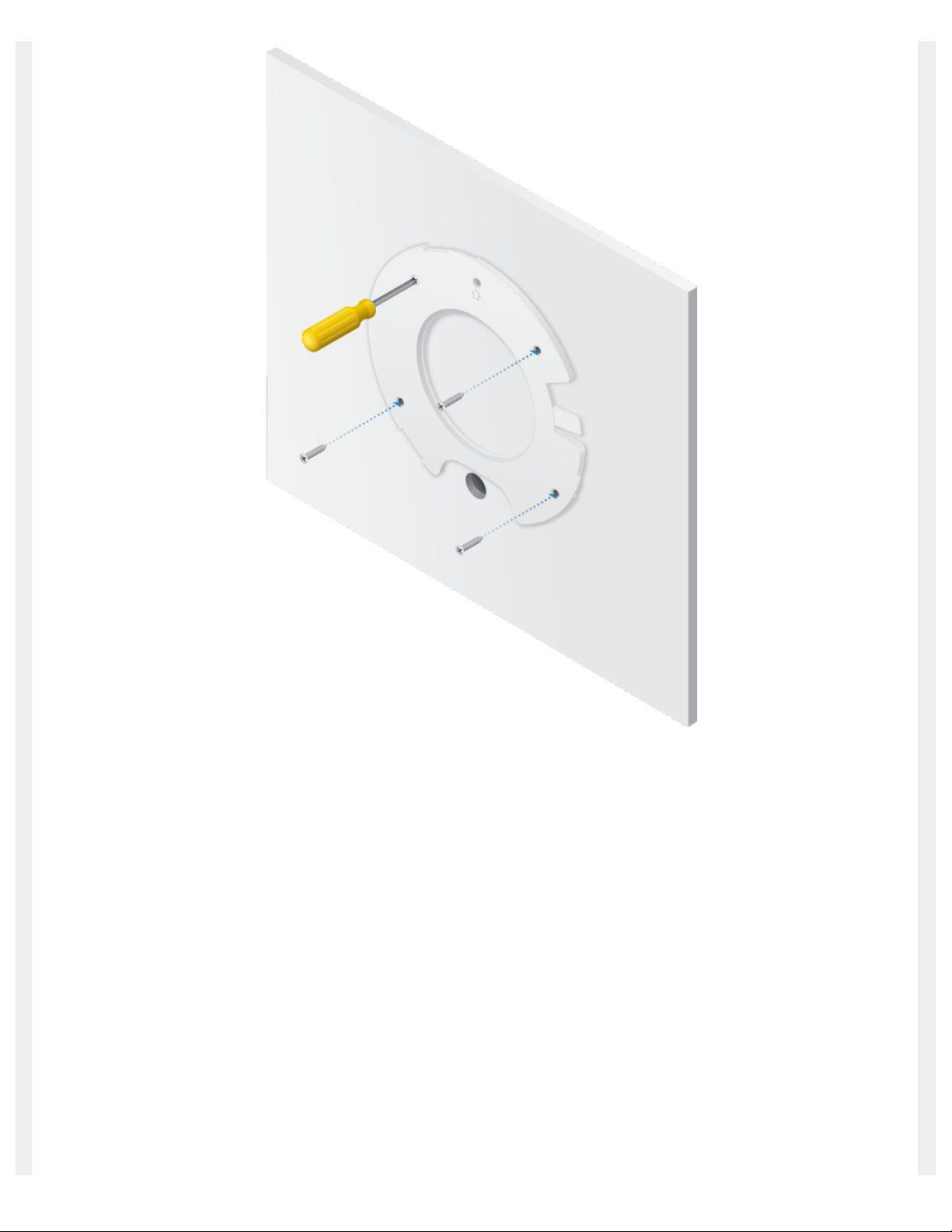

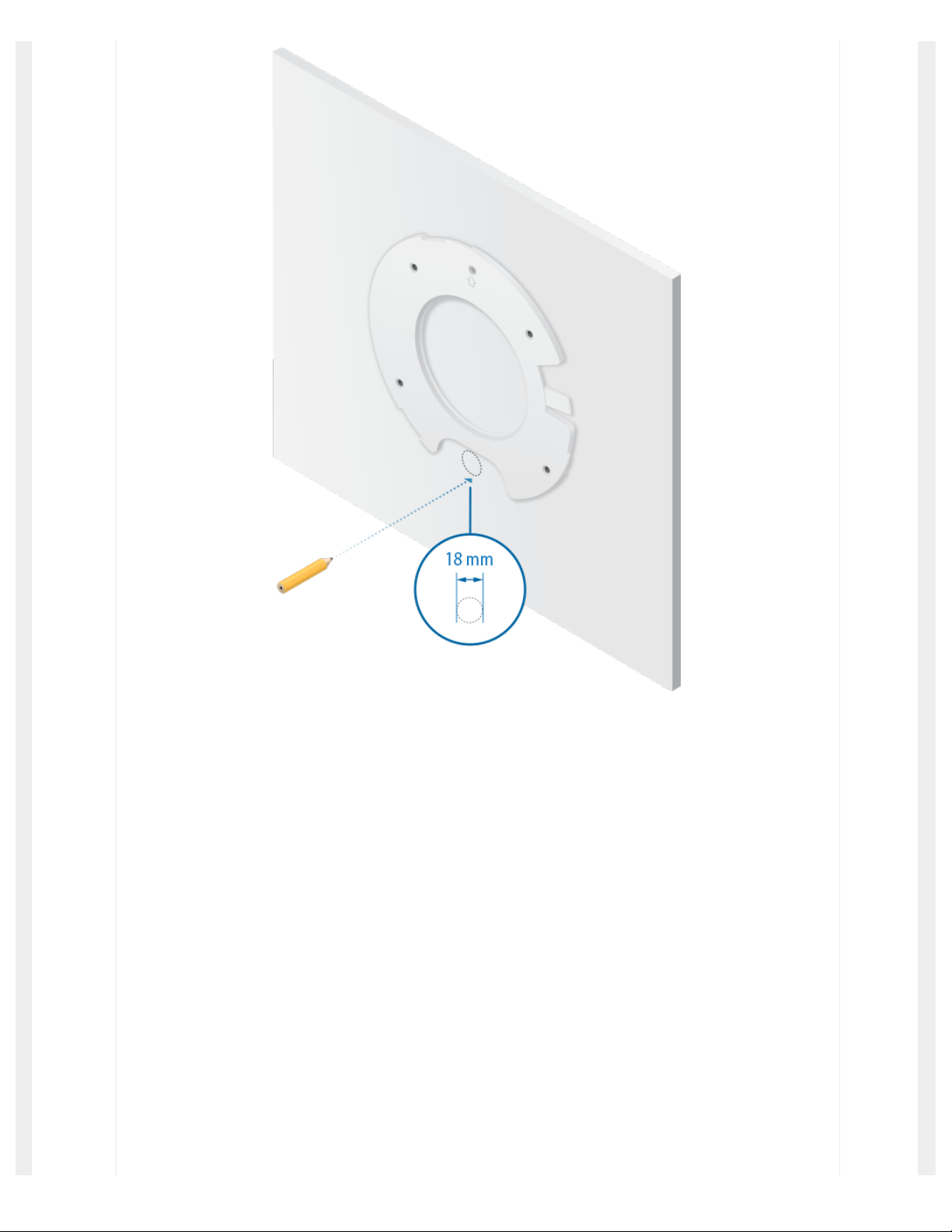

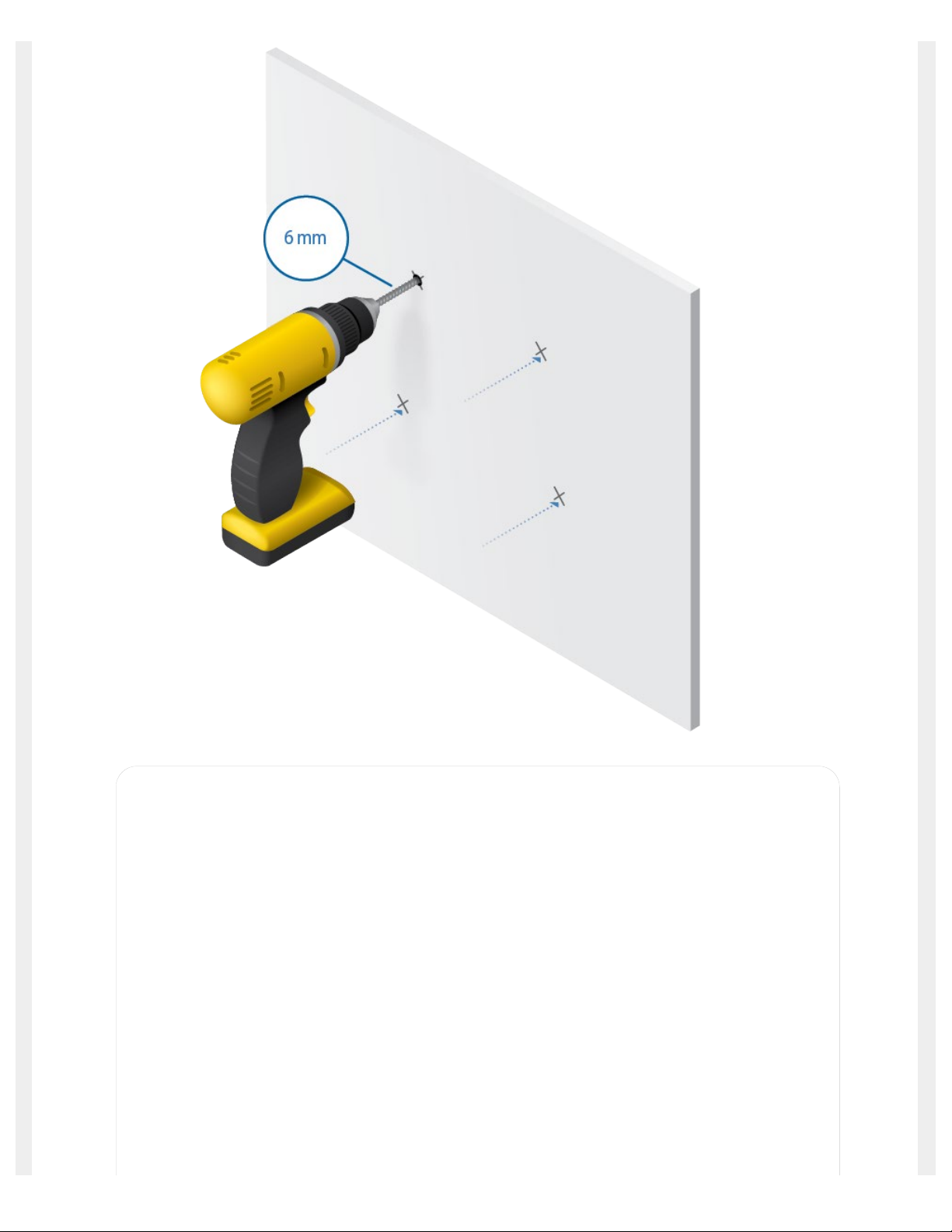

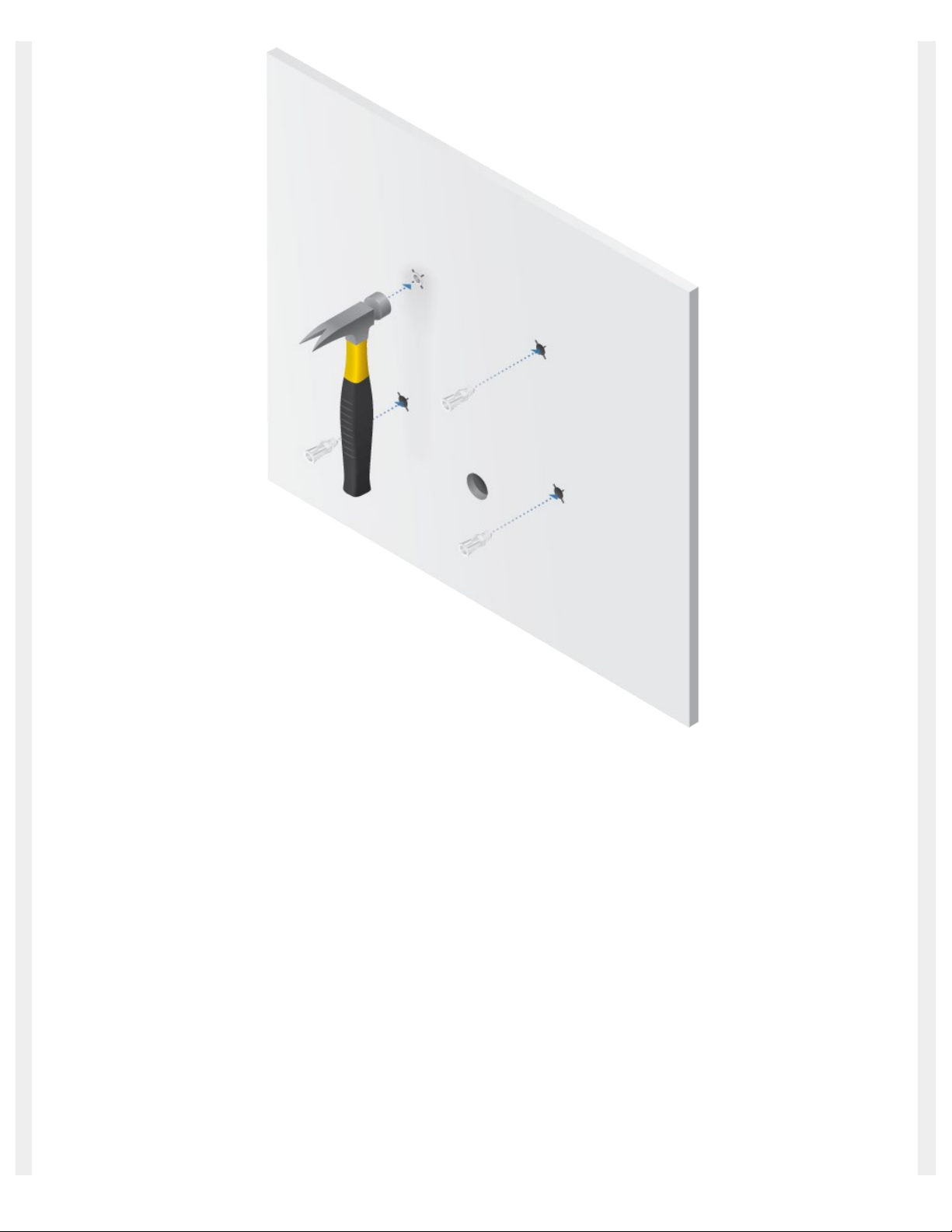

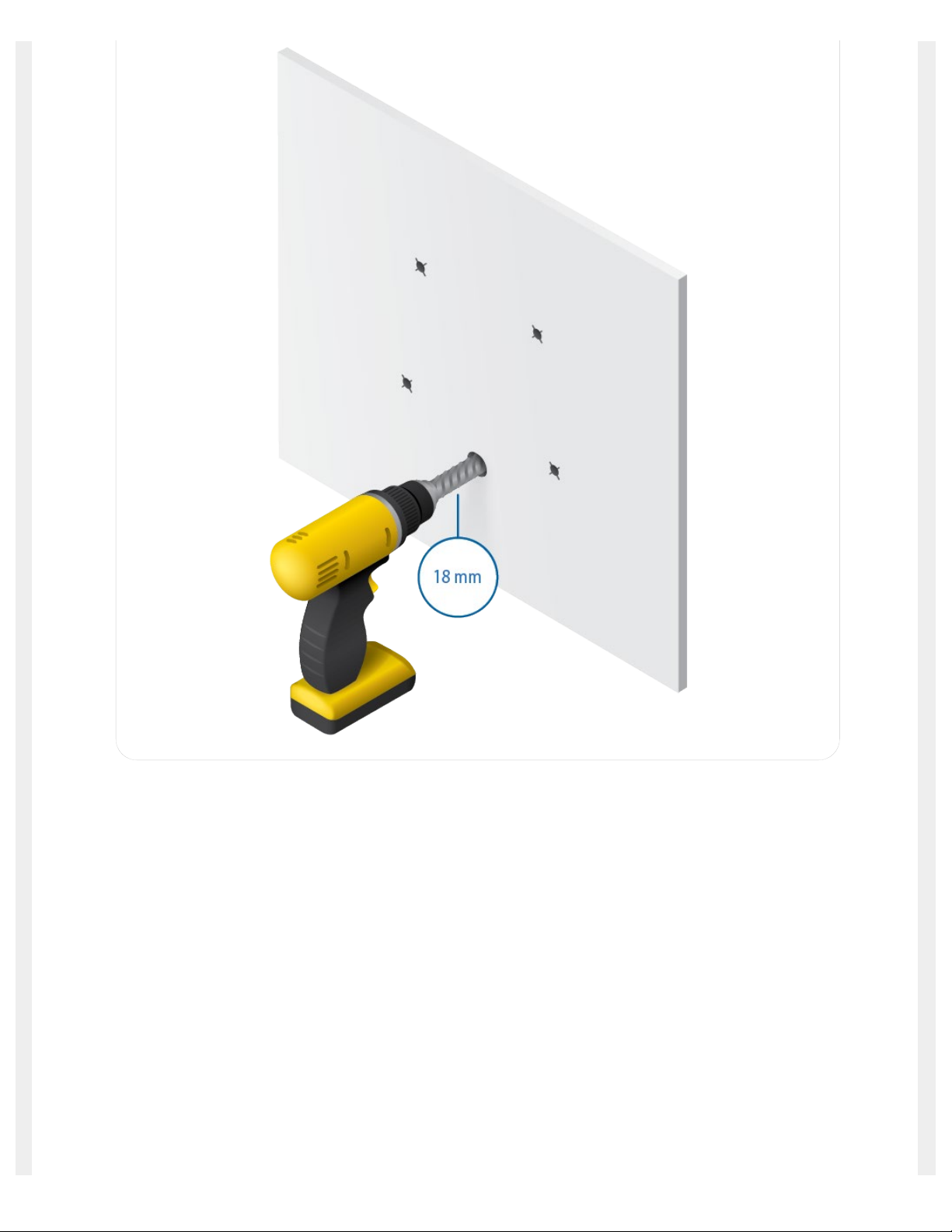

Wall Mount

1.

2.

UAP-AC-PRO Quick Start Guide

https://dl.ubnt.com/qsg/UAP-AC-PRO/UAP-AC-PRO_EN.html[12/19/2019 1:27:41 PM]

3.

UAP-AC-PRO Quick Start Guide

https://dl.ubnt.com/qsg/UAP-AC-PRO/UAP-AC-PRO_EN.html[12/19/2019 1:27:41 PM]

Optional

UAP-AC-PRO Quick Start Guide

https://dl.ubnt.com/qsg/UAP-AC-PRO/UAP-AC-PRO_EN.html[12/19/2019 1:27:41 PM]

UAP-AC-PRO Quick Start Guide

https://dl.ubnt.com/qsg/UAP-AC-PRO/UAP-AC-PRO_EN.html[12/19/2019 1:27:41 PM]

4.

UAP-AC-PRO Quick Start Guide

https://dl.ubnt.com/qsg/UAP-AC-PRO/UAP-AC-PRO_EN.html[12/19/2019 1:27:41 PM]

5.

UAP-AC-PRO Quick Start Guide

https://dl.ubnt.com/qsg/UAP-AC-PRO/UAP-AC-PRO_EN.html[12/19/2019 1:27:41 PM]

6.
