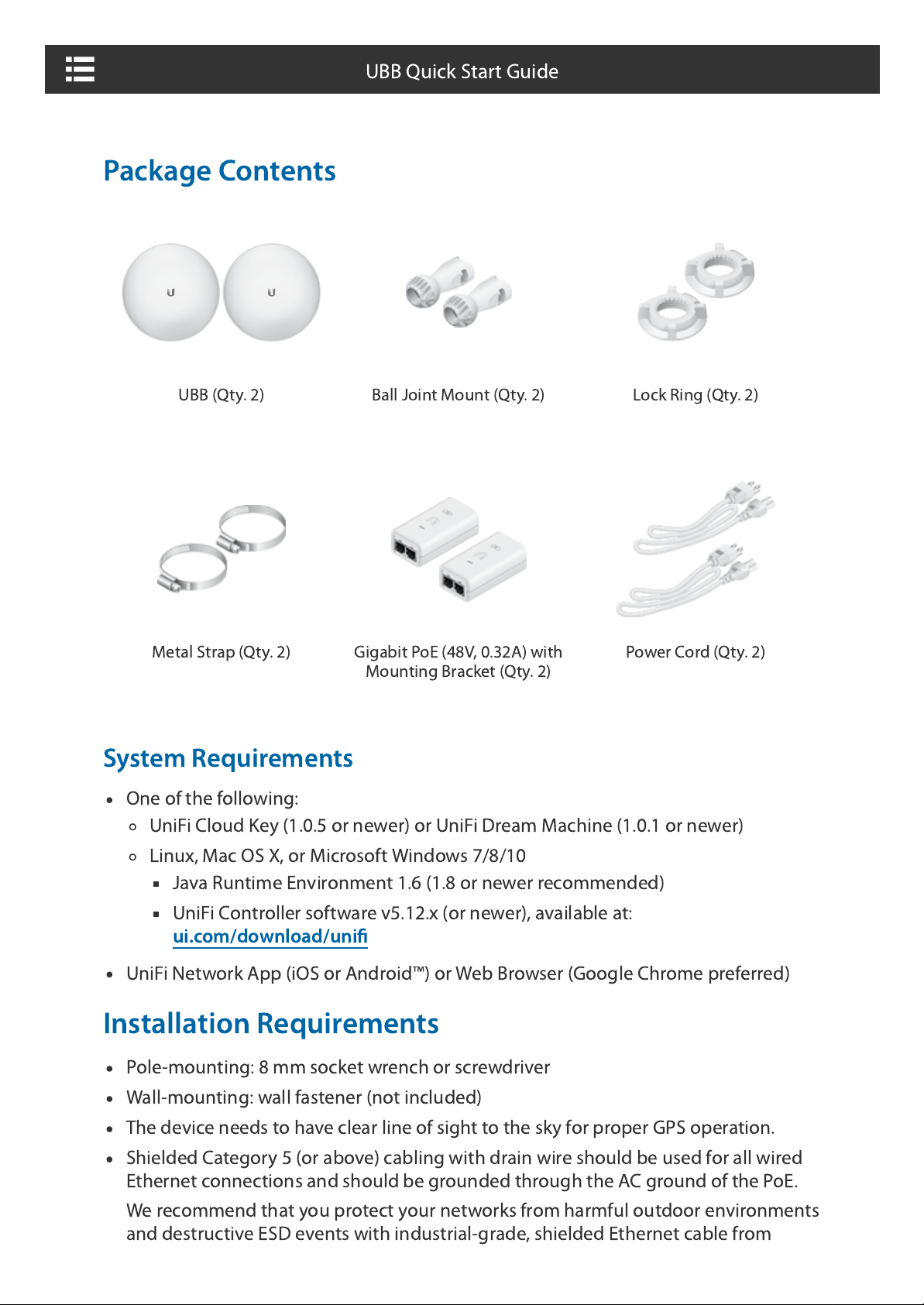

Ubiquiti UBB Manuel utilisateur

UBB (Qty. 2) Ball Joint Mount (Qty. 2) Lock Ring (Qty. 2)

Metal Strap (Qty. 2) Gigabit PoE (48V, 0.32A) with

Mounting Bracket (Qty. 2) Power Cord (Qty. 2)

Package Contents

System Requirements

One of the following:

UniFi Cloud Key (1.0.5 or newer) or UniFi Dream Machine (1.0.1 or newer)

Linux, Mac OS X, or Microsoft Windows 7/8/10

Java Runtime Environment 1.6 (1.8 or newer recommended)

UniFi Controller software v5.12.x (or newer), available at:

ui.com/download/uniﬁ

UniFi Network App (iOS or Android™) or Web Browser (Google Chrome preferred)

Installation Requirements

Pole-mounting: 8 mm socket wrench or screwdriver

Wall-mounting: wall fastener (not included)

The device needs to have clear line of sight to the sky for proper GPS operation.

Shielded Category 5 (or above) cabling with drain wire should be used for all wired

Ethernet connections and should be grounded through the AC ground of the PoE.

We recommend that you protect your networks from harmful outdoor environments

and destructive ESD events with industrial-grade, shielded Ethernet cable from

UBB Quick Start Guide

Ubiquiti. For more details, visit

ui.com/toughcable

Surge protection should be used for all outdoor installations. We recommend that

you use two Ethernet Surge Protectors, model ETH-SP-G2, one near the device and

the other at the entry point to the building. The ETH-SP-G2 will absorb power surges

and safely discharge them into the ground.

Hardware Overview

UBB Quick Start Guide

System LED

Reset Button

Ethernet Port

Flashing White Initializing.

White Factory defaults, waiting for integration.

Alternating White/Blue Device is busy; do not touch or unplug it. This usually

indicates that a process such as a ﬁrmware upgrade is

taking place.

Blue Successfully integrated into a network and working

properly.

Flashing

This is used to locate a device.

When you click Locate in the UniFi Network Controller

software, the LED will ﬂash blue. The software will

also display the location of the device on the map.

Resets to factory defaults. The device should be running after bootup is complete.

Press and hold the Reset button for about 10 seconds until the LED starts ﬂashing

and then becomes solidly lit. After a few seconds, the LED will turn oﬀ, and the

device will automatically reboot.

Note:

The UBB radios are pre-paired. If a link is lost due to conﬁguration

changes, you can reset both UBB radios to re-establish the link.

Local UBB radio (source LAN)

This Gigabit Ethernet port is used to connect the

power and should be connected to the LAN and DHCP server.

Remote UBB radio (bridged LAN)

This Gigabit Ethernet port is used to connect the

power and should be connected to the LAN. It will receive its IP address from the

UBB Quick Start Guide

DHCP server via the wireless link to the local UBB radio.

UBB Quick Start Guide

Hardware Installation

For each UBB radio, go to the appropriate mounting instructions: Pole Mounting or

“Wall Mounting”

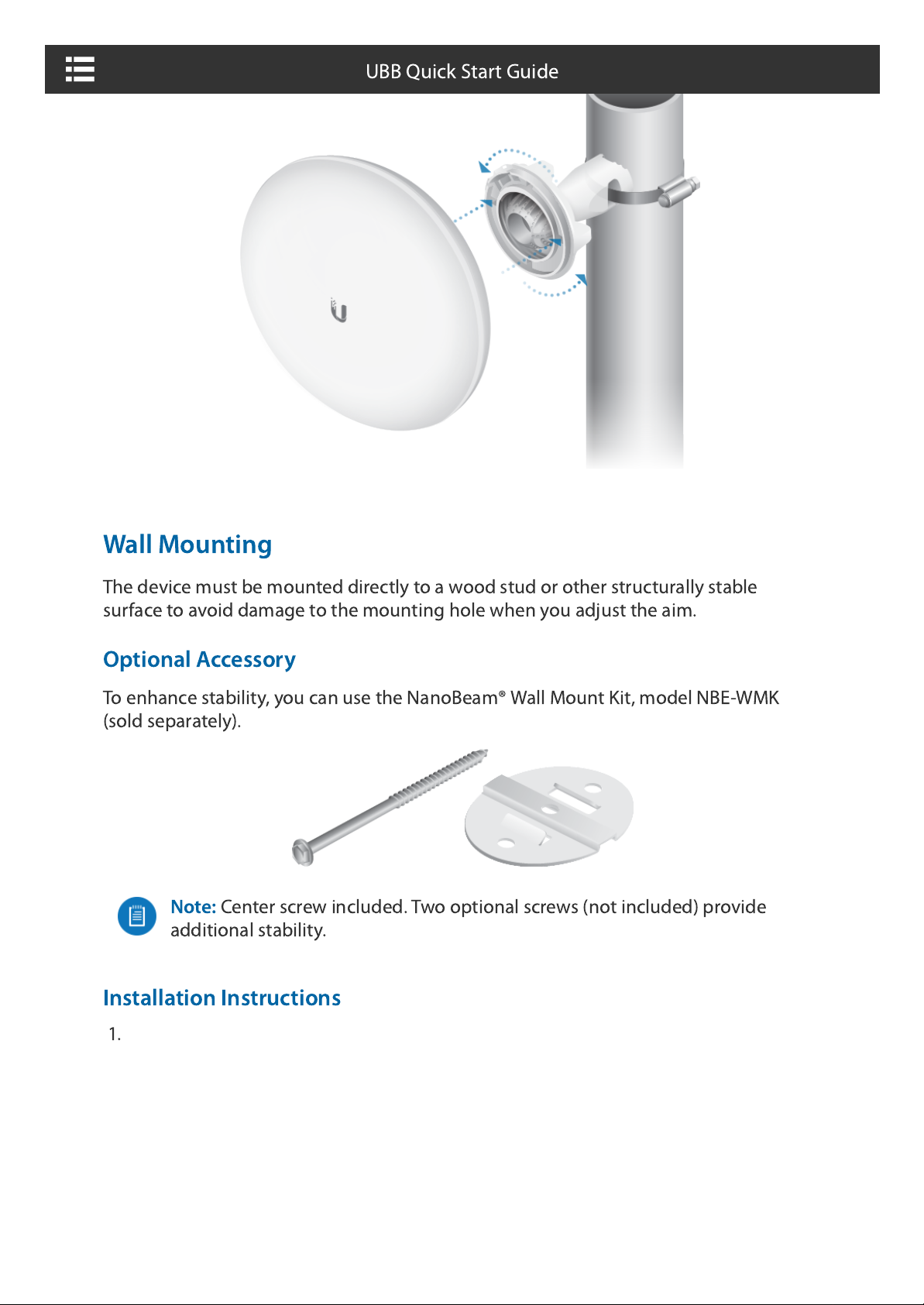

Pole-Mounting

UBB Quick Start Guide

Wall Mounting

The device must be mounted directly to a wood stud or other structurally stable

surface to avoid damage to the mounting hole when you adjust the aim.

Optional Accessory

To enhance stability, you can use the NanoBeam® Wall Mount Kit, model NBE-WMK

(sold separately).

Note:

Center screw included. Two optional screws (not included) provide

additional stability.

Installation Instructions

UBB Quick Start Guide



UBB Quick Start Guide

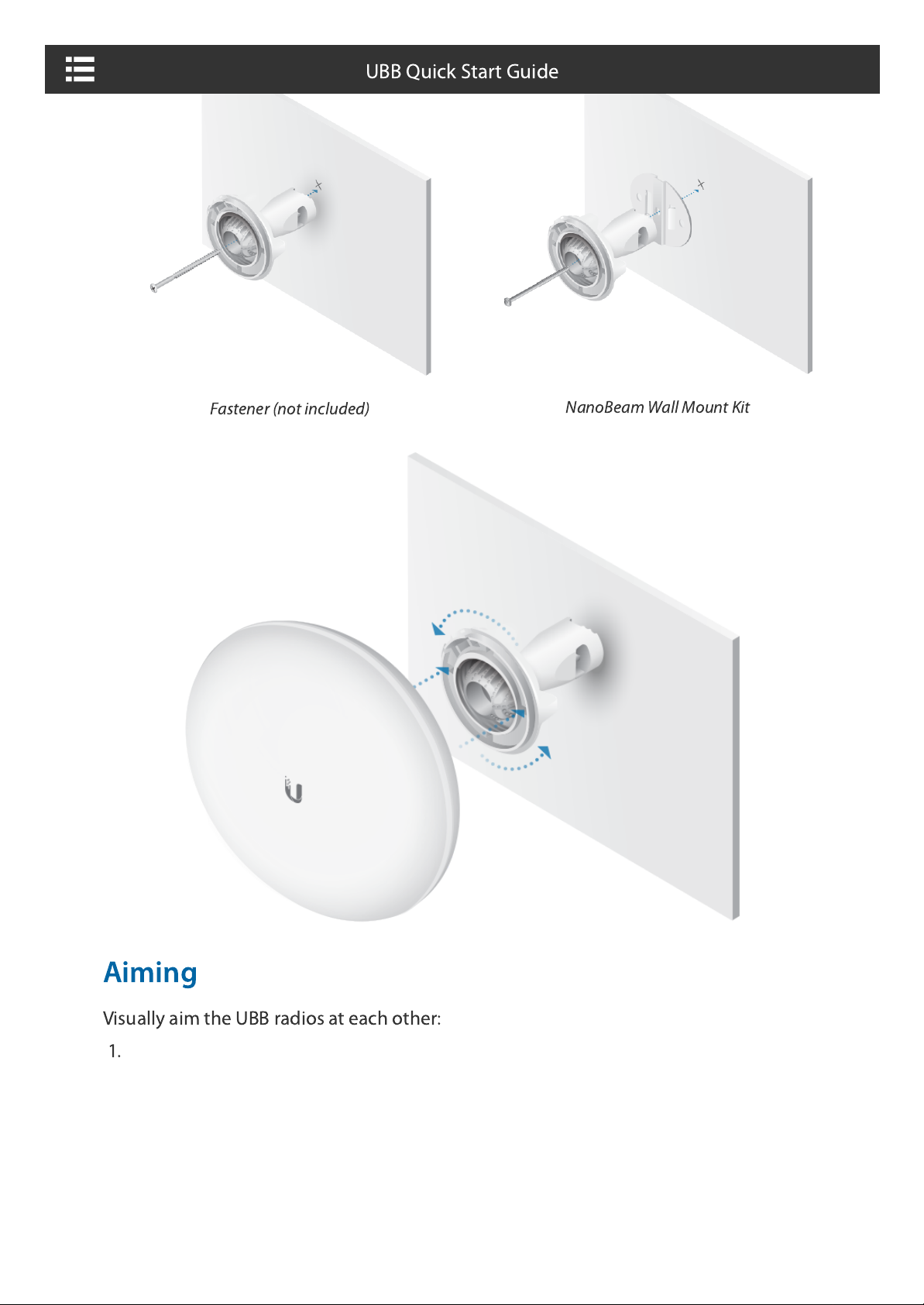

Fastener (not included)

NanoBeam Wall Mount Kit

Aiming

Visually aim the UBB radios at each other:

UBB Quick Start Guide

Connecting Power

For each UBB radio:

UBB Quick Start Guide
