Ubiquiti EdgeRouter LITE Manuel utilisateur

3-Port Router

Model: ERLite-3

Introduction

Thank you for purchasing the Ubiquiti Networks® EdgeRouter™

Lite. This Quick Start Guide is designed to guide you through

installation and also includes warrantyterms.

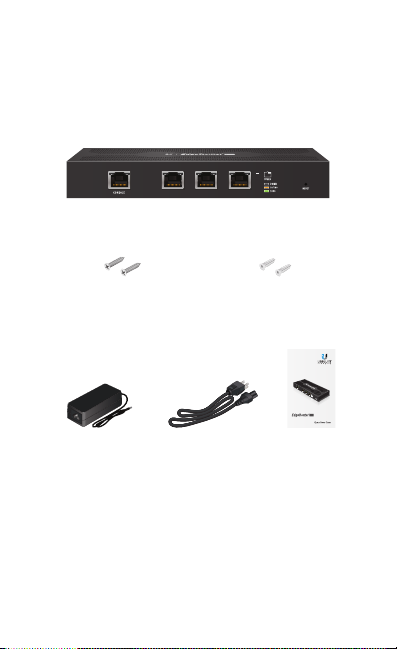

Package Contents

eth0 eth1 eth2

EdgeRouter Lite

Screws

(M2.9x20, Qty. 2)

Screw Anchors

(M2.9, Qty. 2)

3-PortRouter

Model:ERLite-3

Power Adapter

(12V, 1A)

Power Cord Quick Start Guide

responsibility to follow local country regulations and indoor cabling requirements.

Hardware Overview

Front Panel Ports

eth0 eth1 eth2

Console Reset

Ethernet (eth0-eth2)

Interface Description

Console

RJ45 serial console port for Command

Line Interface (CLI) management. Use a

RJ45‑to‑DB9, serial console cable, also

known as a rollover cable, to connect the

Console port to your computer. (If your

computer does not have a DB9 port, then

you will also need a DB9 adapter.) Then

configure the following settings as needed:

• Baud rate 115200

• Data bits 8

• Parity NONE

• Stop bits 1

• Flow control NONE

Ethernet

(eth0‑eth2) 10/100/1000 Mbps Ethernet ports.

Interface Description

Reset

There are two methods to reset the

EdgeRouter Lite to factory defaults:

• Runtime reset (recommended) The

EdgeRouter Lite should be running after

bootup is complete. Press and hold the

Reset button for about 10seconds until

the right LED on port eth2 starts flashing

and then becomes solidly lit. After a

few seconds, the LED will turn off, and

the EdgeRouter Lite will automatically

reboot.

• Power-on reset Disconnect the Power

Cord from the Power Adapter. Press and

hold the Reset button while connecting

the Power Cord to the Power Adapter.

Keep holding the button until the right

LED on port eth2 starts flashing and then

stops flashing after a few seconds.

Front Panel LEDs

The LEDs on the left side of each port are not used at this time.

Below is a description of the right LED functionality:

eth0 eth1 eth2

Power

Speed/Link/Act 1000 Mbps

Speed/Link/Act 10/100 Mbps

LED State Status

Console

Power

Off EdgeRouter Lite not

powered on.

Green EdgeRouter Lite is powered

on.

Ethernet (0‑2)

Speed/

Link/

Act

Off No Link

Amber Link Established at

10/100Mbps

Amber

Flashing Link Activity at 10/100 Mbps

Green Link Established at

1000Mbps

Green

Flashing Link Activity at 1000 Mbps

Back Panel

12V DC

Grounding Point

Ventilation Holes

Hardware Installation

Mount the EdgeRouter Lite on a wall or place it on top of a

bench.

WARNING: FAILURE TO PROVIDE PROPER VENTILATION

MAY CAUSE FIRE HAZARD. KEEP AT LEAST 20 MM OF

CLEARANCE NEXT TO THE VENTILATION HOLES FOR

ADEQUATE AIRFLOW.

Cabling Requirements

• For indoor applications, use Category 5 (or above) UTP

cabling approved for indoor use.

• For outdoor applications, shielded Category 5 (or above)

cabling should be used for all wired Ethernet connections

and should be grounded through the AC ground of the

power supply.

We recommend that you protect your networks from

harmful outdoor environments and destructive ESD events

with industrial‑grade, shielded Ethernet cable from Ubiquiti

Networks. For more details, visit www.ubnt.com/toughcable

WARNING: To reduce the risk of fire or electric shock,

donot expose the EdgeRouter Lite to rain or moisture.

Note: Although the cabling can be located outdoors,

the EdgeRouter Lite itself should be housed inside a

protective enclosure.

Wall Mounting

To mount the EdgeRouter Lite on a wall, you will need a drill, a

6mm drill bit, and a Phillips screwdriver.

1. Use a 6 mm drill bit to drill two holes 100 mm apart.

2. Insert the Screw Anchors into the holes. Use a Phillips

screwdriver to secure a Screw to each anchor. Leave a

clearance of approximately 3 mm between each screw

head and its anchor.

100 mm

3 mm

Note: You can also mount the EdgeRouter Lite in a

vertical orientation.

3. Position the EdgeRouter Lite with the Ethernet ports

facing down. Place the wall‑mount slots of the EdgeRouter

Lite over the screw heads on the wall. Then slide the

EdgeRouter Lite down to lock it into place.

12VDC

Grounding the EdgeRouter Lite (Recommended)

The EdgeRouter Lite is grounded through the Power Adapter;

however, you can add optional ESD grounding for enhanced

ESD protection.

1. Loosen the grounding screw to secure a ground wire (not

included) to the Grounding Point.

2. Secure the other end of the ground wire to a grounding

block.

Connecting Power

1. Connect the Power Adapter to the Power port.

2. Connect the Power Cord to the Power Adapter. Connect the

other end of the Power Cord to a power outlet.

Accessing the EdgeOS Configuration Interface

1. Connect an Ethernet cable from the Ethernet port of your

computer to the port labeled eth0 on the EdgeRouter Lite.

2. Configure the Ethernet adapter on your host system

with a static IP address on the 192.168.1.x subnet

(e.g.,192.168.1.100).

3. Launch your web browser. Type https://192.168.1.1 in the

address field. Press enter (PC) or return (Mac).

4. The login screen will appear. Enter ubnt in the Username

and Password fields. Read the Ubiquiti License Agreement,

and check the box next to I agree to the terms of this License

Agreement to accept it. Click Login.

The EdgeOS Configuration Interface will appear, allowing you

to customize your settings as needed.

Refer to the EdgeRouter Lite User Guide for instructions on

configuring the EdgeRouter Lite. The User Guide is available at

documentation.ubnt.com/edgemax

*640-00041-02*

640-00041-02
