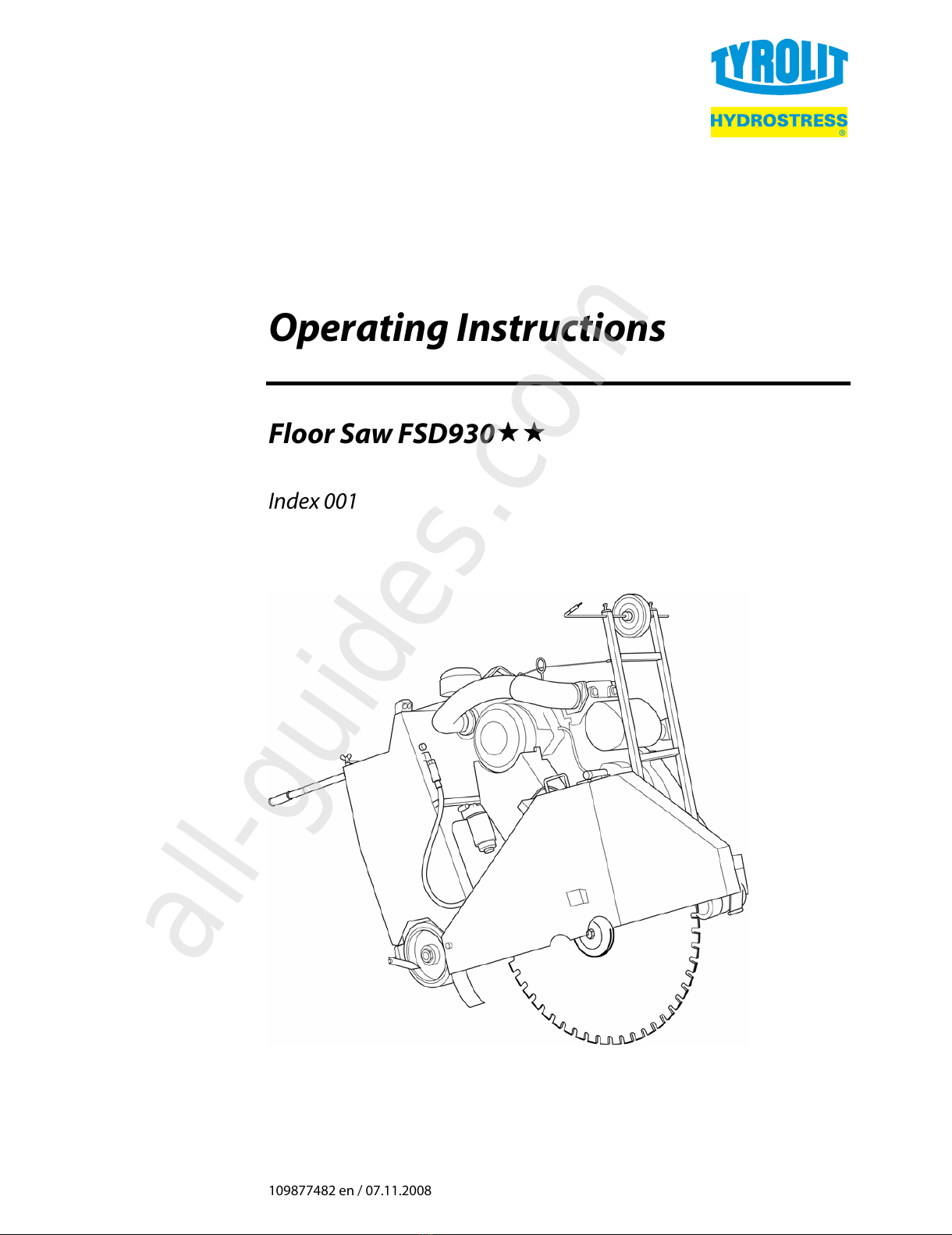

TYROLIT Hydrostress FSD930 Manuel utilisateur

109877482 en / 07.11.2008

Operating Instructions

Floor Saw FSD930

Index 001

All manuals and user guides at all-guides.com

all-guides.com

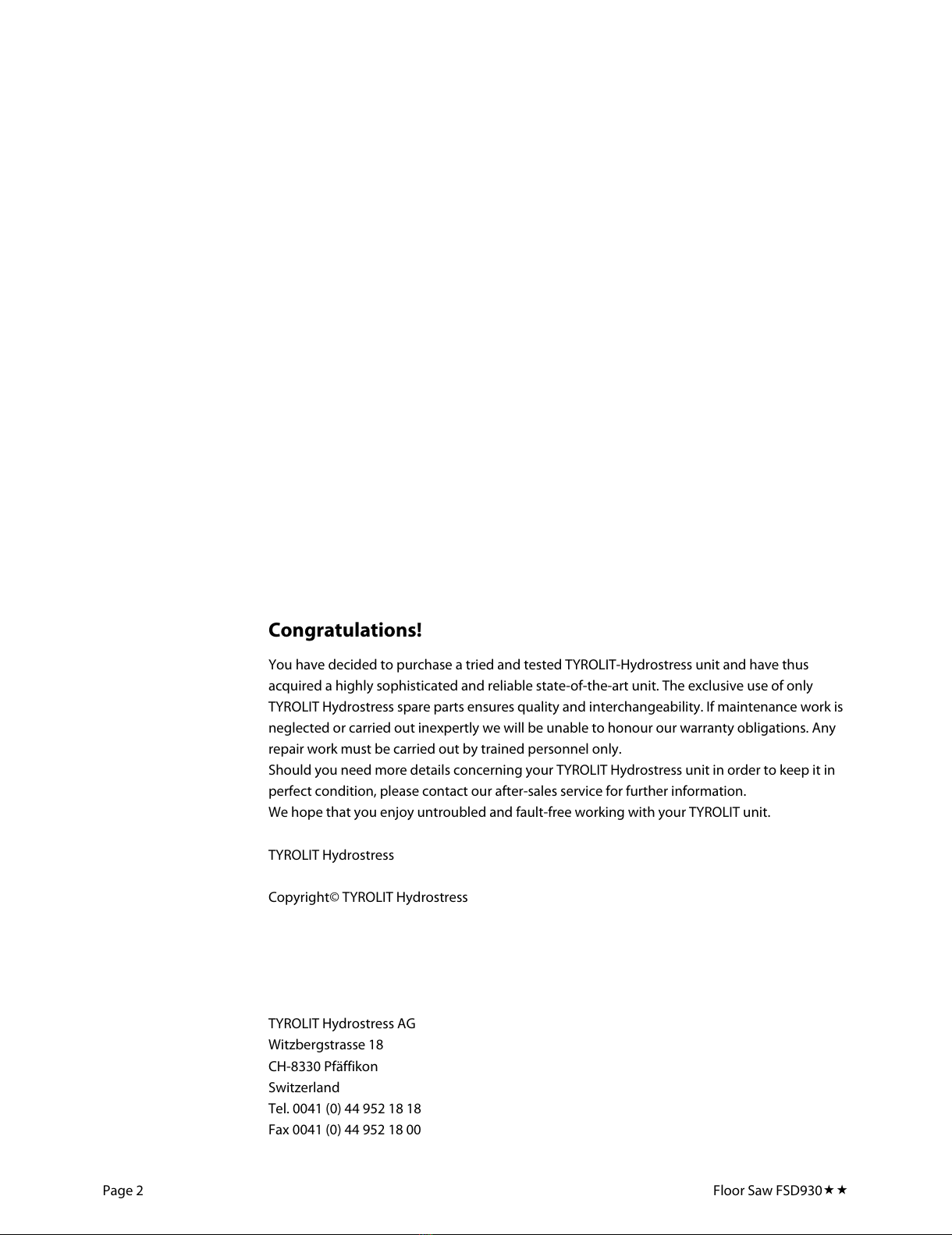

Congratulations!

You have decided to purchase a tried and tested TYROLIT-Hydrostress unit and have thus

acquired a highly sophisticated and reliable state-of-the-art unit. The exclusive use of only

TYROLIT Hydrostress spare parts ensures quality and interchangeability. If maintenance work is

neglected or carried out inexpertly we will be unable to honour our warranty obligations. Any

repair work must be carried out by trained personnel only.

Should you need more details concerning your TYROLIT Hydrostress unit in order to keep it in

perfect condition, please contact our after-sales service for further information.

We hope that you enjoy untroubled and fault-free working with your TYROLIT unit.

TYROLIT Hydrostress

TYROLIT Hydrostress AG

Witzbergstrasse 18

CH-8330 Pfäffikon

Switzerland

Tel. 0041 (0) 44 952 18 18

Fax 0041 (0) 44 952 18 00

Page 2 Floor Saw FSD930

All manuals and user guides at all-guides.com

TYROLIT Hydrostress AG

1Safety

These instructions are just one part of the documentation which is supplied together with the

floor saw. These instructions go together with the "Safety Manual / System Description for Floor

Saws" to form a complete set of documentation.

DANGER

Failure to comply with the safety instructions in the "Safety Manual / System Description" may

result in serious injury or death.

►Please ensure that the "Safety Manual / System Description for Floor saws" has been read

and understood in full.

Floor Saw FSD930 Page 3

All manuals and user guides at all-guides.com

TYROLIT Hydrostress AG

2Design

Components

1 Operating console

2 Name plate

3 Main motor

4 Front cut guide

5 Shaft cover

6 Blade guard

7 Saw blade

8 Rocker wheel

9 Drive wheel

10 Rear cut guide

11 Water feed

2.1 Saw blade drive

Saw blade drive (schematic)

1 Blade drive shaft

2 Drive belt

3 Main motor drive shaft

Page 4 Floor Saw FSD930

All manuals and user guides at all-guides.com

TYROLIT Hydrostress AG

2.2 Lift drive

Lift drive (schematic)

1 Hydraulic cylinder

2.3 Travel drive

Travel drive (schematic)

1 Drive shaft (main motor)

2 Hydrostat drive belt

3 Hydrostatic motors

4 Drive chain

5 Wheel drive shaft

6 Drive wheel

Floor Saw FSD930 Page 5

All manuals and user guides at all-guides.com

TYROLIT Hydrostress AG

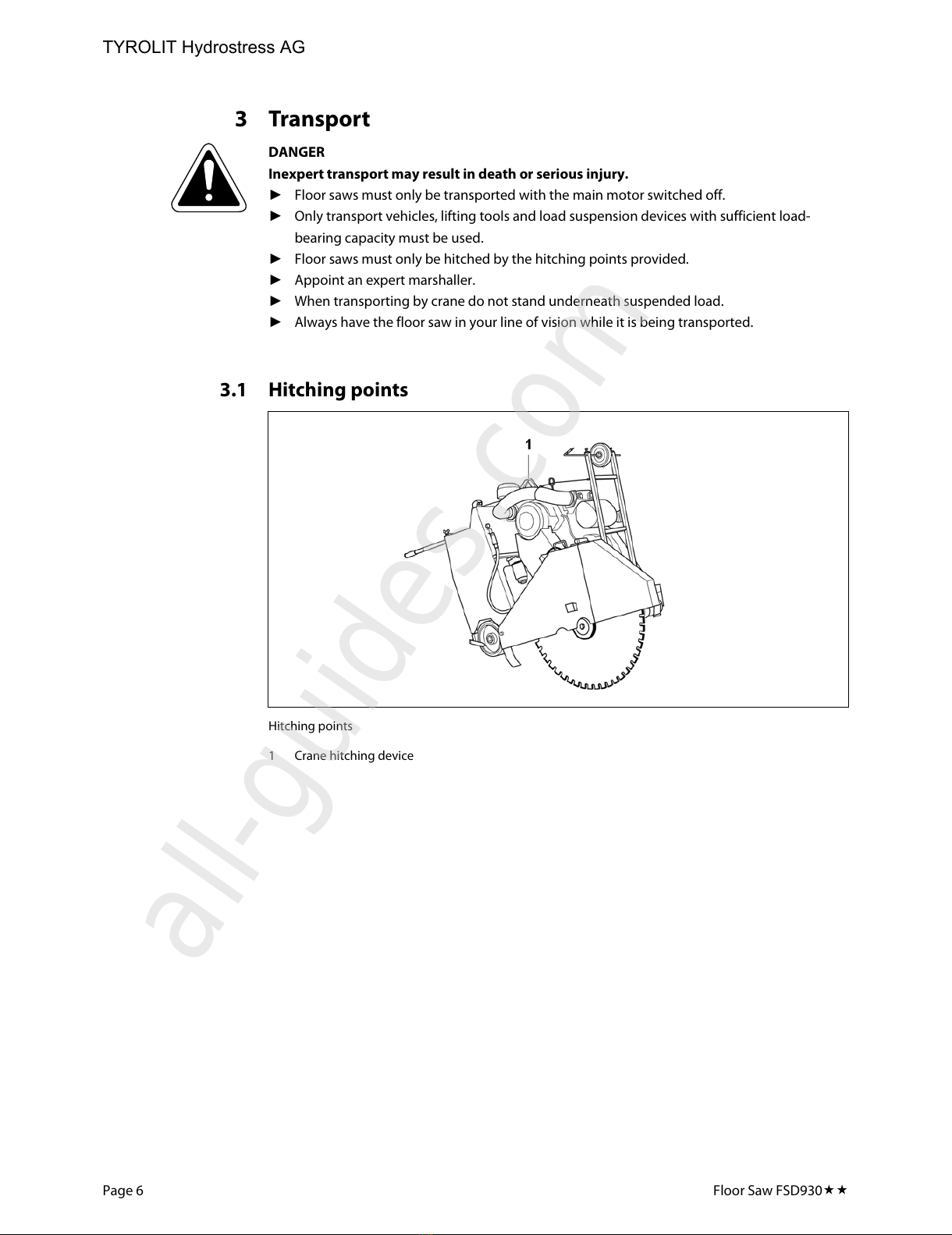

3Transport

DANGER

Inexpert transport may result in death or serious injury.

►Floor saws must only be transported with the main motor switched off.

►Only transport vehicles, lifting tools and load suspension devices with sufficient load-

bearing capacity must be used.

►Floor saws must only be hitched by the hitching points provided.

►Appoint an expert marshaller.

►When transporting by crane do not stand underneath suspended load.

►Always have the floor saw in your line of vision while it is being transported.

3.1 Hitching points

Hitching points

1 Crane hitching device

Page 6 Floor Saw FSD930

All manuals and user guides at all-guides.com

all-guides.com

TYROLIT Hydrostress AG

4Initial start-up

4.1 Fitting battery

►Fit battery (for type see Technical Data).

Floor Saw FSD930 Page 7

All manuals and user guides at all-guides.com

TYROLIT Hydrostress AG

5Assembly / Set-up

5.1 Mounting grip

►

5.2 Mounting saw blade

1. Apply hand brake

Page 8 Floor Saw FSD930

All manuals and user guides at all-guides.com

TYROLIT Hydrostress AG

DANGER

Parts that fly off (segments, concrete splinters, saw blade, etc.) may cause serious injury

or even death.

►Floor saws must only be operated with a blade guard.

►When assembling the saw blade on the right-hand side use the anchoring screw with the

left-hand thread.

When assembling the saw blade on the left-hand side, use the anchoring screw with the

right-hand thread.

►Note the direction or rotation arrows on the saw blade.

1 Anchoring screw

*Note the direction of rotation

Floor Saw FSD930 Page 9

All manuals and user guides at all-guides.com

TYROLIT Hydrostress AG

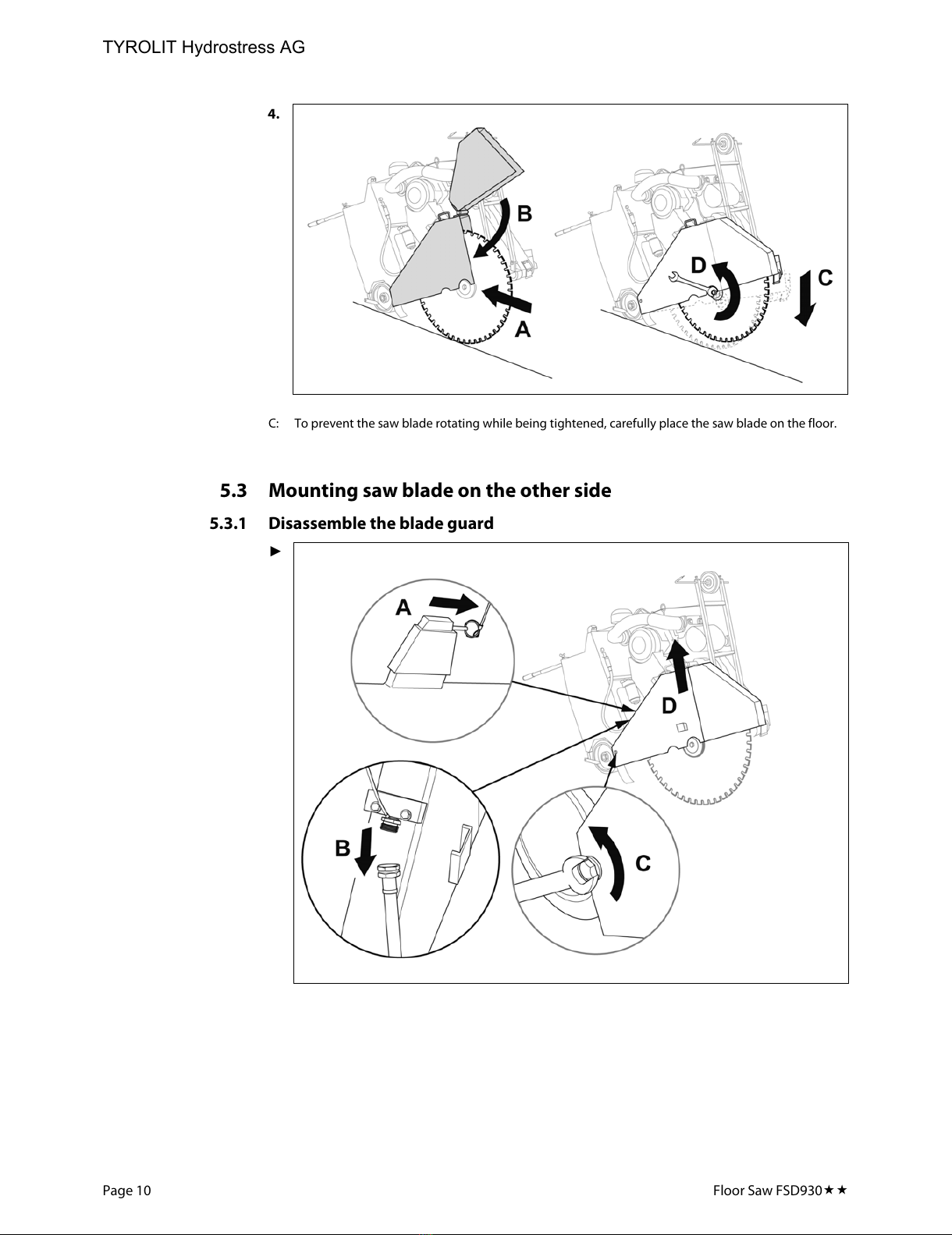

C: To prevent the saw blade rotating while being tightened, carefully place the saw blade on the floor.

5.3 Mounting saw blade on the other side

5.3.1 Disassemble the blade guard

►

Page 10 Floor Saw FSD930

All manuals and user guides at all-guides.com
