TYAN TOMCAT K8SH Manuel utilisateur

http://www.TYAN.com

Tomcat K8SH /// S3850

Revision 1.10

manual may be reproduced or translated without prior written consent from TYAN

Computer Corp.

All registered and unregistered trademarks and company names contained in this manual

are property of their respective owners including, but not limited to the following.

TYAN, Tomcat K8SH S3850 are trademarks of TYAN Computer Corporation.

AMD, AMD Opteron, and combinations thereof, are trademarks of Advanced Micro

Devices, Inc.

HyperTransport is a licensed trademark of the HyperTransport Technology Consortium.

AMI, AMIBIOS are trademarks of AMI Software Incorporated.

Microsoft, Windows are trademarks of Microsoft Corporation.

SuSE,is a trademark of SuSE AG.

Linux is a trademark of Linus Torvalds.

QLogic, Zircon, and combinations thereof are trademarks of QLogic Corporation.

IBM, PC, AT, PS/2 are trademarks of IBM Corporation.

Winbond is a trademark of Winbond Electronics Corporation.

Broadcom is a trademark of Broadcom Corporation and/or its subsidiaries

ATI and Rage XL are trademarks of ATI Corporation (We use XGI XG20 VGA controller)

Portable Document Format (PDF) is a trademark of Adobe Corporation.

Information contained in this document is furnished by TYAN Computer Corporation and

has been reviewed for accuracy and reliability prior to printing. TYAN assumes no liability

whatsoever, and disclaims any express or implied warranty, relating to sale and/or use of

TYAN products including liability or warranties relating to fitness for a particular purpose

or merchantability. TYAN retains the right to make changes to product descriptions and/or

specifications at any time, without notice. In no event will TYAN be held liable for any

direct or indirect, incidental or consequential damage, loss of use, loss of data or other

malady resulting from errors or inaccuracies of information contained in this document.

http://www.TYAN.com

Table of Contents

Before you begin…

Chapter 1: Introduction

1.00 Congratulations!

1.01 Hardware Specifications

Chapter 2: Board Installation

2.00 Board Image

2.01 Block Diagram

2.02 Board Parts, Jumpers and Connectors

2.03 Jumper Settings

2.04 IPMB Pin Header (J28)

2.05 ASF2.0/SMDC Select(JP4,JP5)

2.06 Clear CMOS Jumper (JP6)

2.07 USB2.0 Header (J14)

2.08 PCI-X Bus Frequency (J6)

2.09 LCM Pin Header (J32)

2.10 Front Panel Connector (J30)

2.11 PCI/PCIX Mode Select (JP2)

2.12 Fan Connectors with speed control

(J21~J25,J33,J34)

2.13 2*7 Pin Fan Connector (J27)

2.14 SMDC Connector (J29)

2.15 Tips on Installing the Motherboard in Chassis

2.16 Installing the Memory

2.17 Installing the Processor and Heatsink

2.18 Thermal Interface Material

2.19 Heatsink Installation Procedures

2.20 Attaching Drive Cables

2.21 Installing Add-In Cards

2.22Installing SO-DIMM

2.23connecting External Devices

2.24 Installing the Power Supply

2.25 Finishing up

Chapter 3: BIOS

3.1 BIOS Setup Utility

3.2 BIOS Menu Bar

3.3 BIOS Legend Bar

3.4 BIOS Main Menu

3.5 BIOS Advanced Menu

3.5.1 CPU Configuration Sub-Menu

3.5.2 IDE Configuration Sub-Menu

3.5.2.1 Primary/Secondary IDE Master/Slave

Sub-Menu

3.5.3 Floppy Configuration Sub-Menu

3.5.4 Super I/O Configuration Sub-Menu

3.5.5 S-ATA Configuration Sub-Menu

3.5.6 ACPI Configuration Sub-Menu

3.5.7 Event Logging details Sub-Menu Configuration

Sub-Menu

3.5.8 Hyper Transport Configuration Sub-Menu

3.5.9 Hardware Health Configuration Sub-Menu

………….………………..Page 4

…………………………..Page 5

………….………………..Page 5

……………….…………..Page 5

…………………………..Page 7

……………….…………..Page 8

…………….……………..Page 9

……………..…………..Page 10

………….…………….. Page 11

………………………… Page 11

………………………… Page 12

………………………… Page 13

……….………..…….… Page 13

…………….…..…….… Page 14

………………………… Page 14

………………………… Page 15

………………………… Page 16

………………………… Page 17

………………………… Page 18

………………………… Page 21

………………………… Page 23

……………..…………..Page 25

……………..…………..Page 27

……………..…………..Page 28

……………..…………..Page 29

……………..…………..Page 30

……………..…………..Page 31

……………..…………..Page 32

……………..…………..Page 33

……………..…………..Page 34

…………………………Page 34

……………….…………Page 36

…………….……………Page 37

……...……….…………Page 38

…………………………Page 39

…………………………Page 40

…………………………Page 41

…………………………Page 42

……………..…………..Page 43

…………………………Page 44

http://www.TYAN.com

3.5.9.1 Mainboard Voltages Report Sub-

3.5.9.2 FAN1 to FAN4 Speed Report Sub-

3.5.9.3 FAN5 to FAN7 Speed Report Sub-

3.5.10 MPS Configuration Sub-Menu

3.5.11 AMD PowerNow Configuration Sub-Menu

3.5.12 Remote Access Configuration Sub-Menu

3.5.13 USB Configuration Sub-Menu

3.5.14 Device&PCI Slots Configuration Sub-Menu

3.6 BIOS PCI/PnP Menu

3.7 BIOS Boot Menu

3.7.1 Boot Settings Configuration Sub-Menu

3.7.2 Boot Device Priority Configuration Sub-Menu

3.7.3 Removable Drivers Sub-Menu

3.8 BIOS Security Menu

3.9 BIOS Chipset Setting Menu

3.9.1 North Bridge Chipset Configuration Sub-Menu

3.9.1.1 Memory Configuration Sub-Menu

3.9.1.2 ECC Configuration Sub-Menu

3.9.1.3 IOMMU Configuration Sub-Menu

3.9.2 HT1000 South Bridge Chipset Configuration

Sub-Menu

3.10 BIOS Exit Menu

Chapter 4: Diagnostics

4.00 Beep Codes

4.01 Flash Utility

Appendix: Glossary

Technical Support

…………………………Page 45

…………….……………Page 45

…………….……………Page 46

…………………………Page 46

…………………………Page 47

…………………………Page 48

…………………………Page 49

…………………………Page 50

…………………………Page 52

…………………………Page 53

…………………………Page 55

…………………………Page 56

…………………………Page 58

…………………………Page 59

…………………………Page 61

…………………………Page 62

…………………………Page 63

…………………………Page 64

…………………………Page 65

…………………………Page 70

http://www.TYAN.com

Before you begin…

Check the box contents!

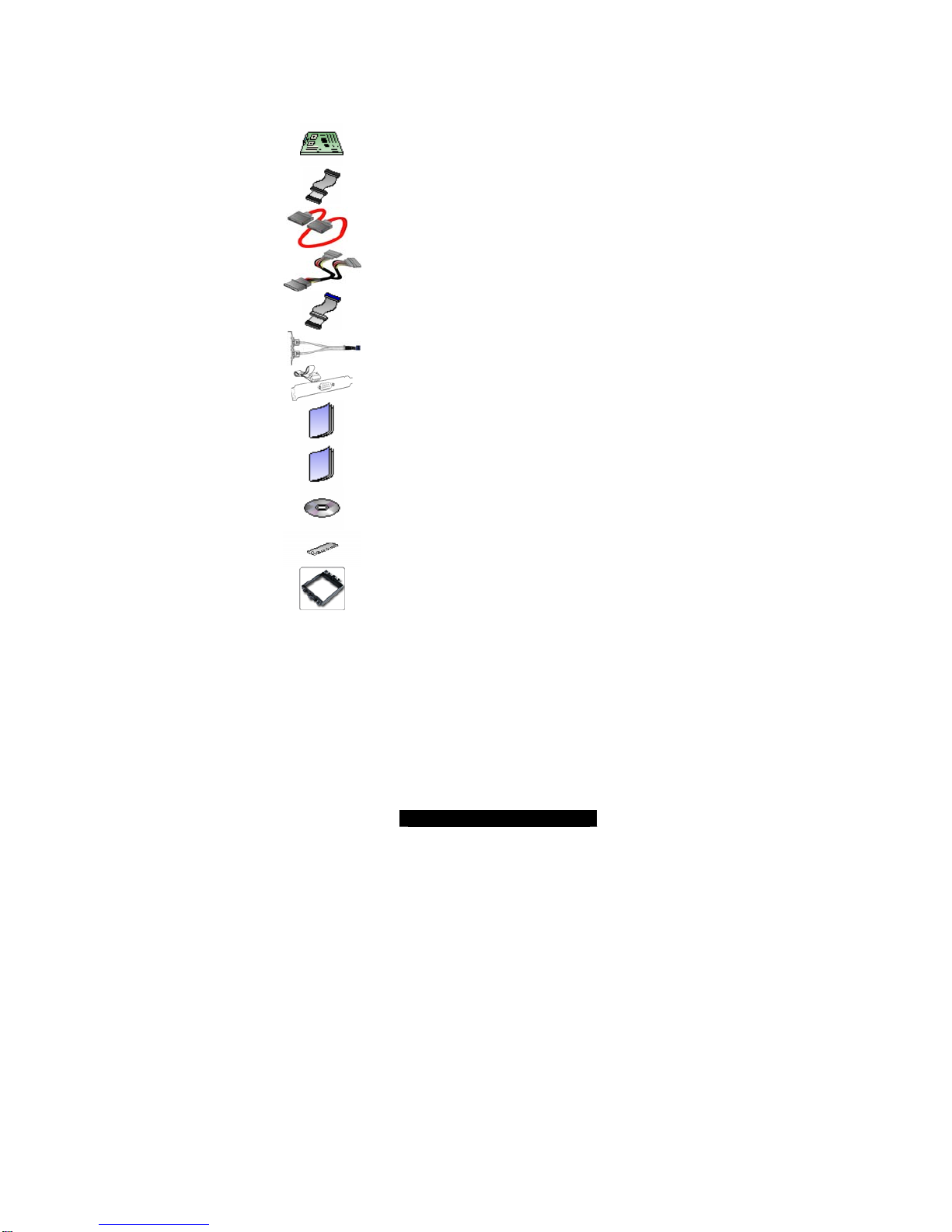

The retail motherboard package should contain the following:

1x Tomcat K8SH motherboard

1x 34-Pin floppy drive cable

4 x SATA cable

2 x SATA Drive Power Adapter

1 x Ultra-DMA-100/66 IDE cable

1 x USB2.0 cable

1 x COM Port cable

1 x Tomcat K8SH User’s Manual

1 x Tomcat K8SH Quick Reference Guide

1 x TYAN driver CD

1 x I/O shield

1 x CPU Retention Frame

If any of these items are missing, please contact your vendor/dealer for replacement

before continuing with the installation process.

http://www.TYAN.com

Chapter 1: Introduction

1.00 – Congratulations!

You have purchased one of the most powerful AMD OpteronTM processor solutions, the

Tomcat K8SH S3850. The Tomcat K8SH S3850 features an integrated high bandwidth

memory controller for superior productivity. The solution also employs HyperTransport™

chipset technology to increase overall performance by removing or reducing I/O

bottlenecks. Designed around the use of low profile I/O ports with strategically placed

DIMM slots to allow maximum airflow across the motherboard for efficient system

cooling. The Tomcat K8SH S3850 also features an ATX form factor, Single or Dual

Gigabit Ethernet port, an onboard XGI XG20 VGA controllers, and an onboard Quad

channel Serial ATA, which provides a versatile solution for your server needs.

Remember to visit TYAN’s Website at http://www.tyan.com. There you can find

information on all of TYAN’s products with FAQs, distributors list and BIOS setting

explanations.

1.01 – Hardware Specifications

Processor

- Single µPGA 939-pin socket

- Supports AMD OpteronTM 100 series

single core & dual core processor

- Up to 800 MHz Hyper-Transport link

support

Chipset

- Broadcom HT1000

- NS PC87417 Super I/O chip

Memory

- 128-bit dual channel memory bus

- Four 184-pin DDR DIMM sockets

- Supports up to 8GB of unbuffered

DDRI 400/333

- Supports PC2100, PC2700 and PC3200

DDRI memory

Expansion Slots

- One 64-bit, 133MHz (3.3V) PCI-X slot

- Four 32-bit, 33MHz PCI v2.3 slots

- Tyan TARO™ SO-DIMM

- Total of five usable slots

Integrated LAN Controllers

- Two Intel i82541PI GbE LAN controllers

- Operating on PCI 32-bit/33MHz bus

- With ASF 2.0/WfM/Teaming support

Integrated I/O

- One floppy connector supports up to

two drives

- One IDE connectors for two IDE

devices

- Two USB 2.0 Headers (via cable, 2 x

4pin)

- 2 x 25 connector for Tyan IPMI

SMDC card (M3291)

- Four SATA ports

- One COM2 header

Back Panel I/O Ports

- One PS/2 Keyboard & Mouse ports

- Two RJ45 10/100/1000 Base-T port

w/ activity LED

- Two USB 2.0 ports

- One 9-pin UART Serial port

- One 15-pin VGA port

BIOS

- AMI BIOS® on 8Mbit LPC Flash

ROM

- Serial Console Redirect

- USB boot supported

- Supports ACPI

- PnP, DMI 2.0, WfM 2.0 Power

Management

http://www.TYAN.com

Integrated 2D Graphics

- XGI XG20 graphics controller

- 16MB Frame Buffer of video memory

Integrated SATA Controller

- Supports four SATAⅡports running at

1.5Gb/s with NCQ (SATAII Phase Ⅰ)

- Supports four-channel SATA RAID (RAID

0, 1, 5, 10)

Power

- Onboard 4-phase VRD

- EPS12V (24+8) power connectors

System Management

- One Analog Device ADT7476

- Temperature and voltage monitoring

- One (1) 3+1-pin CPU fan header with

tachometer monitoring and smart

FAN control

- Six (6) 3+1-pin system fan headers

with tachometer monitoring, all of

them support smart FAN control

- One 2x7-pin fan connector (reserve

to support TYAN FAN Adapter Board-

--M1012)

- Watchdog timer support

Form Factor

- ATX footprint

- 12" x 9.6"; 305mm x 244mm

- 6-layer board

Regulatory

- FCC Class B (Declaration of

Conformity)

- European Community CE

(Declaration of Conformity)

Software Specifications

OS (Operating System) Support

Microsoft Windows 2000 SP4

Microsoft Windows XP SP2 (32-bit)

Microsoft Windows XP SP1 (64-bit)

Microsoft Windows Server 2003 SP1 (32-bit & 64bit)

SUSE LINUX 9.0 SP3 (64-bit)

SUSE LINUX Professional 9.1 (64-bit)

SUSE LINUX 10.0 (32-bit & 64-bit)

Fedora Core 3 (32-bit) & Fedora Core 3 Linux x86 (64-bit)

Fedora Core Linux 4

Fedora Core 5 Linux x86 (64-bit)

Mandrake Linux 9.1 (32-bit) & Mandrake Linux 9.2 (32-bit)

Turbo Linux 10 (32-bit)

RHEL3.0 & RHEL 3.0 (32-bit) UPDATE 5

RHEL4.0 (64-bit)

TYAN reserves the right to add support or discontinue support for any OS with

or without notice.

http://www.TYAN.com

Chapter 2: Board Installation

Installation

You are now ready to install your motherboard. The mounting-hole pattern of the Tomcat

K8SH S3850 matches the ATX specification. Before continuing with installation, confirm

that your chassis supports an ATX motherboard.

How to install our products right…. the first time!

The first thing you should do is read this user’s manual. It contains important information

that will make configuration and setup much easier. Here are some precautions you

should take when installing your motherboard:

(1) Ground yourself properly before removing your motherboard from the antistatic

bag. Unplug the power from your computer power supply and then touch a

safely grounded object to release static charge (i.e. power supply case). For the

safest conditions, Tyan recommends wearing a static safety wrist strap.

(2) Hold the motherboard by its edges and do not touch the bottom of the board, or

flex the board in any way.

(3) Avoid touching the motherboard components, IC chips, connectors, memory

modules, and leads.

(4) Place the motherboard on a grounded antistatic surface or on the antistatic bag

that the board was shipped in.

(5) Inspect the board for damage.

The following pages include details on how to install your motherboard into your chassis,

as well as installing the processor, memory, disk drives and cables.

NOTE DO NOT APPLY POWER TO THE BOARD IF IT HAS BEEN DAMAGED

http://www.TYAN.com

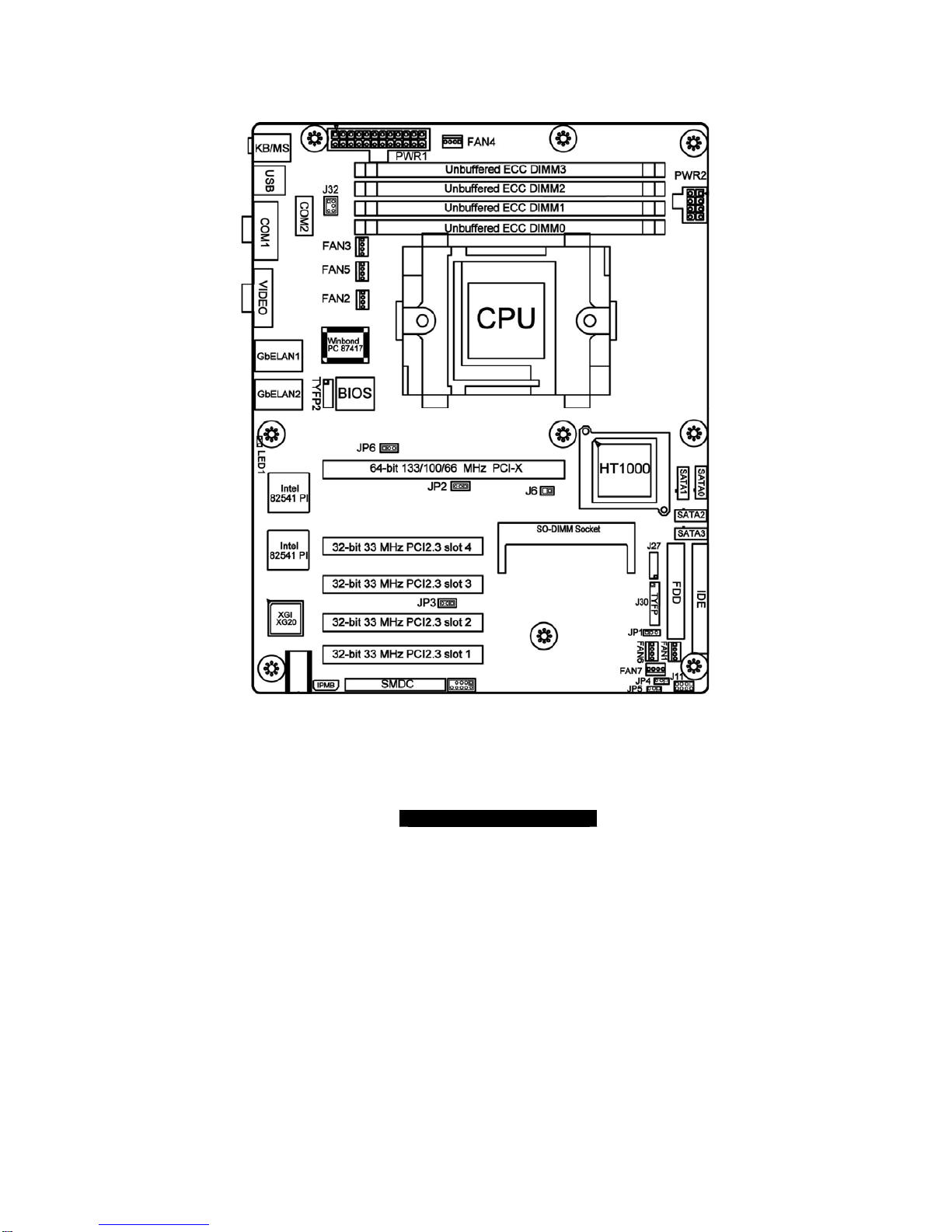

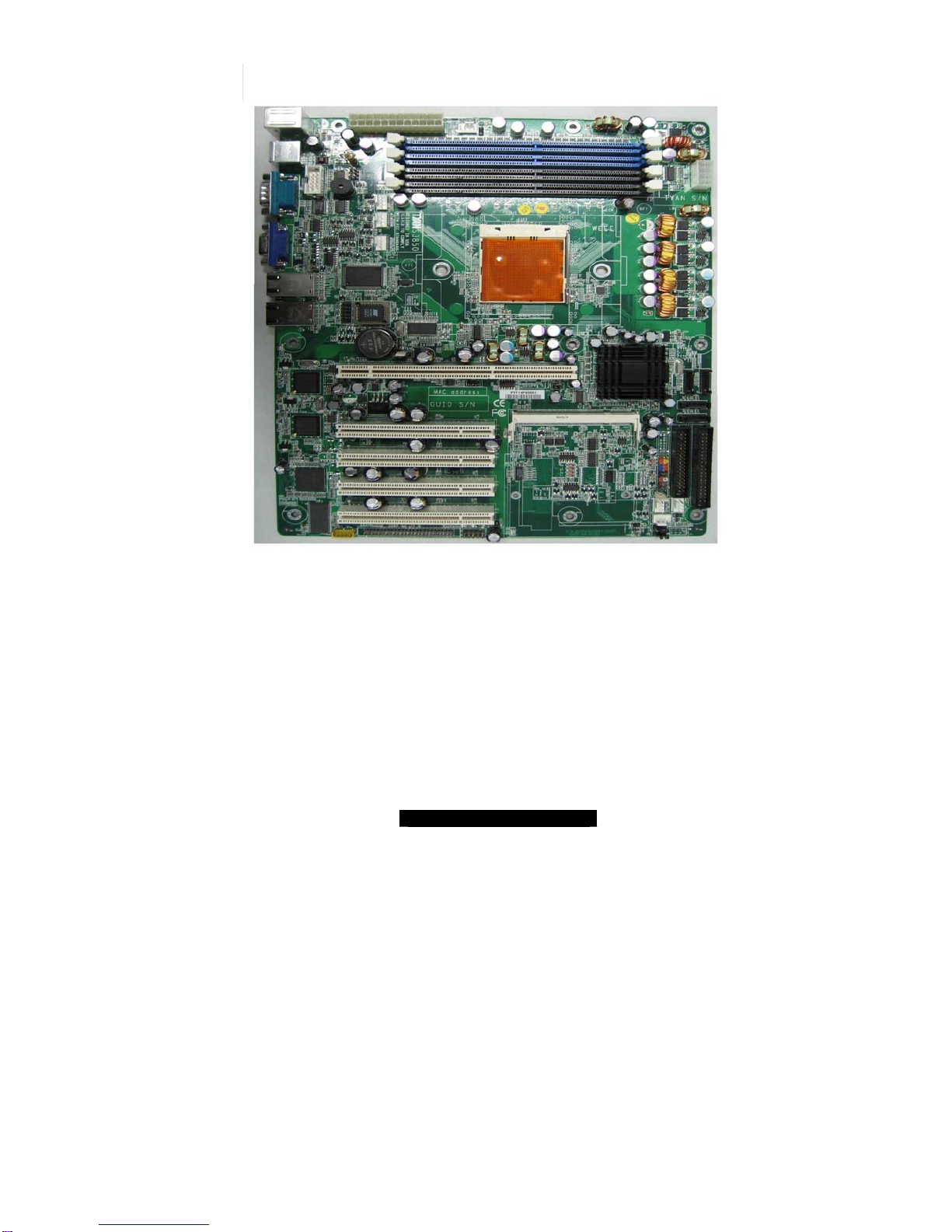

2.00 – Board Image

This picture is representative of the latest board revision available at the time of

publishing. The board you receive may or may not look exactly like the above

picture.

The following page includes details on the vital components of this motherboard.

http://www.TYAN.com

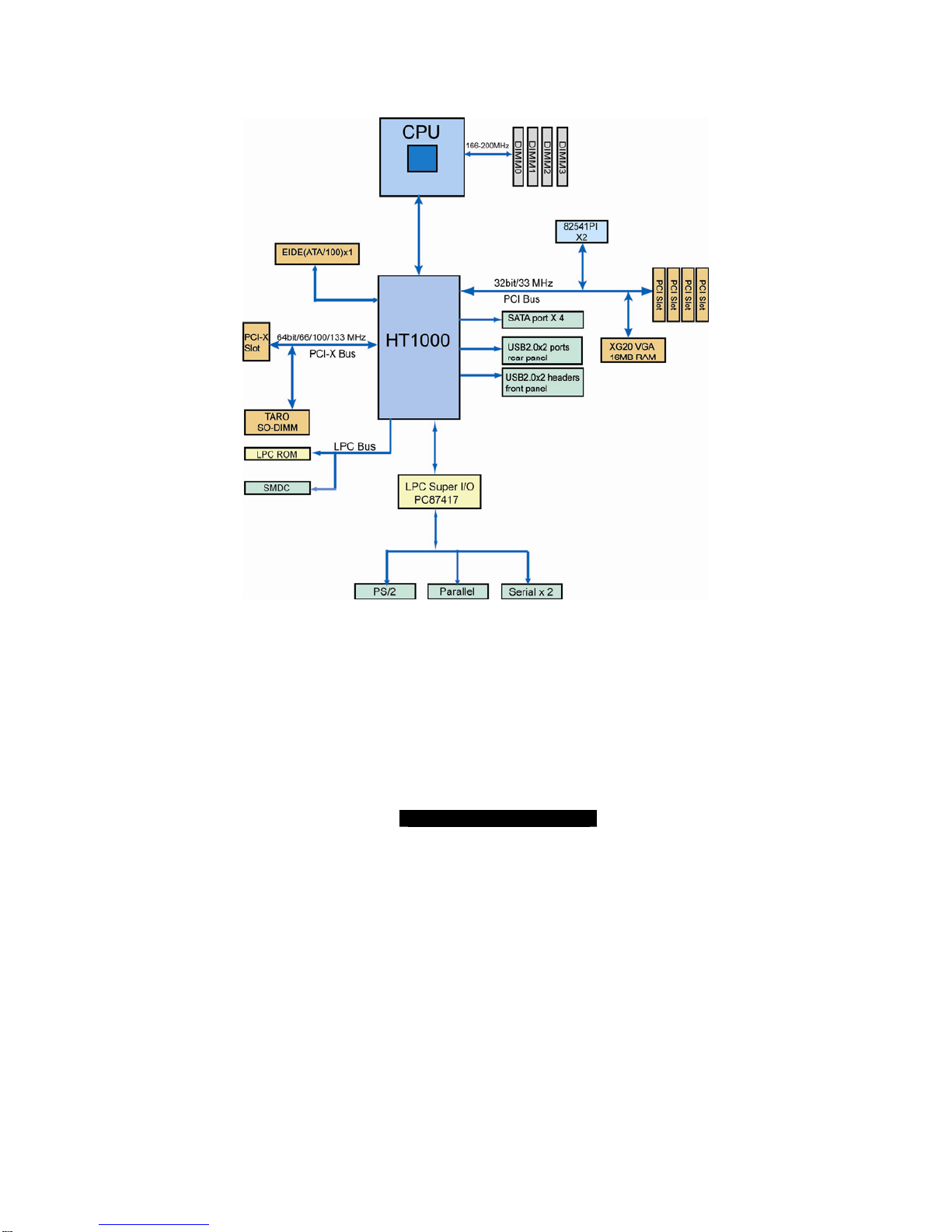

2.01--Block Diagram

http://www.TYAN.com

2.02 – Board Parts, Jumpers and Connectors

This diagram is representative of the latest board revision available at the time of

publishing. The board you receive may not look exactly like the above diagram.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels TYAN Carte mère

TYAN

TYAN TRINITY K7 Manuel utilisateur

TYAN

TYAN 1.00 Manuel technique

TYAN

TYAN THUNDER K7X Manuel utilisateur

TYAN

TYAN S7106 Manuel utilisateur

TYAN

TYAN TIGER I7501X Manuel utilisateur

TYAN

TYAN THUNDER K8QS Manuel utilisateur

TYAN

TYAN Trinity ATX Motherboard Tyan S1598 Manuel utilisateur

TYAN

TYAN TOMCAT I7221 Manuel utilisateur

TYAN

TYAN S8253 Manuel utilisateur

TYAN

TYAN S7053 Manuel utilisateur

TYAN

TYAN TIGER 133 Manuel utilisateur

TYAN

TYAN TOMCAT I815EF Manuel utilisateur

TYAN

TYAN Tempest i5000VS S5372-LC Manuel utilisateur

TYAN

TYAN THUNDER K8SE Manuel utilisateur

TYAN

TYAN THUNDER I7505 Manuel utilisateur

TYAN

TYAN InterServe 90 Manuel utilisateur

TYAN

TYAN S2723 Manuel utilisateur

TYAN

TYAN S8232 Manuel utilisateur

TYAN

TYAN TITAN VX AT Manuel utilisateur

TYAN

TYAN S7053 Manuel utilisateur

TYAN

TYAN S8026 Manuel utilisateur

TYAN

TYAN TRINITY GC-SL Manuel utilisateur

TYAN

TYAN S1832DL Manuel utilisateur

TYAN

TYAN THUNDER K8QS PRO Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur
