TYAN TIGER K8SSA Manuel utilisateur

http://www.tyan.com

Tiger K8SSA /// S3870

Version 1.0

this manual may be reproduced or translated without prior written consent from

TYAN Computer Corp.

Trademark

All registered and unregistered trademarks and company names contained in

this manual are property of their respective owners including, but not limited to

the following.

TYAN, Taro and Tiger K8SSA are trademarks of TYAN Computer Corporation.

AMD, Opteron, and combinations thereof are trademarks of AMD Corporation.

Nvidia and nForce are trademarks of Nvidia Corporation

Microsoft, Windows are trademarks of Microsoft Corporation.

SuSE,is a trademark of SuSE AG.

Linux is a trademark of Linus Torvalds

IBM, PC, AT, and PS/2 are trademarks of IBM Corporation.

Winbond is a trademark of Winbond Electronics Corporation.

Notice

Information contained in this document is furnished by TYAN Computer

Corporation and has been reviewed for accuracy and reliability prior to printing.

TYAN assumes no liability whatsoever, and disclaims any express or implied

warranty, relating to sale and/or use of TYAN products including liability or

warranties relating to fitness for a particular purpose or merchantability. TYAN

retains the right to make changes to product descriptions and/or specifications

at any time, without notice. In no event will TYAN be held liable for any direct or

indirect, incidental or consequential damage, loss of use, loss of data or other

malady resulting from errors or inaccuracies of information contained in this

document.

http://www.tyan.com

Table of Contents

Chapter 1: Introduction

1.1 Congratulations Page 5

1.2 Hardware Specifications Page 5

1.3 Software Specifications Page 7

Chapter 2: Board Installation

2.1 Board Image Page 10

2.2 Block Diagram Page 11

2.3 Board Parts, Jumpers and Connectors Page 12

2.4 Installing the Processor(s) Page 22

2.5 Heatsink Retention Frame Installation Page 23

2.6 Thermal Interface Material Page 24

2.7 Heatsink Installation Procedures Page 25

2.8 Tips on Installing Motherboard in Chassis Page 28

2.9 Installing the Memory Page 29

2.10 Attaching Drive Cables Page 32

2.11 Installing Add-In Cards Page 34

2.12 Installing Optional SO-DIMM Modules Page 36

2.12 Connecting External Devices Page 37

2.13 Installing the Power Supply Page 38

2.15 Finishing Up Page 39

Chapter 3: BIOS

3.1 BIOS Setup Utility Page 41

3.2 BIOS Menu Bar Page 42

3.3 BIOS Legend Bar Page 42

3.4 BIOS Main Menu Page 43

3.5 BIOS Advanced Menu Page 44

3.6 BIOS PnP/PCI Menu Page 65

3.7 BIOS Boot Menu Page 67

3.8 BIOS Security Menu Page 71

3.9 BIOS Chipset Menu Page 72

3.10 BIOS Exit Menu Page 81

Chapter 4: Diagnostics

4.1 Beep Codes Page 83

4.2 Flash Utility Page 83

4.3 AMIBIOS Post Code Page 84

Appendix I: SMDC Information Page 87

Appendix II: How to Make a Driver Diskette Page 89

Glossary Page 91

Technical Support Page 97

http://www.tyan.com

Check the box contents!

The retail motherboard package should contain the following:

1x Tiger K8SSA motherboard

1x 34-Pin floppy drive cable

4 x SATA cable

2 x SATA Drive Power Adapter

1 x Ultra-DMA-100/66 IDE cable

1 x USB2.0 cable

1 x COM Port cable

1 x Tiger K8SSA User’s Manual

1 x Tiger K8SSA Quick Reference Guide

1 x TYAN driver CD

1 x I/O shield

2 x CPU Retention Frame

If any of these items are missing, please contact your vendor/dealer for

replacement before continuing with the installation process.

http://www.tyan.com

NOTE

http://www.tyan.com

Chapter 1: Introduction

1.1 - Congratulations

You have purchased one of the most powerful server solutions. The Tiger

K8SSA (S3870) is a high-end server motherboard, based on ServerWorks

BCM5785 (HT-1000) core-logic chipset. It also includes the NS PC87417

Super I/O and SMSC EMC6D 103 Hardware Monitoring chipsets.

Designed to support up to two AMD Opteron™ (200 series) processors and

12GB of DDR400/333 memory. The S3870 is ideal for CPU, memory, and

network intensive applications required in the HPC and clustering applications.

Remember to visit TYAN’s Website at http://www.tyan.com. There you can find

information on all of TYAN’s products with FAQs, online manuals and BIOS

upgrades.

1.2 - Hardware Specifications

Processors

•Two uPGA 940-pin ZIF sockets

•Supports up to two AMD

OpteronTM 200 Series processors

(including dual core processors)

•Integrated 128-bit DDR memory

controller

Chipset

•ServerWorks BCM5785 (HT-1000)

core-logic

•NS PC87417 Super I/O

Memory

•128-bit dual channel memory bus

•Six 184-pin DDR DIMM sockets

(four from CPU1 and two from

CPU2)

•Supports PC2100/2700/3200

•Registered, ECC/Non-ECC

module supported

•Single/Dual/Quad-Rank memory

supported

Integrated Video Controller

•XGI Volari Z7 (XG20)

•16MB frame buffer memory

Integrated ATA-100

•One ATA-100 Channel for up to

two ATA-100 devices

Integrated SATA Controllers

•Supports four SATA ports at 1.5

Gb/s with NCQ

•RAID 0/1/10 supported

Integrated LAN Controllers

•Two Intel i82541 PI GbE LAN

controllers

-Operating on PCI 32-bit/33MHz

bus

-With ASF 2.0/WfM/Teaming

support

http://www.tyan.com

Expansion Slots

•One PCI-X 64-bit 100/133MHz slot

•Four 32-bit/33MHz PCI v2.3 slots

•One Tyan TARO SO-DIMM socket

•Total of 6 usable slots

System Management

•Two (2) SMSC EMC6D103

hardware monitoring IC

•Six (6) fan headers; four (4) of

them with 3+1-pin header and

with tachometer monitoring and

smart FAN control (PWM)

•Temperature and voltage

monitoring

•Watchdog timer support

Integrated I/O

•One floppy connector

•One IDE connector

•Four SATA connectors

•Four USB2.0 ports (2 at rear, 2 via

cable)

•Two COM ports (1 at rear, 1 via

cable)

•Tyan 2x9 front-panel pin header

•Tyan 2x6 pin header for front

panel LAN LED and ID

LED/Switch

•2x25 connector for optional IPMI

SMDC

Back Panel I/O Ports

•Stacked PS/2 Mouse & Keyboard

ports

•Stacked 2 USB ports

•One 9-pin COM port

•One 15-pin VGA connector

•Two side-by-side RJ-45 ports

Form Factor

•ATX footprint

12” x 10.2” (304.8mm x 259.1mm)

Optional Modules

•M3291, IPMI 2.0 Remote System

Mgmt card

-Renesas H8S2167 BMC

controller

-BT, KCS, Logging support

-IPMI-over-LAN

-Remote power on/off and reset

•M7901/M7902, Ultra 320 SCSI

TARO card

-Adaptec AIC-7901/7902

single/dual-channel Ultra 320

SCSI controller

-Adaptec Host RAID 0, 1, 10

supported

•M9000 SAS/SATA II TARO card

-Adaptec AIC-9405/9410 SAS

controller

-Supports up to 4-port (M9000-5)

and 8-port (M9000-10) SAS &

SATA running at 3.0Gb/s

-Adaptec HostRAID 0, 1 & 10

supported

BIOS

•AMI BIOS on 8Mbit LPC Flash

ROM

•Serial Console Redirect

•USB boot supported

•ACPI supported

•PnP, DMI2.0, WfM2.0 power

management

Power

•Onboard dual 4-phase VRM

•EPS12V/SSI v3.51 (24+8) power

connectors

Regulatory

•FCC Class B (DoC)

•CE (DoC)

•BSMI (optional)

http://www.tyan.com

1.3 - Software Specifications

OS (Operating System) Support

Microsoft Windows 2000

Microsoft Windows XP 32-bit

Microsoft Windows XP 64-bit

Microsoft Windows Server 2003 32-bit

Microsoft Windows Server 2003 64-bit

SUSE Professional 9.x and SLES 9

RHEL3 Update 4 and 5

RHEL4 Update 1

TYAN reserves the right to add support or discontinue support for any OS with

or without notice.

http://www.tyan.com

NOTE

http://www.tyan.com

Chapter 2: Board Installation

Precautions: The Tiger K8SSA supports SSI, EPS12V type power supplies

(24pin + 8pin) and will not operate with any other types. For proper power

supply installation procedures see page 37.

DO NOT USE ATX 2.x or ATXGES power supplies as they will damage the

board and void your warranty.

How to install our products right… the first time

The first thing you should do is reading this user’s manual. It contains important

information that will make configuration and setup much easier. Here are some

precautions you should take when installing your motherboard:

(1) Ground yourself properly before removing your motherboard from the

antistatic bag. Unplug the power from your computer power supply and

then touch a safely grounded object to release static charge (i.e. power

supply case). For the safest conditions, TYAN recommends wearing a

static safety wrist strap.

(2) Hold the motherboard by its edges and do not touch the bottom of the

board, or flex the board in any way.

(3) Avoid touching the motherboard components, IC chips, connectors,

memory modules, and leads.

(4) Place the motherboard on a grounded antistatic surface or on the

antistatic bag that the board was shipped in.

(5) Inspect the board for damage.

The following pages include details on how to install your motherboard into your

chassis, as well as installing the processor, memory, disk drives and cables.

NOTE DO NOT APPLY POWER TO THE BOARD IF IT HAS BEEN

DAMAGED.

http://www.tyan.com

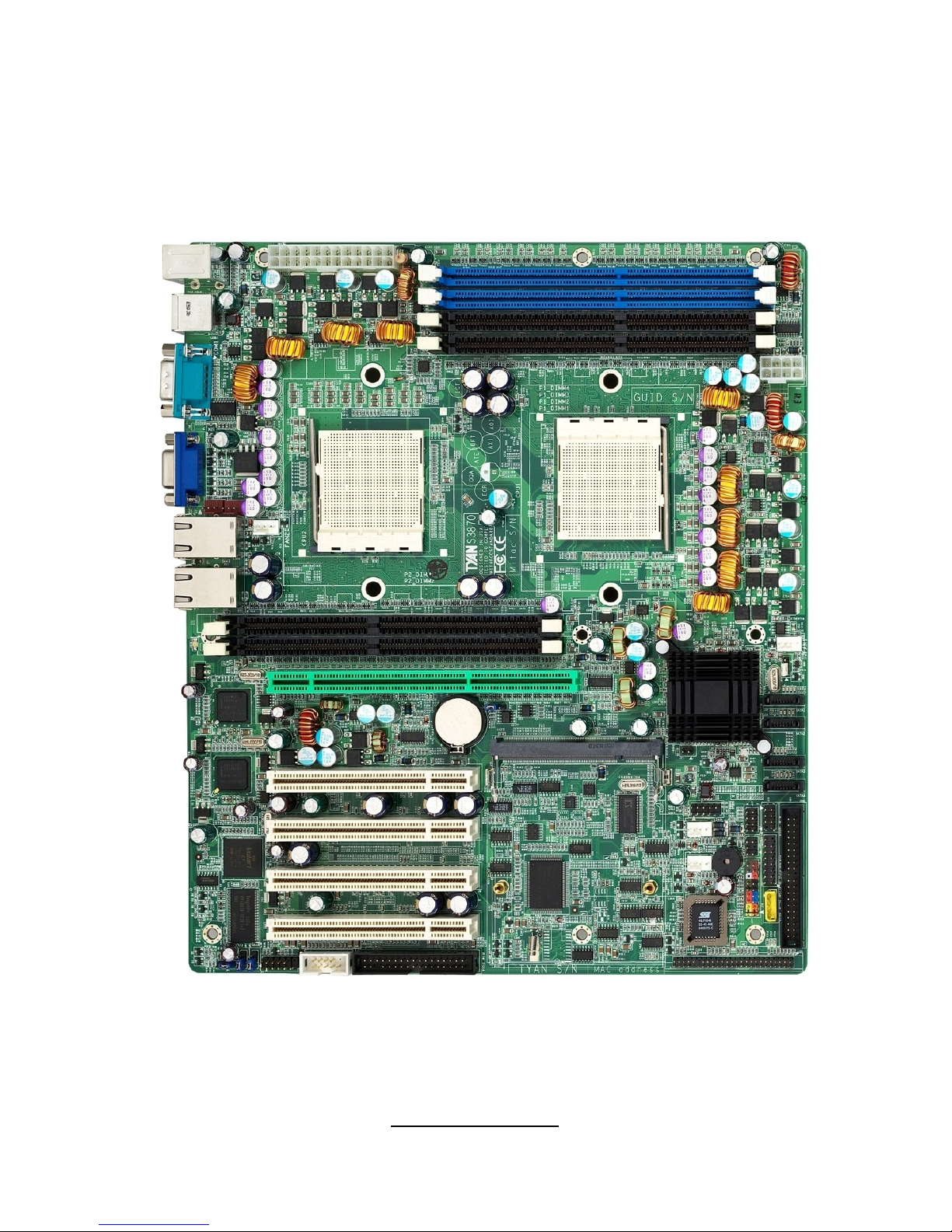

2.1- Board Image

This picture is representative of the latest board revision available at

the time of publishing. The board you receive may or may not look

exactly like the above picture.

The following page includes details on the vital components of this

motherboard.
