TYAN Tempest i5100X Manuel utilisateur

Tempest i5100X /// S5375

Version 1.1

manual may be reproduced or translated without prior written consent from TYAN

Computer Corp.

Trademark

All registered and unregistered trademarks and company names contained in this

manual are property of their respective owners including, but not limited to the

following.

TYAN, Tempest i5100X are trademarks of TYAN Computer Corporation.

Intel® 5100/5200/5400 Series and combinations thereof are trademarks of Intel

Corporation.

AMI, AMI BIOS are trademarks of AMI Technologies.

Microsoft, Windows are trademarks of Microsoft Corporation.

SuSE is a trademark of Novell.

IBM, PC, AT, and PS/2 are trademarks of IBM Corporation.

Notice

Information contained in this document is furnished by TYAN Computer Corporation

and has been reviewed for accuracy and reliability prior to printing. TYAN assumes

no liability whatsoever, and disclaims any express or implied warranty, relating to

sale and/or use of TYAN products including liability or warranties relating to fitness

for a particular purpose or merchantability. TYAN retains the right to make changes

to product descriptions and/or specifications at any time, without notice. In no event

will TYAN be held liable for any direct or indirect, incidental or consequential

damage, loss of use, loss of data or other malady resulting from errors or

inaccuracies of information contained in this document.

Table of Contents

Check the box contents! 3

Chapter 1: Introduction

1.1 Congratulations 5

1.2 Hardware Specifications 5

Chapter 2: Board Installation

2.1 Board Image 8

2.2 Block Diagram 10

2.3 Board Parts, Jumpers and Connectors 12

2.4 Tips on Installing Motherboard in Chassis 20

2.5 Installing the Processor(s) 21

2.6 Installing the Memory 24

2.7 Attaching Drive Cables 26

2.8 Installing Add-in Cards 27

2.9 Installing Optional SO-DIMM Modules 28

2.10 Connecting External Devices 29

2.11 Installing the Power Supply 30

2.12 Finishing up 30

Chapter 3: BIOS Setup

3.1 BIOS Main Menu 33

3.2 Advanced Menu 34

3.3 PCI PnP Menu 55

3.4 Boot Menu 57

3.5 Security Menu 61

3.6 Chipset Menu 62

3.7 Exit Menu 66

Chapter 4: Diagnostics

4.1 Beep Codes 67

4.2 Flash Utility 67

4.3 AMI BIOS Post Code 68

Appendix: SMDC Information 71

Glossary 73

Technical Support 79

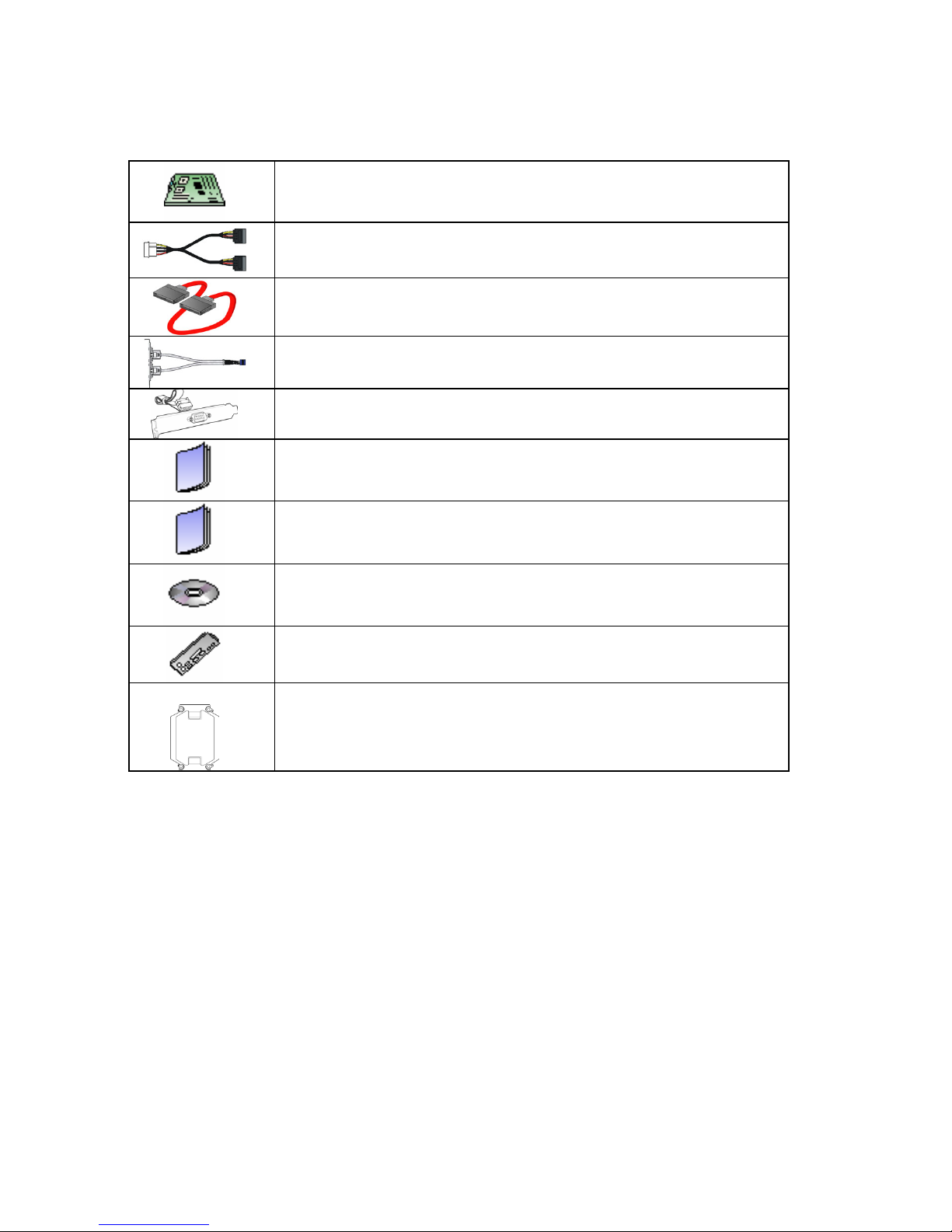

Check the box contents!

1x S5375 motherboard

3 x Serial ATA power cable

6 x Serial ATA Cable

2 x USB2.0 cable

1x Serial Port Cable

1 x S5375 user’s manual

1 x S5375 Quick Reference guide

1 x TYAN driver CD

1 x I/O shield

2 x CPU Back Plane

If any of these items are missing, please contact your vendor/dealer for

replacement before continuing with the installation process.

NOTE

Chapter 1: Introduction

1.1 - Congratulations

You have purchased one of the most powerful server solutions. The Tempest

i5100X (S5375) is a flexible Intel®platform for multiple applications, based on Intel®

5100 MCH and ICH9R chipsets.

Designed to support two Intel®5100/5200/5400 Series processors and 32GB

DDR2-533/667 DIMM memory, and featured with integrated Dual 82573V LAN

controllers, built-in 32MB XGI Z9S video plus six SATA2 ports, the S5375 offers

exceptional performance and versatile solution for your server / Workstation.

Remember to visit TYAN’s Website at http://www.TYAN.com. There you can find

information on all of TYAN’s products with FAQs, online manuals and BIOS

upgrades.

1.2 - Hardware Specifications

Processors

•Dual LGA771 sockets

•Supports up to two (2) Intel®

5100/5200/5400 Series

processors

•1.33 / 1.06 GHz FSB

•VRD 11.0

Chipset

•Intel®5100 (San Clemente) MCH

•ICH9R South Bridge

•PXH-V 64-bit PCI Hub

(S5375AG2NR only)

•Winbond 83627DHG Super I/O

chip

Memory

•Eight (8) 240-pin DDR2 DIMM

sockets

•Supports Registered ECC DIMMs

•Maximum of 32GB of DDR2 DIMM

533/667 (up to 8 ranks)

Optional Modules

•Optional Tyan M3295-2/M3296

SMDC support

System Management

•Winbond W83793G Hardware

Monitor ASIC

•CPU thermal & voltage monitor

support

•2-pin chassis intrusion header

•Two (2) 4-pin CPU fan headers with

tachometer monitoring and smart

FAN control

•Three (3) 4-pin system fan headers

with tachometer monitoring, and

support smart FAN control

Back Panel I/O Ports

•Stacked PS/2 Mouse & Keyboard

ports

•Stacked two (2) USB 2.0 ports

•One (1) 9-pin COM port

•One (1) 15-pin VGA port

•Two (2) RJ45 10/100/1000 ports

with activity LED

•One (1) RJ45 10/100 port with

activity LED

Integrated LAN Controllers

•Two 82573V (via PCI-E x1 signal)

Expansion Slots

*S5375AG2NR

•One (1) PCI-E x16 slot w/ x16

signal

•One (1) PCI-E x8 slot w/ x8 signal

•Two (2) PCI-X 1.0 64/133 slots

•Two (2) 32/33 PCI 2.2 slots

(PCI device component height

limit = 9.2mm)

•Total six slots

*S5375G2NR-1U

•One (1) PCI-E x16 slot w/ x16

signal

•One (1) 32/33 PCI 2.2 slot

(PCI device component height

limit = 9.2mm)

•Total two slots

Integrated I/O

•Six (6) SATA (3Gb/s) ports

•Six (6) USB 2.0 ports (two at rear,

and four via headers)

•Two (2) COM ports (1 at rear, 1

via cable)

•Tyan 2x9 front panel pin header

•Tyan 2x6 front panel pin header

for LAN LED and ID LED/Switch

•2x7 pin Fan header

•One (1) SO-DIMM connector for

optional Tyan SMDC M3295-2 /

M3296

Integrated SATA Controller

(ICH9R)

•Supports six (6) SATA2 ports

running at 3.0Gb/s

•RAID 0/1/5/10 capable (Windows

OS only)

Integrated Audio

(S5375AG2NR only)

•HD Audio (High-Definition Audio)

supported

•Realtek ALC262 (High-Definition

Audio) controller

•Front panel audio header (2x5 pin)

•CD_IN, AUX headers (4-pin

configuration)

Integrated Video Controller

•XGI Z9S

•32MB DDR2 frame buffer memory

BIOS

•AMI BIOS on 8Mbit Flash ROM

•Serial Console Redirect

•PXE via Ethernet, USB device boot

•PnP, DMI 2.0, WfM 2.0 Power

Management

•User-configurable H/W monitoring

•Auto-configuration of hard disk

types

•Multiple boot options

•48-bit LBA support

Form Factor

•CEB footprint (10.5” x 12”)

Power

•ATX 12V

•Universal 24-pin +8-pin power

connectors

Regulatory

•FCC Class B (DoC)

•CE (DoC)

•BSMI (optional)

Chapter 2: Board Installation

You are now ready to install your motherboard. The mounting hole pattern of the

Tempest i5100X S5375 matches the SSI CEB specification. Before continuing with

installation, confirm that your chassis supports an SSI CEB motherboard.

How to install our products right… the first time

The first thing you should do is reading this user’s manual. It contains important

information that will make configuration and setup much easier. Here are some

precautions you should take when installing your motherboard:

(1) Ground yourself properly before removing your motherboard from the

antistatic bag. Unplug the power from your computer power supply and

then touch a safely grounded object to release static charge (i.e. power

supply case). For the safest conditions, TYAN recommends wearing a

static safety wrist strap.

(2) Hold the motherboard by its edges and do not touch the bottom of the

board, or flex the board in any way.

(3) Avoid touching the motherboard components, IC chips, connectors,

memory modules, and leads.

(4) Place the motherboard on a grounded antistatic surface or on the antistatic

bag that the board was shipped in.

(5) Inspect the board for damage.

The following pages include details on how to install your motherboard into your

chassis, as well as installing the processor, memory, disk drives and cables.

NOTE DO NOT APPLY POWER TO THE BOARD IF IT HAS BEEN

DAMAGED.

2.1- Board Image

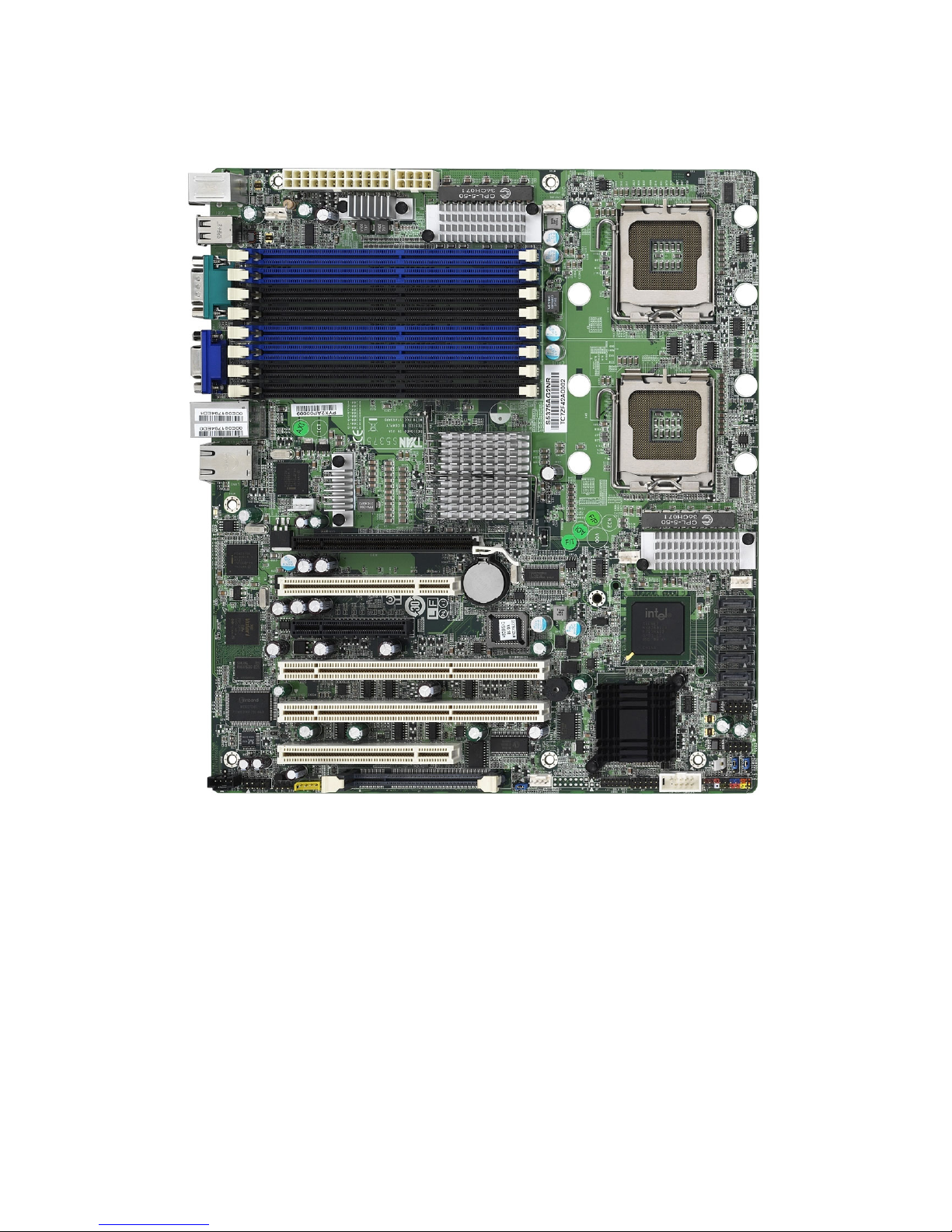

Tempest i5100X S5375AG2NR

This picture is representative of the latest board revision available at the time of

publishing. The board you receive may or may not look exactly like the above

picture.

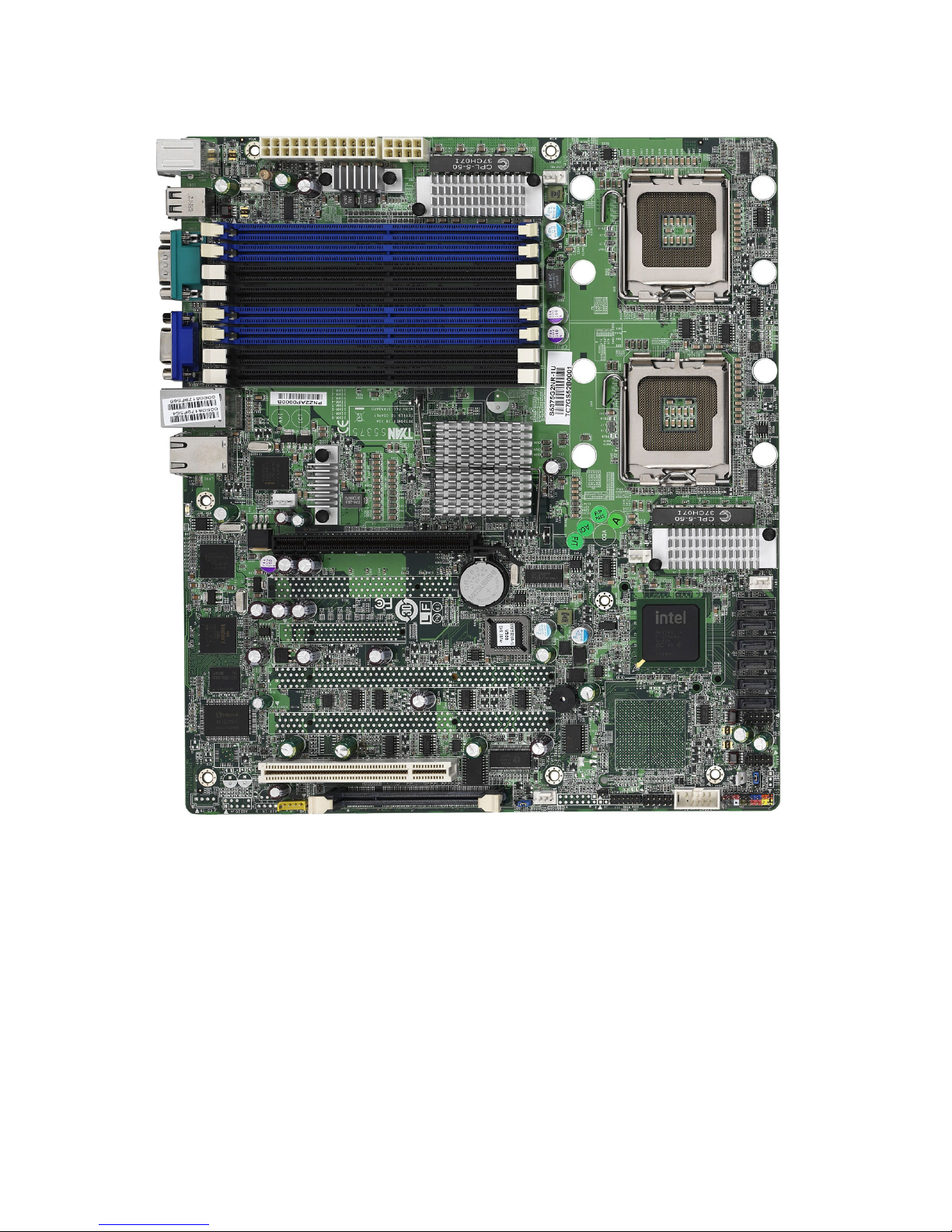

Tempest i5100X S5375G2NR-1U

This picture is representative of the latest board revision available at the time of

publishing. The board you receive may or may not look exactly like the above

picture.

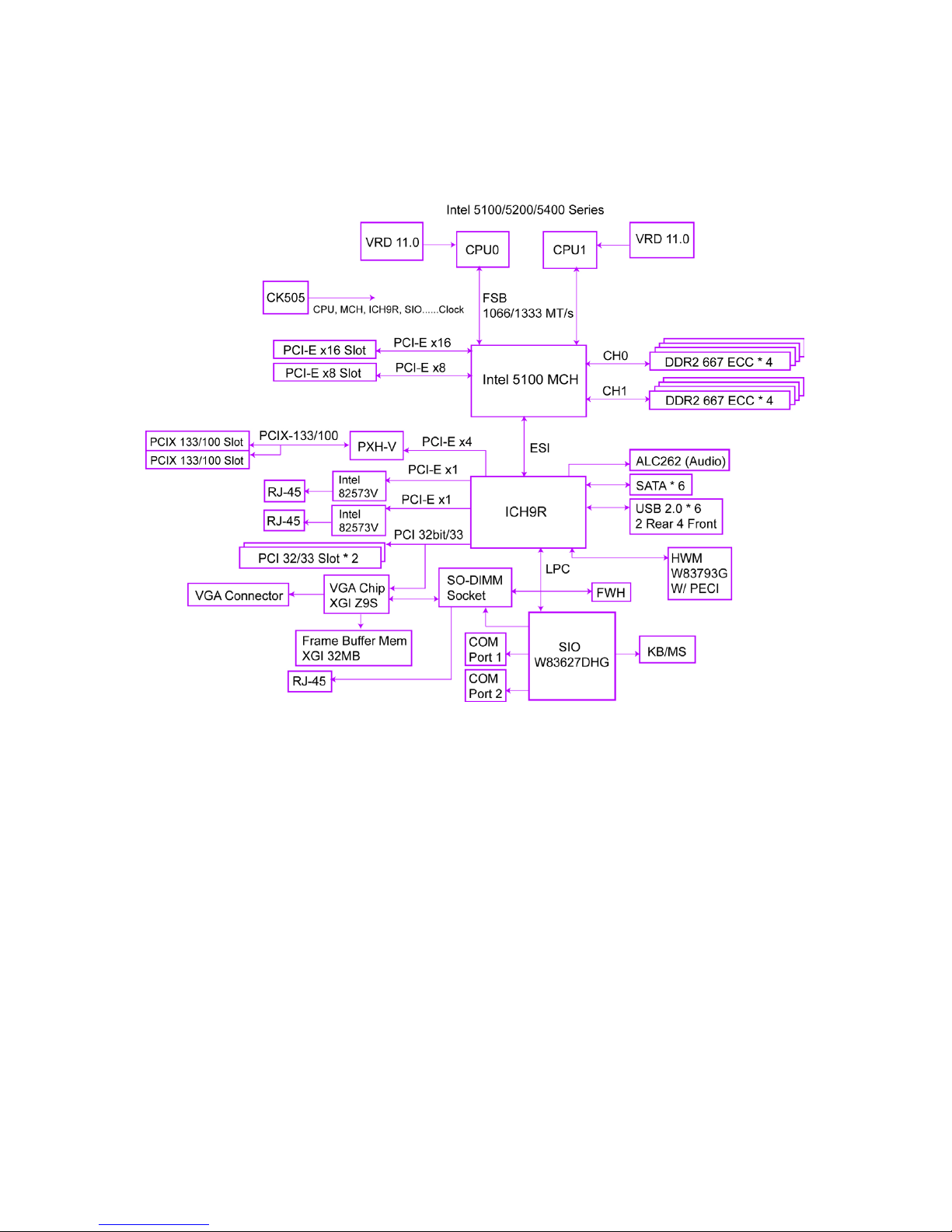

2.2 - Block Diagram

Tempest i5100X S5375AG2NR Block Diagram
