TYAN TEMPEST I5000VF Manuel utilisateur

Tempest i5000VF /// S5370

Version 1.1

this manual may be reproduced or translated without prior written consent from

TYAN Computer Corp.

Trademark

All registered and unregistered trademarks and company names contained in

this manual are property of their respective owners including, but not limited to

the following.

TYAN, Tempest i5000VF are trademarks of TYAN Computer Corporation.

Intel, Blackford-VS, and combinations thereof are trademarks of Intel

Corporation.

Phoenix, Phoenix-AwardBIOS are trademarks of Phoenix Technologies.

Microsoft, Windows are trademarks of Microsoft Corporation.

SuSE,is a trademark of SuSE AG.

IBM, PC, AT, and PS/2 are trademarks of IBM Corporation.

Notice

Information contained in this document is furnished by TYAN Computer

Corporation and has been reviewed for accuracy and reliability prior to printing.

TYAN assumes no liability whatsoever, and disclaims any express or implied

warranty, relating to sale and/or use of TYAN products including liability or

warranties relating to fitness for a particular purpose or merchantability. TYAN

retains the right to make changes to product descriptions and/or specifications

at any time, without notice. In no event will TYAN be held liable for any direct or

indirect, incidental or consequential damage, loss of use, loss of data or other

malady resulting from errors or inaccuracies of information contained in this

document.

Table of Contents

Check the box contents! 3

Chapter 1: Introduction

1.1 Congratulations…………………………………………………………… 5

1.2 Hardware Specifications………………………………………………… 5

Chapter 2: Board Installation

2.1 Board Image……………………………………………………………… 8

2.2 Block Diagram……………………………………………………………. 9

2.3 Board Parts, Jumpers and Connectors………………………………... 10

2.4 Tips on Installing Motherboard in Chassis…………………………….. 19

2.5 Installing the Processor(s)………………………………....................... 20

2.6 Installing the Memory……………………………………………………. 23

2.7 Attaching Drive Cables………………………………………………….. 25

2.8 Installing Add-in Cards………………………………............................ 27

2.9 Connecting External Devices…………………………………………… 28

2.10 Installing the Power Supply……………………………………………... 29

2.11 Finishing up………………………………………………………………. 29

Chapter 3: BIOS Setup

3.1 About the BIOS…………………………………………………………… 31

3.2 BIOS Main Menu…………………………………………………………. 33

3.3 Advanced Menu………………………………………………………….. 41

3.4 Security Menu…………………………………………………………….. 55

3.5 Power Menu………………………………………………………………. 56

3.6 Boot Menu………………………………………………………………… 57

3.7 Exit Menu…………………………………………………………………. 58

Chapter 4: Diagnostics

4.1 Beep Codes………………………………………………………………. 59

4.2 Flash Utility……………………………………………………………….. 59

4.3 BIOS Post Code………………………………………………………….. 60

Appendix I: SMDC Information

Appendix II: How to Make a Driver Diskette

Glossary

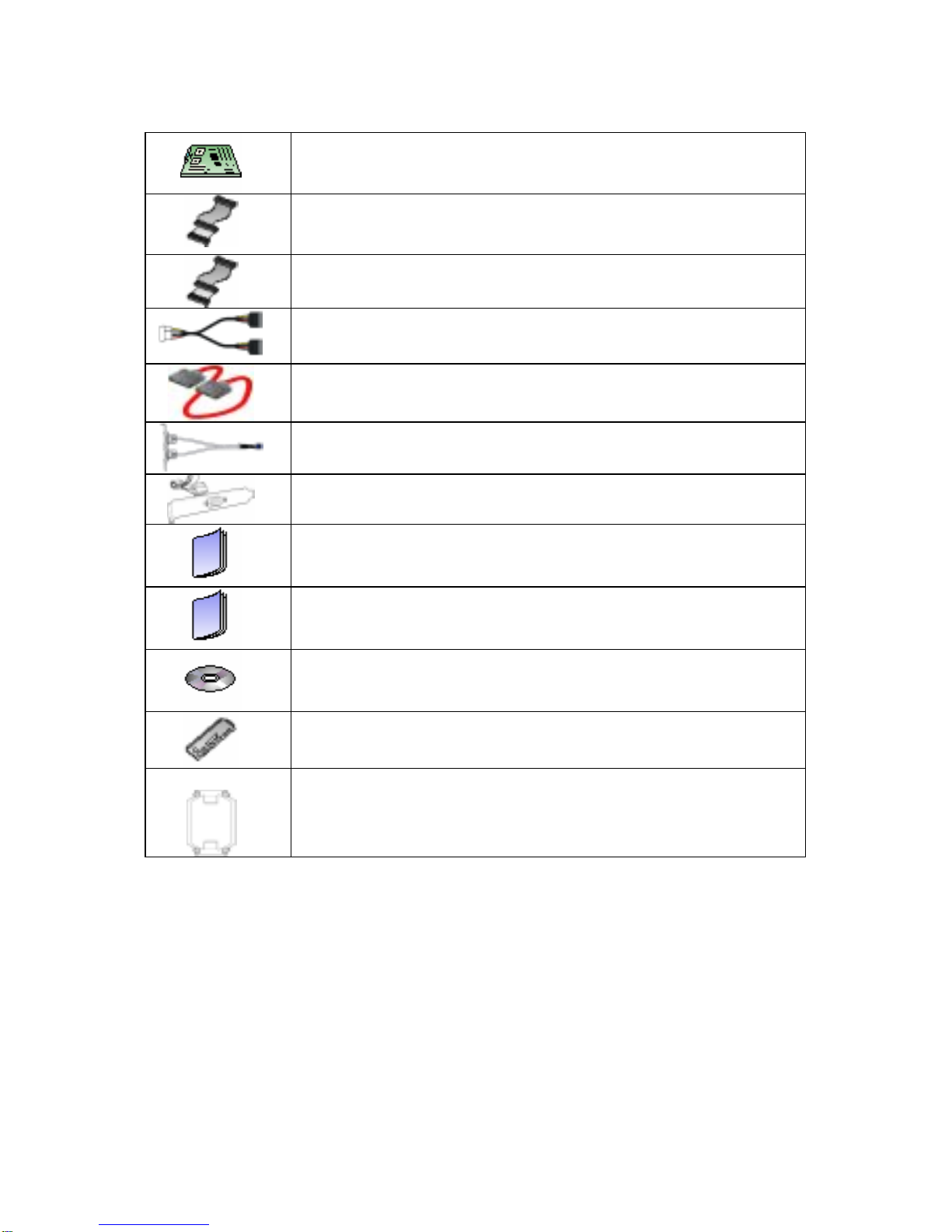

Check the box contents!

1x S5370 motherboard

1x 34-Pin floppy drive cable

1 x Ultra-DMA-133/100/66/33 IDE cable

3 x Serial ATA power cable

6 x Serial ATA Cable

1 x USB2.0 cable

1x Serial Port Cable

1 x S5370 user’s manual

1 x S5370 Quick Reference guide

1 x TYAN driver CD

1 x I/O shield

2 x CPU Back Plane

If any of these items are missing, please contact your vendor/dealer for

replacement before continuing with the installation process.

Chapter 1: Introduction

1.1 - Congratulations

You have purchased one of the most powerful server solutions. The Tempest

i5000VF (S5370) is a flexible Intel®platform for multiple applications, based on

Intel®“Blackford-VS” MCH and ESB2 chipsets.

Designed to support Intel®Dempsey processor and 8GB DDR2-533/667 FB-

DIMM memory, and featured with integrated Dual Gigabit Ethernet LAN, built-in

16MB XGI XG20TM video plus six serial ATA ports, the S5370 offers exceptional

performance and versatile solution for your server platform.

Remember to visit TYAN’s Website at http://www.TYAN.com. There you can

find information on all of TYAN’s products with FAQs, online manuals and BIOS

upgrades.

1.2 - Hardware Specifications

Processor

•Dual LGA771 sockets

•Supports up to two IntelR

Dempsey/Woodcrest processor

•1066/1333 MHz FSB

•VRD 11.0

Chipset

•IntelR“Blackford-VS” MCH+ESB2

chipset

•Supports for 1033/1066MHz FSB

•SMSC SCH5017 super I/O chip

Memory

•Four 240-pin DDR2 FBDIMM

sockets

•2 memory channels

•Supports ECC DIMMs

•Maximum of 16/8GB DDR2-

533/667 FB-DIMM*

*FB-DIMM: Fully Buffered DIMM

Integrated LAN Controllers

•IntelR Gigabit from ESB2

(w/”Gilgal”) (ASF2.0 option)

•Two front panel LED headers

(Link/Act)

•Two RJ-45 port with LEDs

Integrated Video Controller

•XGI XG20

•PCI interface

•16MB DDR memory

Integrated SATA 2.0 Controller

•Six SATA2.0 ports from Intel

ESB2

•Integrated HostRAID o or 1

support

BIOS

•PhoenixRBIOS on 8Mbit Flash

ROM

•Supports ACPI 1.0b

Expansion Slots

•Two (2) PCI-Express x8 slots

(with x4 signal)

•One (1) PCI-X 133/100MHz slot

•Two (2) PCI 32-bit 33MHz slots

Total Five expansion slots from

ESB2

Integrated I/O

•One (1) 9-pin 16550 UART serial

port

•One (1) 15-pin VGA port

•Eight (8) USB2.0 ports (two ports

at rear, three front headers

support six ports)

•PS/2 mouse and keyboard

connectors

•One (1) FDD connector

•One (1) IDE connector supports

ATA100

•Six standard/integrated SATA

connectors

•Two side by side RJ-45

10/100/1000 LAN ports

System Management

•Winbond W83793G Hardware

Monitor ASIC

•CPU thermal & voltage monitor

support

•2-pin chassis intrusion header

•4-pin fan monitoring header

•Five (5) fan headers with

Tachometer and auto fan control

(4-pin configuration)

•Serial Console Redirect

•PXE via Ethernet, USB device

boot

•User-configurable H/W monitoring

•Auto-configuration of hard disk

types

•Multiple boot options

•48-bit LBA support

Form Factor

•SSI/CEB 1.01 (12” x 10.5”)

•EPS12V/SSI (24+8pin) power

connectors

•Stacked PS/2 keyboard and

mouse connectors

•Stacked USB2.0 (2) connectors

•Serial (1) and VGA (1) connectors

•Two side-by-side RJ-45 LAN

connectors with LEDs

Chapter 2: Board Installation

You are now ready to install your motherboard. The mounting hole pattern of

the Tempest i5000VF S5370 matches the ATX specification. Before continuing

with installation, confirm that your chassis supports an ATX motherboard.

How to install our products right… the first time

The first thing you should do is reading this user’s manual. It contains important

information that will make configuration and setup much easier. Here are some

precautions you should take when installing your motherboard:

(1) Ground yourself properly before removing your motherboard from the

antistatic bag. Unplug the power from your computer power supply and

then touch a safely grounded object to release static charge (i.e. power

supply case). For the safest conditions, TYAN recommends wearing a

static safety wrist strap.

(2) Hold the motherboard by its edges and do not touch the bottom of the

board, or flex the board in any way.

(3) Avoid touching the motherboard components, IC chips, connectors,

memory modules, and leads.

(4) Place the motherboard on a grounded antistatic surface or on the

antistatic bag that the board was shipped in.

(5) Inspect the board for damage.

The following pages include details on how to install your motherboard into your

chassis, as well as installing the processor, memory, disk drives and cables.

NOTE DO NOT APPLY POWER TO THE BOARD IF IT HAS BEEN

DAMAGED

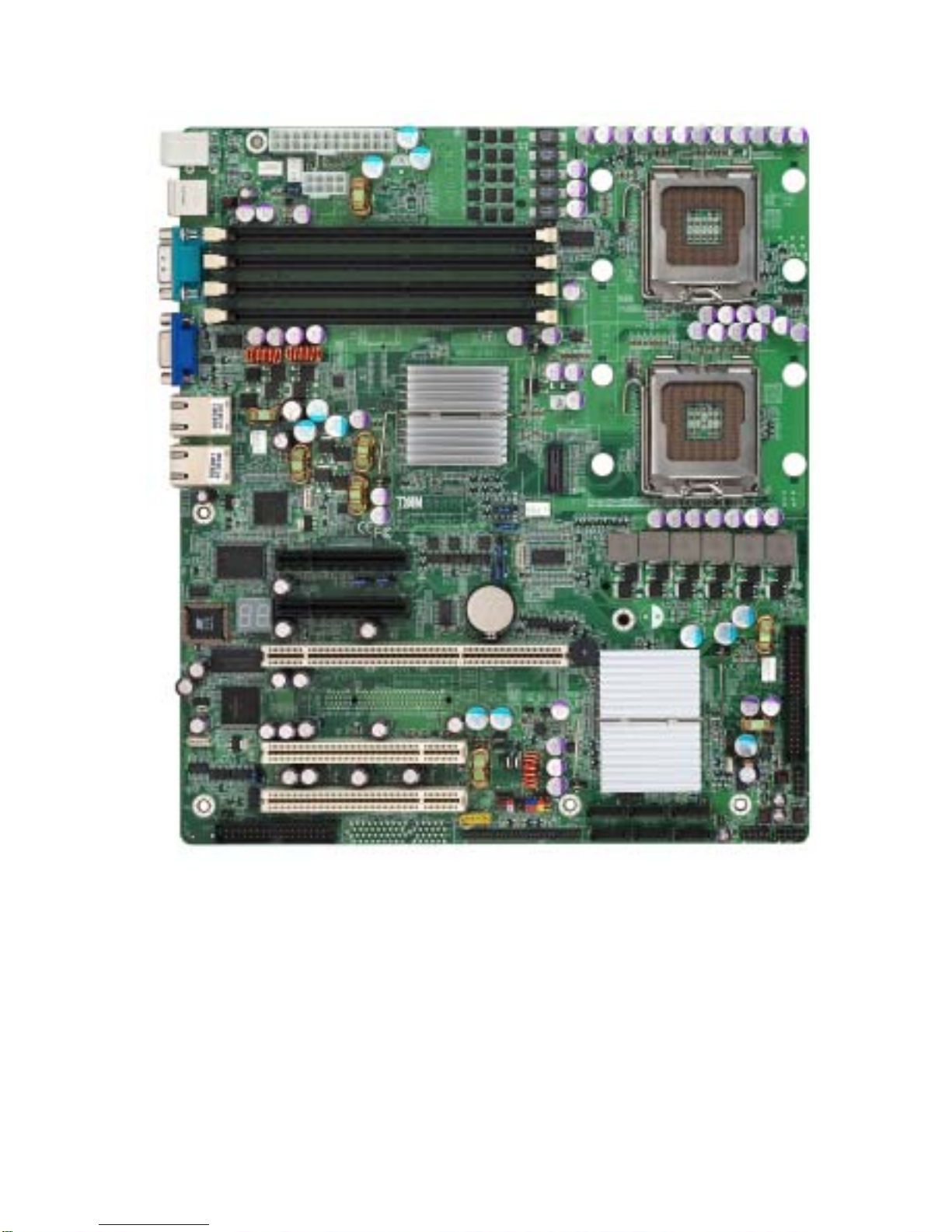

2.1- Board Image

This picture is representative of the latest board revision available at

the time of publishing. The board you receive may or may not look

exactly like the above picture.

2.2 - Block Diagram

Tempest i5000VF S5370 Block Diagram

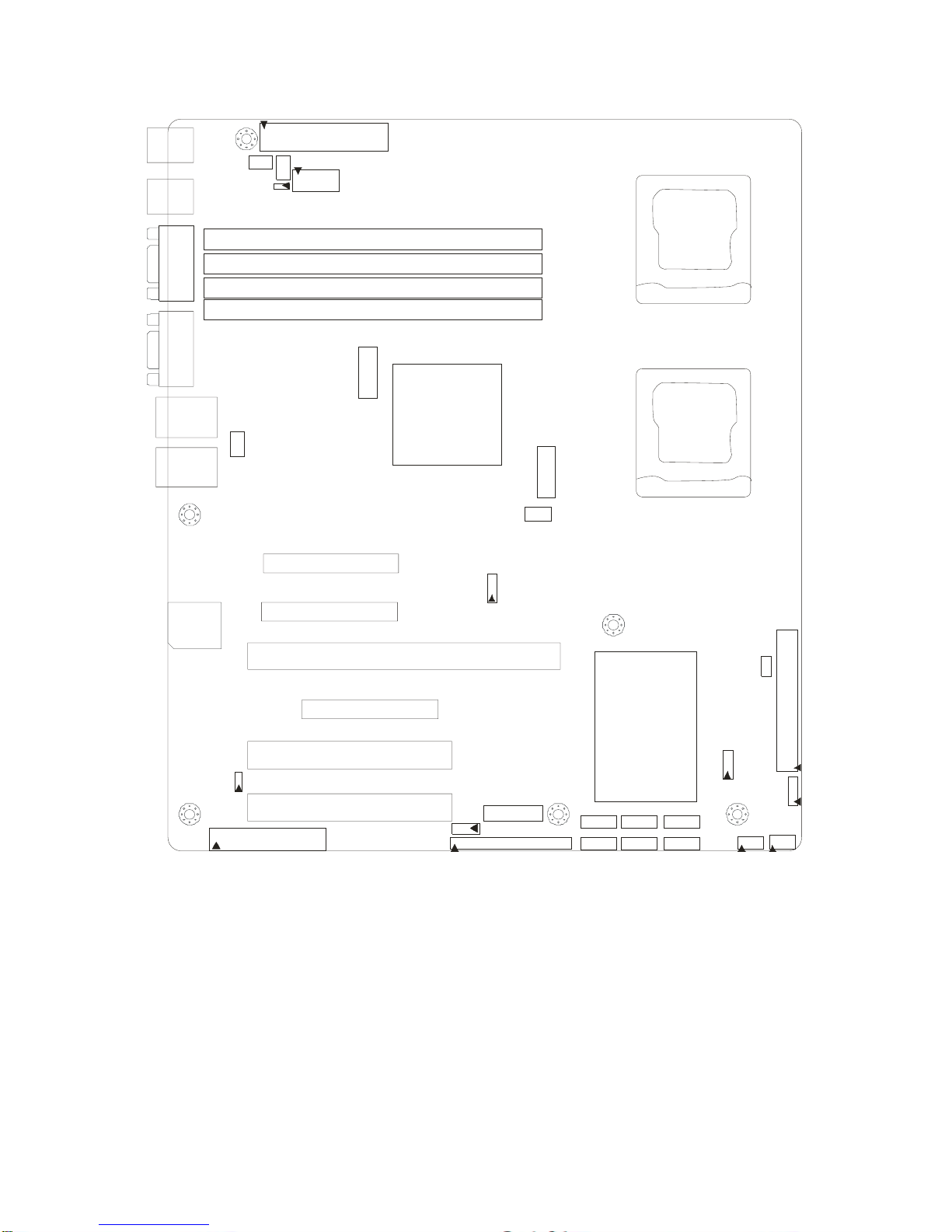

2.3 - Board Parts, Jumpers and Connectors

DIMM 2

DIMM 1

DIMM 0

CN1

CN3

KB/MS

USBx2

COM1

VGA

LAN1

LAN2

CN23

JP19

CN22

BIOS

PCIE1

PCIE3

PCIX1

BMC1

PCI1PCI1

PCI2

CN12

JP16

CN26

SATA0 SATA1

SATA4

SATA2 SATA5 SATA3 CN15

CN19

JP9

CN20

JP18

CN28

CN25

CN14

CN24

Intel

BF-VS MCH

Intel

ESB2

JP5

Intel

BF-VS MCH

Intel

BF-VS MCH

CPU1

CPU0

DIMM 3

CN21

This diagram is representative of the latest board revision available at the time of

publishing. The board you receive may not look exactly like the above diagram.
