MARATHON 230

TREADMILL

USER MANUAL

CAUTION

READ ALL PRECAUTIONS AND

INSTRUCTIONS INTHIS MANUAL

BEFORE USING THIS EQUIPMENT.

KEEP THIS MANUAL FOR

FUTURE REFERENCE.

Visit facebook.com/trojanhealth

www.trojanhealth.co.za

10375

INDEX

• Important Safety Instructions ______________________________________ 3

• Grounding Instructions ___________________________________________ 5

• Pre Assembly Check List __________________________________________ 6

• Hardware & Tools List ____________________________________________ 7

• Parts List ______________________________________________________ 8

• Exploded Drawing ______________________________________________ 10

• Assembly Steps _________________________________________________ 11

• Operation Instructions ___________________________________________ 16

• 25 Pre-Set Programs ____________________________________________ 18

• Folding Instructions _____________________________________________ 19

• Maintenance ___________________________________________________ 21

• Fitness Tips & Techniques__________________________________________ 24

• Conditioning Guidelines __________________________________________ 25

• Warm Up & Cool Down _________________________________________ 26

• Trouble Shooting _______________________________________________ 27

• 1 Year Limited Warranty __________________________________________ 28

• Repairs Procedure ______________________________________________ 29

• Notes ________________________________________________________ 30

10375

IMPORTANT SAFETY

INSTRUCTIONS

It is the sole responsibility of the purchaser of Trojan products to read the owner’s manual, warning labels and

instruct all individuals, on proper usage of the equipment. Understanding each and every warning in its entirety

is important. If any of these instructions or warnings are unclear please contact Trojan Customer Services

on 0861 TROJAN (0861 876526), within the Republic of South Africa. Customers outside South Africa can

contact the store where the product was purchased.

The equipment is only intended for home use and is not intended for commercial, institutional and/or studio

facilities use.

Contact Trojan with any questions regarding this classication. It is recommended that all users of Trojan be

informed of the following information prior to use.

HEALTH WARNING

• Before starting any exercise or conditioning program you should consult with your personal physician to

see if you require a complete physical exam.This is especially important if you are inactive, pregnant or

suffer from any illness.

• If at any time during exercise you feel faint, dizzy or experience pain, stop exercising immediately and

consult your physician.

• To avoid muscular pain and strain, begin each workout by stretching and warming up and end each

session by cooling down and stretching.

ACCESS CONTROL

• Trojan recommends that all tness equipment be used in a supervised area. It is recommended that

the equipment be located in an access controlled area. Control is the responsibility of the owner. Keep

children away from all equipment.

• Parents or other supervising adults must provide close supervision of children if the equipment is used in

the presence of children.

INSTALLATION

Trojan recommends that all equipment:

• be secured to or set up on a solid, level surface to stabilise and eliminate rocking or tipping over

during training.

• be set up inside your home away from moisture and dust (the equipment is not designed for

outdoor use).

• be set up with sufcient ventilation to ensure proper operation.

• be set up with sufcient space around the equipment so that all exercises can be completed safely.

It is recommended that there should be at least 1 m of space around the equipment where access is

required to exercise.

10375

IMPORTANT SAFETY

INSTRUCTIONS

PROPER USAGE

• Do not use the equipment in any way other than as designed or intended by the manufacturer. It is

imperative that Trojan equipment is used properly to avoid injury.

• Injuries may result from exercising improperly or excessively.

• Your Trojan equipment should only be used by one person at a time.

• Be careful to maintain your balance while using, mounting, dismounting or assembling your Trojan

equipment to avoid injury.

• Do not attempt to adjust the seat or handlebars while you are on your Trojan equipment.

• Servicing other than the procedures in this manual should be performed by an authorised service

representative only.

INSPECTION

• Do not use or permit use of any equipment that is damaged or has worn or broken parts. For all Trojan

equipment use only replacement parts supplied by Trojan.

• Always make sure that all nuts and bolts are tightened prior to each use.

• Maintain labels and nameplates – do not remove labels for any reason.They contain important

information.

• Equipment maintenance – preventative maintenance is the key to smooth operating equipment. Please

ensure that you follow our maintenance tips to ensure the continued correct function of your

Trojan equipment.

• Before any use, examine all accessories approved for use with the Trojan equipment for damage or wear.

• Should your Trojan equipment appear damaged or worn, do not attempt to use or repair the equipment

yourself.

• Please contact our service department on 0861 TROJAN (0861 876526) to arrange a repair.

OPERATING WARNINGS

• It is the purchaser’s responsibility to instruct all users as to the proper operating procedures of all Trojan

equipment.

• Keep children away from all moving parts. Parents must provide close supervision of children if the

equipment is used in the presence of children.

• Do not wear loose tting clothing or jewellery when using the equipment. It is also recommended that

users tie up long hair to avoid contact with moving parts.

• Ensure that anyone not using the equipment stays clear of the user, accessories and moving parts while

the machine is in operation.

USER WEIGHT LIMITATIONS

• This Trojan Marathon 230 Treadmill may not be used by persons weighing more than 100 kg.

SAVE THIS INSTRUCTION MANUAL FOR FUTURE USE AND REFERENCE

If any of these instructions or warnings are unclear please contact Trojan Customer Services on

0861 TROJAN (0861 876526) within the Republic of South Africa or visit www.trojanhealth.co.za.

Customers outside South Africa can contact the store where the product was purchased.

10375

GROUNDING INSTRUCTIONS

WARNING

• Never use a ground fault circuit interrupt (GFCI) wall outlet with this treadmill. Route the power cord

away from any moving parts of the treadmill including the elevation mechanism and transport wheels.

• Never remove any cover without rst disconnecting AC power.

• Never expose this treadmill to rain or moisture.This treadmill is not designed for use outdoors, near a

pool, or in any other high humidity environment.

This product must be grounded. If a malfunction or breakdown occurs, grounding provides a path of

least resistance for electric current to reduce the risk of electric shock.This product is equipped with a

cord having an equipment-grounding conductor and a grounding plug.The plug must be plugged into

an appropriate outlet that is properly installed and grounded in accordance with all local codes and

ordinances.

DANGER – improper connection of the equipment-grounding conductor can result in a risk of electric

shock. Check with a qualied electrician or serviceman if you are in doubt as to whether the product is

properly grounded. Do not modify the plug provided with the product. If it will not t the outlet have a

proper outlet installed by a qualied electrician.

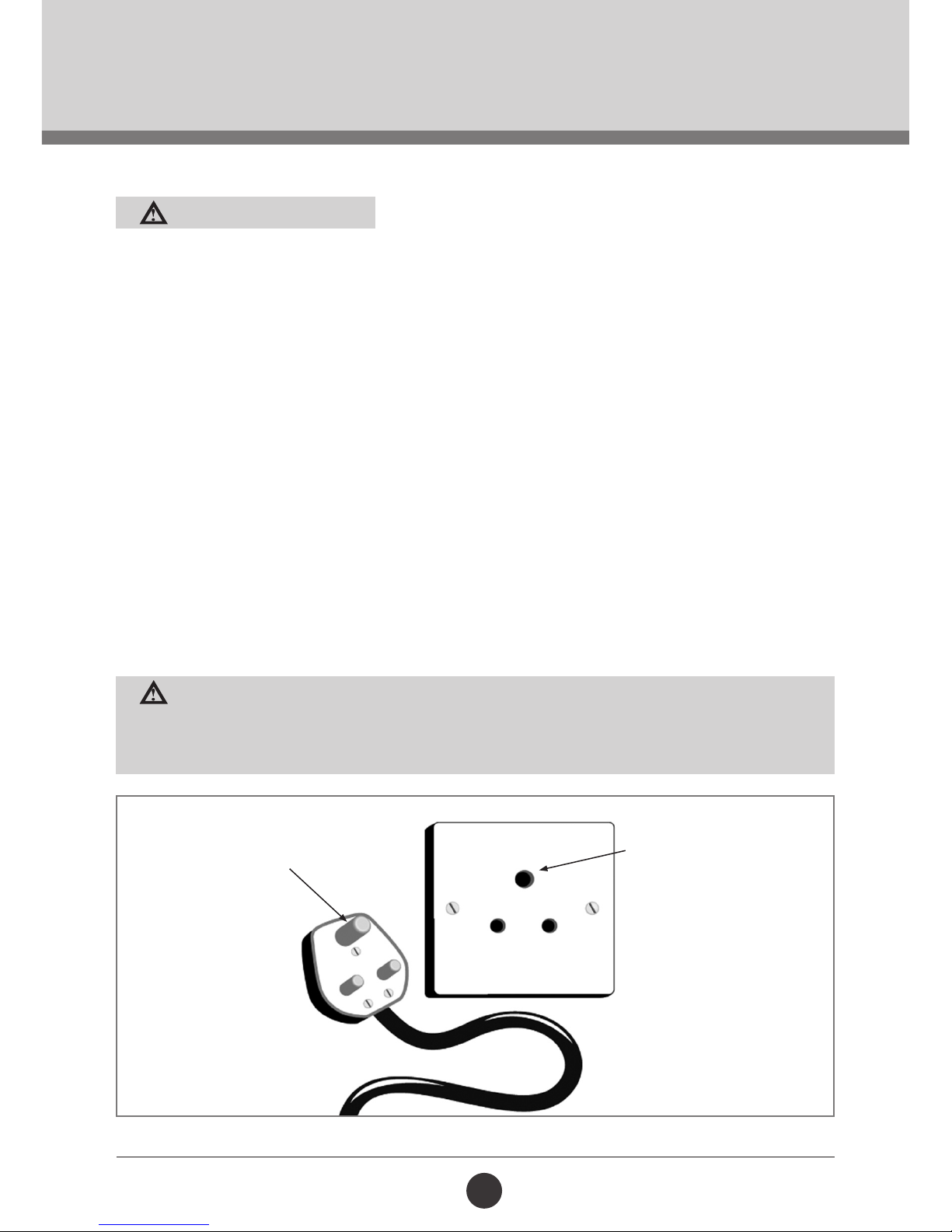

This product is for use on a nominal 220 - 240 volt circuit and has a grounding plug that looks like

the plug illustrated in the gure. Make sure that the product is connected to an outlet with the same

conguration as the plug. No adaptor should be used with this product.

WARNING

Due to the high volume of power failures (black outs) taking place in South Africa, we

recommend you unplug your unit when not in use, as your warranty does NOT cover

damage caused by power surges due to power failures.

GROUNDED OUTLET

GROUNDING PIN

10375

Console

Safety Key

Hand Pulse

Running Belt

Inclination

Adjustor

Wheel

Locking Pin

Upright

PRE ASSEMBLY CHECK LIST

Running deck (mm)

Set-up size (mm)

User Weight

Programs

Thank you for choosing the Trojan Marathon 230 Treadmill.We took great pride in producing

this product and hope it will provide many hours of quality exercise to make you feel better, look

better and enjoy life to the full.Yes, it’s a proven fact that a regular exercise program can improve

your physical and mental health.Too often, our busy lifestyles limit our time and opportunity to

exercise.The Trojan Marathon 230 Treadmill provides a convenient and simple method to begin

your assault on getting your body in shape and achieving a healthier lifestyle. Before reading

further, please review the drawing below and familiarise yourself with the parts that are labelled.

Read this manual carefully before using the Trojan Marathon 230 Treadmill.

1200 (l) x 400 (w)

1530 (l) x 732 (w) x 1303 (h)

100 kg (maximum)

Time / Speed / Distance / Incline / Program

10375



HARDWARE & TOOLS LIST

INSTRUCTIONS FOR ASSEMBLY

• Before you start to assemble, please check the hardware packaging to make sure all parts are included.

• Basic tools, such as spanners will be required for assembly.

• The following is included:

79. Ø8 × Ø18 × 1.5 mm

Flat Washer

(4 PCS)

96. 5/16” × 1 - 1/2”

Flat Head Socket Bolt

(2 PCS)

103. 13/15 mm Wrench

(2 PCS)

104. Combination M5 Allen

Wrench & Phillips Screw Driver

(1 PC)

105. Lubricant

(1 PC)

98. Ø8 × 1.5T

Split Washer

(2 PCS)

94. 5/16” × UNC18 × 1/2”

Button Head Socket Bolt

(6 PCS)

95. Ø8 × Ø23 × 1.5T

Curved Washer

(2 PCS)

10375

PARTS LIST

No. Description Qty

1 Main Frame 1

2 Frame Base 1

3 Left Upright 1

4 Right Upright 1

5 Console Support 1

6 Filter 1

7 Choke 1

8 500 mm Connecting Cable Of Motor 1

9 1100 mm Handpulse W/Cable Assembly 2

10 300 mm Connecting Wire (White) 1

11 Belt Guide 2

12 Motor Bracket 1

13 Drive Motor 1

14 Drive Belt 1

15 Running Deck 1

16 Running Belt 1

17 Front Roller W/Pulley 1

18 Rear Roller 1

19 Ø13 mm Bolt Cap 4

20 Console Assembly 1

20~1 Console Outer Cover 1

20~2 Console Top Cover 1

20~3 Square Magnet Stop Plate 2

20~4 Safety Switch Module W/ Cable 1

20~5 Console Display Board 1

20~7 Ø3 x 10 mm Sheet Metal Screw 2

20~8 Ø2.3 x 6 mm Sheet Metal Screw 12

20~9 03.5 x 12 mm Sheet Metal Screw 8

20~10 Key Board 1

No. Description Qty

21 Motor Top Cover 1

22 Rear Adjustment Base (L) 1

23 Rear Adjustment Base (R) 1

24 38 x 38 mm Square End Cap 2

25 Ø6 x Ø26.5 x 10T Rubber Foot Pad 4

26 Rubber Foot 6

27 20 x 40 mm Square End Cap 2

28 Oval End Cap 2

29 Foot Rail 2

30 Power Socket 1

31 Breaker 1

32 On/Off Switch 1

33 Power Cord 1

34 End Cap 2

35 Ø25 x 50 x 3T x 290 mm Handgrip Foam 2

36 Motor Controller 1

37 lOOO mm Computer Cable (Upper) 1

38 1500 mm Computer Cable (Lower) 1

39 Lubricant 1

40 Square Safety Key 1

41 lOO mm Connecting Wire (Black) 1

42 250 mm Connecting Wire (White) 1

43 250 mm Connecting Wire (Black) 1

44 13/15 mm Wrench 2

45 Combination M5 Allen Wrench & Phillips

Head Screw Driver 1

46 Transportation Wheel 2

47 M6 x 20 mm Flat Head Socket Screw 6

48 M6 x 25 mm Flat Head Socket Screw 2

49 M10 x I06 mm Hex Head Bolt 2

10375

PARTS LIST

No. Description Qty

50 Frame Cover 1

51 Isolator (L) 1

52 Isolator (R) 1

53 Ø5 x Ø30 x 40T Rubber Foot Pad 1

54 M5 x 20 mm Phillips Head Screw 1

55 3/8" x 1 - 1/4" Hex Head Bolt 1

56 3/8" x 7T Nut 1

57 Wire Protective Rubber 1

58 Inclineation Adjustor (L) 1

59 Inclineation Adjustor (R) 1

60 1/4" x 80 mm Socket Head Cap Bolt 2

61 1/4" x 2 - 1/4" Hex Head Bolt 1

62 3/8" x 3/4" Hex Head Bolt 4

63 Cylinder 1

64 Ø10 x 2.0T Split Washer 4

65 Ø10 x Ø19 x 1.5T Flat Washer 4

66 M8 x 12 mm Hex Head Bolt 2

67 Ø8 x 1.5T Split Washer 2

68 5/16" x 7T Nyloc Nut 8

69 Ø5 x 19 mm Tapping Screw 2

70 3.5 x 16 mm Tapping Screw 2

71 Wire Tie Mount 2

72 M5 x 15 mm Phillips Head Screw 4

73 M5 x lO mm Phillips Head Screw 2

74 Ø5 x 1.5T Split Washer 2

75 M5 Star Washer 2

76 Ø5 x 16 mm Tapping Screw 25

77 5/16" x 2" Button Head Socket Bolt 2

78 Console Bracket Anchor 4

No. Description Qty

79 Ø8 x Ø18 x 1.5T Flat Washer 12

80 Ø4 x 12 mm Sheet Metal Screw 4

81 Ø3 x I0 mm Sheet Metal Screw 2

82 Ø5 x 16 mm Tapping Screw 2

83 Ø3.5 x I2 mm Sheet Metal Screw 8

84 1/4" x 5T Nyloc Nut 1

85 MlO x 10T Nyloc Nut 2

86 5/16" x 1 - 3/4" Hex Head Bolt 2

87 5/16" x 1" Button Head Socket Bolt 3

88 Bolt Cap 2

89 Ø8 x Ø35 x 1.51 Flat Washer 2

90 Rubber Foot 2

91 Ø5 x 25 mm Tapping Screw 1

92 Ø4 x 45 mm Sheet Metal Screw 2

93 Ø8 x 1.5T Split Washer 2

94 5/16" x 1/2" Button Head Socket Bolt 6

95 Ø8 x Ø23 x 1,5T Curved Washer 6

96 5/16" x 1 - 1/2" Flat Head Socket Bolt 2

97 5/16" x 1 - 3/4" Button Head Socket Bolt 3

10375

EXPLODED DRAWING

Table des matières

Autres manuels Trojan tapis roulant

Trojan

Trojan IRONMAN 520 Guide d'installation

Trojan

Trojan ATLAS 220 Manuel utilisateur

Trojan

Trojan IRONMAN 510 Guide d'installation

Trojan

Trojan TITAN 330 Manuel utilisateur

Trojan

Trojan TR 100 Manuel utilisateur

Trojan

Trojan CROSS WALK 340 Guide d'installation

Trojan

Trojan TR105 Manuel utilisateur

Trojan

Trojan MOTION 360 Manuel utilisateur

Trojan

Trojan Stamina 315 Guide d'installation

Trojan

Trojan WALKER 110 Guide d'installation

Trojan

Trojan STAMINA 320 Manuel utilisateur

Trojan

Trojan Iginte 370 Manuel utilisateur

Trojan

Trojan STAMLINA 320 Guide d'installation

Trojan

Trojan SOLITUDE 410 Guide d'installation

Trojan

Trojan IGNITE 350 Guide d'installation

Trojan

Trojan SOLITUDE 400 Guide d'installation

Trojan

Trojan ALTITUDE 600 Guide d'installation

Trojan

Trojan TR 1000 Manuel utilisateur

Trojan

Trojan TR 1500 Manuel utilisateur

Trojan

Trojan MARATHON 210 Guide d'installation

Trojan

Trojan CARDIO COACH 460 Guide d'installation

Trojan

Trojan MARATHON 230 Manuel utilisateur

Trojan

Trojan IGNITE 350 Manuel utilisateur

Trojan

Trojan ATLAS 220 Manuel utilisateur

Manuels tapis roulant populaires d'autres marques

Treadly

Treadly TREADLY 2 Manuel utilisateur

HEALTH ONE

HEALTH ONE Walk Ro Manuel utilisateur

NordicTrack

NordicTrack NTL12941 Manuel utilisateur

NordicTrack

NordicTrack T7.5 S Manuel utilisateur

Gold's Gym

Gold's Gym ADVANTAGE GGTL12920 Manuel utilisateur

Merax

Merax MS282992 Manuel utilisateur

FYTTER

FYTTER RU-2SX Manuel utilisateur

Precor

Precor 903 Manuel utilisateur

FitLogic

FitLogic freewill d225 Manuel utilisateur

HOP-SPORT

HOP-SPORT ESTIMA HS-3200LB Manuel utilisateur

Horizon Fitness

Horizon Fitness Adventure 5 Plus Manuel utilisateur

Stamia

Stamia InMotion II Manuel utilisateur

Smooth Fitness

Smooth Fitness EVO 3i Manuel utilisateur

NordicTrack

NordicTrack NETL81810.0 Manuel utilisateur

Schwinn

Schwinn 830/Journey 8.0 Manuel utilisateur

Keys Fitness

Keys Fitness HealthTrainer HT-740T Manuel utilisateur

Spirit

Spirit XT8 Manuel utilisateur

NordicTrack

NordicTrack T 14.0 Treadmill Manuel utilisateur
