Trojan ECLIPSE 400 Manuel utilisateur

CAUTION

READ ALL PRECAUTIONS AND

INSTRUCTIONS INTHIS MANUAL

BEFORE USING THIS EQUIPMENT.

KEEP THIS MANUAL FOR

FUTURE REFERENCE.

Visit facebook.com/trojanhealth

www.trojanhealth.co.za

ECLIPSE 400

EXERCISE BIKE

USER MANUAL



10385

INDEX

• ImportantSafetyInstructions______________________________________ 3

• PreAssemblyCheckList__________________________________________ 5

• Hardware&ToolsList____________________________________________ 6

• AssemblySteps_________________________________________________ 7

• ExplodedDrawing______________________________________________  12

• PartsList______________________________________________________  13

• ConsoleFunctions_______________________________________________  15

• Maintenance___________________________________________________  19

• FitnessTips&Techniques__________________________________________  20

• ConditioningGuidelines __________________________________________  21

• WarmUp&CoolDown _________________________________________  22

• 1YearLimitedWarranty__________________________________________  23

• RepairsProcedure_______________________________________________  24

10385

IMPORTANTSAFETY

INSTRUCTIONS

It is the sole responsibility of the purchaser of Trojan products to read the owner’s manual, warning labels and

instruct all individuals, on proper usage of the equipment. Understanding each and every warning in its entirety

is important. If any of these instructions or warnings are unclear please contact Trojan Customer Services

on 0861 TROJAN (0861 876526), within the Republic of South Africa. Customers outside South Africa can

contact the store where the product was purchased.

The equipment is only intended for home use and is not intended for commercial, institutional and/or studio

facilities use.

Contact Trojan with any questions regarding this classication. It is recommended that all users of Trojan be

informed of the following information prior to use.

HEALTH WARNING

• Before starting any exercise or conditioning program you should consult with your personal physician to

see if you require a complete physical exam.This is especially important if you are inactive, pregnant or

suffer from any illness.

• If at any time during exercise you feel faint, dizzy or experience pain, stop exercising immediately and

consult your physician.

• To avoid muscular pain and strain, begin each workout by stretching and warming up and end each

session by cooling down and stretching.

ACCESS CONTROL

• Trojan recommends that all tness equipment be used in a supervised area. It is recommended that

the equipment be located in an access controlled area. Control is the responsibility of the owner. Keep

children away from all equipment.

• Parents or other supervising adults must provide close supervision of children if the equipment is used in

the presence of children.

INSTALLATION

Trojan recommends that all equipment:

• be secured to or set up on a solid, level surface to stabilise and eliminate rocking or tipping over

during training.

• be set up inside your home away from moisture and dust (the equipment is not designed for

outdoor use).

• be set up with sufcient ventilation to ensure proper operation.

• be set up with sufcient space around the equipment so that all exercises can be completed safely.

It is recommended that there should be at least 1 m of space around the equipment where access is

required to exercise.

10385

IMPORTANTSAFETY

INSTRUCTIONS

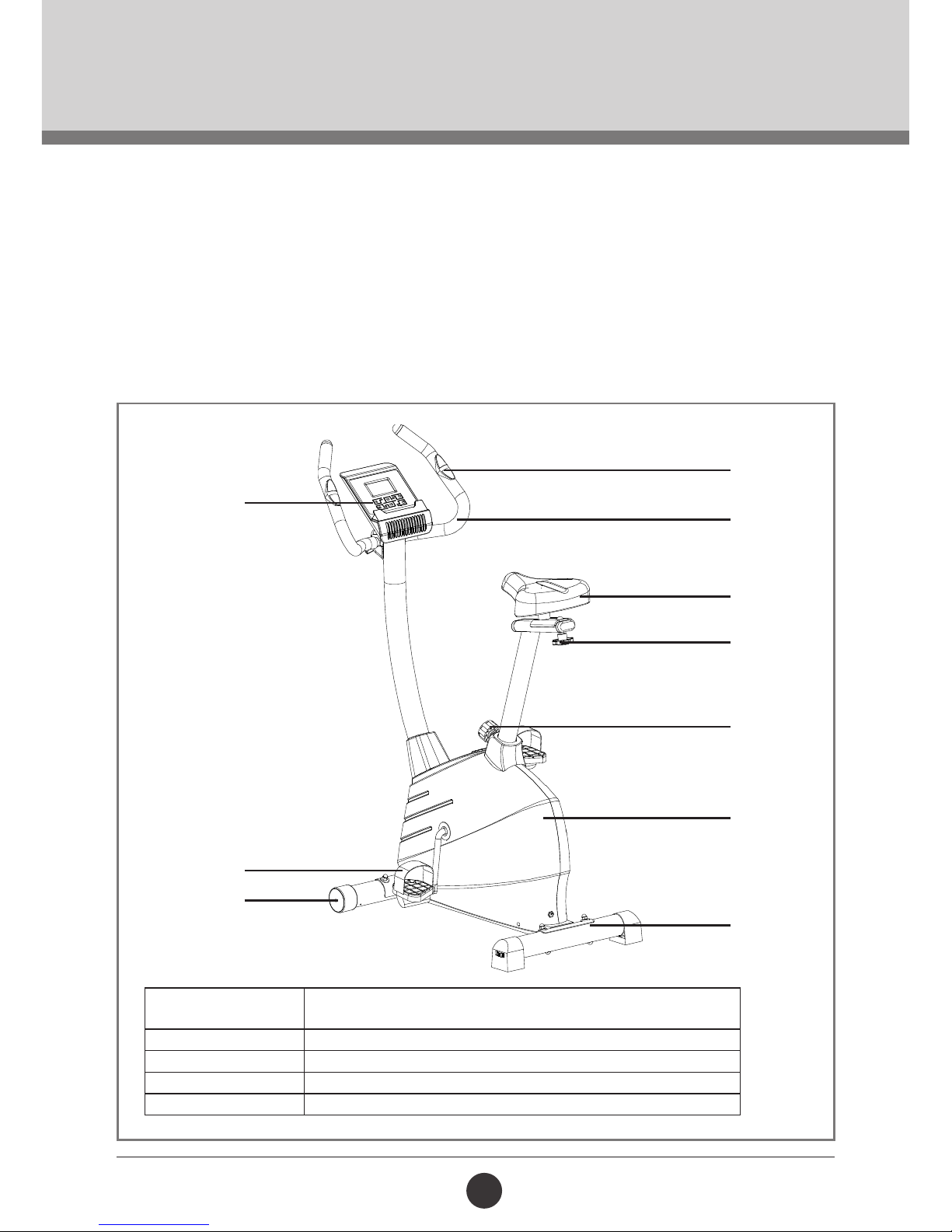

Front Stabiliser

Pedal

PROPER USAGE

• Do not use the equipment in any way other than as designed or intended by the manufacturer. It is

imperative that Trojan equipment is used properly to avoid injury.

• Injuries may result from exercising improperly or excessively.

• Your Trojan equipment should only be used by one person at a time.

• Be careful to maintain your balance while using, mounting, dismounting or assembling your Trojan

equipment to avoid injury.

• Do not attempt to adjust the seat or handlebars while you are on your Trojan equipment.

• Servicing other than the procedures in this manual should be performed by an authorised service

representative only.

INSPECTION

• Do not use or permit use of any equipment that is damaged or has worn or broken parts. For all Trojan

equipment use only replacement parts supplied by Trojan.

• Always make sure that all nuts and bolts are tightened prior to each use.

• Maintain labels and nameplates – do not remove labels for any reason.They contain important

information.

• Equipment maintenance – preventative maintenance is the key to smooth operating equipment. Please

ensure that you follow our maintenance tips to ensure the continued correct function of your

Trojan equipment.

• Before any use, examine all accessories approved for use with the Trojan equipment for damage or wear.

• Should your Trojan equipment appear damaged or worn, do not attempt to use or repair the equipment

yourself.

• Please contact our service department on 0861 TROJAN (0861 876526) to arrange a repair.

OPERATING WARNINGS

• It is the purchaser’s responsibility to instruct all users as to the proper operating procedures of all Trojan

equipment.

• Keep children away from all moving parts. Parents must provide close supervision of children if the

equipment is used in the presence of children.

• Do not wear loose tting clothing or jewellery when using the equipment. It is also recommended that

users tie up long hair to avoid contact with moving parts.

• Ensure that anyone not using the equipment stays clear of the user, accessories and moving parts while

the machine is in operation.

USER WEIGHT LIMITATIONS

• This Trojan Eclipse 400 Exercise Bike may not be used by persons weighing more than 130 kg.

SAVE THIS INSTRUCTION MANUAL FOR FUTURE USE AND REFERENCE

If any of these instructions or warnings are unclear please contact Trojan Customer Services on

0861 TROJAN (0861 876526) within the Republic of South Africa or visit www.trojanhealth.co.za.

Customers outside South Africa can contact the store where the product was purchased.

10385



PREASSEMBLYCHECKLIST

Thank you for choosing the Trojan Eclipse 400 Exercise Bike. We took great pride in producing this product

and hope it will provide many hours of quality exercise to make you feel better, look better and enjoy life to

the full.Yes, it’s a proven fact that a regular exercise program can improve your physical and mental health.

Too often, our busy lifestyles limit our time and opportunity to exercise.The Trojan Eclipse 400 Exercise Bike

provides a convenient and simple method to begin your assault on getting your body in shape and achieving

a healthier lifestyle. Before reading further, please review the drawing below and familiarise yourself with the

parts that are labelled.

Read this manual carefully before using the Trojan Eclipse 400 Exercise Bike.

Functions: Time / Distance / Calories / Speed / Age / Watt / 13 Pre-programmes /

Body Fat / Heart Rate Sensor / Recover

Tension Control: Auto Tension Control

Weight of Flywheel: 4 kg

Saddle: Seat Adjusts Vertically and Horizontally

Set-up Size (mm): 1050 mm (l) x 480 mm (w) x 1250 mm (h)

Front Stabiliser

Pedal

Hand Pulse

Handlebar

Adjustment

Knob

Adjustment

Knob

Seat

Main Cover

Rear

Stabiliser

Computer

10385

HARDWARE&TOOLSLIST

INSTRUCTIONS FOR ASSEMBLY

• Before you start to assemble, please check the hardware packaging to make sure all parts are included.

• Basic tools, such as spanners will be provided for assembly.

• The following is included:

(17) Bolt M8 x 70

Wrench/Screwdriver Allen Wrench 6 mm

(18) Bolt M10 x 50 (11) Washer Ø20 x Ø10

(15) Big Curve Washer Ø25 x Ø8 (30) Cap Nut M8

4 PCS 4 PCS 4 PCS

1 PC

1 PC 1 PC

1 PC



10385

ASSEMBLYSTEPS

1. PREPARATION

• Before assembly, make sure you have enough space to assemble.

• Use the provided tools for the assembly.

• Before assembling, check whether all the parts needed have been supplied.

STEP 1

STEP 1: INSTALL THE FRONT / REAR STABILISERS

• Attach the Front Stabiliser (2) onto the front curve plate of the Main Frame (1) with two M8 Cap

Nuts (30), M8 x 70 Bolts (17), and Big Curve Washer Ø25 x Ø8 (15).

• Attach the Rear Stabiliser (3) onto the rear curve plate of the Main Frame (1), with two M8 Cap Nuts

(30), M8 x 70 Bolts (17), and Big Curve Washer Ø25 x Ø8 (15).



10385



ASSEMBLYSTEPS

STEP 2

STEP 2: INSTALL THE SEAT POST, SEAT CUSHION

AND SEAT SLIDING TUBE

• Release the Locking Knob (48) by turning it in a counterclockwise direction until it can be pulled out.

• Pull out the Locking Knob (48) and slide the Seat Post (5) into the Bushing (53) and Seat Post Cover (59)

on the tube of the Main Frame (1).

• Lock the Seat Post (5) in place by releasing the Locking Knob (48) and sliding the Seat Post (5) up or

down slightly until the Locking Knob (48) “pops” down into the locked position.

• For added safety, tighten the Locking Knob (48) in a clockwise direction.

Note: When adjusting the height of seat post, the maximum insert depth mark line cannot

be higher than the edge of bushing.

• Remove three Locknut M8 (27) and Big Flat Washer Ø16 x Ø8 x 1.5 (10) from underneath of the Seat

Cushion (65) and then attach the Seat Cushion (65) onto the triangle plate of Seat Sliding Tube (6) with

three Locknut M8 (27) and Big Flat Washer Ø16 x Ø8 x 1.5 (10) that were removed.

• Attach the Seat Sliding Tube (6) onto the Seat Post (5) with a Big Flat Washer Ø20 x Ø10 (11), Round

Knob M10 (61) and Bolt M10 x 50 (18).

10385

STEP 3: INSTALL THE COMPUTER POST

• Remove four M8 x 15 Bolts (19) Big Curve Washer Ø20 x Ø8 (14) from the tube of the

Main Frame (1).

• Slide the Computer Post Cover (58) up to the Computer Post (7).

• Connect the Extension Sensor Wire (42) from the Main Frame (1) to the Extension Sensor

Wire I (68) from the Computer Post (7).

• Insert the Computer Post (7) onto the tube of the Main Frame (1) and secure with four

M8 x 15 Bolts (19), Big Curve Washer Ø20 x Ø8 (14) that were removed.

• Tighten bolts with the S6 Allen Wrench provided.

• Slide the Computer Post Cover (58) down to the Computer Post (7).

ASSEMBLYSTEPS



STEP 3

10385



STEP 4: INSTALL

THE HANDLEBAR

• Install the Handlebar (8) to the groove of the

Computer Post (7).

• Insert the Hand Pulse Sensor Wires (68) into the

hole on the Computer Post (7) and then

pull them out from the top end of the

Computer Post (7).

• Attach the Decorate Cover (63) onto the

Handlebar (8) with a Spacer (41)

and T-Knob (62).

• Tighten the T-Knob (62) after adjustment.

STEP 5: INSTALL THE COMPUTER

AND THE FOOT PEDALS

• Remove four Bolt M5 x 10 (67) from the

Computer (66).

• Connect the Hand Pulse Sensor Wires (49)

and Sensor Wire I (68) to the wires that come

from the Computer (66) and then attach

the Computer (66) onto the top end of the

Computer Post (7) with four Bolt M5 x 10 (67)

that were removed.

• Attach the Right and Left Foot Pedals (45, 44) to

the Right and Left Cranks .The Right Foot Pedal

(45) should be threaded in a clockwise direction.

The Left Foot Pedal (44) should be threaded in a

counterclockwise direction.

Note: The Right and Left Foot Pedals (45, 44) and

Right and Left Cranks are marked with “R” & “L”.

ASSEMBLYSTEPS

STEP 4

STEP 5
