Models:

OMNI700LCDT, OMNISMART500TU

(Series Numbers AG-02EF, AG-87D4)

Owner’s Manual

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

PROTECT YOUR INVESTMENT!

and ultimate peace of mind.

You could also win an

ISOBAR6ULTRA surge protector—

a $100 value!

www.tripplite.com/warranty

Español 12 • Français 23

18-09-014-933874.indb 1 9/12/2018 9:52:12 AM

SAVE THESE INSTRUCTIONS

This manual contains instructions and warnings that should be followed during the

installation, operation and storage of this product. Failure to heed these warnings

may affect the warranty.

UPS Location Warnings

• Install your UPS indoors, away from excess moisture or heat, conductive contaminants, dust

or direct sunlight.

• For best performance, keep the indoor temperature between 32º F and 104º F

(0º C and 40º C).

• Leave adequate space around all sides of the UPS for proper ventilation.

• Only set the UPS upright on a sturdy ﬂat surface. Do not block fans or ventilation holes, as

this will seriously inhibit the unit's internal cooling and cause product damage not covered

under warranty.

UPS Connection Warnings

• Connect your UPS directly to a properly-grounded AC power outlet. Do not plug the UPS into

itself; this will damage the UPS.

• Do not modify the UPS plug, and do not use an adapter that would eliminate the UPS

ground connection.

• Do not use extension cords to connect the UPS to an AC outlet.

• If the UPS receives power from a motor-powered AC generator, the generator must provide

clean, ﬁltered, computer-grade output.

• The mains socket outlet that supplies the UPS should be easily accessible and located near

the UPS.

Equipment Connection Warnings

Install in accordance with National Electrical Code standards ANSI/NFPA

70 and Canadian Electrical Code, Part I, C22.1.

Short-circuit backup protection and overcurrent protection is provided by

the building installation.

To reduce the risk of ﬁre, connect only to a circuit provided branch circuit

overcurrent protection in accordance with the National Electrical Code,

ANSI/NFPA 70 and the Canadian Electrical Code, Part I, C22.1. The plug on

the power supply cord is intended to serve as the disconnect device. Be

sure that the socket-outlet is installed near the equipment and is made

easily accessible.

Important Safety Instructions

18-09-014-933874.indb 2 9/12/2018 9:52:12 AM

Important Safety Instructions

• Use of this equipment in life support applications where failure of this equipment can

reasonably be expected to cause the failure of the life support equipment or to signiﬁcantly

affect its safety or effectiveness is not recommended.

• Do not connect surge protectors or extension cords to the output of your UPS. This might

damage the UPS and may affect the surge protector and UPS warranties.

• Connect the UPS to an outlet that is adequately protected against excess currents, short

circuits and earth faults as part of the building installation.

Battery Warnings

• Batteries can present a risk of electrical shock and burn from high short-circuit current.

Observe proper precautions. There are no user-serviceable parts inside the UPS. Do not

open the UPS except to perform battery replacement. Do not open batteries. Do not

short or bridge the battery terminals with any object. Do not dispose of batteries in a ﬁre.

The batteries may explode. Released material is harmful to the skin and eyes. It may be

toxic. Unplug and turn off the UPS before performing battery replacement. Use tools with

insulated handles. Battery replacement should be performed only by authorized service

personnel using the same number and type of batteries (sealed lead-acid). Do not dispose

of the batteries in a ﬁre. Tripp Lite offers a complete line of UPS System Replacement

Battery Cartridges (R.B.C.).Visit Tripp Lite on the Web at www.tripplite.com/products/battery-

ﬁnder to locate the speciﬁc replacement battery for your UPS.

CAUTION: A battery can present a risk of electrical shock and high short-

circuit current. Contact with any part of a grounded battery can result in

electrical shock. The following precautions should be observed when working

on batteries:

• Remove watches, rings or other metal objects.

• Use tools with insulated handles.

• Wear rubber gloves and boots.

• Do not lay tools or metal parts on top of batteries.

• Disconnect charging source and load prior to installing or maintaining the battery.

• Remove battery grounds during installation and maintenance to reduce likelihood

of shock.

• Remove the connection from ground if any part of the battery is determined to be

grounded.

UPS and Battery Recycling

Tripp Lite products use sealed lead-acid batteries, which are highly recyclable.

Call Tripp Lite at 1.773.869.1234 or visit www.tripplite.com/support/recycling-

program for more information on recycling the batteries or any other Tripp Lite

product. Please refer to local codes for disposal requirements.

18-09-014-933874.indb 3 9/12/2018 9:52:12 AM

STEP 1: Plug the UPS into

a properly grounded outlet.

After plugging the UPS into a wall outlet, press the

power button to turn on the UPS

(See Basic Operation).

Note: The UPS will not turn on automatically in the

presence of live utility power.

STEP 2: Plug your equipment

into the UPS.

There are two sets of outlets on the back of your

UPS. Outlets marked SURGE PROTECTED do not

provide battery backup power during power outages.

Connect common desktop items like printers,

scanners and other accessories not requiring

battery support to these outlets. Outlets marked

BATTERY/SURGE PROTECTED offer UPS battery

backup support during power failures. Connect your

vital computer equipment into these outlets.

Your UPS is designed to support electronic

equipment only. You will overload the UPS if the

total volt-amp (VA) ratings for all the equipment

connected to the BATTERY/SURGE PROTECTED

outlets exceed the UPS output capacity. To ﬁnd your

equipment’s VA ratings, look on their nameplates.

If the equipment is listed in amps (A), multiply

the number of amps by 120 to determine VA. For

example: 1A × 120 = 120VA.

If the color LCD panel does not illuminate when the

UPS is turned ON, try the following:

1. Make sure that the UPS is plugged into a live AC

outlet.

2. Press the power button to turn on the UPS. A

beep should sound when the UPS starts.

3. If the UPS still does not start, contact Tripp Lite

Tech Support for assistance.

IN OUT

Quick Installation

18-09-014-933874.indb 4 9/12/2018 9:52:13 AM

IN OUT

Quick Installation

Optional Installation

Both models include USB communication ports

and tel/DSL/Ethernet surge protection jacks

(not compatible with PoE applications). These

connections are optional, as the UPS will work

properly without these connections.

Basic Operation

UPS ON/OFF

• Plug the UPS into a live, grounded outlet.

The LCD panel will illuminate, the battery charger will engage as necessary and the SURGE

PROTECTED outlets will begin passing power.

• Plug equipment into the UPS: You will overload the UPS if the total volt-amp (VA) ratings

for all the equipment connected to the BATTERY/SURGE PROTECTED outlets exceed the

UPS output capacity. To ﬁnd your equipment’s VA ratings, look on their nameplates. If the

equipment is listed in amps (A), multiply the number of amps by 120 to determine VA. For

example: 1A × 120 = 120VA.

• Turn the UPS on: Press the power button. The UPS alarm will beep once brieﬂy. The

BATTERY/SURGE PROTECTED outlets will begin passing AC line power. The UPS will

automatically recharge internal batteries as needed. Once turned on, your UPS is ready

to protect connected equipment from blackouts, brownouts, overvoltages and transient

surges.

• Turn the UPS off: Press the power button.

Note: UPS system will function properly upon initial startup; however, maximum runtime for the

unit’s battery will only be accessible after it has been charged for 24 hours.

18-09-014-933874.indb 5 9/12/2018 9:52:13 AM

Basic Operation

Display UPS/Power Conditions

On-Line AC Power Mode LCD Data

The LCD touchscreen offers ﬁve screens of UPS and site power information when the UPS is

operating in on-line power mode. To advance to the next screen, touch the LCD.

1Output Voltage

2Input Voltage

3Load %

4Battery Charge Level

5Overload

Operating Mode Alarm Description

Battery Mode Normal No Alarm

Battery Low Sounds Every Second

Over Load Sounds Every 0.5 Second

Line Mode Normal No Alarm

Over Load Sounds Every 0.5 Second

Battery Replace Sounds Every Minute

Fault Mode Sounds Continuously

18-09-014-933874.indb 6 9/12/2018 9:52:14 AM

Basic Operation

Battery Power Mode LCD Data

The LCD touchscreen offers ﬁve screens of UPS and site power information when the UPS is

operating in battery power mode. When the UPS switches to BATTERY MODE, the UPS will

automatically switch to displaying the following screens. To advance to the next screen, touch

the LCD.

Critical Fault Screens

Error Code Critical Fault Solution

F01 OUTPUT SHORT Disconnect load(s) from UPS outlets. Power off UPS and

contact Tripp Lite Technical Support for assistance.

F02 OVER LOAD Remove excess load, check load meter on LCD for load

status.

F03 OVER CHARGE Turn unit off, unplug UPS and contact Tripp Lite

Technical Support for assistance.

F04 BATTERY LOW

VOLTAGE

Charge UPS for 24 hours. If problem persists, replace

battery and contact Tripp Lite Technical Support if

problem persists.

F05 BATTERY MODE

HIGH OUTPUT

Turn off power to the UPS and contact Tripp Lite

Technical Support for assistance.

1Output Voltage

2Input Voltage

3Load %

4Battery Charge Level

5Overload

18-09-014-933874.indb 7 9/12/2018 9:52:14 AM

IN OUT

Features

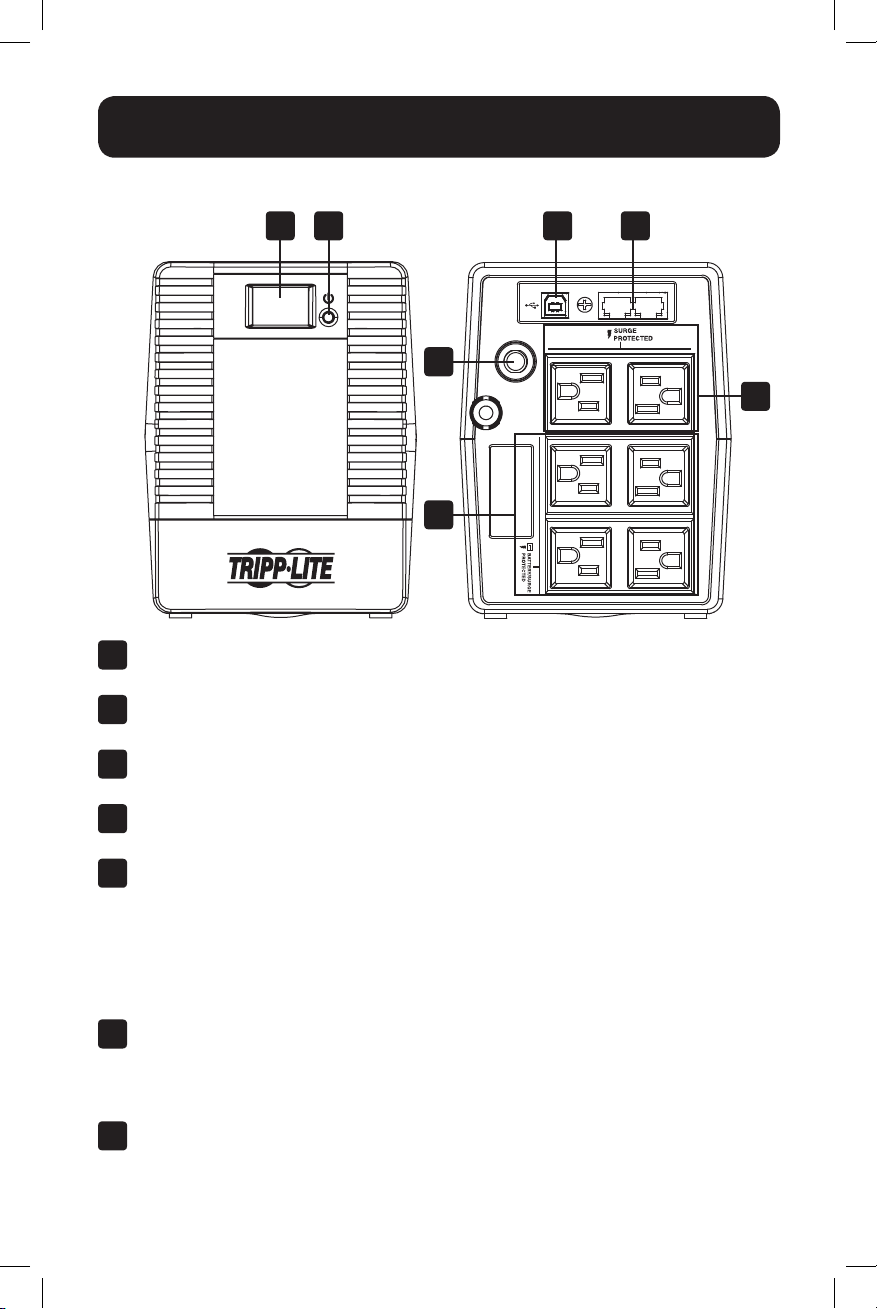

1ON/OFF Button: When the UPS is on, press and release this button after one beep to

turn the UPS off.

2LCD Touchscreen Panel: Provide current status of the UPS. For a detailed description,

refer to “Display UPS/Power Conditions” in the Basic Operation section.

3Battery Backup/Surge Protected Outlets: These outlets offer battery backup support

and premium surge suppression for critical devices requiring battery backup support.

4Surge Protected Outlets: These outlets offer premium surge suppression for critical

devices.

5USB Communication Port: This port can connect your UPS to any computer for

automatic saves and unattended shutdown in the event of a power failure. Use with

Tripp Lite’s PowerAlert®Software (available as a FREE download at www.tripplite.com)

and the USB cable included with your UPS. This connection is optional, your UPS will

work properly without this connection.

Note: This UPS System provides basic communication compatibility with most integrated Windows®,

Macintosh®and Linux®power management applications.

6Tel/DSL/Ethernet Line Protection Jacks: These jacks protect equipment against surges

over a single phone line or network connection. Connecting your equipment to these

jacks is optional; your UPS will work properly without this connection.

Note: Not compatible with PoE (Power over Ethernet) applications.

7Resettable Input Circuit Breaker: Protects your electrical circuit from overcurrent draw

from the UPS load. If this breaker trips, remove some of the load, then reset by pressing

it in.

UPS Features

1 5 6

18-09-014-933874.indb 8 9/12/2018 9:52:15 AM

Storage

To avoid battery drain, all connected equipment should be turned off and disconnected from

the UPS. Press the power button and disconnect the unit from AC power. Your UPS will be

completely turned off (deactivated), and will be ready for storage. If you plan on storing your

UPS for an extended period, fully recharge the UPS batteries every three months. Plug the

UPS into a live AC outlet, turn it on by pressing the power button and allow the batteries to

recharge for 4 to 6 hours. If you leave your UPS batteries discharged for a long period of time,

they will suffer a permanent loss of capacity.

Storage and Service

Battery Replacement

Under normal conditions, the original battery in your UPS will last several years. Battery

replacement should only be performed by qualiﬁed personnel. Refer to “Battery Warnings” in

the Important Safety Instructions section for more information.

The OMNI700LCDT and OMNISMART500TU require one 12V DC, 9AH replacement battery.

For further information about replacement compatibility and ordering, visit

www.tripplite.com/products/battery-ﬁnder.

Battery replacement must be done using the same battery type and

quantity: 12V DC sealed lead-acid, 6-cell and in compliance with UL 1989.

CAUTION: Risk of energy hazard. Before replacing batteries, remove

conductive jewelry such as chains, wristwatches and rings. High energy

passing through conductive materials may cause severe burns.

18-09-014-933874.indb 9 9/12/2018 9:52:15 AM

Storage and Service

Product Registration

Visit www.tripplite.com/warranty today to register your new Tripp Lite product. You’ll be automatically entered into a

drawing for a chance to win a FREE Tripp Lite product! *

* No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

Service

A variety of Extended Warranty and On-Site Service Programs are available from Tripp Lite. For

more information on service, visit www.tripplite.com/support.

Before returning your product for service, follow these steps:

1. Review the installation and operation procedures in this manual to ensure that the service

problem does not originate from a misreading of the instructions.

2. If the problem continues, do not contact or return the product to the dealer. Instead, visit

www.tripplite.com/support.

3. If the problem requires service, visit www.tripplite.com/support and click the Product

Returns link. From here you can request a Returned Material Authorization (RMA) number,

which is required for service. This simple on-line form will ask for your unit’s model and

serial numbers, along with other general purchaser information. The RMA number, along

with shipping instructions, will be emailed to you. Any damages (direct, indirect, special

or consequential) to the product incurred during shipment to Tripp Lite or an authorized

Tripp Lite service center is not covered under warranty. Products shipped to Tripp Lite or an

authorized Tripp Lite service center must have transportation charges prepaid. Mark the

RMA number on the outside of the package. If the product is within its warranty period,

enclose a copy of your sales receipt. Return the product for service using an insured

carrier to the address given to you when you request the RMA.

FCC Part 68 Notice (United States Only)

If your Modem/Fax Protection causes harm to the telephone network, the telephone company may temporarily

discontinue your service. If possible, they will notify you in advance. If advance notice isn’t practical, you will be

notiﬁed as soon as possible. You will be advised of your right to ﬁle a complaint with the FCC. Your telephone

company may make changes in its facilities, equipment, operations or procedures that could affect the proper

operation of your equipment. If it does, you will be given advance notice to give you an opportunity to maintain

uninterrupted service. If you experience trouble with this equipment’s Modem/Fax Protection, please visit www.

tripplite.com/support for repair/warranty information. The telephone company may ask you to disconnect

this equipment from the network until the problem has been corrected or you are sure the equipment is not

malfunctioning. There are no repairs that can be made by the customer to the Modem/Fax Protection. This

equipment may not be used on coin service provided by the telephone company. Connection to party lines is

subject to state tariffs. (Contact your state public utility commission or corporation commission for information.)

Regulatory Compliance

18-09-014-933874.indb 10 9/12/2018 9:52:15 AM

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Tripp Lite UPS

Tripp Lite

Tripp Lite SmartPro UPS System SMART550USB Manuel utilisateur

Tripp Lite

Tripp Lite SU10000RT3UPM Manuel utilisateur

Tripp Lite

Tripp Lite SmartPro SLT SMX750SLT Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline SU8000RT3U Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline SU80KX2 Guide d'installation

Tripp Lite

Tripp Lite SMX1500LCD Manuel utilisateur

Tripp Lite

Tripp Lite SmartPro SMART1000RM2U Manuel utilisateur

Tripp Lite

Tripp Lite SmartPro SMART1500RMXL2Ua Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline S3MX Manuel utilisateur

Tripp Lite

Tripp Lite SMART1200LCD Manuel utilisateur

Tripp Lite

Tripp Lite SmartPro INT 450-1500VA Manuel utilisateur

Tripp Lite

Tripp Lite AVR750U Manuel utilisateur

Tripp Lite

Tripp Lite SU10000RT3UG Manuel utilisateur

Tripp Lite

Tripp Lite OMNIVSINT800 Manuel utilisateur

Tripp Lite

Tripp Lite SmartPro AG-03AD Series Manuel utilisateur

Tripp Lite

Tripp Lite OMNIVS1500XLCD Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline SU2000RTXLCD2U Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline SU120KX2 Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline Series Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline SU1500XLCD Manuel utilisateur

Tripp Lite

Tripp Lite SmartPro SMX700HG Manuel utilisateur

Tripp Lite

Tripp Lite Internet Office & BC Personal UPS System Manuel utilisateur

Tripp Lite

Tripp Lite SMART1200LCD Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline SVX Series Manuel utilisateur

Manuels UPS populaires d'autres marques

Pylontech

Pylontech Victron & Pylontech US5000 Manuel utilisateur

Tecnoware

Tecnoware EVO DSP PLUS MM 6.8 Manuel utilisateur

Mecer

Mecer ME-1000-WTU Manuel utilisateur

Mustek

Mustek PowerMust 530(B) Plus Manuel d'installation et d'exploitation

Emerson

Emerson Liebert NXL series Manuel utilisateur

MAKELSAN

MAKELSAN BOXER SERIES Manuel utilisateur

Block

Block PC-0524-400-0 Manuel utilisateur

CyberPower

CyberPower CP585LCD Manuel utilisateur

Eaton

Eaton 3S Instructions de montage

CyberPower

CyberPower Office Tower Series UPS 1000 Manuel utilisateur

CyberPower

CyberPower BM100 Manuel utilisateur

Best Power

Best Power 610 Manuel utilisateur

Best Power

Best Power Unity/I UT3K Manuel utilisateur

Mustek

Mustek PowerMust 400 Offline Manuel utilisateur

Xantrex

Xantrex Trace 512 UR-UPS Manuel utilisateur

Forza

Forza SL-1501UL Manuel utilisateur

LEGRAND

LEGRAND keor 310081 Manuel utilisateur

ABB

ABB Conceptpower DPA 500 Manuel utilisateur
