Tripp Lite NGI-U08C2 Manuel utilisateur

8-Port Unmanaged Plus Industrial Gigabit

10/100/1000 Base-T Ethernet Switch w/ 2 GBE

SFP Slots, DIN Mountable

Model: NGI-U08C2

5-Port Unmanaged Plus Industrial Gigabit PoE

Ethernet Switch, 4x PoE+ 30W, DIN Mountable

Model: NGI-U05POE4

5-Port Unmanaged Plus Industrial Gigabit PoE

Ethernet Switch w/ 2 SFP Ports, 4x PoE+ 30W,

DIN Mountable

Model: NGI-U05C2POE4

8-Port Unmanaged Plus Hardened Gigabit PoE

Ethernet Switch w/ 2 SFP Ports, 8x PoE+ 30W,

DIN Mountable

Model: NGI-U08C2POE8

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Este manual está disponible en español en la página de Tripp Lite: tripplite.com

Ce manuel est disponible en français sur le site Web de Tripp Lite : tripplite.com

Dieses Handbuch ist in deutscher Sprache auf der Tripp Lite-Website verfügbar:

tripplite.com

Owner’s Manual

Русскоязычная версия настоящего руководства представлена на веб-сайте

компании Tripp Lite по адресу: tripplite.com

WARRANTY REGISTRATION

automatically entered to win an ISOBAR®

surge protector in our monthly drawing!

tripplite.com/warranty

• NGI-U08C2 (non-PoE), NGI-U05POE4, NGI-U05C2POE4 or

NGI-U08C2POE8 Plug-and-Play Gigabit PoE Ethernet Switch

• DIN-rail mounting clip (pre-installed on unit)

• Owner’s Manual

• 5 or 8 10/100/1000Mbps RJ45 ports with PoE/PoE+

(NGI-U08C2 is a non-PoE switch)

• Each PoE port provides up to 30W

o Total PoE power budget of 120W

(NGI-U05C2POE4 and NGI-U05POE4 models)

Power budget of 240W when input voltage is 48VDC or 120W when

input voltage is 24VDC

• 10/100/1000, Full/Half Duplex, Auto MDI/MDIX cross-over function

• PlugandPlay—nocongurationrequired

• EIP/QoS functionality

• Flow and storm control

• Rugged high-strength metal case

• Industrial temperature switch models support operating temperature

range of -40°F to 167°F (-40°C to 75°C)

• Easy to read LEDs indicate connection and activity status for each port

Package Contents

Product Features

• N001-Series Cat5e 350 MHz Snagless UTP Cables

• N002-Series Cat5e 350 MHz UTP Ethernet Cables

• N200-Series Cat6 Gigabit Molded UTP Ethernet Cables

• N201-Series Cat6 Gigabit Snagless Molded UTP Ethernet Cables

• N320-Series Duplex Multimode 62.5/125 Fiber Patch Cables

• N520-Series Duplex Multimode 50/125 Fiber Patch Cables

• N820-Series Duplex Multimode 50/125 OM3 LSZH Fiber Patch Cables

• N286I-1P25GLXD1 Industrial Gigabit SFP Transceiver, 1000LX 1.25G

• N286I-1P25GSXD Industrial Gigabit SFP Transceiver, 1000SX 1.25G

Optional Accessories

Product Features

• Meets the following IEEE standards:

o IEEE 802.3 10Base-T

o IEEE 802.3u 100Base-T

o IEEE 802.3ab 1000Base-T

o IEEE 802.3 Auto Negotiation

o IEEE 802.3z 1000Base-SX/LX

o IEEE 802.1p Class of Service

(NGI-U08C2 and NGI-U08C2POE8 Models Only)

o IEEE 802.3az EEE (NGI-U08C2POE8 Only)

o IEEE 802.3af PoE

o IEEE 802.3at PoE+

• Supports MAC address auto-learning and auto-aging

• Pre-installeddurablerailclipmountsrmlytoanystandard35mmDIN

Rail

• User-congurableDIPswitchesforalarms(NGI-U08C2POE8Only)

NGI-U08C2 (non-PoE)

NGI-U05POE4

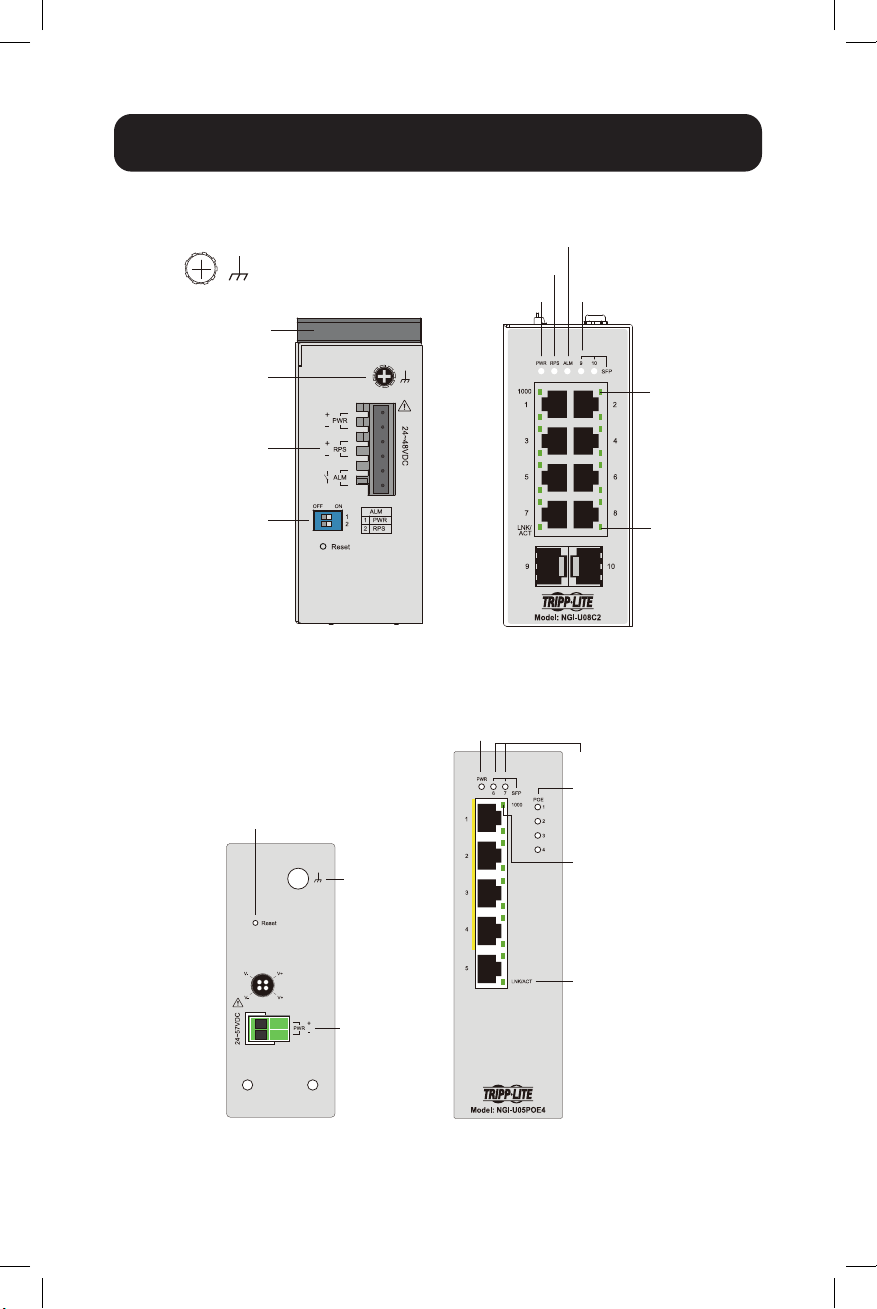

Product Overview

Grounding Screw

DIN-Rail

1000Mbps

(Green)

PoE+

LNK/ACT

(Green)

ALM

RPS

PWR

SFP

Reset

SFP

Grounding

Screw

Grounding

Screw

Power Input

Terminal Block

Power

Input

Terminal

Block

DIP Switches

Top View

Front View

NGI-U05C2POE4

NGI-U08C2POE8

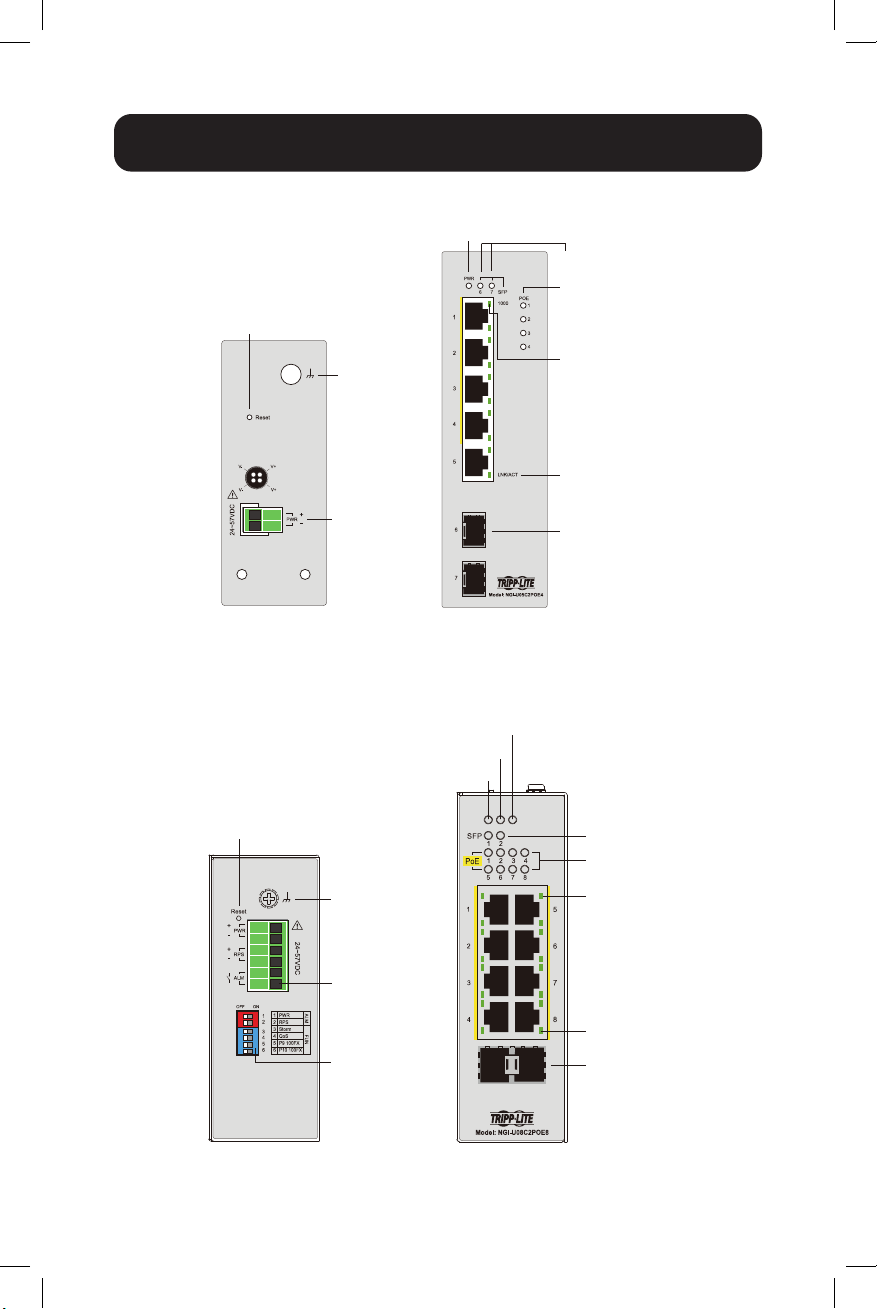

Product Overview

Top View

Front View

Grounding

Screw

Grounding

Screw

DIP Switches

Power

Input

Terminal

Block

Power Input

Terminal

Block

Reset

PWR

SFP

PoE+

1000Mbps

(Green)

1000Mbps

(Green)

LNK/ACT

(Green)

LNK/ACT

(Green)

SFP

(1000Mbps)

SFP

ALM

RPS

PWR

Mounting and Dismounting to DIN-Rail

Mounting the Switch

Place the Gigabit Ethernet PoE+ switches or NGI-U08C2 switch on

the DIN rail from above using the slot, then push the front of the switch

toward the mounting surface until it snaps into place with a click sound.

Dismounting the Switch

Press the switch from top and pull out the lower edge of the switch, then

remove the switch from the DIN rail.

ATTENTION: Use of a corrosion-free mounting rail is

advisable. When installing, make sure to allow enough

space to properly install the cabling and allow ample

airow.

Mounting the Switch Removing the Switch

Mounting and Dismounting to DIN-Rail

Wiring Requirements

WARNING: Safety measures should be taken before

connecting the power cable. Turn o󰀨 the power before

connecting modules or wires. The correct power supply

voltage is listed on the product label. Check the voltage

of your power source to make sure you are using the

correct voltage. DO NOT use a voltage greater than what

is specied on the product label. Calculate the maximum

possible current in each power wire and common wire.

Observe all electrical codes dictating the maximum

current allowable for each wire size. If current exceeds the

maximum rating, the wiring can overheat causing serious

damage to your equipment.

Please read and follow these guidelines:

• Use separate paths to route wiring for power and devices. If power

wiring and device wiring paths must cross, make sure the wires are

perpendicular at the intersection point.

Note: Do not run signal or communications wiring and power wiring through

the same wire conduit. To avoid interference, wires with dierent signal

characteristics should be routed separately.

• You can use the type of signal transmitted through a wire to determine

which wires should be kept separate. A general rule is that wiring that

shares similar electrical characteristics can be bundled together.

• Always separate input wiring from output wiring.

• Labelling the wiring to all devices in the system is advised.

Mounting and Dismounting to DIN-Rail

Power Input

Safety measures should be taken before connecting the power cable.

Turno󰀨thepowerbeforeconnectingmodulesorwires.Thecorrect

power supply voltage is listed on the product label. Check the voltage

of your power source to make sure you are using the correct voltage.

DONOTuseavoltagegreaterthanwhatisspeciedontheproduct

label. Calculate the maximum possible current in each power wire and

common wire. Observe all electrical codes dictating the maximum current

allowable for each wire size. If current exceeds the maximum rating, the

wiringcanoverheatcausingseriousdamagetoyourequipment.

CAUTION: The surface of the power output may be hot,

do not touch. Wear protective equipment before making

contact.

Wiring Power Input

NGI-U08C2 with 6-Pin Terminal Block

Use “PWR” for Primary Power input and “RPS” for Redundant Power

input.ThetopviewofTerminalBlockisshowninthegurebelow:

Caution:

• Use copper conductors only.

• Use wiring cable with rated temperature at least 221°F

(105°C).

•Tightenthewiretoatorquevalue4.5lb•in(0.5N•m).

• The wire gauge for the terminal block should range between

12~24 AWG (4~0.25 mm2).

To insert the power wire and connect the 24~48VDC at a maximum of

0.4A DC power to the power terminal block:

• Useaatheadscrewdrivertoloosenthewireclampscrews.

• Insert the negative/positive DC wires into the PWR-/PWR+ terminals,

respectively.

• Tighten the wire-clamp screws to prevent the wires from loosening.

ATTENTION: Use a power supply rated for 24~48VDC.

The device power must be supplied by SELV circuit.

Terminal Block

Wiring Power Input

Wiring the Relay Contact (ALM)

The NGI-U08C2 has one set of relay alarm output. This relay contact

uses two contacts of the terminal block on the top panel. The two

contacts of the 6-pin terminal block connector are used to detect user-

conguredevents.Thetwowiresattachedtothefaultcontactsform

anopencircuitwhenauser-conguredeventistriggered.Ifauser-

conguredeventdoesnotoccur,thefaultcircuitremainsclosed.

DIP Switch Settings

The switch supports an Alarm Relay Output function where you can

connect an alarm light or a buzzer. When events occur enabled by the

DIPs, the switch will operate the relay ON to enable the alarm light or

buzzer.Theloadcanbeanalarmlight,abuzzerorotherequipment.

Relay rating: 24V, 1A

Load External

Power
