Unmanaged Industrial

Gigabit Ethernet Switches,

Plug and Play, Mountable

Models: NGI-U05, NGI-U16

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Owner’s Manual

WARRANTY REGISTRATION

surge protector in our monthly drawing!

tripplite.com/warranty

Español 17 • Français 33 • Русский 49 • Deutsch 65

• NGI-U05 or NGI-U16 Gigabit Ethernet Switch

• Owner’s Manual

Package Contents

Product Features

• 5 (NGI-U05) or 16 (NGI-U16) auto-negotiable 10/100/1000

Mbps RJ45 ports

• Supports auto MDI/MDI-X crossover function

• Supports operating temperature range of -40°C to 75°C

(-40°F to 167°F)

• Easy-to-read LEDs indicate connection and activity status

for each port

• Meets the following IEEE standards:

• IEEE 802.3 10Base-T

• IEEE 802.3u 100Base-T

• IEEE 802.3ab 1000Base-T

• IEEE 802.3 Auto Negotiation

• IEEE 802.3x Flow Control

• Supports MAC address auto-learning and auto-aging

• Preinstalled durable rail clip mounts rmly to any standard

35 mm DIN rail*

• Simple plug-and-play installation and operation with no

conguration required

*Note: Only NGI-U05 is both DIN and wall mountable

NGI-U05

Optional Accessories

• N001-Series Cat5e 350 MHz Snagless UTP Cables

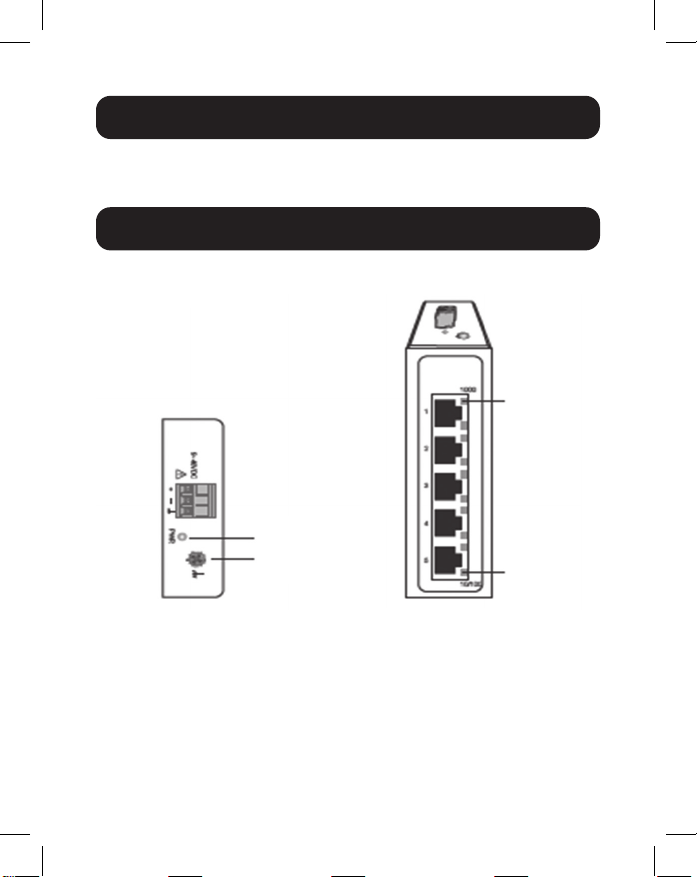

Product Overview

Top View Front View

10/100

1000 Mbps

Grounding

Screw

Power

Product Overview

NGI-U16

Top View

Front View

Grounding Screw

DIN Rail

Grounding

Screw

LNK/ACT

PWR

1000 Mbps

Power Input

Terminal

Block

ATTENTION: The NGI-U05 and NGI-U16 are open-

type devices and shall be DIN mounted or wall

mounted (NGI-U05 only) in a rack enclosure. The

ambient temperature should not exceed 75°C

(167°F).

Mounting the Switch

Place the switch on the DIN rail from above using the built-in

slot. Push the front of the switch toward the mounting surface

until it snaps into place. You will hear a “click” to indicate it has

successfully snapped into place.

Dismounting the Switch

Press the switch from the top, then pull out the lower edge of

the switch to remove it from the DIN rail.

DIN Mounting/Dismounting Instructions

Mounting

the Switch

Removing

the Switch

DIN Mounting/Dismounting Instructions

Wall-Mounted Mask (NGI-U05 Only)

1. Mount the switch by using mounting holes on the wall at the

appropriate places.

Mounting Holes

Drawing of NGI-U05

Screw Installation

Distance

Mounting holes

for switch 50 mm

1.5 mm - 3 mm

50 mm

ATTENTION: A corrosion-free DIN mounting rail is

advisable. When mounting the switch, be sure to

allow enough space between devices to install the

cabling and to ensure proper airow.

2. The switch can be wall mounted either vertically or

horizontally.

Note: Horizontal mounting is not evaluated by UL.

Grounding the Switch

Grounding and wire routing help limit the e󰀨ects of line noise

caused by electromagnetic interference (EMI). Run the ground

connection from the ground screw to the grounding surface

prior to connecting devices.

ATTENTION: This switch is intended for mounting on a

well-grounded surface, such as a metal panel.

DIN Mounting/Dismounting Instructions

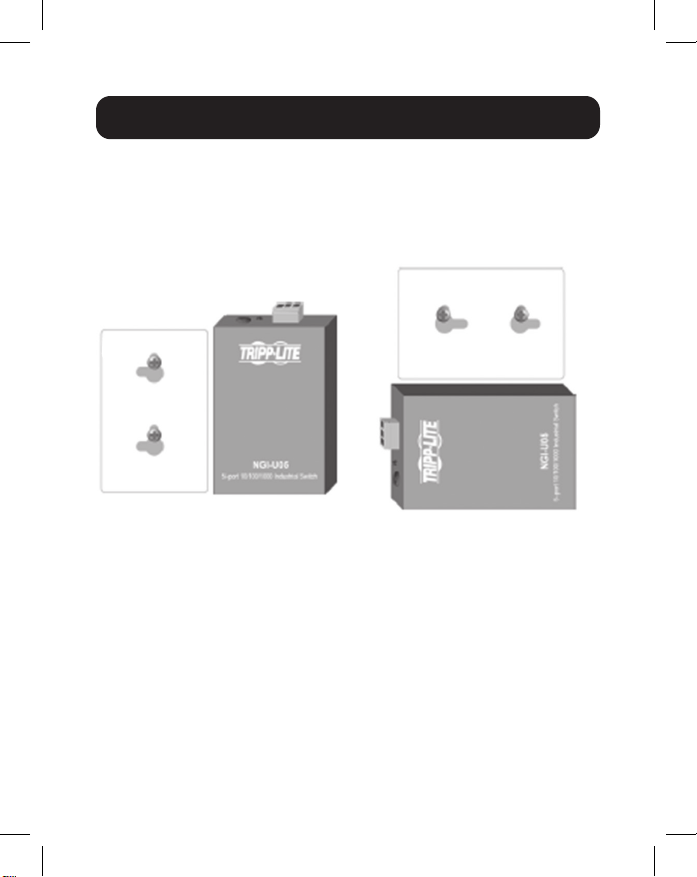

Mounting direction with screw

Straight Direction

Installation Horizontal Direction

Installation

(Horizontal direction is

not evaluated by UL)

Mounting direction with screw

WARNING: Safety measures should be taken before

connecting the power cable. Turn o󰀨 the power before

connecting modules or wires. The correct power supply

voltage is listed on the product label. Check the voltage of your

power source to make sure you are using the correct voltage.

DO NOT use a voltage greater than what is specied on the

product label. Calculate the maximum possible current in each

power wire and common wire. Observe all electrical codes

dictating the maximum current allowable for each wire size. If

current exceeds the maximum rating, the wiring can overheat,

causing serious damage to your equipment.

Please read and follow these guidelines:

• Use separate paths to route wiring for power and devices. If

power wiring and device wiring paths must cross, make sure

the wires are perpendicular at the intersection point.

Note: Do not run signal or communications wiring and power wiring

through the same wire conduit. To avoid interference, wires with

dierent signal characteristics should be routed separately.

• You can use the type of signal transmitted through a wire

to determine which wires should be kept separate. Wiring

that shares similar electrical characteristics can be bundled

together.

• You should separate input wiring from output wiring.

• Be advised that you should label the wiring to all devices in

the system.

Wiring Requirements

Wiring Power Input

NGI-U05 with 3-Pin Terminal Block

Check the polarity while connecting. Top view of the Terminal

Block is shown in the gure below:

CAUTION:

• Use copper conductors only.

• Wiring cable temperature should support at least 105°C.

• Tighten the wire to a torque value 4.5 lb.in.

• The wire gauge for the terminal block should range between

12 and 24 AWG.

Wiring Requirements

Power

Grounding Screw

Power Input

Terminals

Grounding

Terminals

To insert power wire and connect the 9~48VDC at a maximum

of 0.5A DC power to the power terminal block, follow these

steps:

• Use a at-head screwdriver to loosen the wire-clamp screws.

• Insert the negative/positive DC wires into the ( - / + )

terminals, respectively.

• Tighten the wire-clamp screws to prevent the wires from

loosening.

ATTENTION: Use a power supply from 9~48VDC.

The device power shall be supplied by SELV

circuit.

NGI-U16 with 2-Pin Terminal Block

You can use “PWR” for power input. Top view of the Terminal

Block is shown in the gure below:

Wiring Requirements

PWR

12~48VDC

Terminal Block
