Tripp Lite PDUMH15AT Manuel utilisateur

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

1. Important Safety Instructions 2

2. Feature Set Overview 3

3. Installation 4

3.1 Mounting the PDU 4

3.2 Connecting the PDU 5

3.3 Networking the PDU 7

3.4 Dynamic IP Address Assignment 8

3.5 Static IP Address Assignment 8

3.6 Testing Network Connection 10

4. Features 11

5. Conﬁguration and Operation 13

5.1 Automatic Transfer Switch 13

5.2 Remote Monitoring and Control 14

6. Technical Support 15

7. Warranty and Product Registration 15

Español 17

Français 33

Metered Rack PDU with

Automatic Transfer Switch

Models: PDUMH15AT, PDUMNH15AT1,

PDUMH15ATNET, PDUMH15ATS, PDUMH20AT,

PDUMNH20AT1, PDUMH20ATNET, PDUMH20ATS

(Series Numbers: AGAC5558, AGAC5559)

Owner’s Manual

WARRANTY REGISTRATION

win an ISOBAR®surge protector in our monthly drawing!

tripplite.com/warranty

21-02-124 933E0A.indb 121-02-124 933E0A.indb 1 3/25/2021 2:19:05 PM3/25/2021 2:19:05 PM

SAVE THESE INSTRUCTIONS

This manual contains instructions and warnings that should be followed

during the installation, operation, and storage of this product. Failure

to heed these instructions and warnings will void the product warranty.

Explanation of Symbols

Caution

Protective Earth Ground Connection

Bonding Ground Connection

Electrical Shock Hazard

Remove both AC Mains Power Sources Before Servicing

• The AC mains tolerance of this equipment is : +6/-10%.

• The ATS/PDU provides convenient multiple outlets, but it DOES NOT provide surge or line

noise protection for connected equipment.

• The ATS/PDU is designed for indoor use only in a controlled environment away from excess

moisture, temperature extremes, conductive contaminants, dust or direct sunlight.

• Do not connect the ATS/PDU to an ungrounded outlet or to extension cords or adapters

that eliminate the connection to ground.

• The power requirement for each piece of equipment connected to the ATS/PDU must not

exceed the individual outlet’s load rating.

• The total power requirement for equipment connected to the ATS/PDU must not exceed the

maximum load rating for the PDU.

• Do not drill into or attempt to open any part of the ATS/PDU housing. There are no

user-serviceable parts inside.

• Do not attempt to modify the ATS/PDU, including the input plugs and power cables.

• Do not attempt to use the ATS/PDU if any part becomes damaged.

• Do not attempt to mount the ATS/PDU to an insecure or unstable surface.

• Install in accordance with National Electrical Code standards ANSI/NFPA 70 and Canadian

Electrical Code, Part I, C22.1.

• Short-circuit backup protection and overcurrent protection is provided by the building

installation.

• To reduce the risk of fire, connect only to a circuit provided branch circuit overcurrent

protection in accordance with the ational Electrical Code, ANSI/NFPA 70 and the Canadian

Electrical Code, Part I, C22.1. Be sure to use maximum 20A overcurrent protection in

accordance with the plug/equipment rating for the installation.

1. Important Safety Instructions

21-02-124 933E0A.indb 221-02-124 933E0A.indb 2 3/25/2021 2:19:05 PM3/25/2021 2:19:05 PM

1. Important Safety Instructions (continued)

• The plugs on the power supply cords and appliance inlet serve as the disconnect devices.

Make sure that the socket-outlets providing power to the ATS/PDU are easily accessible.

• This equipment receives power from two sources. Be sure to disconnect both AC Mains

sources before servicing.

• Be sure that the total combined current of equipment powered by model AGAC5558 does

not to exceed 12A.

• Be sure that the total combined current of equipment powered by model AGAC5559 does

not to exceed 16A.

• This equipment is not suitable for use in locations where children are likely to be present.

• Only those who are properly trained or qualified to use this device should do so. Anyone

who is not trained or qualified should not use this device unless it is under the supervision

of someone who is properly trained or qualified to do so.

• Children must be supervised to ensure that they do not use the device as a toy.

• Never use the device if the cord and plug are damaged. If it is not working properly, or if it has

been dropped or damaged, take it to an authorized service center for inspection and repair.

• If the power cord is damaged, it must be replaced by the manufacturer, its authorized

service agent, or by qualified personnel in order to avoid a potentially dangerous situation.

• Never attempt to install electrical equipment during a thunderstorm.

• Use of this equipment in life support applications where failure of this equipment can

reasonably be expected to cause the failure of the life support equipment or to significantly

affect its safety or effectiveness is not recommended.

2. Feature Set Overview

Model

Outlet

Types

Outlet

Control

(Yes/No)?

Oulet LED

Indicator

(Yes/No)?

Shipped with

SNMP Slot

(Yes/No)?

Shipped with SNMP

Card Installed

(Yes/No)?

PDUMH15ATNET 5-15R YES YES YES YES

PDUMH15AT 5-15R YES YES YES NO

PDUMNH15AT1 5-15R NO NO YES YES

PDUMH15ATS 5-15R NO NO NO N/A

PDUMH20ATNET 5-15/20R YES YES YES YES

PDUMH20AT 5-15/20R YES YES YES NO

PDUMNH20AT1 5-15/20R NO NO YES YES

PDUMH20ATS 5-15/20R NO NO NO N/A

21-02-124 933E0A.indb 321-02-124 933E0A.indb 3 3/25/2021 2:19:05 PM3/25/2021 2:19:05 PM

3.1A A

3.1C

3.1B

3.1 Mounting the PDU

The PDU supports 1U Rack configurations.

Note: The user must determine the fitness of hardware and procedures before mounting. The PDU and

included hardware are designed for common rack and rack enclosure types and may not be appropriate for

all applications. Exact mounting configurations may vary.

3. Installation

3.1A 1U Rack Mounting: Attach the

PDU to the rack by inserting four user-

supplied screws Athrough the PDU

mounting brackets Band into the mounting

holes of the rack rail as shown.

3.1B Wall or 3.1C Under-Counter

Mounting: Remove the screws Cattaching

the mounting brackets to the PDU, change

the orientation of the brackets as shown and

reattach the brackets. Use only the screws

supplied by the manufacturer or their exact

equivalent (#6-32, 1/4” flat head). Attach

the PDU to a stable mounting surface by

inserting two or more user-supplied screws

Athrough the PDU mounting brackets B

and into secure points on the mounting

surface.

21-02-124 933E0A.indb 421-02-124 933E0A.indb 4 3/25/2021 2:19:06 PM3/25/2021 2:19:06 PM

3.2

PDUMH20AT

PDUMH20ATNET

PDUMNH20AT1

PDUMH20ATS

PDUMH15AT

PDUMH15ATNET

PDUMNH15AT1

PDUMH15ATS

3.2A

PDUMH15AT

PDUMH15ATNET

PDUMNH15AT1

PDUMH15ATS

PDUMH20AT

PDUMH20ATNET

PDUMNH20AT1

PDUMH20ATS

3.2B

3.2C

PDUMH20AT,

PDUMH20ATNET

PDUMNH20AT1

PDUMH20ATS

PDUMH20AT,

PDUMH20ATNET

PDUMNH20AT1

PDUMH20ATS

PDUMH15AT,

PDUMH15ATNET

PDUMNH15AT1

PDUMH15ATS

3.2 Connecting the PDU

The PDU includes two AC power inputs:

Primary and Secondary. The Primary input

cord is permanently attached to the rear of

the PDU.

The Secondary input cord is detachable and

connects to the IEC power inlet 3.2 at the

rear of the PDU (PDUMH15AT,

PDUMH15ATNET, PDUMNH15AT1,

PDUMH15ATS - IEC-320-C14 inlet;

PDUMH20AT, PDUMH20ATNET,

PDUMNH20AT1, PDUMH20ATS - IEC-

320-C20 inlet).

3.2A To connect the Secondary

input cord:

1. Form a loop in the Secondary cord Aand

secure the juncture of that loop to the

Primary cord Bwith a zip tie. Be sure the

zip tie is secured around the Secondary

and Primary cords, as well as through the

loop created in the Secondary cord C.

(See diagram). Note: Give the cord as

much slack as possible between the loop

and the cord’s outlet.

2. Once you’ve secured the two cords

together and ensured that the Secondary

cord has a comfortable amount of slack,

insert the Secondary cord outlet into the

IEC power inlet.

3.2B Connect Input Plug Adapters

(Optional - Models PDUMH20AT,

PDUMH20ATNET, PDUMNH20AT1,

PDUMH20ATS Only): The PDU includes

two adapters that convert one or both of the

L5-20P input plugs to 5-20P input plugs.

Connecting the adapters is optional. The

PDU will function normally without

connecting the adapters.

3.2C Connect Secondary Input Cord

to PDU: Although the PDU will operate

without connecting the Secondary input

cord, the Secondary input is required for the

PDU's Automatic Transfer Switch function.

3. Installation (continued)

21-02-124 933E0A.indb 521-02-124 933E0A.indb 5 3/25/2021 2:19:07 PM3/25/2021 2:19:07 PM

PDUMH20AT,

PDUMH20ATNET

PDUMNH20AT1

PDUMH20ATS

PDUMH15AT,

PDUMH15ATNET

PDUMNH15AT1

PDUMH15ATS

3.2D

3. Installation (continued)

3.2D Connect PDU Input Plugs: (See

the Configuration and Operation section for

more information.) Connect the Primary

input plug Ato a preferred source of

grounded 120V AC power, such as a

SmartOnline™UPS System. The UPS system

must not share a circuit with a heavy

electrical load (such as an air conditioner or

refrigerator). Under normal operating

conditions, the PDU will distribute AC power

from the Primary input source. Connect the

Secondary input plug Bto an alternative

source of grounded 120V AC power, such as

a redundant SmartOnline UPS System. The

UPS system must not share a circuit with a

heavy electrical load (such as an air

conditioner or refrigerator). Do not plug the

Secondary input into the same power source

as the Primary input. The PDU will distribute

AC power from the Secondary input only if

the Primary input becomes unavailable.

Note: Immediately after the PDU is connected to

live AC power, you may notice a series of soft

clicking sounds emitted by electrical relays within

the PDU. The relays may also click occasionally

during the operation of the PDU. This is normal.

21-02-124 933E0A.indb 621-02-124 933E0A.indb 6 3/25/2021 2:19:07 PM3/25/2021 2:19:07 PM

PDUMH20ATNET

PDUMH15ATNET

PDUMH20AT

PDUMH15AT

PDUMNH20AT1

PDUMNH15AT1

3.2E

3. Installation (continued)

3.2E Connect Equipment to PDU: Do not exceed the load rating of the PDU. The total

electrical current used by the PDU will be displayed on the digital meter in amperes. Each

outlet includes a green LED that will illuminate when the outlet is receiving AC power (this

feature only applies to models with switchable outlets).

3.3 Networking the PDU (Only Applicable to Models with SNMP Network Card Installed)

Note: The MAC address of the PDU (a 12-digit string in this format: 000667xxxxxx) is printed on a label

attached to the PDU enclosure. The MAC address is also printed on a label attached to the internal

network card.

If your network's DHCP server will assign a dynamic IP address to the PDU automatically, go

to Step 3.4A . If you will assign a static IP address to the PDU manually, go to Step 3.5A . If

you are uncertain which method to use, contact your network administrator for assistance

before continuing the installation process.

21-02-124 933E0A.indb 721-02-124 933E0A.indb 7 3/25/2021 2:19:08 PM3/25/2021 2:19:08 PM

3.4A

3. Installation (continued)

3.5A Determine IP Information: Before

assigning a static IP address, you'll need to

know the IP address, gateway address and

subnet mask. If you do not have this

information, contact your network

administrator for assistance.

3.5B Configure Terminal Emulation

Program: Open a VT100-compatible

terminal emulation program (such as the

HyperTerminal program bundled with

Microsoft®Windows®) on a computer with

an available DB9 serial port. (A notebook

computer may be the most convenient

choice.) Set the terminal emulation program

to use the COM port Athat corresponds to

the computer’s DB9 serial port. Specify the

parameters Brequired to communicate with

the PDU terminal interface:

Bits per second: 9600

Data bits: 8

Parity: None

Stop bits: 1

Flow control: None

If the terminal emulation program supports

multiple emulation modes, you may also

need to specify VT100 emulation C.

3.4 Dynamic IP Address Assignment

3.4B Discover IP Address: Contact your network administrator to determine which

dynamic IP address has been assigned to the PDU by the DHCP server. The PDU can be

identified on the DHCP server by referring to its MAC address. (The MAC address is a 12-digit

string in this format: 000667xxxxxx. Refer to the MAC address label attached to the PDU.)

You may wish to request a long-term lease period for the IP address, depending on your

application. After you have discovered the IP address, skip Steps 3.5A through 3.5F and

proceed directly to Step 3.6A .

3.5 Static IP Address Assignment

3.4A Connect PDU to Network: While

the PDU is powered, connect a standard

Ethernet patch cable to the RJ-45 Ethernet

port Aon the PDU. Note: This port is not

compatible with PoE (Power over Ethernet)

applications. The PDU will attempt to obtain

an IP address via DHCP. This may take as

long as several minutes, depending on your

network environment.

21-02-124 933E0A.indb 821-02-124 933E0A.indb 8 3/25/2021 2:19:08 PM3/25/2021 2:19:08 PM

3.5C

3.5D

3.5E

3.5C Connect PDU to Computer: Use

the mini-DIN to DB9 serial cable (part

number 73-1025) included with the PDU to

connect the PDU to the computer. The

circular connector Aat one end of the cable

attaches to the 8-pin mini-DIN serial port B

on the PDU. (Align the connector carefully to

avoid damaging the pins.) The DB9

connector Cat the other end of the cable

connects to the computer's serial port D.

3.5D Connect PDU to Network: While

the PDU is powered, connect a standard

Ethernet patch cable to the RJ-45 Ethernet

port Aon the PDU. Note: This port is not

compatible with PoE (Power over Ethernet)

applications.

3.5E Configure PDU in Terminal

Mode: After a brief pause, an initialization

page should appear in the terminal emulation

program. Press any key on the keyboard

within 10 seconds to change the PDU

settings. (If the 10-second period has

elapsed, you can reboot the PDU by powering

down completely and then restoring power.)

Follow the sequence of responses below in

order to assign an IP address to the PDU.

The default terminal mode root password is

TrippLite. Sample IP settings are shown -

supply your own IP information when you

configure your PDU.

3. Installation (continued)

Press A to Accept the settings, or M to Modify? M

Enter the root password: *********

Reset configuration to default values (Y/N)? N

For each of the following questions, you can press <Return> to select the value shown in braces,

or you can enter a new value.

NETWORK INTERFACE PARAMETERS:

Should this target obtain IP settings from the network? [N] N

Static IP address [192.168.1.19]? 192.168.0.123

Static IP address is 192.168.0.123

Subnet Mask IP address [255.255.0.0]? 255.255.255.0

Subnet Mask IP address is 255.255.255.0

Gateway address IP address [192.168.1.1]? 192.168.0.1

Gateway address IP address is 192.168.0.1

21-02-124 933E0A.indb 921-02-124 933E0A.indb 9 3/25/2021 2:19:09 PM3/25/2021 2:19:09 PM

3. Installation (continued)

3.6 Testing Network Connection

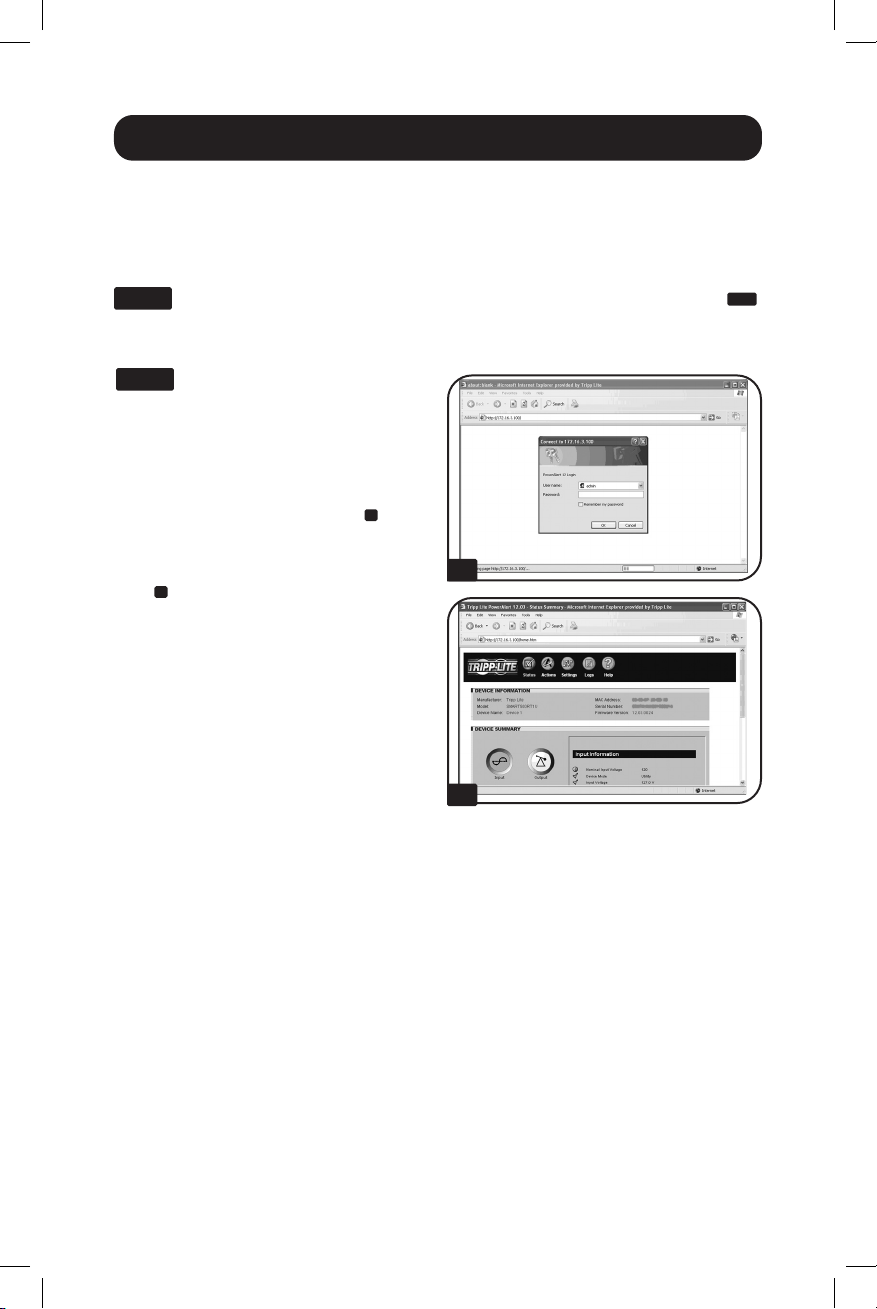

3.6A Access PDU with Web

Browser: After an IP address has been

assigned to the PDU, attempt to access it

with a Web browser that supports frames,

forms and Java™. Open a Web browser on a

computer connected to the LAN and enter

the IP address assigned to the PDU. You

should be prompted for a password A. The

user name is admin and the default

password is admin. After you enter the user

name and password, the PowerAlert Status

page Bwill appear in the browser window.

For more information about configuration

and operation of the PDU via the PowerAlert

interface, refer to the SNMPWEBCARD

User's Guide, included on the CD-ROM

bundled with the PDU.

Note for Network Management System Users

Only: Two MIB files - Tripplite.mib and RFC1628.

mib - must be loaded on each Network

Management Station that will monitor the PDU via

SNMP. The files are provided on the CD-ROM

included in the product package.

You can also change the root password, real-time clock and other settings. (Tripp Lite

recommends against changing the default settings unless you are an advanced user with a

specific purpose.) After you have finished entering settings, the PDU will save changes to

memory and reboot (this may take several minutes). After the PDU reboots, the initialization

page should display the new static IP settings.

3.5F Remove Serial Cable: Remove the serial cable from the PDU and proceed to Step 3.6A .

21-02-124 933E0A.indb 1021-02-124 933E0A.indb 10 3/25/2021 2:19:09 PM3/25/2021 2:19:09 PM

Autres manuels pour PDUMH15AT

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Tripp Lite Support et étagère

Tripp Lite

Tripp Lite DMA1327SD Manuel utilisateur

Tripp Lite

Tripp Lite DDR811TRAYTAA Manuel utilisateur

Tripp Lite

Tripp Lite PSCLAMP2 Manuel utilisateur

Tripp Lite

Tripp Lite DMFC3265M Manuel utilisateur

Tripp Lite

Tripp Lite DWF60100XX Manuel utilisateur

Tripp Lite

Tripp Lite Quad Flat Screen Desk Stand Manuel utilisateur

Tripp Lite

Tripp Lite SRWBTLCPLRBR Manuel utilisateur

Tripp Lite

Tripp Lite SmartRack SRCOLOKIT42U Manuel utilisateur

Tripp Lite

Tripp Lite DWF1323M Manuel utilisateur

Tripp Lite

Tripp Lite SR45UBEXPNDNR3 Manuel utilisateur

Tripp Lite

Tripp Lite DDR1327SDFC-1 Manuel utilisateur

Tripp Lite

Tripp Lite DWF1327M Manuel utilisateur

Tripp Lite

Tripp Lite DMWC3770M Manuel utilisateur

Tripp Lite

Tripp Lite 1U Manuel utilisateur

Tripp Lite

Tripp Lite SR42UBEXPNDNR3 Manuel utilisateur

Tripp Lite

Tripp Lite DMPDS5570S Manuel utilisateur

Tripp Lite

Tripp Lite DWT3260X Manuel utilisateur

Tripp Lite

Tripp Lite DCTM Manuel utilisateur

Tripp Lite

Tripp Lite PDU Series Manuel utilisateur

Tripp Lite

Tripp Lite DMCS3270XP Manuel utilisateur

Tripp Lite

Tripp Lite SmartRack SRWO2UBRKT Manuel utilisateur

Tripp Lite

Tripp Lite N062-048-KJ Manuel utilisateur

Tripp Lite

Tripp Lite DMR1015X3 Manuel utilisateur

Tripp Lite

Tripp Lite SmartRack SR1UCAGEREAR Manuel utilisateur

Manuels Support et étagère populaires d'autres marques

Salamander

Salamander Acadia AC/W/L400/WH Manuel utilisateur

Fohhn

Fohhn VAT-09 Guide de l'utilisateur

ricoo

ricoo FS0522 Manuel utilisateur

AMSOIL

AMSOIL BMK-22 Guide rapide

Kargo Master

Kargo Master 48220 Manuel utilisateur

Milestone AV Technologies

Milestone AV Technologies SIMPLICITY SLF2 Manuel utilisateur

ricoo

ricoo S1222 Manuel utilisateur

Ready-Set-Mount

Ready-Set-Mount RSMCM602 Manuel utilisateur

VidaBox

VidaBox VB MNT FFS2 Manuel utilisateur

Welch Allyn

Welch Allyn 48960 Manuel utilisateur

Arkon

Arkon CM035-ST-2 Manuel utilisateur

PROEL

PROEL PLWIN60C Manuel utilisateur

Agilent Technologies

Agilent Technologies E2609B Manuel utilisateur

Mustang

Mustang MV-ARM4 Manuel utilisateur

Mounting Solutions

Mounting Solutions WRM-320 Manuel utilisateur

Pyle

Pyle PMKSPAD1 Manuel utilisateur

ShelterIt

ShelterIt 21208 Manuel utilisateur

SPL

SPL RackPack?4 1040 Manuel utilisateur
