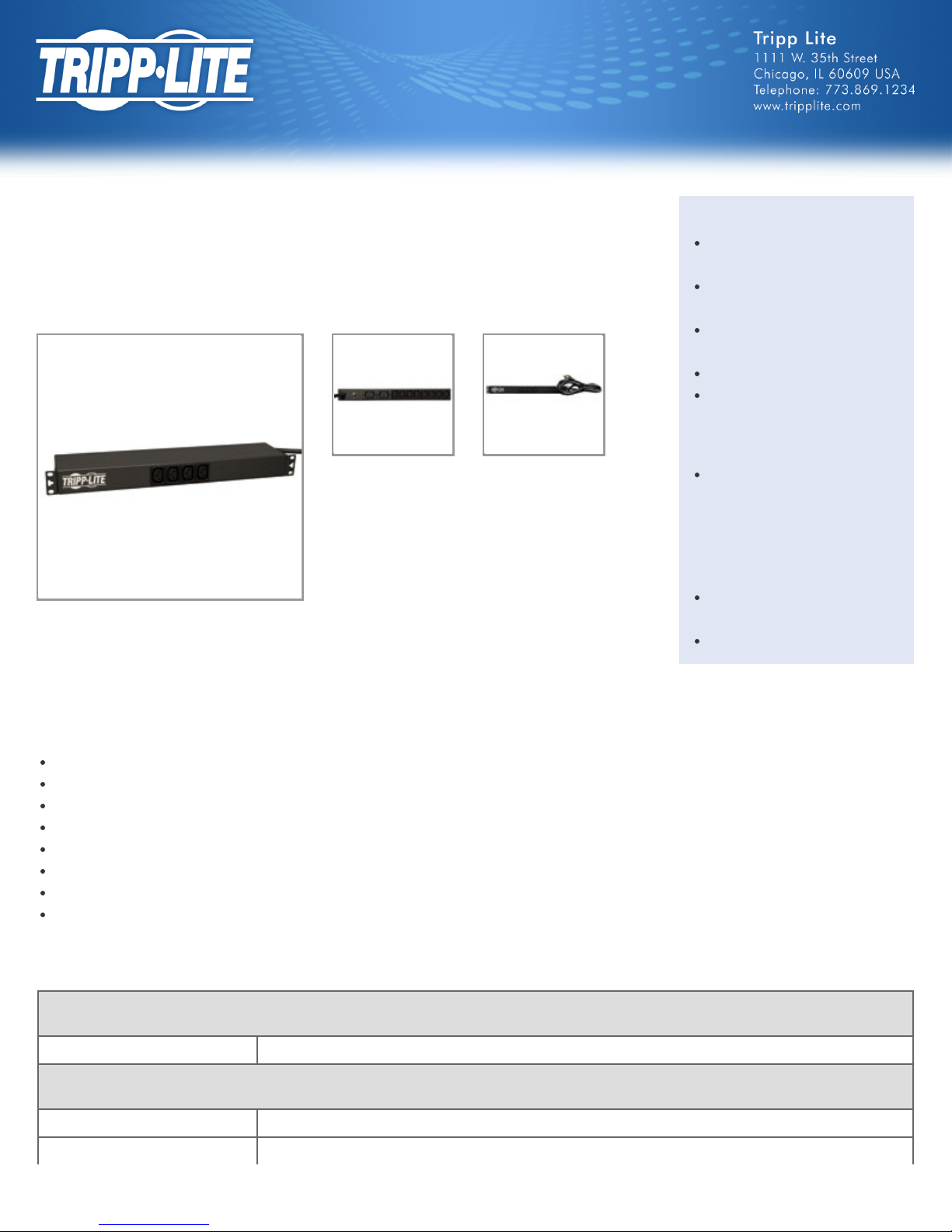

Tripp Lite PDUH20HVL6 Manuel du propriétaire

Single-Phase Basic PDU, 3.3/3.8kW 20A 208/240V,

1U Horizontal Rackmount, 2 C19 and 12 C13 outlets,

NEMA L6-20P input plug

MODEL NUMBER: PDUH20HVL6

Description

Tripp Lite Basic Power Distribution Units / PDU systems offer reliable rackmount power distribution. Supplies

equipment with continuous power from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and

secure rackmount installation with included mounting accessories.

Features

20A single phase 208/240V Basic Power Distribution Unit / PDU (Agency de-rated to 16A continuous)

Attached NEMA L6-20P input

14 outlets (2 C19, 12 C13)

15 ft. / 4.5m line cord

1U horizontal rackmount format installs in one rack space

Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats

Reversible housing

Back panel grounding lug

Specifications

OVERVIEW

PDU Type Basic

OUTPUT

Output Capacity Details 3.3kW (208V input), 3.8kW (240V input), 3.2kW (200V input); 20A maximum (Agency de-rated to 16A continuous)

Frequency compatibility 50 / 60 Hz

Highlights

Basic single phase 20A 208/240V

PDU

1U horizontal rackmount

installation

L6-20P input; 15 ft. / 4.5m line

cord

2 C19 and 12 C13 outlets

Reversible housing; 3.75 in. /

9.5cm depth

Applications

Ideal for datacenters, network

closets, equipment racks and a

wide variety of other application

types

Package Includes

PDUH20HVL6 PDU rackmount

PDU

Owner's manual

1 / 3

Output nominal voltage 200-240V nominal, single phase

Overload protection n/a

Outlet quantity / type 2 C19, 12 C13

Outlet Type IEC-C13, IEC-C19

INPUT

PDU Input Voltage 200; 208; 240

Maximum Input Amps (A) 20

Maximum Input Amps (A) Details Agency de-rated to 16A continuous

PDU Plug Type NEMA L6-20P

Input cord length (ft.) 15

Input cord length (m) 4.5

Input cord details Input cable is attached

Phase Single-Phase

PHYSICAL

Shipping Dimensions (HWD/in) 2.25 x 20.5 x 9.5

Shipping Dimensions (HWD/cm) 5.7 x 52.1 x 24.1

Shipping weight (lbs) 5.9

Shipping weight (kg) 2.7

Unit Dimensions (HWD/in) 1.75 (1U) x 17.25 x 3.75

Unit Dimensions (HWD/cm) 4.45 x 43.8 x 9.5

Unit weight (lbs) 3.75

Unit weight (kg) 1.7

Material of construction Sheet Metal

Style Rackmount, Vertical Rackmount, Wallmount/Under-Counter

Form factors supported 1U rackmount, 0U vertical rackmount, wall-mount, and under-counter installation

PDU Form Factor Horizontal (1U, 2U, etc)

Outlets center to center

measurement

Distance between front (C13) outlets = 28.75mm; Distance between rear (C19) outlets = 55mm; Distance between

rear (C13) outlets = 28.75mm

SPECIAL FEATURES

Appearance All black color scheme

TVSS grounding Rear grounding lug

CERTIFICATIONS

Certifications Tested to UL 60950 (USA), CSA (Canada), RoHS Compliant

2 / 3

WARRANTY

Product Warranty Period (Worldwide) 5-year limited warranty

Related Items

Optional Products

Model Number Description Qty.

PDUSIDEBRKT Enables Vertical Installation of Select 1U PDUs, Power Strips and Surge Suppressors in SmartRack

Configurations 1

More information, including related products, owner's manuals, and additional technical specifications, can be found online at:

http://www.tripplite.com/sku/PDUH20HVL6.

Specifications are subject to change without notice. Photos may differ slightly from final products.

3 / 3
