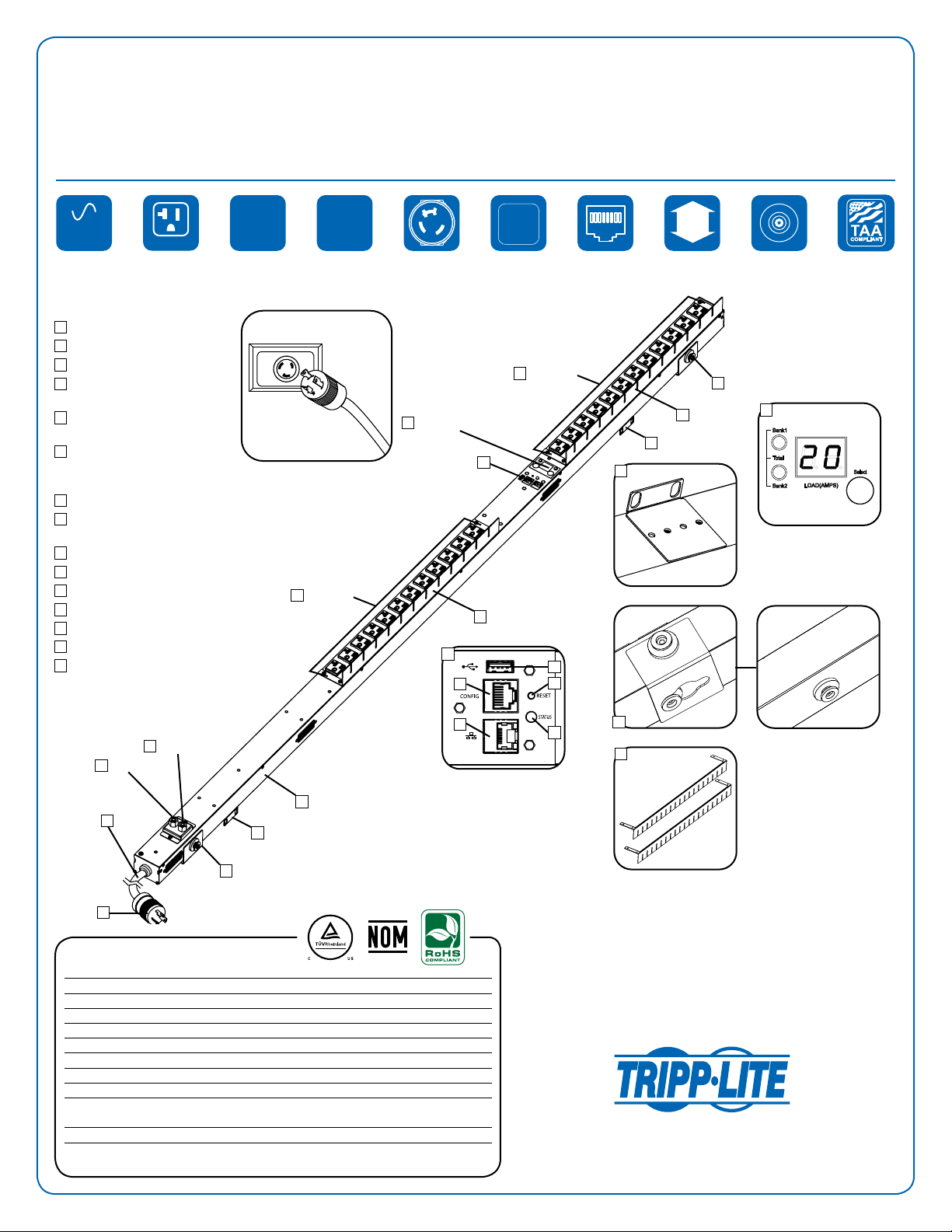

Tripp Lite PDUMNV30LX Manuel utilisateur

MODEL:

PDUMNV30LX

Single-Phase Monitored 0U Vertical PDU

100/120/127V

Single-Phase

Input/Output

24 Outlets 2.9kW 30A Max

Capacity

L5-30P Plug Multimode

Load Meter

Network

Interface

Rackmount

Toolless

Mounting

Buttons

TAA

Compliant

Specications

Model PDUMNV30LX

Voltage 100/120/127V

Frequency 50/60 Hz

Maximum Capacity 30A

Agency-Derated Capacity 24A

Input Connector L5-30P

Cord Length 10 ft. / 3 m

Outlets 24 (5-15/20R)

Primary Mounting Option 0U (Vertical) Rack Mount

Unit Dimensions (H x W x D) 70 x 2.2 x 1.8 in. / 1778 x 556 x 445 mm

See next page for detailed unit measurements.

Unit Weight 11.5 lb. / 5.2 kg

Standards Tested to UL 60950-1 (US & Canada), NOM (Mexico),

FCC Class A, RoHS

• Distributes power to 24 outlets arranged in two banks

•

Java-free HTML5-based network interface allows for remote

monitoring and control via SNMP, Web, SSH or telnet

• Displays load for either outlet bank or both banks

combined in real time

• Perfect for rack-mount server, network and telecom

applications

SEE NEXT PAGE FOR DETAILED UNIT MEASUREMENTS

Select

LOAD(AMPS)

Bank1

Total

Bank2

A Digital Load Meter

B 5-15/20R Outlets

C 20A Circuit Breakers

D Removable Cord

Retention Brackets

E Removable Mounting

Brackets

F Toolless Mounting

Buttons with Removable

90° Rotation Brackets

G 10 ft. Input Power Cord

H L5-30P Twist-Lock

Input Plug

I Durable Metal Case

J LX Platform Interface

K RJ45 Ethernet Port

L RJ45 Conguration Port

USB-A Port

N Reset Button

O Status LED

Also includes: Conguration Cable,

Cable Ties, PDUMVROTATEBRKT,

Owner’s Manual

C (BANK 1)

B (BANK 1)

A (BANK 1 & BANK 2)

B (BANK 2)

C (BANK 2)

AC Input Connection: Insert L5-30P

twist-lock plug into compatible L5-30R

utility, generator or UPS outlet.

1111 W. 35th Street

Chicago, IL 60609 USA

773.869.1234

www.tripplite.com

Multimode Load Meter:

Press the“Select” button to

switch modes—display the

load for bank 1, bank 2

or both banks combined.

LX Platform Interface: Connect to

Ethernet for remote monitoring and

individual outlet control via SNMP, Web,

SSH or telnet. Add optional EnviroSense2

(E2) modules for temperature/humidity

monitoring and dry contact interface.

90° Bracket Standard

Note: Installed 17.67 mm

toolless mounting buttons

can be replaced with

included 14.17 mm buttons

for additional compatibility.

30A 0U

100/120/127V

50/60Hz 20

2.9kW

5-15/20R

Dimensions: [mm] INCHES

Tripp Lite has a policy of continuous improvement. Specications are subject to change without notice.

REA R VIEW

FRO NT VIEW

SIDE VIEW

5-15/ 20R O UTLET

224.65

8.84

1776.44

69.94

18.84

478.48

2.20

SEE

DETA IL

22.95

583.05

18.84

478.48

120

3048

REM O VABLE MO UNTING

BRA C KET

82.10

3.23

1.25

31.751212.80

47.75

12.60

320.11 1 .69

1.55

39.37

65.70

2.59

C O RD RETENTIO N

BRA C KET

REM O VA BLE

TO O LLESS

MO UNTING

BUTTO N

1206.45

47.50

134.01

5.28

61.26

1556

9.71

246.70

REM O VA BLE

MO UNTING

BRA C KET

TO O LLESS

MO UNTING

BUTTO N

DETA IL E

DETA IL C

C O RD RETENTIO N

BRA C KET

REM O V A BLE

MO UNTING BRA C KET

DETA IL A

3.40

86.43

DETA IL B

DETA IL D

.28

7.10

REM O VA BLE 9 0°

RO TATIO N BRA C KET

[58.99]

2.32

[43]

1.69

[57]

2.24

[17.67]

0.69

[42]

1.65

[22]

.86

TO O LLESS

MO UNTING

BUTTO N

.69

17.67

MODEL:

PDUMNV30LX

1111 W. 35th Street

Chicago, IL 60609 USA

773.869.1234

www.tripplite.com

Note: Installed

17.67 mm toolless

mounting buttons

can be replaced

with included

14.17 mm buttons

for additional

compatibility.
