Tripp Lite PDU3VS6L2120 Manuel utilisateur

Owner’s Manual

3-Phase Switched 0U

Power Distribution Units

(Phase and Bank Measurements)

208V MODELS

PDU3VS6L2120 • PDU3VS6L2130 • PDU3VS6H50

(Series Number: AG-00BC) (Series Number: AG-00BA) (Series Number: AG-00BA)

400V MODELS

PDU3XVS6G20

(Series Number: AG-00BD)

Important Safety Instructions 2

Installation 3

Digital Display 6

Using the Digital Display 8

Features 14

Conﬁguration and Operation 16

Service 16

Warranty and Warranty 17

Registration

Español 18

Français 35

Русский 52

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

PROTECT YOUR INVESTMENT!

and ultimate peace of mind.

You could also win an

ISOBAR6ULTRA surge protector—

a $100 value!

www.tripplite.com/warranty

18-11-311-9332D2.indb 1 1/23/2019 6:19:37 PM

Important Safety Instructions

SAVE THESE INSTRUCTIONS

This manual contains instructions and warnings that should be followed during

the installation, operation, and storage of this product. Failure to heed these

instructions and warnings may affect the product warranty.

• The PDU provides convenient multiple outlets, but it DOES NOT provide surge or line noise

protection for connected equipment.

• The PDU is designed for indoor use only in a controlled environment away from excess

moisture, temperature extremes, conductive contaminants, dust or direct sunlight.

• Do not connect the PDU to an ungrounded outlet or to extension cords or adapters that

eliminate the connection to ground.

• The power requirement for each piece of equipment connected to the PDU must not exceed

the individual outlet’s load rating.

• The total power requirement for equipment connected to the PDU must not exceed the

maximum load rating for the PDU.

• Do not drill into or attempt to open any part of the PDU housing. There are no user-serviceable

parts inside.

• Do not attempt to modify the PDU, including the input plugs and power cables.

• Do not attempt to use the PDU if any part of it becomes damaged.

• Do not attempt to mount the PDU to an insecure or unstable surface.

• Use of this equipment in life support applications where failure of this equipment can

reasonably be expected to cause the failure of the life support equipment or to signiﬁcantly

affect its safety or effectiveness is not recommended. Do not use this equipment in the

presence of a ﬂammable anesthetic mixture with air, oxygen or nitrous oxide.

• Never attempt to install electrical equipment during a thunderstorm.

• Keep indoor ambient temperature between 32°F and 122°F (0°C and 50°C).

• Connect the PDU to an outlet that is in accordance with your local building codes and that is

adequately protected against excess currents, short circuits and earth faults.

• The PDU must be installed by a qualiﬁed technician only.

• Install in accordance with your local electrical codes. Be sure to use the proper over current

protection for the installation, in accordance with the plug rating/equipment rating.

• The electrical sockets supplying power to the equipment shall be installed near the equipment

and be easily accessible.

• Be sure to provide a local disconnect device on any models that are permanently installed

without a plug that is easily accessible.

18-11-311-9332D2.indb 2 1/23/2019 6:19:37 PM

1-1 1-2

1-4

1-3

1-5

Installation

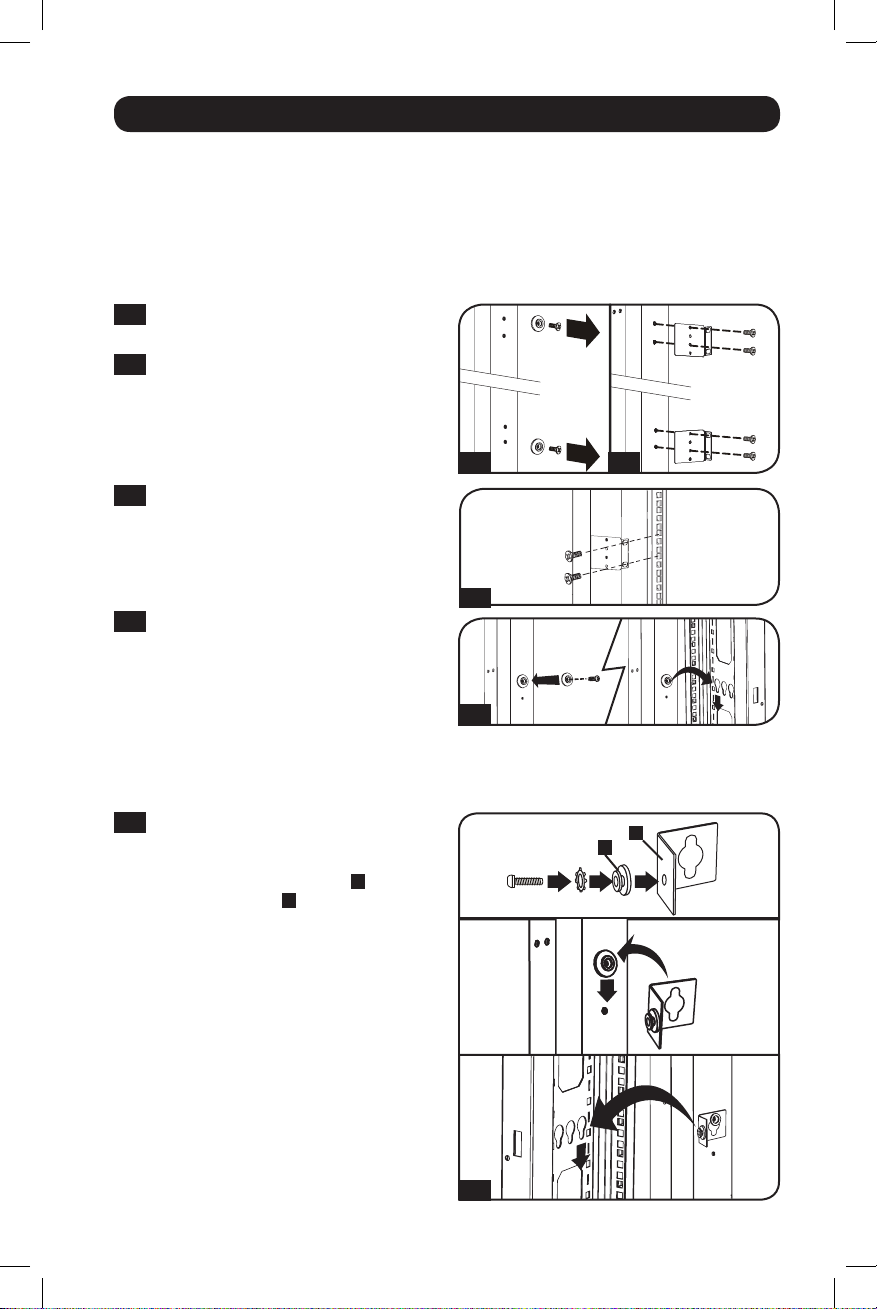

Mounting the PDU

Note: The illustrations may differ somewhat from your PDU model. Regardless of conﬁguration, the user must

determine the ﬁtness of hardware and procedures before mounting. The PDU and included hardware are designed

for common rack and rack enclosure types and may not be appropriate for all applications. Exact mounting

conﬁgurations may vary. Screws for attaching the mounting brackets to the PDU are included. Use only the screws

supplied by the manufacturer or their exact equivalent.

Note: Mounting buttons come preinstalled to the PDU for toolless mounting.

1-1 To attach the mounting brackets to the

PDU, remove the mounting buttons.

1-2 Attach the mounting brackets to the

PDU with the included screws.

1-3 Attach the PDU to a vertical rail in

your rack or rack enclosure. (Use the

mounting hardware that came with your

rack or rack enclosure to attach the

mounting brackets to the rail.)

1-4 To reinstall the mounting buttons for

toolless mounting, remove the mounting

brackets, then install the mounting

buttons onto the PDU. Position the PDU

as desired in the rack enclosure, align

the buttons with the rack mounting

slots, and slide the PDU into position.

Note: Be sure to insert the 2 buttons into either

the upper hole at each end of the PDU or into

the lower hole at each end of the PDU.

1-5 To install the PDU with its outlets facing

the rear of the rack, use the included

PDUMVROTATEBRKT accessory. First,

attach the mounting button Ato the

V-shaped bracket Busing the included

screw and washer. Then, use the

button-mount slot to attach the bracket

to the PDU and the mounting button to

attach the PDU to the rack. The bracket

effectively repositions the mounting

brackets, allowing for the PDU outlets to

face the rear of the rack.

18-11-311-9332D2.indb 3 1/23/2019 6:19:38 PM

Installation

Connecting the PDU

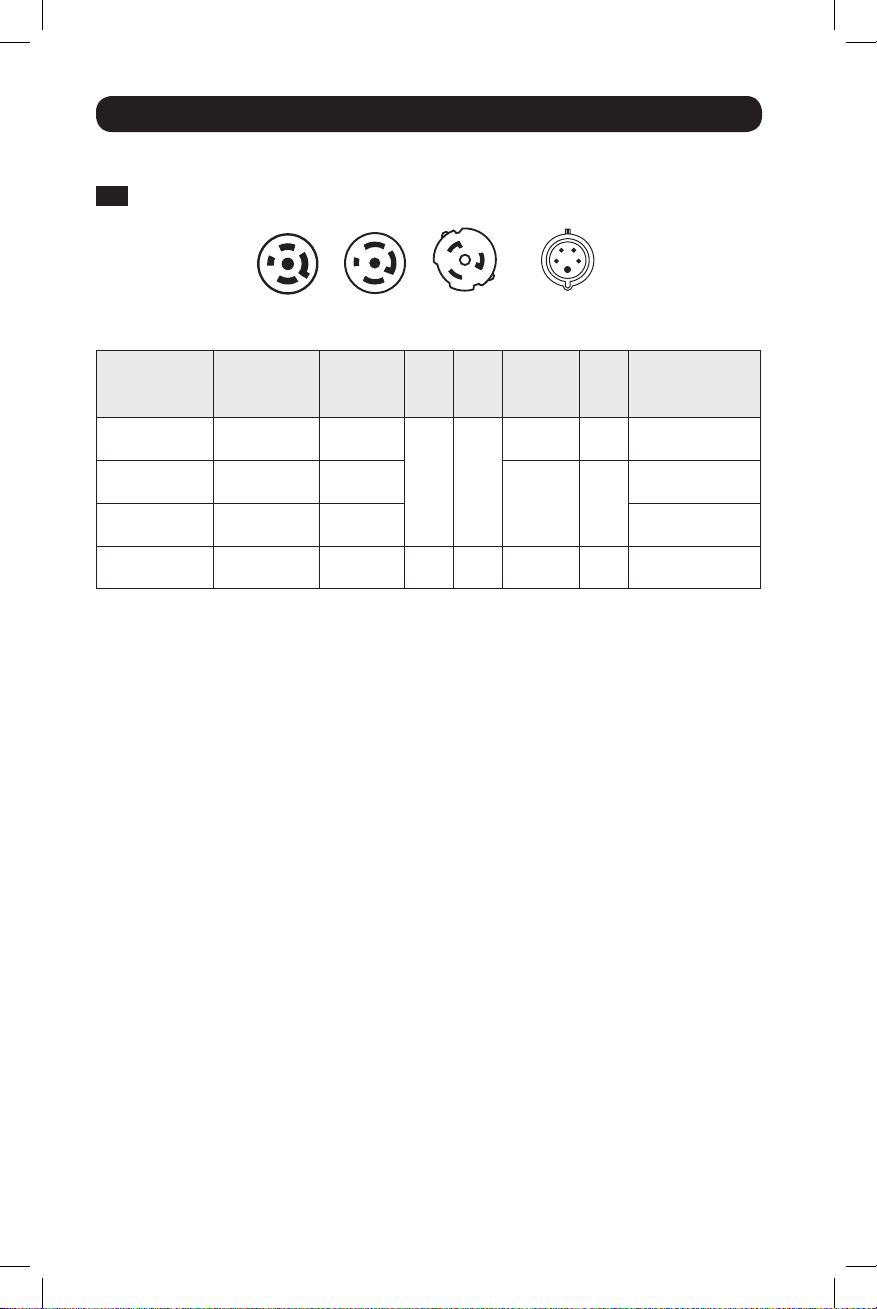

2-1 Each model is equipped with 1 of 4 different input plugs.

L21-30P 16A Red IEC 309

3P + N + E

HUBBLE

CS8365C

Model Name Input Plug

Max Input

Amps (Limited

by Input Cord

and Plug)

Input

Voltage

Range

Output

Voltage

Range Breakers

Cord

Length Outlets

PDU3VS6L2120 L21-20P 16A

200-

240V 200-

240V

N/A 6 ft.

(1.8M) 30 Total; 3 Banks of

(2) C19 and (8) C13

PDU3VS6L2130 L21-30P 24A 3 x Double

Pole, 20A

Branch-

Rated

6 ft.

(1.8M)

30 Total; 3 Banks of

(2) C19 and (8) C13

PDU3VS6H50 HUBBLE

CS8365C 35A 30 Total; 3 Banks of

(2) C19 and (8) C13

PDU3XVS6G20 16A Red IEC 309

3P + N + E 16A 360-

415V 208-

240V N/A 6 ft.

(1.8M) 30 Total; 3 Banks of

(2) C19 and (8) C13

L21-20P

18-11-311-9332D2.indb 4 1/23/2019 6:19:38 PM

2-2

2-3

2-4

Installation

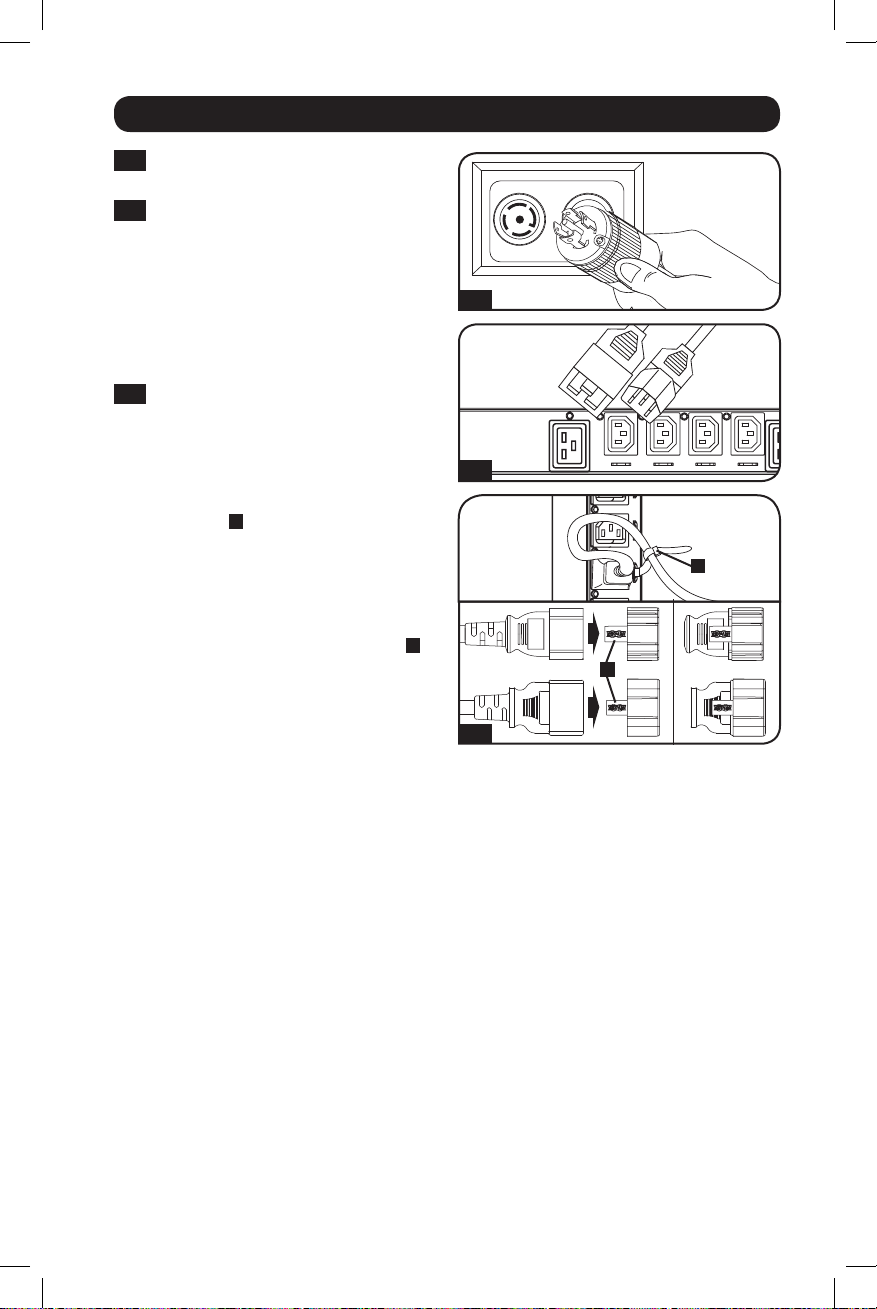

2-2 Connect the input plug to your facility’s

compatible AC power source.

2-3 Connect your equipment’s input plugs to

the appropriate outlets on the PDU. The

LED near each outlet illuminates when

the outlet is ready to distribute live

AC power.

Note: It is recommended that you do not

connect a live load to the PDU. If the load you

intend to connect has an ON/OFF switch, please

turn the switch to OFF prior to connection.

2-4 Optional Cord Retention Procedure

Option 1: Use the bridge lances located

near each receptacle to retain power

cords. Tie each equipment power cord

to a bridge lance by looping the cord

and securing it with one of the included

cable ties A.Make sure each cord can

be unplugged from the PDU without

removing the cable tie.

Option 2: Use the included C14 and

C20 plastic sleeves to secure plugs to

receptacles. Attach the sleeve to the

plug, making sure that the pull tabs B

remain outside the plug and that the ﬁt

is secure. To unplug equipment properly,

use the pull tabs to remove the plug

and sleeve from the receptacle.

For Installation

Purposes Only

Networking the PDU

Your PDU can receive IP address assignments via DHCP server (dynamic) or static (manual)

addressing methods. See the SNMPWEBCARD installation guide for an explanation of

these methods. You can ﬁnd the guide by going to www.tripplite.com/support and typing

“SNMPWEBCARD” in the search ﬁeld. If you are uncertain which method to use, contact your

network administrator for assistance before continuing the conﬁguration process.

Note: The MAC address of the PDU (12-digit string in this format: 000667xxxxxx) is printed on a label attached

to the PDU enclosure. For static IP address assignments, use the RJ-45 to DB9 conﬁguration cable (part

number 73-1243) included with the PDU.

18-11-311-9332D2.indb 5 1/23/2019 6:19:39 PM

BC DE

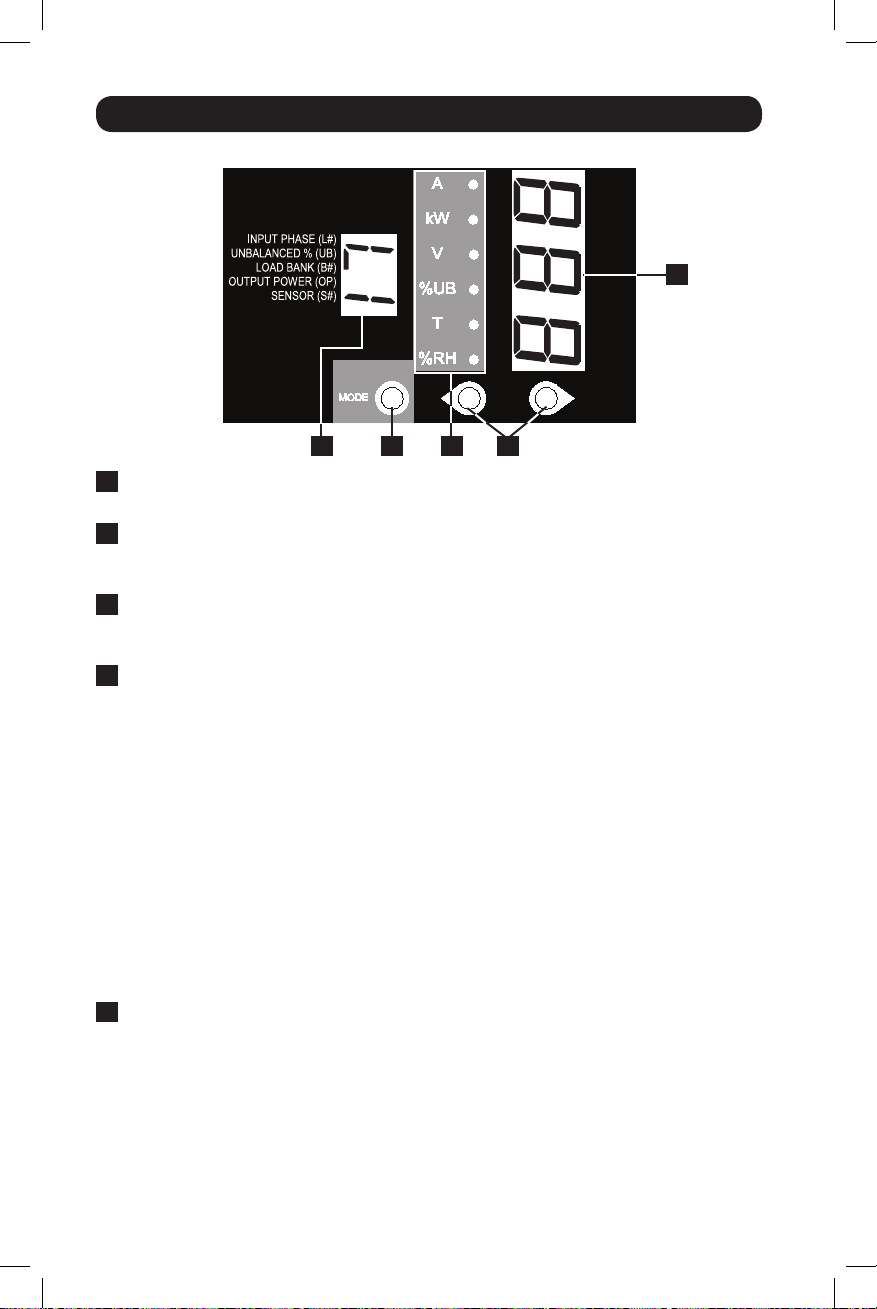

Digital Display

A3-Digit Display: Shows measured or calculated values such as Amperage, Kilowatts,

Voltage, Power Unbalance Percentage, Temperature and Humidity.

BArrow Buttons: Scroll through indicated Input, Bank, Power, Load Balance, Sensor and

Display Brightness options using these buttons. A long press of the up or down arrow

buttons allows the user to skip to the next sequential measurement category.

CMode Button: When a menu option is selected using the Arrow Buttons, the Mode Button

scrolls through the sub-options within each category. Sub-options are shown by the

Indicator LEDs.

DIndicator LEDs: Lit LED indicates which value is being displayed on the 3-digit screen.

Amps (A): When selected, the load on the selected Input Phase (L#) or Load Bank

(B#) is displayed in amps.

Wattage (kW): When selected, the load on the selected Load Bank (B#) or Total

Output Power (OP) is displayed in kW.

Voltage (V): Input Phase (L#) or Load Bank (B#) voltage is displayed.

Unbalanced Load (%UB): When lit, the display shows the unbalanced load

percentage deviance from the average measured value. A value that is zero or closest

to zero is desirable.

Temperature (T): If Tripp Lite ENVIROSENSE is connected, the ambient temperature

will be displayed when this option is selected. The temperature is displayed in Celsius

by default, but can be switched to Fahrenheit.

Relative Humidity (%RH): If Tripp Lite ENVIROSENSE is connected, the relative

humidity percentage will be displayed when this option is selected.

E2-Digit Display: This display indicates which Input Phase (L#), Load Unbalance (UB), Load

Bank (B#), Output Power (OP) or Sensor (S#) option is selected.

18-11-311-9332D2.indb 6 1/23/2019 6:19:39 PM

LINEL1-L2

23 4 5

7 8 9 10

12 13 14 15

17 18 19 20

22 23 24 25

27 28 29 30

STATUS

LINK

RESET

ENVIROSENSE

CONFIG

LINEL2-L3LINEL3-L1

L1-

L3-

L2-

L3-

L1-

L2-

L1-N

L1-L2

400V Models:

208V Models:

L3-N

L3-L1

L2-N

L2-L3

L2-N

L2-L3

L1-N

L1-L2

L3-N

L3-L1

Digital Display

Load Bank Receptacle Location

Display References

LOAD BANKS REFERENCE

SILKSCREEN LABEL DESCRIPTION 2-DIGIT DISPLAY REFERENCE

208V Models 400V Models 208V and 400V Models

L1-L2 L1-N B1

L2-L3 L2-N B2

L3-L1 L3-N B3

INPUT PHASE REFERENCE

INPUT PHASE REPORTED 2-DIGIT DISPLAY REFERENCE

208V Models 400V Models 208V and 400V Models

L1 – L2 L1-N L1

L2 – L3 L2-N L2

L3 – L1 L3-N L3

Button Response Deﬁnitions:

Conﬁguration1Switch Action Control Function

Standard

Up Pushbutton

Depress ½ sec Sequentially moves up one selection in

the menu.

Depress 3 sec Advances up to the next measurement

category.

Down Pushbutton

Depress ½ sec Sequentially moves down one selection in

the menu.

Depress 3 sec Advances down to the next measurement

category.

Mode Pushbutton

Depress ½ sec Displays available options for a given

measurement category.

Depress 3 sec Selects the chosen available option for a given

conﬁguration category.

Alternate

Up Pushbutton

Depress ½ sec Sequentially moves down one selection in

the menu.

Depress 3 sec Advances down to the next measurement

category.

Down Pushbutton

Depress ½ sec Sequentially moves up one selection in the

menu.

Depress 3 sec Advances up to the next measurement

category.

Mode Pushbutton

Depress ½ sec Displays available options for a given

measurement category.

Depress 3 sec Selects the chosen available option for a given

conﬁguration category.

1Conﬁgured via Conﬁguration Category item “Outlet Indicator LED Color Code Options”.

18-11-311-9332D2.indb 7 1/23/2019 6:19:40 PM

i 5.5

L i

2 0 8

L i

i 5.5

2 0 8

i 5.5

2 0 8

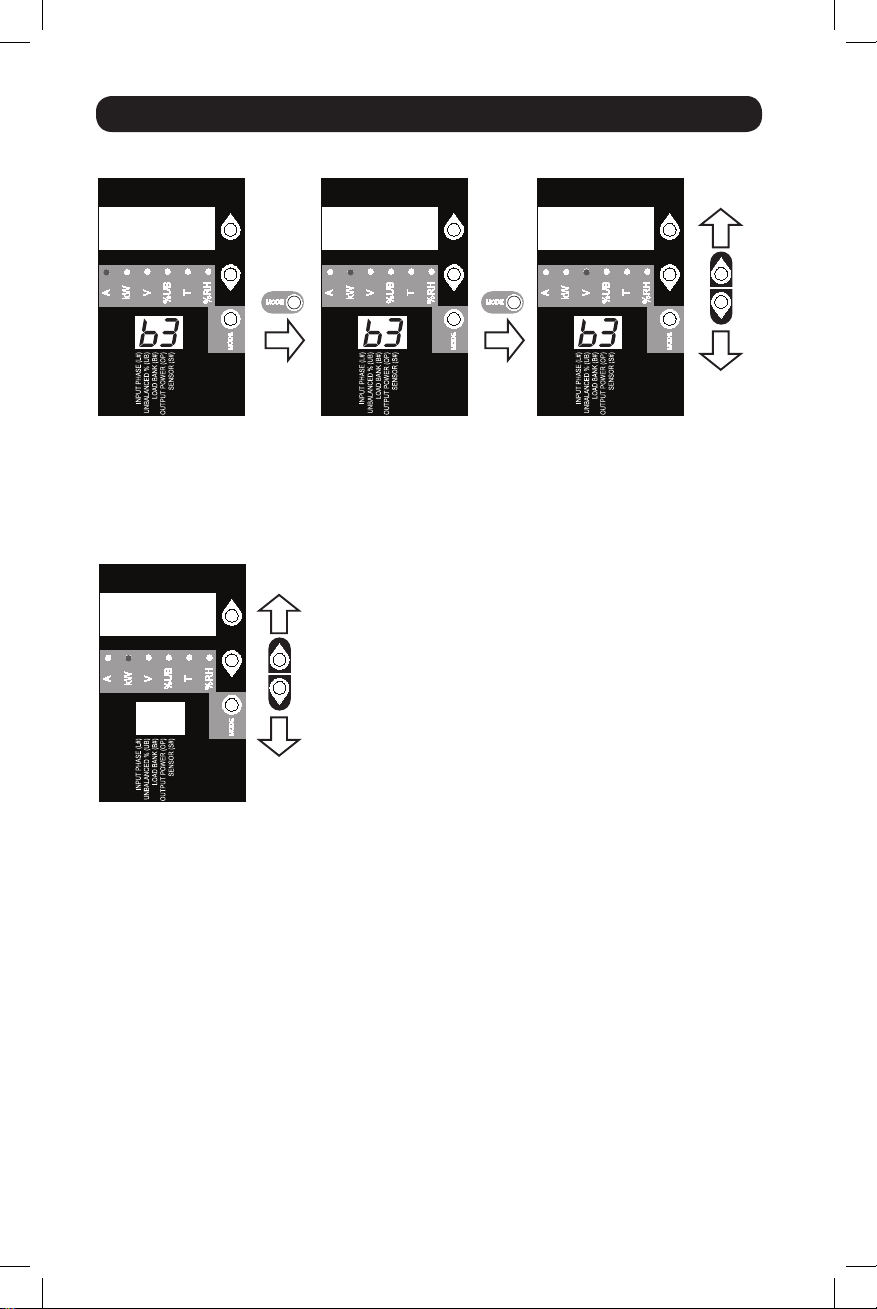

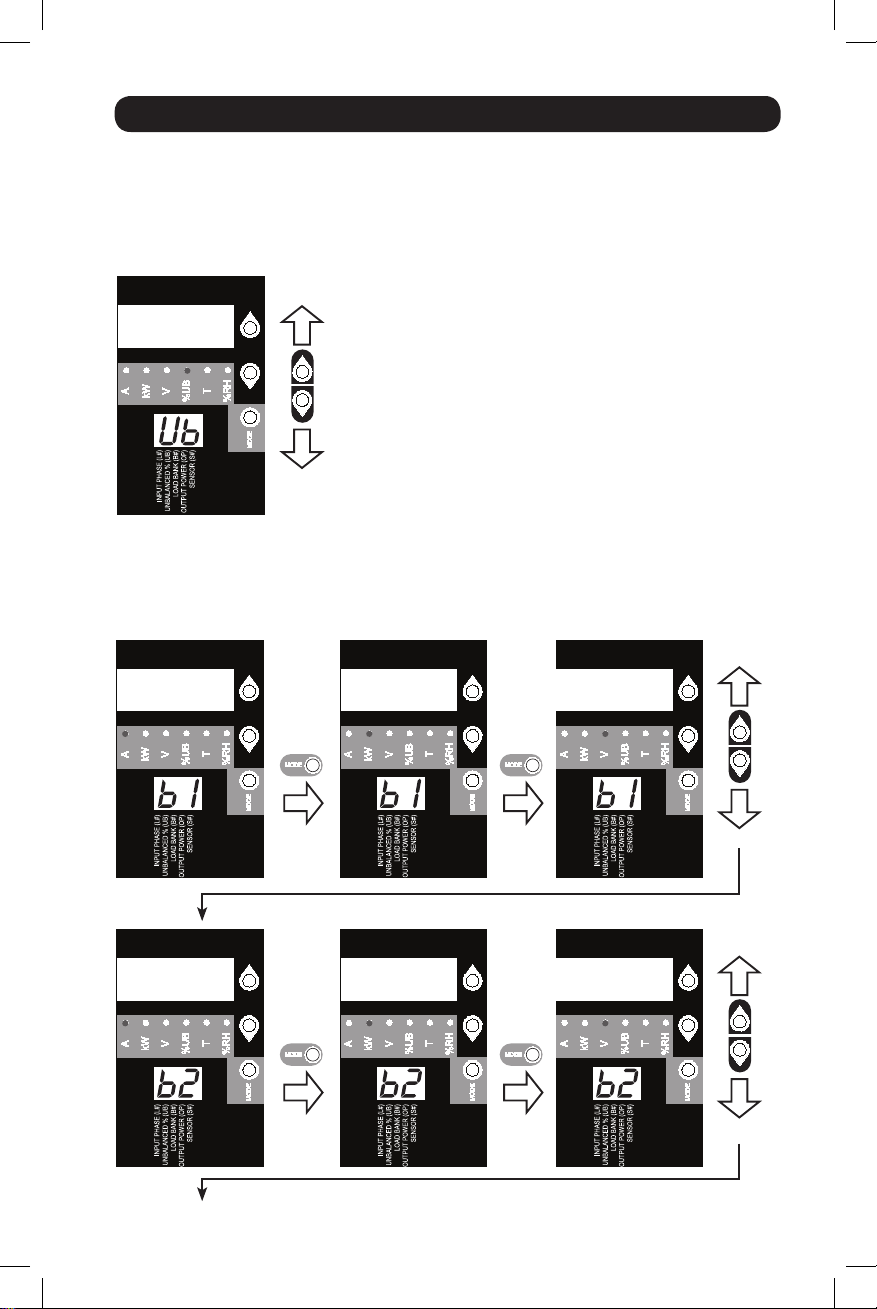

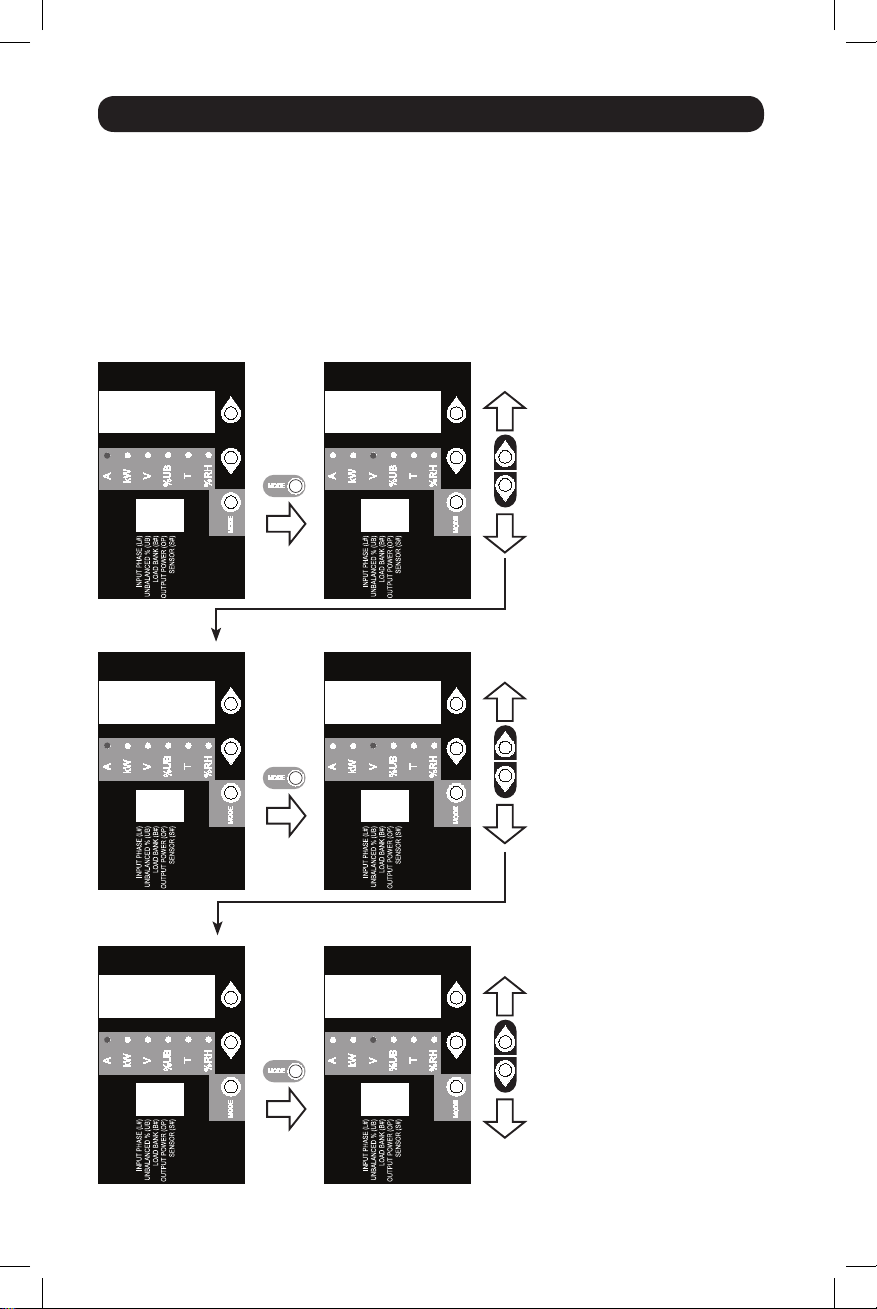

Using the Digital Display

Scrolling Through Input Phases and Options

(Measurement Category)

Press Mode button to toggle between options and data within a menu. A momentary press of the

arrow buttons switches between menus. A long press skips between measurement categories.

The scrolling pattern of the display is outlined below. Note: Three dashes will be shown in

the 3-digit display when the input phase voltage is unknown, due to abnormal tripped

breaker conditions.

Input Phase 1

Input Phase 2

Input Phase 3

Amps

Volts*

To Unbalanced Load Detect

*Note: For 208V models, voltages

displayed are phase-to-phase

voltages (i.e., L1 display will indicate

L1-L2 voltage). For 400V models,

voltages displayed are phase-to-

neutral voltages (i.e., L1 display will

indicate L1-N voltage).

18-11-311-9332D2.indb 8 1/23/2019 6:19:40 PM

2 0

i 0.5 2. i 8

2. i 8

2 0 8

i 0.5 2 0 8

i.2 3

i 0.5 2. i 8 2 0 8

continued on next page

Using the Digital Display

Press Mode button to toggle between options and data within a menu. A momentary press of the

arrow buttons switches between menus. A long press skips between measurement categories.

The scrolling pattern of the display is outlined below.

Unbalanced Load Detect (Measurement Category)

Scrolling Through Load Banks and Options

(Measurement Category)

Scroll through Load Banks 1-3

using the Mode and ibuttons.

Amps

Kilowatts

Volts*

Phase Imbalance %

Bank #2

Bank #3

*Note: For 208V models, voltages displayed are phase-

to-phase voltages (i.e., b1 display will indicate L1-L2

voltage). For 400V models, voltages displayed are

phase-to-neutral voltages (i.e., b1 display will indicate

L1-N voltage).

18-11-311-9332D2.indb 9 1/23/2019 6:19:41 PM

i 0.5 2. i 8

2. i 8

2 0 8

i 0.5 2 0 8

i.2 3

i 0.5 2. i 8 2 0 8

i 0.5 2. i 8

2. i 8

2 0 8

i 0.5 2 0 8

i.2 3

i 0.5 2. i 8 2 0 8

Using the Digital Display

Press Mode button to toggle between options and data within a menu. A momentary press of the

arrow buttons switches between menus. A long press skips between measurement categories.

The scrolling pattern of the display is outlined below.

Total Output Power (Measurement Category)

Kilowatts

Temperature

Readings

To Total

Output

Power

Amps Kilowatts Volts*

18-11-311-9332D2.indb 10 1/23/2019 6:19:42 PM

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Tripp Lite Unité de distribution d'énergie

Tripp Lite

Tripp Lite PDU1215 Manuel utilisateur

Tripp Lite

Tripp Lite PDU3MV6L2120 Manuel utilisateur

Tripp Lite

Tripp Lite PDUMV15-ISO Manuel utilisateur

Tripp Lite

Tripp Lite PDUMH15AT Manuel utilisateur

Tripp Lite

Tripp Lite PDU3XMV6G32 Manuel utilisateur

Tripp Lite

Tripp Lite PDUMH15 Manuel utilisateur

Tripp Lite

Tripp Lite AGPD7897 Series Manuel utilisateur

Tripp Lite

Tripp Lite PDUV30HV Manuel utilisateur

Tripp Lite

Tripp Lite PDUMV30HVNET Manuel utilisateur

Tripp Lite

Tripp Lite PDUMH20AT Manuel utilisateur

Tripp Lite

Tripp Lite PDU3VN10L2120 Manuel utilisateur

Tripp Lite

Tripp Lite PSC240410USBB Manuel utilisateur

Tripp Lite

Tripp Lite PDU1230 Manuel utilisateur

Tripp Lite

Tripp Lite PDUMV32HVNET Manuel utilisateur

Tripp Lite

Tripp Lite PDUMH15NET2LX Manuel utilisateur

Tripp Lite

Tripp Lite PDU3VN6L2120 Manuel utilisateur

Tripp Lite

Tripp Lite PDUMNV30LX Manuel utilisateur

Tripp Lite

Tripp Lite PDUMH15HVNET Manuel utilisateur

Tripp Lite

Tripp Lite PDU1420T Manuel utilisateur

Tripp Lite

Tripp Lite PDUH20DV Manuel utilisateur

Tripp Lite

Tripp Lite Power Distribution Unit (PDU) PDU6K Manuel utilisateur

Tripp Lite

Tripp Lite PDUMV30NET Manuel utilisateur

Tripp Lite

Tripp Lite PDUMV30HV Manuel utilisateur

Tripp Lite

Tripp Lite SUPDMB710IEC Manuel utilisateur

Manuels Unité de distribution d'énergie populaires d'autres marques

hager

hager SP 015 Manuel utilisateur

Pakedge

Pakedge PowerPak 9 Manuel utilisateur

Pts

Pts 9042 Series Manuel utilisateur

Shure

Shure WA405 Manuel utilisateur

CORNING

CORNING CCH 4U Manuel utilisateur

Panamax

Panamax M4LT-EX Manuel utilisateur

PANCONNECT

PANCONNECT FLAT 3M Manuel utilisateur

Raytheon

Raytheon 138-118 Manuel utilisateur

D&R ELECTRONICS

D&R ELECTRONICS PDU-6SS Manuel utilisateur

Botex

Botex PSA 322-6 DL Manuel utilisateur

GE QuiXtra 4000 Guide de démarrage rapide

RDL

RDL EZ Series Manuel utilisateur

StarTech.com

StarTech.com RKPW161915 Manuel du système

Vertiv

Vertiv Knürr DI-Strip Rack PDU Manuel utilisateur

ABB

ABB PSBS0065 Manuel

Baumuller

Baumuller BFN 3-1-0007-001 Manuel

Eaton

Eaton StructuredWiringSolutions ESWT41600 Manuel

GE GEK-45404F Manuel utilisateur
