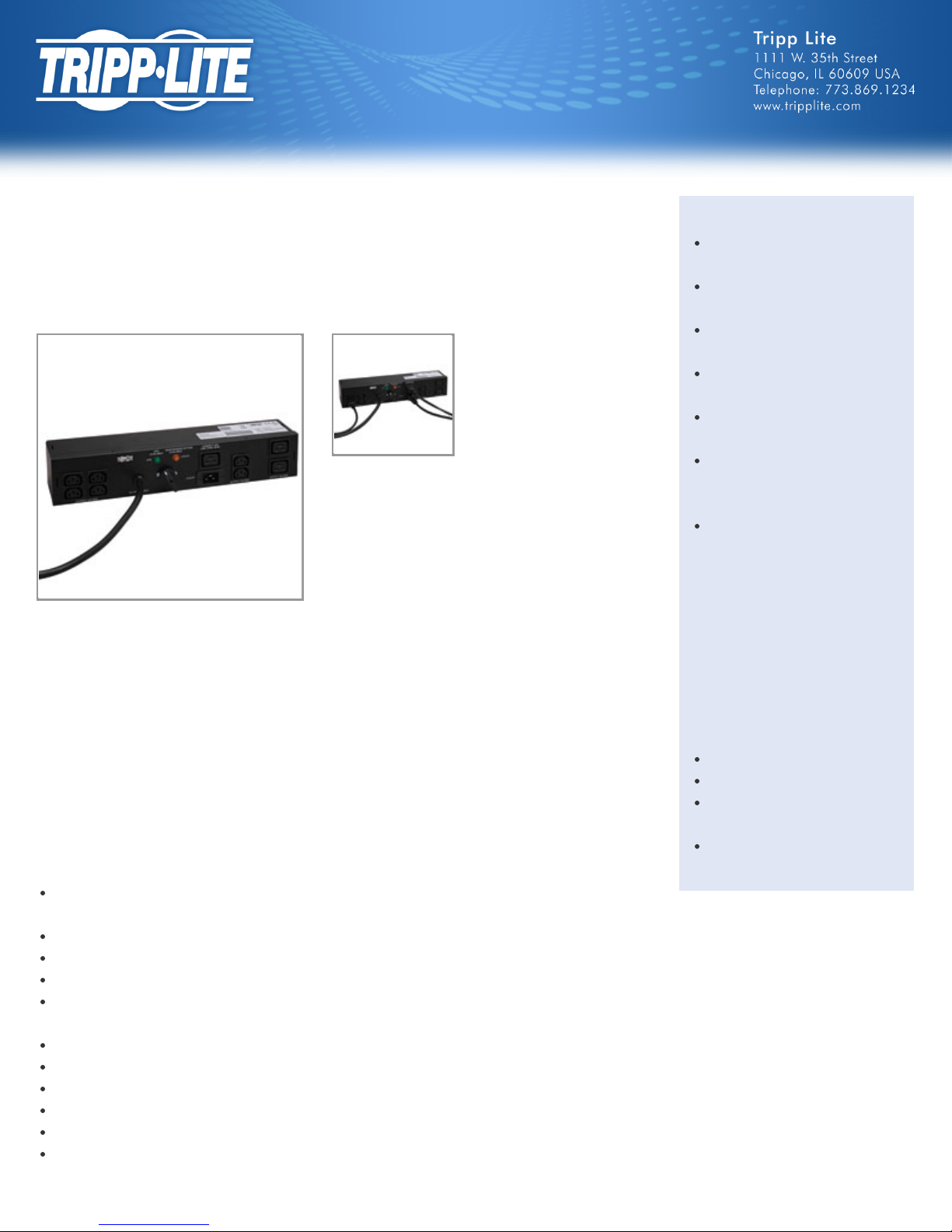

Single-Phase Hot-Swap PDU, 3.2-3.8kW 16A

200-240V, 2U Horizontal Rackmount, 6 C13 and 2

C19 outlets, set of 2 C20 inputs

MODEL NUMBER: PDUBHV20

Description

Tripp Lite’s Hot-swap PDU systems enable live-replacement of standard UPS systems for maintenance with no

interruption of connected server or networking loads. Dual input power cables support PDU connection to

separate Utility and UPS power sources. Manual transfer switch with lighted status indicators controls the source

of power to connected equipment between Utility and UPS. Set the switch to UPS during normal operation and

connected equipment will receive full-time conditioned power from the UPS. Set the switch to Utility to

momentarily power connected equipment from the Utility line cord and bypass the UPS while the UPS system is

removed and replaced with a fresh one. Once the new UPS is up and running with all data and electrical

connections restored, set the switch back to the UPS setting to once again provide fully-conditioned UPS power

to connected equipment.

Features

Tripp Lite Hot-swap PDU systems support live-replacement of standard UPS systems for maintenance with

no interruption of connected server or networking loads

PDUBHV20 is universally compatible with any Tripp Lite or other brand of 200-240V UPS rated 2000 to 3000VA with a C20 input cable

2U horizontal rackmount form factor compatible with 2 or 4 post racks

Supports space saving rear-post mounting in the same rack space as many Tripp Lite Rackmount UPS systems (select installations, see manual)

Pair of detachable PDU input cables connect to separate Utility and UPS power sources (2 5ft. C19-C20 and 2 6ft. C13-C14 interconnect cables included

- user supplied alternate cabling supported)

6 C13 and 2 C19 outlets support critical networking loads in both Utility and UPS operating modes

One additional C19 pass-through outlet supports UPS input power cord

Dual input power cables support PDU connection to separate Utility and UPS power sources

Manual transfer switch with lighted status indicators controls the source of power to connected equipment between Utility and UPS

Set the switch to UPS during normal operation and connected equipment will receive full-time conditioned power from the UPS

Set the switch to Utility to bypass the UPS and provide connected equipment with unfiltered power directly from the Utility line cord while the UPS system

Highlights

Single phase 16A 200-240V

Hot-swap PDU

Enables live replacement of a

standard UPS with zero downtime

2U horizontal rackmount

installation

Compatible with any 200-240V

UPS with a C20 input

Manual transfer switch controls

PDU input power source

Pair of C20 compatible inputs

connect to separate Utility and

UPS inputs

8 built in outlets (6 C13 / 2 C19)

Applications

Hot-swap PDUs are ideal to install

along with standard UPS systems to

ensure that connected networking

equipment will see no power

interruption as the UPS is serviced,

replaced or upgraded

Package Includes

Hot-swap PDU System

2U mounting brackets

Set of 2 C19-C20 interconnect

cables

User manual with warranty

information

1 / 4

is removed and replaced with a fresh one

Once the new UPS is up and running with all connection s restored, set the switch back to the UPS setting to once again provide fully-conditioned UPS

power to connected equipment

TAA Compliant Version Available - Order Tripp Lite PDUBHV20TAA

Specifications

OVERVIEW

PDU Type Hot-Swap

OUTPUT

Output Watt Capacity (watts) 3680

Output Capacity Details 3.3kW (208V input), 3.5kW (220V input), 3.7kW (230V input), 3.8kW (240V input), 3.2kW (200V input); 20A

maximum (Agency de-rated to 16A continuous)

Frequency compatibility 50 / 60 Hz

Output nominal voltage 200-240V nominal, single phase

Outlet quantity / type 6 C13 and 2 C19 outlets support critical connected loads; 1 designated pass-through C19 outlet supports C20 input

plug from UPS

Outlet Type C13, C19

INPUT

PDU Input Voltage 200; 208; 220; 230; 240

Maximum Input Amps (A) 16

Input connection type UTILITY & UPS inputs are available from separately labelled C20 inlets, compatible with included C19-C20

interconnect cables or with compatible user-supplied cabling

PDU Plug Type IEC-320 C20

Input cord length (ft.) 6

Input cord length (m) 1.83

Phase Single-Phase

LEDS ALARMS & SWITCHES

Switches Manual 2 position transfer switch offers fast switching between UPS and Utility operating modes in less than 6

milliseconds

Front panel LEDs Lighted indicators confirm UPS and Utility switch position and operating mode

PHYSICAL

Shipping Dimensions (HWD/in) 9.84 x 22.75 x 9.44

Shipping Dimensions (HWD/cm) 25 x 57.8 x 24

Shipping weight (lbs) 11

2 / 4

Shipping weight (kg) 5

Unit Dimensions (HWD/in) 3.42 x 17.32 x 3.03

Unit Dimensions (HWD/cm) 8.7 x 44 x 7.7

Unit weight (lbs) 7.7

Unit weight (kg) 3.5

Material of construction Steel

Style Rackmount

Form factors supported 2U rackmount in 2 or 4 post racks

PDU Form Factor Horizontal (1U, 2U, etc)

ENVIRONMENTAL

Relative Humidity 0-95% non condensing

CERTIFICATIONS

TAA Compliant Option TAA Compliant Version Available - Order Tripp Lite PDUBHV20TAA

Certifications Tested to UL60950 (USA), CSA (Canada), CE (IEC60950)

WARRANTY

Product Warranty Period (Worldwide) 2-year limited warranty

Related Items

Optional Products

Model Number Description Qty.

P004-002-13LA AC Power Extension Cable - C13 Left Angle to C14 - 2' 1

P004-002-13RA AC Power Extension Cable - C13 Right Angle to C14 - 2 ft. 1

P036-002-20LA 2-ft. 12AWG Heavy Duty Power cord (IEC-320-C19 to IEC-320-C20 Left Angle) 1

P036-002-20RA 2-ft. 12AWG Heavy Duty Power cord (IEC-320-C19 to IEC-320-C20 Right Angle) 1

P005-12N 1-ft. (12 in.) Heavy-Duty 14AWG Power Cord (IEC-320-C13 to IEC-320-C14) 1

P005-18N 1.5-ft. (18 in.) Heavy-Duty 14AWG Power Cord (IEC-320-C13 to IEC-320-C14) 1

P005-002 2-ft. Heavy-Duty 14AWG Power cord ( IEC-320-C13 to IEC-320-C14) 1

P004-002-5 5-Pack of 2-ft. 18AWG Power cord (IEC-320-C14 to IEC-320-C13) 1

P004-004 4-ft. 18AWG Power cord (IEC-320-C14 to IEC-320-C13) 1

P004-004-BL 4-ft. 18 AWG Power Cord (IEC-320-C14 to IEC-320-C13) with Blue Connectors 1

P004-004-GN 4-ft. 18 AWG Power Cord (IEC-320-C14 to IEC-320-C13) with Green Connectors 1

P004-004-RD 4-ft. 18 AWG Power Cord (IEC-320-C14 to IEC-320-C13) with Red Connectors 1

3 / 4

P004-004-YW 4-ft. 18 AWG Power Cord (IEC-320-C14 to IEC-320-C13) with Yellow Connectors 1

P004-006 6-ft. 18AWG Power cord (IEC-320-C14 to IEC-320-C13) 1

P004-006-2C13 6-ft. AC Power Extension Splitter Cable ( C14 to 2 x C13 ) 1

P005-006 6-ft. Heavy-Duty 14AWG Power cord (IEC-320-C13 to IEC-320-C14) 1

P005-006-BL 6-ft. Heavy-Duty 14AWG Power cord (IEC-320-C13 to IEC-320-C14) Blue Connectors 1

P005-006-GN 6-ft. Heavy-Duty 14AWG Power cord (IEC-320-C13 to IEC-320-C14) Green Connectors 1

P005-006-RD 6-ft. Heavy-Duty 14AWG Power Cord (IEC-320-C13 to IEC-320-C14) with Red Connectors 1

P005-006-YW 6-ft. Heavy-Duty 14AWG Power cord (IEC-320-C13 to IEC-320-C14) Yellow Connectors 1

P004-010 10-ft. 18AWG Power cord (IEC-320-C14 to IEC-320-C13) 1

P005-010 10-ft. Heavy-Duty 14AWG Power cord (IEC-320-C13 to IEC-320-C14) 1

P047-002 2-ft. 14AWG Heavy Duty Power cord (IEC-320-C19 to IEC-320-C14) 1

P047-004 4-ft. 14AWG Heavy Duty Power cord (IEC-320-C19 to IEC-320-C14) 1

P047-006 6-ft. 14AWG Heavy Duty Power cord (IEC-320-C19 to IEC-320-C14) 1

P047-010 10-ft. 14AWG Heavy Duty Power cord (IEC-320-C19 to IEC-320-C14) 1

P036-002 2-ft. 12AWG Heavy Duty Power cord (IEC-320-C19 to IEC-320-C20) 1

P036-006 6-ft. 12AWG Heavy Duty Power cord (IEC-320-C19 to IEC-320-C20) 1

P036-006-2C19 6-ft. AC Power Splitter Cable ( C20 to 2 x C19 ) 1

P040-010 10 ft. 12AWG Heavy Duty Power Cord (IEC-320-C19 to NEMA L6-20P) 1

P045-010 10-ft. 12AWG Heavy-Duty Power cord (IEC-320-C19 to NEMA L5-20P) 1

P049-010 10-ft. 12AWG Heavy Duty Power cord (IEC-320-C19 to NEMA 5-20P) 1

P050-008 8-ft. Power cord (IEC-320-C19 to CEE 7/7 SCHUKO) 1

P052-008 8-ft. Power cord (IEC-320-C19 to BS1363 UK Plug) 1

P070-010 10-ft. IEC309 to C19 Power Cord 1

P040-006 6 ft. 12AWG Heavy Duty Power Cord (IEC-320-C19 to NEMA L6-20P) 1

P040-014 14 ft. 12AWG Heavy Duty Power Cord (IEC-320-C19 to NEMA L6-20P) 1

More information, including related products, owner's manuals, and additional technical specifications, can be found online at:

http://www.tripplite.com/sku/PDUBHV20.

Specifications are subject to change without notice. Photos may differ slightly from final products.

4 / 4
