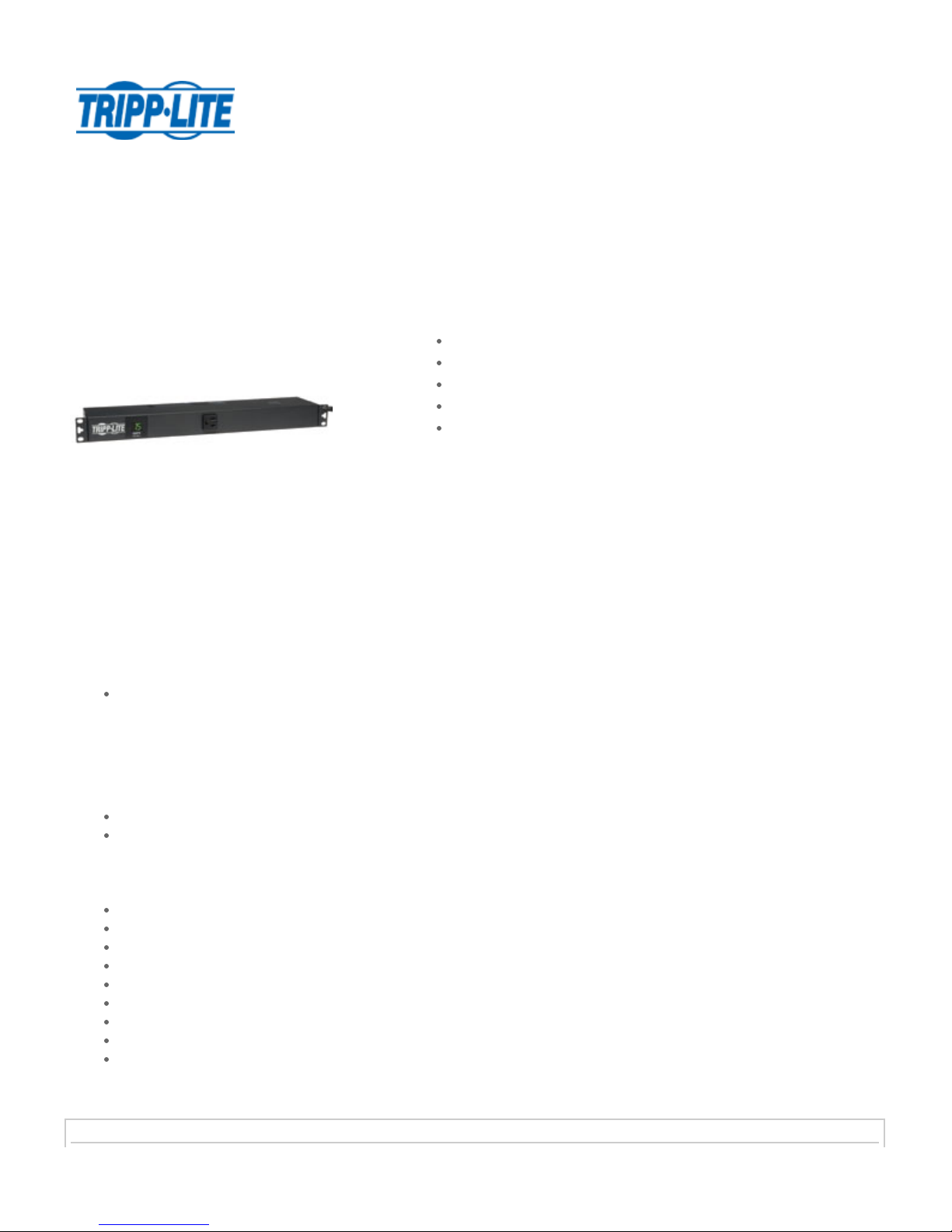

Tripp Lite
1111 West 35th Street
Chicago, IL 60609 USA
Telephone: +(773) 869 1234
E-mail: [email protected]
Model Number: PDUMH15
Single-Phase Metered PDU, 1.4kW 15A 120V, 1U Horizontal Rackmount, 13 NEMA 5-15R outlets, NEMA 5-15P
input plug
Highlights
Metered single phase 15A 120V PDU
1U horizontal rackmount; digital current meter
NEMA 5-15P input; 15 ft. / 4.5m line cord
13 NEMA 5-15R outlets (1 front / 12 rear)
Reversible housing; 4.5 in. / 11.4 cm depth
Description
Tripp Lite Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital meter. Enables visual current
monitoring of PDU output current to prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power
distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure
rackmount installation with included mounting accessories.
Applications
Multi-outlet power distribution unit with digital current monitoring is the ideal means of powering multiple loads in 19 inch rackmount,
wall-mount, and under-counter applications such as internetworking, PC systems, telecommunications, audio visual, security, sound
reinforcement, and more. Ideal distribution of alternate and sinewave UPS and generator power or commercially derived AC power to
connected equipment.
Package Includes
PDUMH15 Metered rackmount PDU
Owner's manual with warranty information
Features
15A single phase 120V Metered Power Distribution Unit / PDU (Agency de-rated to 12A continuous)
Built-in 2 digit visual meter continuously reports PDU load level in amps
Attached NEMA 5-15P 15A 120V input plug with 15 ft. / 4.5m line cord
1U horizontal rackmount format installs in one rack space
13 NEMA 5-15R outlets (1 front facing / 12 rear)
Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats
Optional PDUSIDEBRKT enables 0U vertical rackmount in compatible racks
Back panel grounding lug
TAA Compliant Version Available - Order Tripp Lite PDUMH15TAA
Specifications
OVERVIEW
PDU Type Metered
OUTPUT
Output Capacity Details 1.4kW (120V input), 1.5kW (127V input), 1.2kW (100V input); 15A maximum (Agency de-rated to 12A
continuous)
Frequency compatibility 50 / 60 Hz
Output nominal voltage 100-127V nominal, single phase
Overload protection 15
Outlet quantity / type 13 NEMA 5-15R
Outlet Type NEMA 5-15R
INPUT
PDU Input Voltage 100; 120; 127
Maximum Input Amps (A) 15
Maximum Input Amps (A)
Details
Agency de-rated to 12A continuous
PDU Plug Type NEMA 5-15P
Input cord length (ft.) 15
Input cord length (m) 4.57
Phase Single-Phase
LEDS ALARMS & SWITCHES
Front panel LEDs Digital LED current monitor display
PHYSICAL
Shipping Dimensions
(HWD/in)
2.25 x 20.5 x 10
Shipping Dimensions
(HWD/cm)
5.72 x 52.07 x 25.4
Shipping weight (lbs) 5.2
Shipping weight (kg) 2.36
Unit Dimensions (HWD/in) 1.75 (1U) x 17.5 x 4.5
Unit Dimensions (HWD/cm) 4.45 x 44.45 x 11.43
Unit weight (lbs) 4.5
Unit weight (kg) 2.04
Material of construction Sheet Metal
Style Rackmount, Vertical Rackmount, Wallmount/Under-Counter
Form factors supported 1U rackmount, 0U vertical rackmount, wall-mount, and under-counter installation
PDU Form Factor Horizontal (1U, 2U, etc)
Outlets center to center
measurement
Rear Side = 30.20mm
SPECIAL FEATURES
Appearance All black color scheme
TVSS grounding Rear grounding lug
CERTIFICATIONS
TAA Compliant Option TAA Compliant Version Available - Order Tripp Lite PDUMH15TAA
Certifications Tested to UL60950-1 (USA) and CAN/CSA C22.2 No. 60950-1-03 (Canada), RoHS Compliant
WARRANTY
Product Warranty Period
(Worldwide)
2-year limited warranty
Related Items
Optional Products
Related Model Description Qty.
PDUSIDEBRKT Enables Vertical Installation of Select 1U PDUs, Power Strips and Surge Suppressors in
SmartRack Configurations
1
P006-006-13LA 6-ft. 18AWG Power cord (NEMA 5-15P to IEC-320-C13 Left Angle) 1
P006-006-13RA 6-ft. 18AWG Power cord (NEMA 5-15P to IEC-320-C13 Right Angle) 1
P022-001 1-ft. 18AWG Power Extension cord
(NEMA 5-15R to NEMA 5-15P)
1
P023-001 1-ft. 14AWG Power Adapter cord
(NEMA L5-15R to NEMA 5-15P)
1
P007-002 2-ft. Heavy-Duty 14AWG Power cord
(IEC-320-C13 to NEMA 5-15P)
1
P030-002-5 5-Pack of 2-ft. 18AWG Power Cords NEMA 5-15P to IEC-320-C13) 1
P006-003 3-ft. 18AWG Power cord (NEMA 5-15P to IEC-320-C13) 1
P006-004 4-ft. 18AWG Power cord (NEMA 5-15P to IEC-320-C13) 1
P006-004-BL 4-ft. 18AWG Power Cord (NEMA 5-15P to IEC-320-C13) with Blue Connectors 1
P006-004-GN 4-ft. 18AWG Power Cord (NEMA 5-15P to IEC-320-C13) with Green Connectors 1
P006-004-RD 4-ft. 18AWG Power Cord (NEMA 5-15P to IEC-320-C13) with Red Connectors 1
P006-004-YW 4-ft. 18AWG Power Cord (NEMA 5-15P to IEC-320-C13) with Yellow Connectors 1
P006-006 6-ft. 18AWG Power cord (NEMA 5-15P to IEC-320-C13) 1
P006-006-2 6-ft. AC Power Splitter Cable (NEMA 5-15P to 2 x IEC-320-C13) 1
P006-006-515MF 6 ft. Piggyback Power Cord (NEMA 5-15P/R to IEC-320-C13 ) 1
P007-006 6-ft. Heavy-Duty 14AWG Power cord (IEC-320-C13 to NEMA 5-15P) 1
P007-010 10-ft. Heavy-Duty 14AWG Power cord (IEC-320-C13 to NEMA 5-15P) 1
P034-010 10-ft. 14AWG Heavy Duty Power cord ( IEC-320-C19 to NEMA 5-15P) 1
P006-010 10-ft. 18AWG Power cord ( NEMA 5-15P to IEC-320-C13) 1
P010-012 12-ft. 18AWG Power cord
(NEMA 5-15P to IEC-320-C13)
1
More information, including related products, owner's manuals, and additional technical specifications, can be found online at
http://www.tripplite.com/sku/PDUMH15.
Copyright © 2014 Tripp Lite. All rights reserved. All trademarks are the sole property of their respective owners. Tripp Lite has a policy of continuous
improvement. Specifications are subject to change without notice. Photos may differ slightly from final products.
