1. Important Safety Instructions 2

2. Installation 3

2.1 Mounting the PDU 3

2.2 Connecting the PDU 3

2.3 Networking the PDU 5

2.3.1 Dynamic IP Address Assignment 5

2.3.2 Static IP Address Assignment 5

2.3.3 Testing Network Connection 7

3. Features 8

4. Conﬁguration and Operation 10

4.1 AutomaticTransfer Switch 10

4.1.1 Preferred Conﬁguration 10

4.1.2 AutomaticTransfer Switch Source Selection 10

4.1.3 Quick Test 11

4.2 Remote Monitoring and Control 11

5.Technical Support 12

6. Warranty and Warranty Registration 12

Owner’s Manual

Warranty

Registration

to win a FREE Tripp Lite product!

www.tripplite.com/warranty

PDUMH15AT,PDUMH15ATNET

PDUMH20AT,PDUMH20ATNET

Switched/Metered Rack PDU with

Automatic Transfer Switch

1111 W. 35th Street • Chicago, IL 60609 USA

(773) 869-1234 • www.tripplite.com

Español 13

Français 25

200905008 93-2857.indb 1 5/5/2009 9:36:39 AM

SAVE THESE INSTRUCTIONS

This manual contains instructions and warnings that should be

followed during the installation, operation, and storage of this product.

Failure to heed these instructions and warnings will void the product

warranty.

The PDU provides convenient multiple outlets, but it DOES NOT provide surge or line noise •

protection for connected equipment.

The PDU is designed for indoor use only in a controlled environment away from excess moisture, •

temperature extremes, conductive contaminants, dust or direct sunlight.

Do not connect the PDU to an ungrounded outlet or to extension cords or adapters that eliminate the •

connection to ground.

The power requirement for each piece of equipment connected to the PDU must not exceed the •

individual outlet’s load rating.

The total power requirement for equipment connected to the PDU must not exceed the maximum load •

rating for the PDU.

Do not drill into or attempt to open any part of the PDU housing. There are no user-serviceable parts •

inside.

Do not attempt to modify the PDU, including the input plugs and power cables.•

Do not attempt to use the PDU if any part of it becomes damaged.•

Do not attempt to mount the PDU to an insecure or unstable surface.•

Never attempt to install electrical equipment during a thunderstorm.•

Use of this equipment in life support applications where failure of this equipment can reasonably be •

expected to cause the failure of the life support equipment or to significantly affect its safety or

effectiveness is not recommended. Do not use this equipment in the presence of a flammable

anesthetic mixture with air, oxygen or nitrous oxide.

1. Important Safety Instructions

200905008 93-2857.indb 2 5/5/2009 9:36:39 AM

The PDU supports 1U Rack configurations.

Note: The user must determine the fitness of hardware and

procedures before mounting. The PDU and included hardware are

designed for common rack and rack enclosure types and may not

be appropriate for all applications. Exact mounting configurations

may vary.

1-1 1U Rack Mounting: Attach the PDU to the

rack by inserting four user-supplied screws A

through the PDU mounting brackets B and into

the mounting holes of the rack rail as shown.

1-1 A

PDUMH20AT

PDUMH20ATNET

PDUMH15AT

PDUMH15ATNET

The PDU includes two AC power inputs: Primary

and Secondary. The Primary input cord is

permanently attached to the rear of the PDU.

The Secondary input cord is detachable and

connects to the IEC power inlet 2 at the rear of

the PDU (PDUMH15AT,PDUMH15ATNET -

IEC-320-C14 inlet; PDUMH20AT,

PDUMH20ATNET - IEC-320-C20 inlet).

2-1 To connect the Secondary input cord:

Form a loop in the Secondary cord 1. A and

secure the juncture of that loop to the Primary

cord B with a zip tie. Be sure the zip tie is

secured around the Secondary and Primary

cords, as well as through the loop created in

the Secondary cord C. (See diagram). Note:

Give the cord as much slack as possible

between the loop and the cord’s outlet.

Once you’ve secured the two cords together 2.

and ensured that the Secondary cord has a

comfortable amount of slack, insert the

Secondary cord outlet into the IEC power inlet.

2-2 Connect Input Plug Adapters (Optional -

Models PDUMH20AT, PDUMH20ATNET

Only): The PDU includes two adapters that

convert one or both of the L5-20P input plugs to

5-20P input plugs. Connecting the adapters is

optional. The PDU will function normally without

connecting the adapters.

2-3 Connect Secondary Input Cord to PDU:

Although the PDU will operate without

connecting the Secondary input cord, the

Secondary input is required for the PDU's

Automatic Transfer Switch function.

2-1

2. Installation

2.1 Mounting the PDU

2.2 Connecting the PDU

2-2

2-3

PDUMH20AT,

PDUMH20ATNET

PDUMH20AT,

PDUMH20ATNET

PDUMH15AT,

PDUMH15ATNET

200905008 93-2857.indb 3 5/5/2009 9:36:40 AM

2.3 Networking the PDU

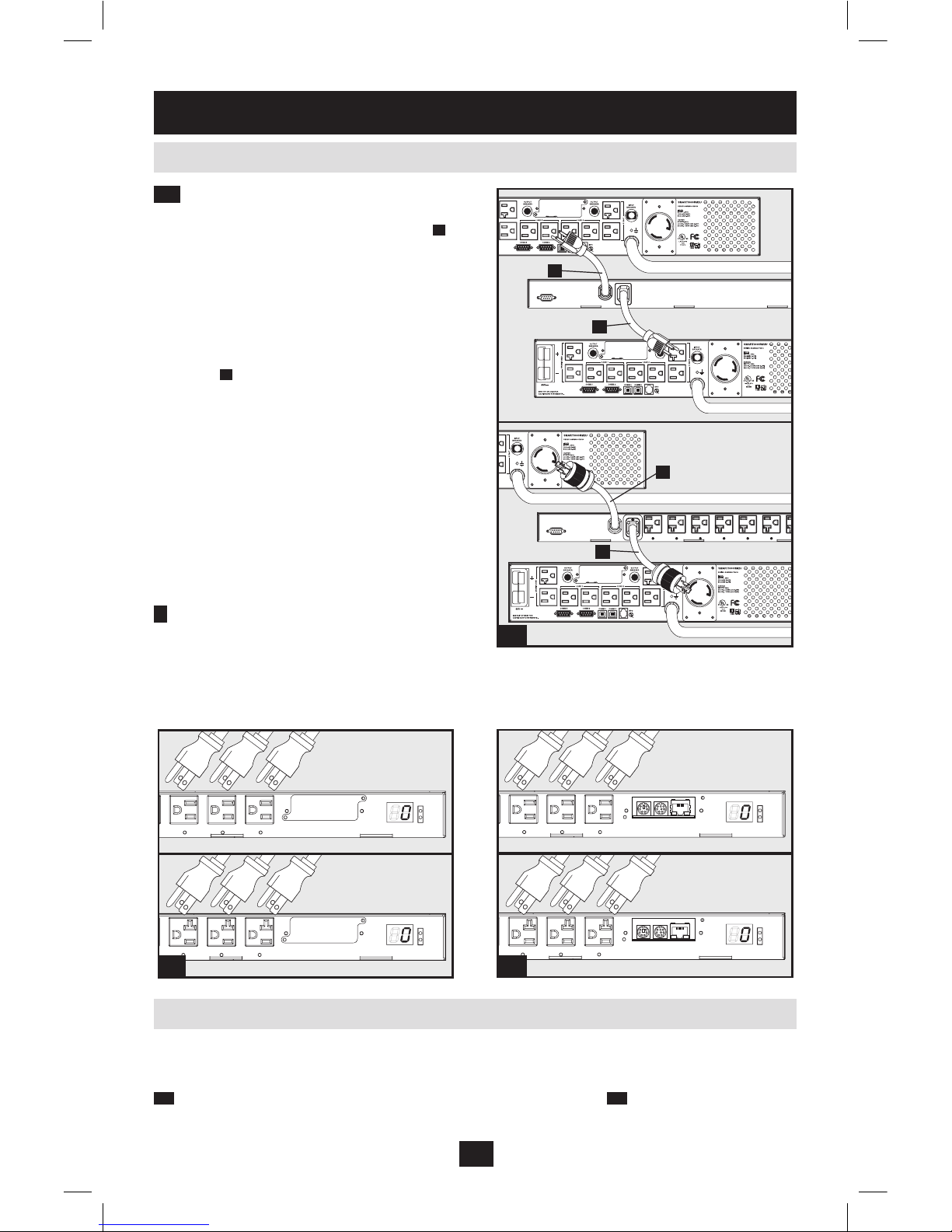

2-4 Connect PDU Input Plugs: (See the

Configuration and Operation section for more

information.) Connect the Primary input plug A

to a preferred source of grounded 120V AC

power, such as a SmartOnline™ UPS System. The

UPS system must not share a circuit with a heavy

electrical load (such as an air conditioner or

refrigerator). Under normal operating conditions,

the PDU will distribute AC power from the

Primary input source. Connect the Secondary

input plug B to an alternative source of grounded

120V AC power, such as a redundant

SmartOnline UPS System. The UPS system must

not share a circuit with a heavy electrical load

(such as an air conditioner or refrigerator). Do not

plug the Secondary input into the same power

source as the Primary input. The PDU will

distribute AC power from the Secondary input

only if the Primary input becomes unavailable.

Note: Immediately after the PDU is connected to live AC

power, you may notice a series of soft clicking sounds emitted by

electrical relays within the PDU. The relays may also click

occasionally during the operation of the PDU. This is normal.

3 Connect Equipment to PDU: Do not exceed

the load rating of the PDU. The total electrical

current used by the PDU will be displayed on the

digital meter in amperes. Each outlet includes a

green LED that illuminates when the outlet is

receiving AC power.

PDUMH20AT,

PDUMH20ATNET

PDUMH15AT,

PDUMH15ATNET

PDUMH20ATNET

PDUMH15ATNET

2-4

PDUMH20AT

PDUMH15AT

2. Installation (continued)

2.2 Connecting the PDU (continued)

(Only Applicable to Models with SNMP Network Card Installed)

Note: The MAC address of the PDU (a 12-digit string in this format: 000667xxxxxx) is printed on a label attached to the PDU enclosure.

The MAC address is also printed on a label attached to the internal network card.

If your network's DHCP server will assign a dynamic IP address to the PDU automatically, go to Step

4-1 . If you will assign a static IP address to the PDU manually, go to Step 5-1 . If you are uncertain which

method to use, contact your network administrator for assistance before continuing the installation

process.

200905008 93-2857.indb 4 5/5/2009 9:36:42 AM

4-1

2.3.1 Dynamic IP Address Assignment

2.3.2 Static IP Address Assignment

2. Installation (continued)

4-1 Connect PDU to Network: While the

PDU is powered, connect a standard Ethernet

patch cable to the RJ-45 Ethernet port A on the

PDU. Note: This port is not compatible with PoE

(Power over Ethernet) applications. The PDU

will attempt to obtain an IP address via DHCP.

This may take as long as several minutes,

depending on your network environment.

4-2 Discover IP Address: Contact your network administrator to determine which dynamic IP address

has been assigned to the PDU by the DHCP server. The PDU can be identified on the DHCP server by

referring to its MAC address. (The MAC address is a 12-digit string in this format: 000667xxxxxx. Refer

to the MAC address label attached to the PDU.) You may wish to request a long-term lease period for the

IP address, depending on your application. After you have discovered the IP address, skip Steps 5-1

through 5-6 and proceed directly to Step 6-1 .

5-1 Determine IP Information: Before

assigning a static IP address, you'll need to know

the IP address, gateway address and subnet mask.

If you do not have this information, contact your

network administrator for assistance.

5-2 Configure Terminal Emulation Program:

Open a VT100-compatible terminal emulation

program (such as the HyperTerminal program

bundled with Microsoft® Windows®) on a

computer with an available DB9 serial port. (A

notebook computer may be the most convenient

choice.) Set the terminal emulation program to

use the COM port A that corresponds to the

computer’s DB9 serial port. Specify the

parameters B required to communicate with the

PDU terminal interface:

Bits per second: 9600

Data bits: 8

Parity: None

Stop bits: 1

Flow control: None

If the terminal emulation program supports

multiple emulation modes, you may also need to

specify VT100 emulation C.

200905008 93-2857.indb 5 5/5/2009 9:36:42 AM

5-3 Connect PDU to Computer: Use the mini-

DIN to DB9 serial cable (part number 73-1025)

included with the PDU to connect the PDU to

the computer. The circular connector A at one

end of the cable attaches to the 8-pin mini-DIN

serial port B on the PDU. (Align the connector

carefully to avoid damaging the pins.) The DB9

connector C at the other end of the cable

connects to the computer's serial port D.

5-4 Connect PDU to Network: While the PDU

is powered, connect a standard Ethernet patch

cable to the RJ-45 Ethernet port A on the PDU.

Note: This port is not compatible with PoE (Power over Ethernet)

applications.

5-5 Configure PDU in Terminal Mode: After

a brief pause, an initialization page should appear

in the terminal emulation program. Press any key

on the keyboard within 10 seconds to change the

PDU settings. (If the 10-second period has

elapsed, you can reboot the PDU by powering

down completely and then restoring power.)

Follow the sequence of responses below in order

to assign an IP address to the PDU. The default

terminal mode root password is TrippLite.

Sample IP settings are shown - supply your own

IP information when you configure your PDU.

You can also change the root password, real-time clock and other settings. (Tripp Lite recommends

against changing the default settings unless you are an advanced user with a specific purpose.) After you

have finished entering settings, the PDU will save changes to memory and reboot (this may take several

minutes). After the PDU reboots, the initialization page should display the new static IP settings.

5-6 Remove Serial Cable: Remove the serial cable from the PDU and proceed to Step 6-1 .

Press A to Accept the settings, or M to Modify? M

Enter the root password: *********

Reset configuration to default values (Y/N)? N

For each of the following questions, you can press <Return> to select the value shown in

braces, or you can enter a new value.

NETWORK INTERFACE PARAMETERS:

Should this target obtain IP settings from the network?[N] N

Static IP address [192.168.1.19]? 192.168.0.123

Static IP address is 192.168.0.123

Subnet Mask IP address [255.255.0.0]? 255.255.255.0

Subnet Mask IP address is 255.255.255.0

Gateway address IP address [192.168.1.1]? 192.168.0.1

Gateway address IP address is 192.168.0.1

5-5

5-3

5-4

2.3 Networking the PDU (continued)

2.3.2 Static IP Address Assignment (continued)

2. Installation (continued)

200905008 93-2857.indb 6 5/5/2009 9:36:43 AM

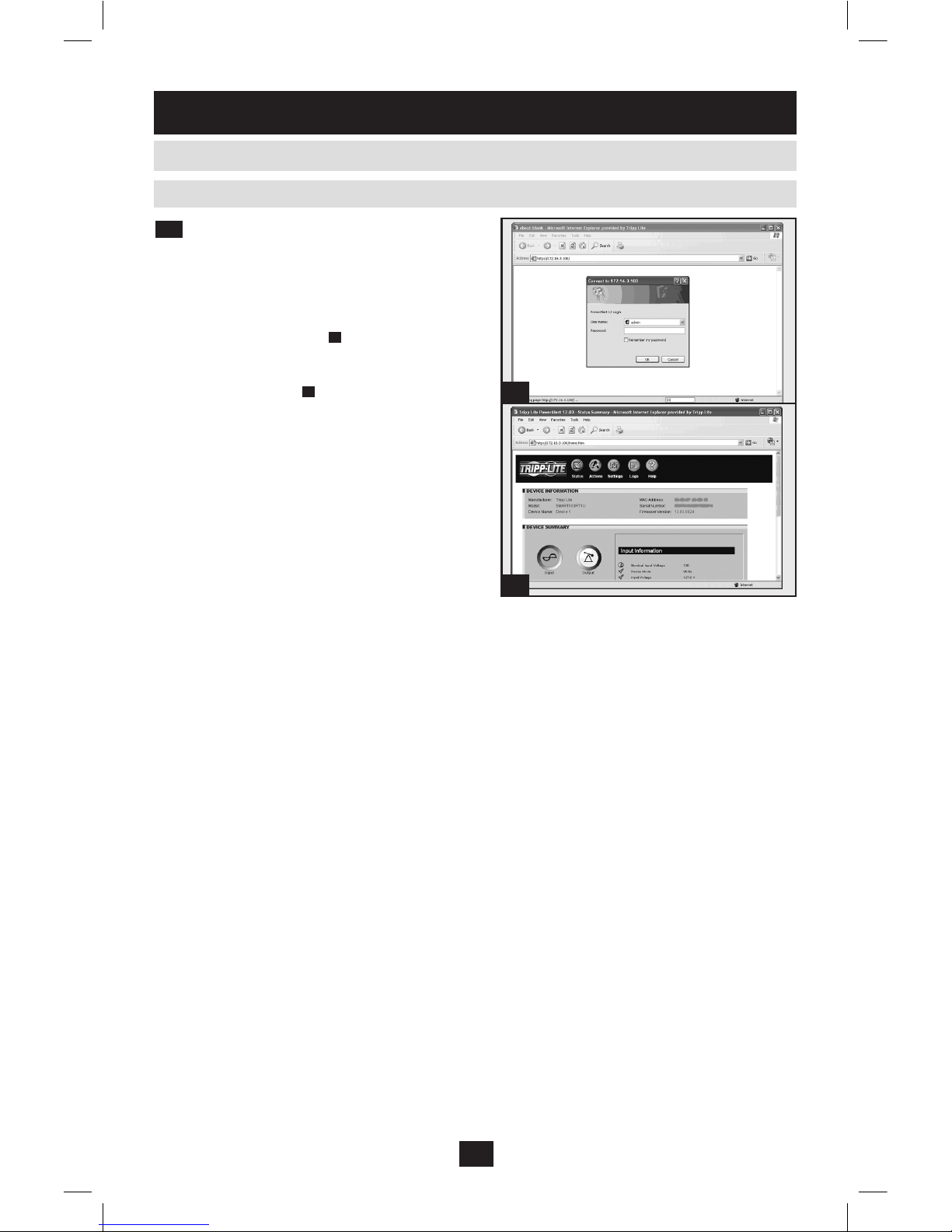

6-1 Access PDU with Web Browser: After an

IP address has been assigned to the PDU, attempt

to access it with a Web browser that supports

frames, forms and Java™. Open a Web browser

on a computer connected to the LAN and enter

the IP address assigned to the PDU. You should

be prompted for a password A. The user name is

admin and the default password is admin. After

you enter the user name and password, the

PowerAlert Status page B will appear in the

browser window. For more information about

configuration and operation of the PDU via the

PowerAlert interface, refer to the

SNMPWEBCARD User's Guide, included on the

CD-ROM bundled with the PDU.

Note for Network Management System Users Only: Two MIB

files - Tripplite.mib and RFC1628.mib - must be loaded on each

Network Management Station that will monitor the PDU via

SNMP. The files are provided on the CD-ROM included in the

product package.

2.3 Networking the PDU (continued)

2.3.3 Testing Network Connection

2. Installation (continued)

200905008 93-2857.indb 7 5/5/2009 9:36:43 AM

Primary AC Input Power Cord (Model

PDUMH15AT/15ATNET):The cord is permanently attached to the

PDU and has a NEMA 5-15P plug.

Primary AC Input Power Cord (Model PDUMH20AT/20ATNET):

The cord is permanently attached to the PDU and has a NEMA L5-20P

plug.

Secondary AC Input Power Inlet (Model PDUMH15AT/15ATNET):

The IEC-320-C14 inlet connects to the detachable Secondary AC Input

Power Cord.

Secondary AC Input Power Inlet (Model PDUMH20AT/20ATNET):

The IEC-320-C20 inlet connects to the detachable Secondary AC Input

Power Cord.

Secondary AC Input Power Cord (Model PDUMH15AT/15ATNET):

The detachable cord has an IEC-320-C13 connector and a NEMA 5-15P

plug.

Secondary AC Input Power Cord (Model PDUMH20AT/20ATNET):

The detachable cord has an IEC-320-C19 connector and a NEMA

L5-20P plug.

Input Plug Adapters (Model PDUMH20AT/20ATNET): The adapters

convert NEMA L5-20P input plugs to NEMA 5-20P input plugs.

NEMA 5-15R Outlets (Model PDUMH15AT/15ATNET): During

normal operation, the outlets distribute AC power to connected

equipment. When an outlet is live, the associated LED illuminates.

3. Features

200905008 93-2857.indb 8 5/5/2009 9:36:44 AM

Network Operating Conditions

ALink LED Color BStatus LED Color

Off No Network Connection Off Card Not Initialized

Flashing Amber 100 Mbps Network Connection Steady Green Card Initialized and Operational

Flashing Green 10 Mbps Network Connection Flashing Amber Error - Card Not Initialized

NEMA 5-15/20R Outlets (Model PDUMH20AT/20ATNET): During

normal operation, the outlets distribute AC power to connected

equipment. When an outlet is live, the associated LED illuminates.

Digital Load Meter (Ammeter): The total electrical current used by the

PDU is displayed on the digital meter in amperes.

Input Source Indicator: When the PDU is connected to a live AC

power source, the Primary or Secondary input LED illuminates to

indicate which source is supplying power to the PDU outlets.

Accessory Slot: An optional SNMP card may be installed in the slot,

allowing the PDU to be configured, controlled and monitored remotely.

Contact Tripp Lite Customer Support at (773) 869-1234 for more

information.

Factory Port: The port is reserved for configuration by factory

authorized personnel only. Do not connect anything to the port.

For Models with SNMP Network Card Installed:

PS/2 Port: Use this port to connect a Tripp Lite ENVIROSENSE

environmental sensor to provide remote temperature/humidity

monitoring and a dry contact interface to control and monitor alarm,

security and telecom devices. Contact Tripp Lite Customer Support at

(773) 869-1234 for ordering information. Note: Do not connect a

keyboard or mouse to this port.

Mini-DIN Serial Port: Use this port to provide a direct terminal

connection to a computer with a terminal emulation program. A serial

cable (part number 73-1025) is included with the PDU. If you need to

order a replacement cable, contact Tripp Lite Customer Support at (773)

869-1234.

Ethernet Port: Use this RJ-45 jack to connect the PDU to the network

with a standard Ethernet patch cable. The Link LED A and Status LED

B indicate several operating conditions, as shown in the table below.

This port is not compatible with PoE (Power Over Ethernet)

applications.

3. Features (continued)

200905008 93-2857.indb 9 5/5/2009 9:36:45 AM

Warning: DO NOT connect the primary input

to a line-interactive UPS, due to transfer time

issues, or to any source that does not supply a

pure sine wave. Such sources may be used to

power the secondary input.

Facility Circuit Facility Circuit

PDUMH15ATNET

Critical Equipment

Loads

Secondary UPS Primary UPS

Primary Input Cord

Secondary Input Cord

Utility B Utility A

Upon power-up, the PDU looks for a source ≥85V. If it is unable to find a source ≥85V, it remains off.

Input voltage definitions:

99V ≤ Vin < 139V Good

75V ≤ Vin < 99V Fair

Vin < 75V Bad

In normal operation (after power-up), if the selected source is no longer Good, the PDU will attempt to

switch to the other source, but only if the other source is Good. If the selected source becomes Fair and

the other source is not Good, the PDU will keep the loads connected to the selected source until the

selected source becomes Bad, at which point the loads will be disconnected (note that the source

selection doesn't change). After the loads are disconnected, they remain disconnected until the selected

source becomes ≥85V, or until the other source becomes Good.

4. Configuration and Operation

4.1 Automatic Transfer Switch

4.1.1 Preferred Conﬁguration

4.1.2 Automatic Transfer Switch Source Selection

When the Primary and Secondary inputs are both connected to Tripp Lite UPS Systems, the PDU

operates as an Automatic Transfer Switch, providing redundant input power for high availability

applications. Under normal operating conditions, the PDU will distribute power from the Primary input

source, switching to the Secondary input source under certain conditions. The PDU will switch to the

Primary source whenever it is Good according to the PDU input voltage definitions (see below).

The Automatic Transfer Switch function provides

increased availability when the Primary and

Secondary inputs of the PDU are connected to

separate Tripp Lite UPS Systems that are

connected to separate utility power sources. For

maximum availability, Tripp Lite recommends

using matching SmartOnline UPS Systems with

pure sine wave output for the Primary and

Secondary input power sources. The automatic

transfer switch function will be compromised if the

primary and secondary inputs are connected to the

same utility power source.

200905008 93-2857.indb 10 5/5/2009 9:36:46 AM

Autres manuels pour PDUMH15AT

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Tripp Lite Unité de distribution d'énergie

Tripp Lite

Tripp Lite PDU40TDUAL Manuel utilisateur

Tripp Lite

Tripp Lite PDUMNV20/NET Manuel utilisateur

Tripp Lite

Tripp Lite Power Distribution Unit (PDU) PDU6K Manuel utilisateur

Tripp Lite

Tripp Lite PDUMV40 Manuel utilisateur

Tripp Lite

Tripp Lite PDUMH15-ISO Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline SUPDMB20KHW Manuel utilisateur

Tripp Lite

Tripp Lite PDU40TDUAL Manuel utilisateur

Tripp Lite

Tripp Lite PDUB15 Manuel utilisateur

Tripp Lite

Tripp Lite AGIB6098 Series Manuel utilisateur

Tripp Lite

Tripp Lite PDUMNV20HV2 Manuel utilisateur

Tripp Lite

Tripp Lite PDU3VN3L2120 Manuel utilisateur

Tripp Lite

Tripp Lite PDU3VN6L2120 Manuel utilisateur

Tripp Lite

Tripp Lite PDU3MV6L2120 Manuel utilisateur

Tripp Lite

Tripp Lite PDUMV30-ISO Manuel utilisateur

Tripp Lite

Tripp Lite PDU15NETLX Manuel utilisateur

Tripp Lite

Tripp Lite PDUMH32HV Manuel utilisateur

Tripp Lite

Tripp Lite PDU40TDUAL Manuel utilisateur

Tripp Lite

Tripp Lite PDUMH20 Manuel utilisateur

Tripp Lite

Tripp Lite Tripp Lite Rack PDUs Manuel de référence

Tripp Lite

Tripp Lite SmartOnline B020-016 6 Manuel utilisateur

Tripp Lite

Tripp Lite PDUH30HV19 Manuel utilisateur

Tripp Lite

Tripp Lite PDUMH15AT Manuel utilisateur

Tripp Lite

Tripp Lite PDUMV15 Manuel utilisateur

Tripp Lite

Tripp Lite PDU330AT6L15 Manuel utilisateur

Manuels Unité de distribution d'énergie populaires d'autres marques

hager

hager SP 015 Manuel utilisateur

Pakedge

Pakedge PowerPak 9 Manuel utilisateur

Pts

Pts 9042 Series Manuel utilisateur

Shure

Shure WA405 Manuel utilisateur

CORNING

CORNING CCH 4U Manuel utilisateur

Panamax

Panamax M4LT-EX Manuel utilisateur

PANCONNECT

PANCONNECT FLAT 3M Manuel utilisateur

Raytheon

Raytheon 138-118 Manuel utilisateur

D&R ELECTRONICS

D&R ELECTRONICS PDU-6SS Manuel utilisateur

Botex

Botex PSA 322-6 DL Manuel utilisateur

GE QuiXtra 4000 Guide de démarrage rapide

RDL

RDL EZ Series Manuel utilisateur

StarTech.com

StarTech.com RKPW161915 Manuel du système

Vertiv

Vertiv Knürr DI-Strip Rack PDU Manuel utilisateur

ABB

ABB PSBS0065 Manuel

Baumuller

Baumuller BFN 3-1-0007-001 Manuel

Eaton

Eaton StructuredWiringSolutions ESWT41600 Manuel

GE GEK-45404F Manuel utilisateur
