Model #: N426-05M

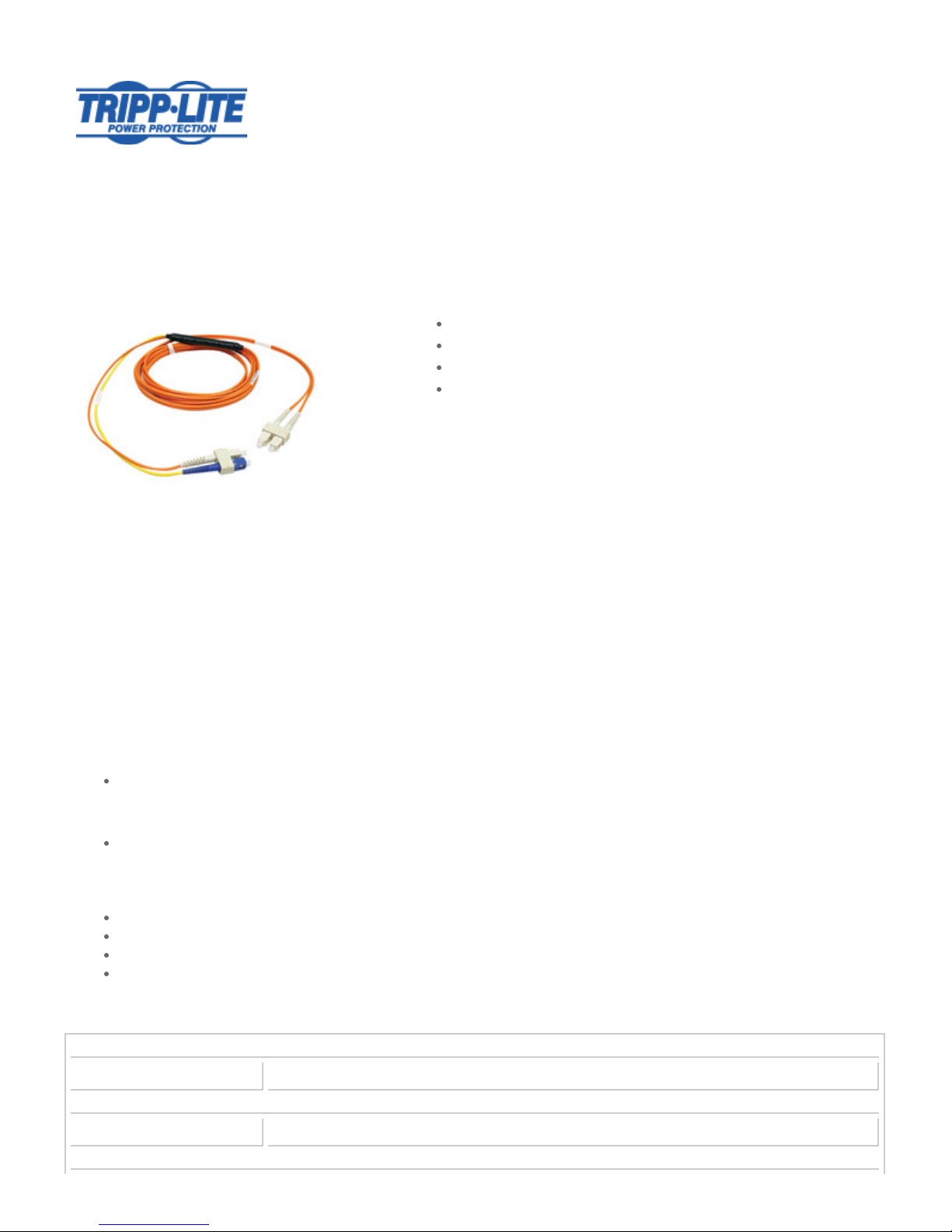

5M (16-ft.) Fiber Optic Mode Conditioning Patch Cable (SC/SC)

Highlights

5 Meter SC/SC Mode Conditioning Cable

62.5/125 and 8.3/125

Run 1000Base-LX Gigabit Ethernet over MMF by offsetting signal loss

IEEE 802.3z Gigabit Ethernet Compliant

Description

Tripp Lites Mode Conditioning Cables are designed for use in Gigabit Ethernet 1000BASE-LX applications. They are fully compliant with IEEE 802.3z

application standards. Mode Conditioning Cables are needed in applications where new high-speed Gigabit 1000BASE-LX routers and switches are

being deployed into existing multimode plants. The need for this patch cord is due to the single-mode launch nature of the -LX or long-wave (1300

nm) transceiver modules used for Gigabit Ethernet. Launching a single-mode laser into the center of a multimode fiber can cause multiple signals to

be generated that confuses the receiver at the other end of the fiber. These multiple signals, caused by Differential Mode Delay (DMD) effects,

severely limit the cable distance lengths for operating Gigabit Ethernet. A mode conditioning patch cord eliminates these multiple signals by allowing

the single-mode launch to be offset away from the center of a multimode fiber.

Applications

Use when connecting a LX type fiber transceiver ( Singlemode light ) to a Multimode backbone

Package Includes

5 Meter SC/SC Mode Conditioning Cable

Features

Use Singlemode Transceivers on Multimode Fiber Backbones

62.5/125 and 8.3/125

Offsets the Singlemode Laser launch from the center of a Multimode fiber

Available in a variety of connector combinations

Specifications

OVERVIEW

Intended Application Computer Networking (Fiber)

INPUT

Cable Length (m) 5

PHYSICAL

Color Orange & Yellow

Style Fiber Optic

CONNECTIONS

Connector A

Connector B

Number of Connectors 4

WARRANTY

Product Warranty Period

(Worldwide)

Lifetime limited warranty

Related Items

Optional Products

Product Type Related Model Description Qty.

Fiber Optic Cables &

Adapters

N422-01M 1M (3-ft.) Fiber Optic Mode Conditioning Patch Cable

(ST/LC)

Fiber Optic Cables &

Adapters

N422-02M 2M (6-ft.) Fiber Optic Mode Conditioning Patch Cable

(ST/LC)

Fiber Optic Cables &

Adapters

N422-03M 3M (10-ft.) Fiber Optic Mode Conditioning Patch Cable

(ST/LC)

Fiber Optic Cables &

Adapters

N422-10M 10M (33-ft.) Fiber Optic Mode Conditioning Patch Cable

(ST/LC)

Fiber Optic Cables &

Adapters

N424-01M 1M (3-ft.) Fiber Optic Mode Conditioning Patch Cable

(SC/LC)

Fiber Optic Cables &

Adapters

N424-04M 4M (13-ft.) Fiber Optic Mode Conditioning Patch Cable

(SC/LC)

Fiber Optic Cables &

Adapters

N426-02M 2M (6-ft.) Fiber Optic Mode Conditioning Patch Cable

(SC/SC)

Fiber Optic Cables &

Adapters

N426-03M 3M (10-ft.) Fiber Optic Mode Conditioning Patch Cable

(SC/SC)

More information, including related products, owner's manuals, and additional technical specifications, can be found online at

www.tripplite.com/en/products/model.cfm?txtModelID=3521.

improvement. Specifications are subject to change without notice. Photos may differ slightly from final products.
