Tripp Lite P504-100-EZ Manuel utilisateur

Tripp Lite

1111 West 35th Street

Chicago, IL 60609 USA

Telephone: +(773) 869 1234

E-mail: [email protected]

Model #: P504-100-EZ

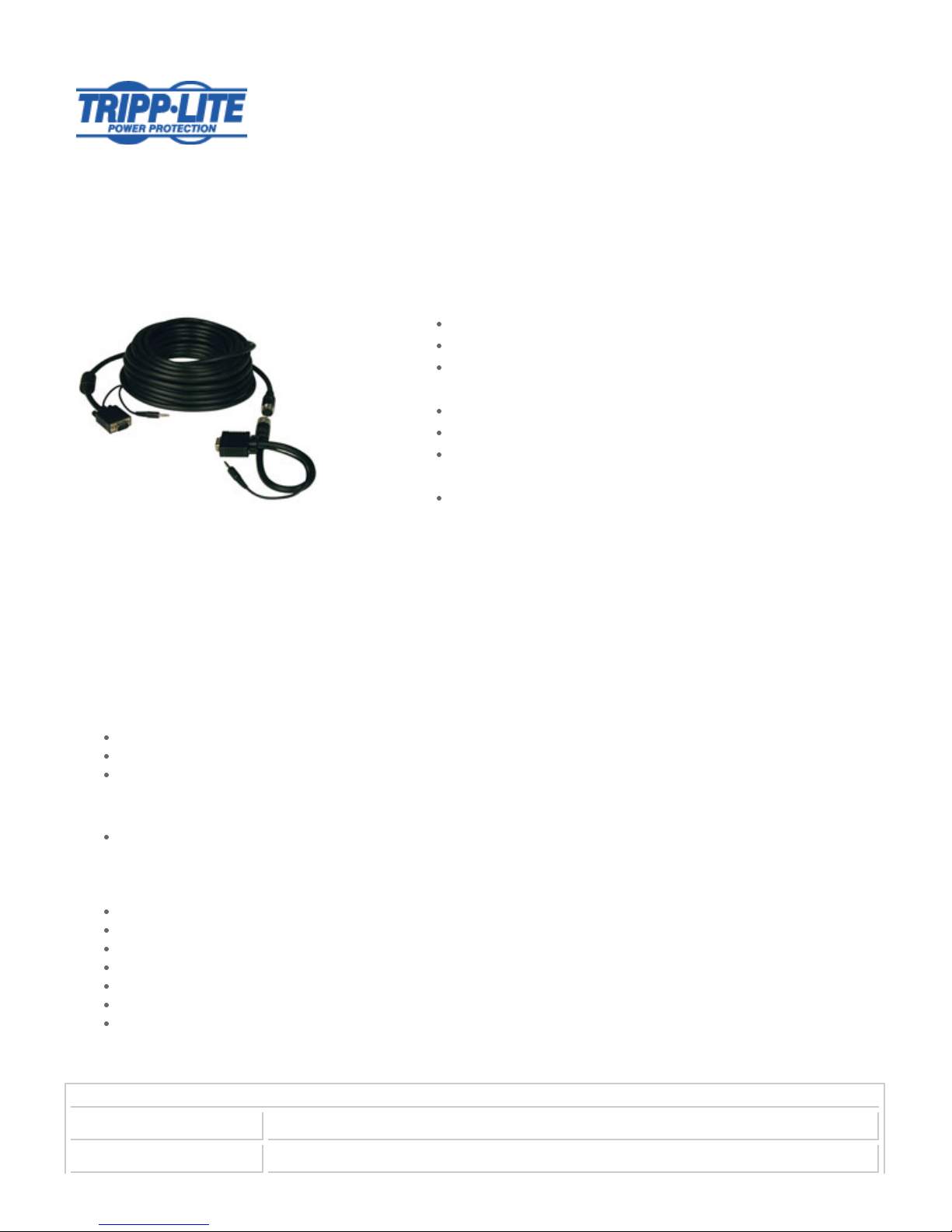

100-ft. Easy Pull All-in-One SVGA/VGA Monitor + Audio Cable with RGB Coax, (HD15 M/M, 3.5mm M/M)

Highlights

Two-piece design allows cable to feed through conduit or other tight areas

Threaded circular DIN connector provides secure reattachment

Superior-molded cables with foil and braid shielding for maximum EMI/RFI

protection

CMR PVC rated

Useful in AV presentations installations, projector applications, and classrooms

75ohm mini-coax (RGB) and paired video wire construction delivers superior

video signal quality

3.5mm Stereo Plugs

Description

Tripp Lite's 100 ft. SVGA/VGA Easy Pull Monitor Cable with Connectors and built-in 3.5mm Audio makes running long length video cables a snap.

The pull-apart design allows the cable to be run through conduit or other tight areas that a HD15 connector wouldn't fit through. Diameter of the

circular DIN end is only 7/8". Circular Easy Pull connector is threaded to ensure maximum security once the cable is re-attached. The mini-coax

(RGB) and paired video wire construction delivers superior signal quality. Double shielding (foil and braid) provides maximum EMI/RFI protection.

Both high density DB15 males and 3.5mm stereo connectors are molded and have integral strain relief to ensure they last a long time.

Applications

Suspended ceilings, walls, conduit or anywhere too small to fit a standard HD15 cable during installation

PC or Laptop to Projector

AV presentations installations, projector applications, and classrooms

Package Includes

100 ft. Male/Male Easy Pull SVGA/VGA Monitor Cable w/ Connectors and 3.5mm Audio

Features

Single run for HD15 Video and Stereo

Two-piece design runs through conduit or other tight areas

Threaded circular DIN connector provides secure reattachment

Superior-molded cables with foil and braid shielding for maximum EMI/RFI protection

RGB 75-ohm coax construction for maximum video resolution

HD15 male to HD15 male and 3.5mm Stereo M/M molded connectors

Supports resolutions up to 1600 x 1200

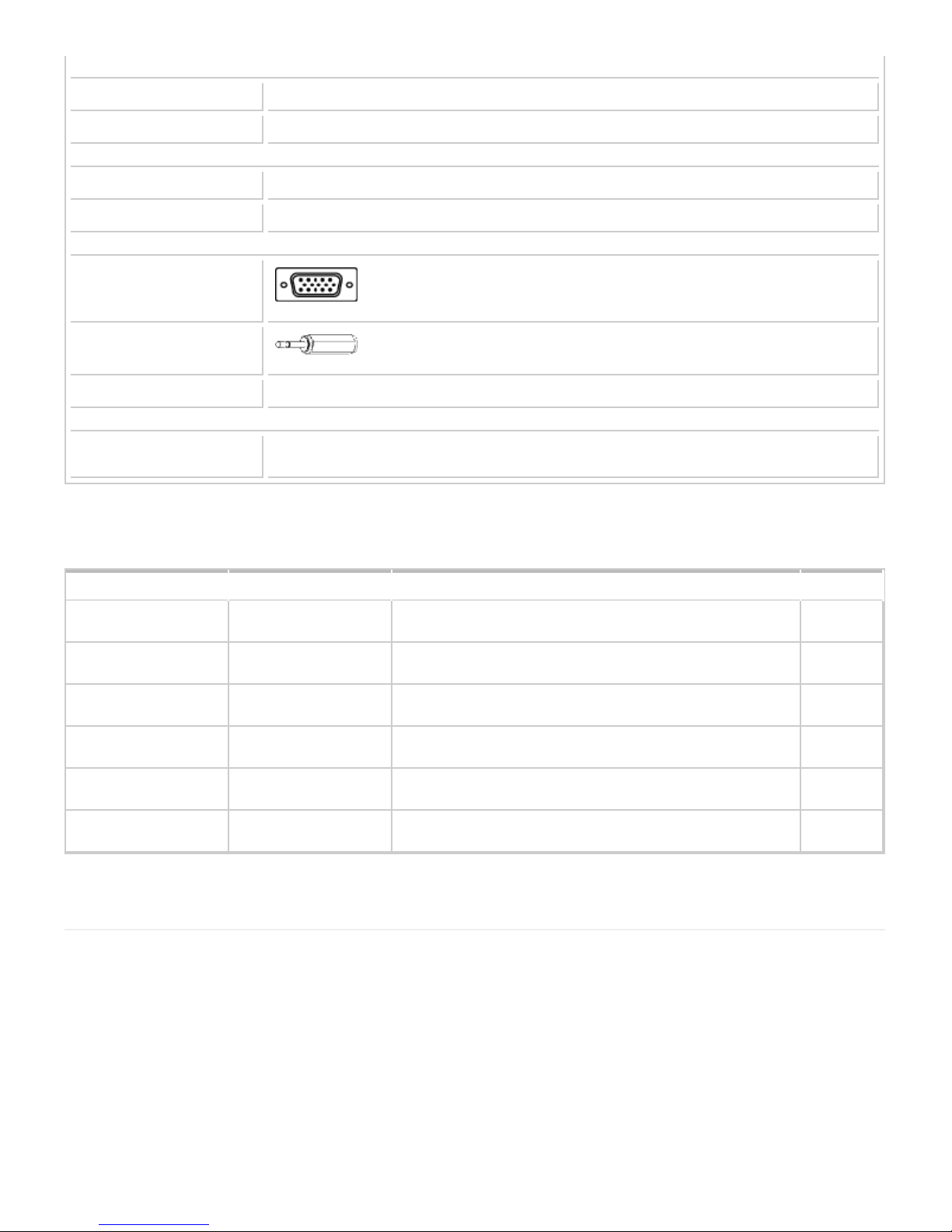

Specifications

OVERVIEW

Intended Application Connecting Peripherals

Display Style Easy Pull

INPUT

Cable Length (ft.) 100

Cable Length (m) 30.48

PHYSICAL

Color Black

Style Video Cables

CONNECTIONS

Connector A

HD15 (MALE)

Connector B

3.5MM (MALE)

Number of Connectors 4

WARRANTY

Product Warranty Period

(Worldwide)

Lifetime limited warranty

Related Items

Optional Products

Product Type Related Model Description Qty.

Cable Adapters P160-000 Compact Gold HD15 Gender Changer

(HD15F/F)

Switches P120-000 DVI Male to VGA Female Adapter

(Analog DVI-M to HD15F)

Video Cables & Adapters P158-000 Compact Gold HD15 Gender Changer

(HD15M/M)

Video Cables & Adapters P501-050 50-ft. SVGA/VGA Easy-Pull Gold Monitor Extension Cable with RGB

Coax, (HD15 M/F)

Video Cables & Adapters P503-050 50-ft. Easy Pull All-in-One SVGA/VGA Monitor Cable with Connectors,

(HD15 M/M)

Video Cables & Adapters P504-050 50-ft. SVGA/VGA Monitor + Audio Cable with Coax

(HD15 M/M, 3.5mm M/M)

More information, including related products, owner's manuals, and additional technical specifications, can be found online at

www.tripplite.com/en/products/model.cfm?txtModelID=3778.

improvement. Specifications are subject to change without notice. Photos may differ slightly from final products.
