TRENDnet TK-408K Manuel de la liste des pièces

TK-408K

Quick Installation Guide

Español .....................................................................................................

Specifications ............................................................................................

Troubleshooting ........................................................................................

1. Antes de iniciar ..................................................................................

2. Cómo conectar ..................................................................................

3. Cómo utilizar el conmutador KVM .....................................................

Table of Contents

Version 05.04.06

Aplicación

Monitor compatible con VGA o SVGA

Teclado PS/2 tipo Mini-Din de 6 pins

Ratón PS/2 tipo Mini-Din de 6 pins

Altavoces

Micrófono

(opcional)

Requisitos del sistema

Español

1. Antes de iniciar

TK-408

4 cables KVM combinados 3-en-1

4 Cables de Audio/Mic

Guía de instalación rápida

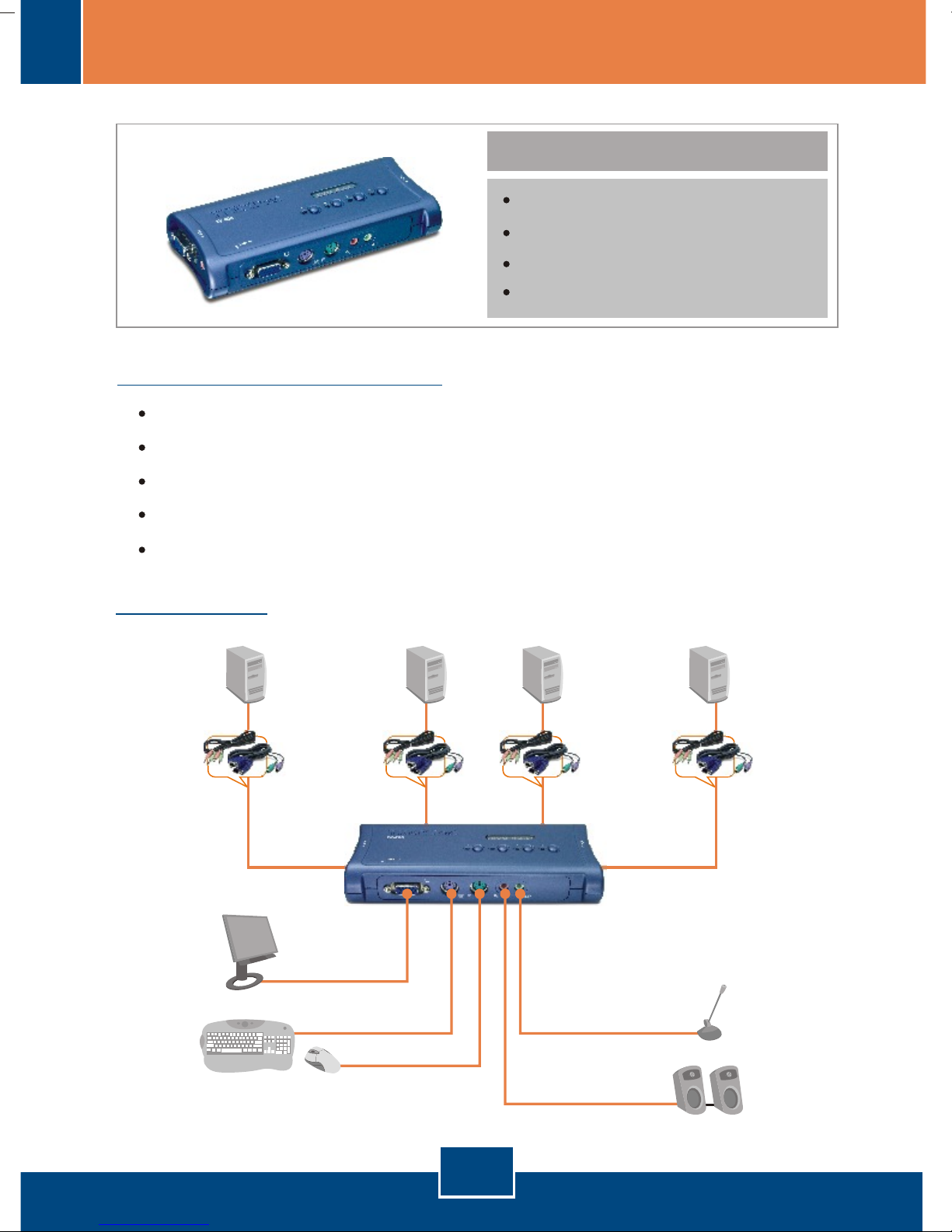

Contenidos del paquete

Microphone

LCD Monitor

4-Port PS/2 Audio

KVM Switch Kit

(TK-408K)

Keyboard Mouse

Speakers

Cables

PC 3 PC 4PC 1 PC 2

Cables Cables Cables

Español

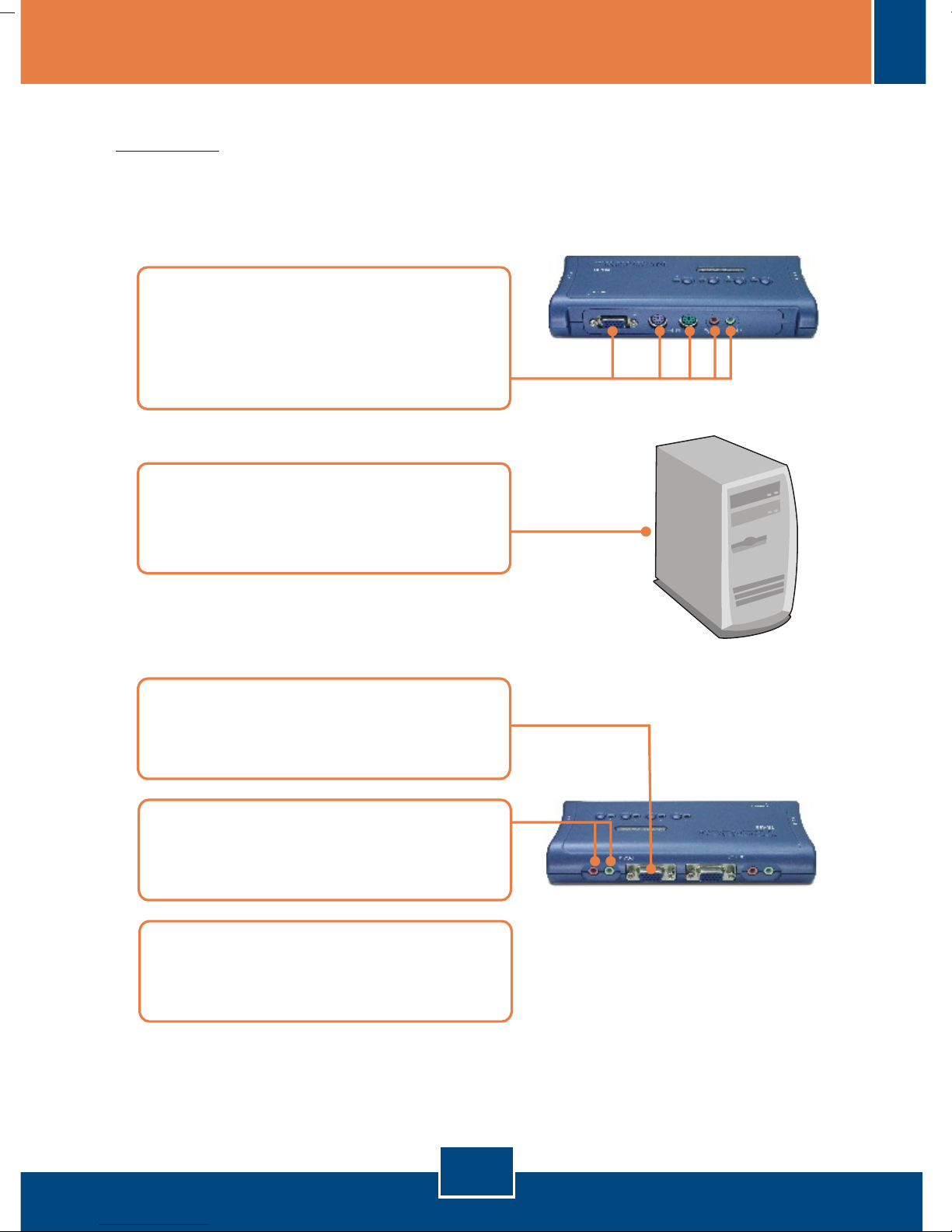

2. Cómo conectar

Importante: DESCONECTE todos los PCs antes de conectarlos al conmutador

KVM. Tenga en cuenta que los cables incluidos y las conexiones del

conmutador KVM están codificados por colores para su comodidad.

La instalación ha sido completada

3. Conecte la otra punta del Cable

KVM combinado 3-en-1 al canal

de PC disponible.

5. ENCIENDA los PCs conectados y

espere hasta que le aparezca el

escritorio.

2. Conecte la punta respectiva del

Cable KVM combinado 3-en-1 y

del Cable de Audio/Mic a su PC.

1. Conecte el Monitor, Teclado,

Ratón, Micrófono y Altavoces

compartidos al puerto consola de

su conmutador KVM.

4. Conecte la otra punta del Cable de

Audio/Mic al mismo canal de PC

disponible.

Para alternar entre PCs, puede usar los Push Buttons (Botones de arranque)

en el Conmutador KVM o los comandos Hot-key (Ejecución inmediata) del

teclado.

Comandos Hotkey

Un comando hotkey del teclado consiste en pulsar tres teclas:

Comando Hotkey = ScrLk + ScrLk + Tecla(s) de comando

Después de pulsar la tecla ScrLk, dispone de 2 segundos para pulsar la tecla

ScrLk otra vez. Ahora dispone de 2 segundos para presionar una tecla de

comando. Si usted no pulsa una tecla en el plazo de 2 segundos, el

conmutador saldrá del modo hotkey.

Nota

1. El comando Hotkey sólo funciona con las teclas numéricas de la parte

superior del teclado.

2. Cuando establezca la vinculación de la conmutación entre el puerto PC y el

puerto Audio se activa la secuencia hotkey, cualquier conmutación entre PC

y Audio/Mic se establece de forma conjunta.

3. Para sistemas operativos no-PnP (Linux, Windows NT 4.0), utilice por favor

los siguientes comandos para reiniciar la configuración del ratón.

Español

3. Cómo usar el conmutador KVM

ScrLk +ScrLk +M+1

ScrLk +ScrLk +M+2

ScrLk +ScrLk +M+3

2-key mouse setting:

3-key wheel mouse setting:

5-key wheel mouse setting:

Convención Hotkey:

La pulsación de la tecla hotkey indica que debe pulsar la tecla individual

consecutivamente una después de otra, no simultáneamente.

Comando Hotkeys Descripción

Hoja de referencia rápida para el TK-208K

Seleccione PC

Seleccione el canal

Audio/Mic

Próximo canal PC

superior

Vincule la

conmutación del PC

y del Audio/Mic

Ratón de consola/

Reiniciación de

Teclado

Desvincule la

conmutación del PC

y del Audio/Mic

Auto-exploración

Próximo canal PC

inferior

Detener Auto-

exploración

ScrLk ScrLk X

+ +

x = 1 ~ 2 para el número de canal de la PC

ScrLk ScrLk

+ +

(flecha arriba)

ScrLk ScrLk

+ +

(flecha abajo)

ScrLk ScrLk

+ + W

ScrLk ScrLk

+ + End

ScrLk ScrLk

+ + S

Press any key on keyboard

Seleccione el canal PC activo.

Seleccione el canal Audio/Mic activo

Seleccione el siguiente PC inferior disponible

Active la vinculación de la conmutación del puerto PC y

del puerto Audio/Mic.

Reiniciar ratón/teclado en el lado de la consola.

(funciona únicamente con sistemas operativos no-PnP)

Active la vinculación de la

conmutación del puerto PC y

del puerto Audio/Mic.

Auto-exploración a través de cada canal conectado para

una rápida lectura en pantalla de cada canal (duración

de la exploración =10 segundos) .

Seleccione el siguiente PC superior disponible

Pulse el botón panel de mando Finalizar actividad de

Auto-exploración.

(Fx es una tecla de función) Fx= F1~F4

ScrLk ScrLk

+ +

ScrLk ScrLk

+ +

Español

Computer Connections: 4

KVM Cable Connectors

(all male):

Console Port Connectors

(all female):

Keyboard: PS/2 Keyboard 6-pin Mini Din

Mouse: PS/2 Keyboard 6-pin Mini Din

Monitor: VGA HDB 15-pin

Speaker: 3.5mm audio in/out jack

Microphone: 3.5mm microphone in/out jack

Specifications

To PC:

To KVM: 1 x VGA/SVGA HDB 15-pin

KVM

To PC:

Audio

To KVM:

Port Selection: Push Button and Hot-Key Commands

Auto-Scan Intervals: 5 seconds

Keyboard State: Saved and Restored

Power Type: PS/2 Interface Power

Dimensions: 167 x 80 x 28mm (6.6 x 3.2 x 1.1in.)

Weight: 178g (6.3oz.)

0º ~ 40ºC (32º ~104º F)Operating Temperature:

-20º ~ 60ºC (-4º ~ 140º F)Storage Temperature:

0%~90%, Non-Condensing

Humidity:

FCC and CECertifications:

KVM Cable: 4 sets of 1.8 M (6ft) KVM Cables

• 1 x PS/2 Keyboard 6-pin Mini Din

• 1 x PS/2 Mouse 6-pin Mini Din

• 1 X VGA HDB 15-pin

• 1 x 3.5mm audio in/out jack

• 1 x 3.5mm microphone in/out jack

• 1 x 3.5mm audio in/out jack

• 1 x 3.5mm microphone in/out jack

Q1:

A1:

Q2:

A2:

Q3:

A3:

Q4:

A4:

Q5:

A5:

Where is the power supply? I did not find one in the box.

I have the KVM switch connected properly, but my keyboard and mouse don't

work.

Please make sure your PS/2 port is working properly by testing it with your

other PS/2 devices. Once you confirm that the PS/2 port is functional, please

reboot your computers, and try to use the KVM switch again.

Can I connect and disconnect the PS/2 cables while the computers are turned

on?

Will the KVM switch remember the keyboard settings between computers?

Yes, the KVM switch will remember the keyboard settings when switching

between your computers. (i.e.: Cap lock, Num key, etc.)

How do I switch from one computer to another with the KVM switch?

The TK-408K does not require a power adapter. It draws power from your

computer's PS/2 connections. As long as your KVM Switch is connected to the

PS/2 port, it will receive the necessary power to function.

Do not try to connect the KVM Switch to the computers while the computers

are in powered-on state, because the computers may have difficulty recognizing

your shared PS/2 keyboard and PS/2 mouse.

You may switch between computers by pressing the Push Buttons on the KVM

switch or by using the Hot-Key commands via keyboard. For a list of Hot-Key

commands, refer to the "Quick Reference Sheet for TK-408K".

If you still encounter problems or have any questions regarding the TK-408K, please

contact TRENDnet's Technical Support Department.

Certifications

This equipment has been tested and found to comply with FCC and CE Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference.

(2) This device must accept any interference received.

Including interference that may cause undesired operation.

NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV

INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS

EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO

OPERATE THE EQUIPMENT.

Troubleshooting

Limited Warranty

TRENDnet warrants its products against defects in material and

workmanship, under normal use and service, for the following lengths of

time from the date of purchase.

TK-408K - 2 Year Warranty

If a product does not operate as warranted above during the applicable

warranty period, TRENDnet shall, at its option and expense, repair the

defective product or part, deliver to customer an equivalent product or

part to replace the defective item, or refund to customer the purchase

price paid for the defective product. All products that are replaced will

become the property of TRENDnet. Replacement products may be new

or reconditioned.

TRENDnet shall not be responsible for any software, firmware,

information, or memory data of customer contained in, stored on, or

integrated with any products returned to TRENDnet pursuant to any

warranty.

There are no user serviceable parts inside the product. Do not remove

or attempt to service the product by any unauthorized service center.

This warranty is voided if (i) the product has been modified or repaired

by any unauthorized service center, (ii) the product was subject to

accident, abuse, or improper use (iii) the product was subject to

conditions more severe than those specified in the manual.

Warranty service may be obtained by contacting TRENDnet office within

the applicable warranty period for a Return Material Authorization (RMA)

number, accompanied by a copy of the dated proof of the purchase.

Products returned to TRENDnet must be pre-authorized by TRENDnet

with RMA number marked on the outside of the package, and sent

prepaid, insured and packaged appropriately for safe shipment.

WARRANTIES EXCLUSIVE: IF THE TRENDnet PRODUCT DOES NOT

OPERATE AS WARRANTED ABOVE, THE CUSTOMER'S SOLE

REMEDY SHALL BE, AT TRENDnet'S OPTION, REPAIR OR

REPLACEMENT. THE FOREGOING WARRANTIES AND REMEDIES

ARE EXCLUSIVE AND ARE IN LIEU OF ALL OTHER WARRANTIES,

EXPRESSED OR IMPLIED, EITHER IN FACT OR BY OPERATION OF

LAW, STATUTORY OR OTHERWISE, INCLUDING WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

TRENDnet NEITHER ASSUMES NOR AUTHORIZES ANY OTHER

PERSON TO ASSUME FOR IT ANY OTHER LIABILITY IN

CONNECTION WITH THE SALE, INSTALLATION MAINTENANCE OR

USE OF TRENDnet'S PRODUCTS.

TRENDnet SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS

TESTING AND EXAMINATION DISCLOSE THAT THE ALLEGED

DEFECT IN THE PRODUCT DOES NOT EXIST OR WAS CAUSED BY

CUSTOMER'S OR ANY THIRD PERSON'S MISUSE, NEGLECT,

IMPROPER INSTALLATION OR TESTING, UNAUTHORIZED

ATTEMPTS TO REPAIR OR MODIFY, OR ANY OTHER CAUSE

BEYOND THE RANGE OF THE INTENDED USE, OR BY ACCIDENT,

FIRE, LIGHTNING, OR OTHER HAZARD.

LIMITATION OF LIABILITY: TO THE FULL EXTENT ALLOWED BY LAW

TRENDnet ALSO EXCLUDES FOR ITSELF AND ITS SUPPLIERS ANY

LIABILITY, WHETHER BASED IN CONTRACT OR TORT (INCLUDING

NEGLIGENCE), FOR INCIDENTAL, CONSEQUENTIAL, INDIRECT,

SPECIAL, OR PUNITIVE DAMAGES OF ANY KIND, OR FOR LOSS OF

REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF

INFORMATION OR DATE, OR OTHER FINANCIAL LOSS ARISING OUT

OF OR IN CONNECTION WITH THE SALE, INSTALLATION,

MAINTENANCE, USE, PERFORMANCE, FAILURE, OR INTERRUPTION

OF THE POSSIBILITY OF SUCH DAMAGES, AND LIMITS ITS LIABILITY

TO REPAIR, REPLACEMENT, OR REFUND OF THE PURCHASE PRICE

PAID, AT TRENDnet’S OPTION. THIS DISCLAIMER OF LIABILITY FOR

DAMAGES WILL NOT BE AFFECTED IF ANY REMEDY PROVIDED

HEREIN SHALL FAIL OF ITS ESSENTIAL PURPOSE.

Governing Law: This Limited Warranty shall be governed by the laws of

the state of California.

AC/DC Power Adapter, Cooling Fan, and Power Supply carry 1 Year

Warranty

Autres manuels pour TK-408K

Table des matières

Langues :

Autres manuels TRENDnet Changer

TRENDnet

TRENDnet TK-204UK - DVI USB KVM Switch Manuel utilisateur

TRENDnet

TRENDnet TI-UPG62 Manuel utilisateur

TRENDnet

TRENDnet TEG-424WS Manuel utilisateur

TRENDnet

TRENDnet TI-PG162 Manuel utilisateur

TRENDnet

TRENDnet TK-408K Manuel utilisateur

TRENDnet

TRENDnet TEG-S51SFP Manuel utilisateur

TRENDnet

TRENDnet TK-207K - KVM Switch - USB Manuel utilisateur

TRENDnet

TRENDnet TO-PG541 Manuel utilisateur

TRENDnet

TRENDnet TE100-S5 Manuel utilisateur

TRENDnet

TRENDnet TEG-S80Dg Manuel utilisateur

TRENDnet

TRENDnet TU-400E Manuel utilisateur

TRENDnet

TRENDnet TE100-DX16E Manuel utilisateur

TRENDnet

TRENDnet TU-700 Manuel utilisateur

TRENDnet

TRENDnet TEG-2224WS Manuel utilisateur

TRENDnet

TRENDnet TK-206i Manuel utilisateur

TRENDnet

TRENDnet 1602R - KVM Switch - PS/2 Manuel utilisateur

TRENDnet

TRENDnet TEG-S50TXE SHEETS Manuel utilisateur

TRENDnet

TRENDnet TPE-S160 Manuel utilisateur

TRENDnet

TRENDnet TEG-S811Fi Manuel utilisateur

TRENDnet

TRENDnet TI-G102i Manuel utilisateur

TRENDnet

TRENDnet TL2-G244 Manuel utilisateur

TRENDnet

TRENDnet TEG-S80TX Manuel utilisateur

TRENDnet

TRENDnet TK-423K - USB/PS/2 KVM Switch Manuel utilisateur

TRENDnet

TRENDnet TK-IP101 Manuel utilisateur

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur
