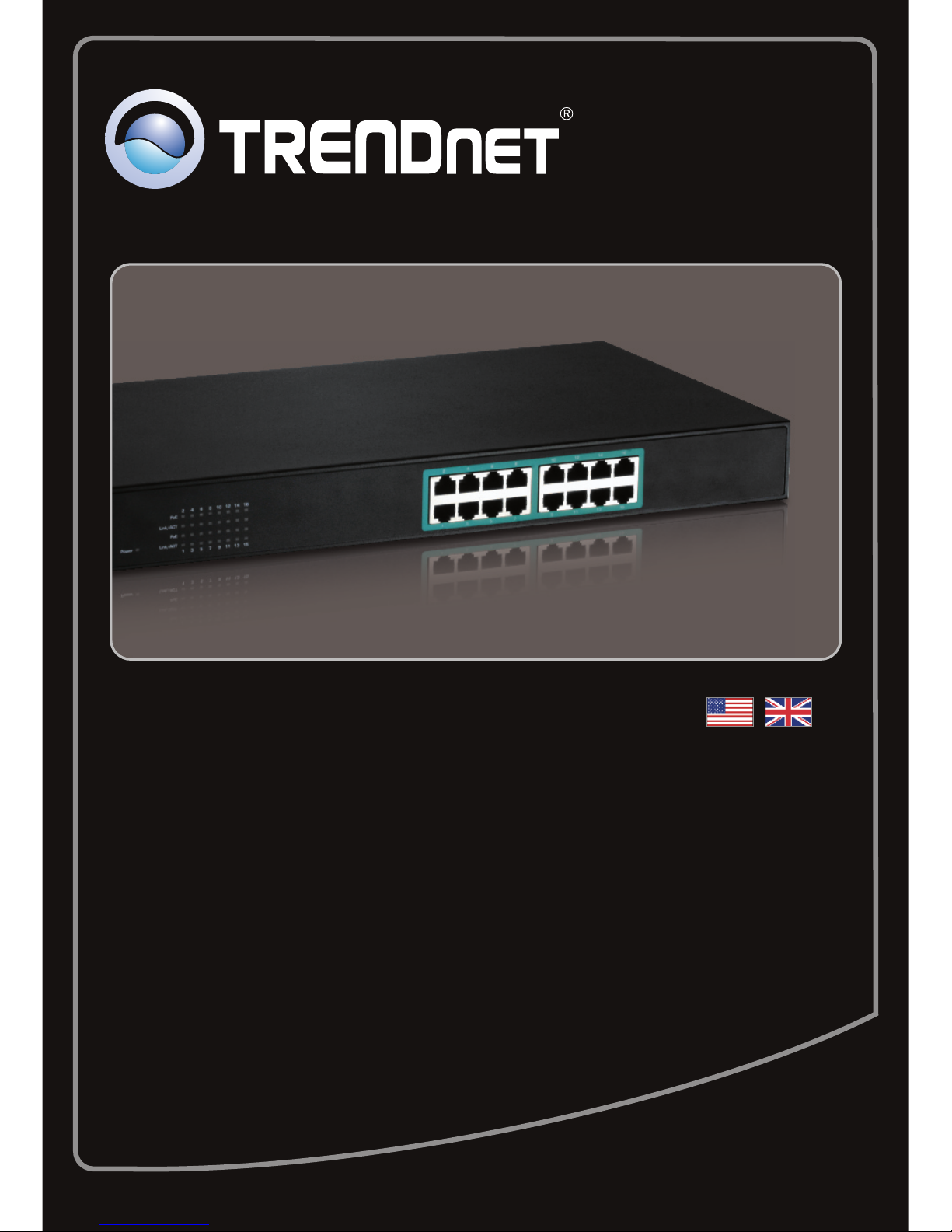

TRENDnet TPE-S160 Manuel utilisateur
TPE-S160
1.01
Quick Installation Guide
Table of Contents
Version 03.23.2010
English 1
1. Before You Start
2.
1
LEDs 2
3. Hardware Installation 3
Technical Specifications 7
Troubleshooting 8
1. Before You Start
ŸComputer with Network adapter installed
ŸRJ-45 Network Cable
ŸThe surface must support at least 3.8 kg (8.4 lb) for the Switch.
ŸThe power outlet should be within 1.82 meters (6 feet) of the Switch
ŸMake sure that there is proper heat dissipation from and adequate ventilation
around the Switch
ŸDo not place heavy objects on the Switch
ŸIEEE 802.3af Powered Device
Package Contents
ŸTPE-S160
ŸMulti-Language Quick Installation Guide
ŸPower cord (1.8m / 6ft)
ŸRackmount Kit
System Requirements
Optional Equipment
1
Note:
The TPE-S160 only supports Powered Devices that follow the IEEE 802.3af
standard.
ŸTPE-112GS
ŸEIA standard 19” rack
2. LEDs
2
Link/ACT
PoE (Power over Ethernet)
Power
Device Status LED Color Sequence Definition
PoE
(Power over Ethernet)
Power
Link/ACT
Amber Solid
Solid
Solid
Blinking
Amber
Green
N/A Off
Off
Off
N/A
N/A
PoE device is connected
No PoE device is connected.
No connection to the port
Device powered On
Device powered Off
10/20Mbps (Half/Full Duplex) or
100/200Mbps (Half/Full Duplex)
Duplex Connected (per port)
Data Transmitting/Receiving (per port)
3
3. Hardware Installation
1. Connect the Power Cord to the TPE-S160 and
then to a power outlet.
2. Move the Power switch to the on position.
3. Connect a RJ-45 network cable from the
computer to an available Ethernet port on the
TPE-S160.
4
4. Connect a RJ-45 cable from a PoE port (1~16)
on the TPE-S160 to the LAN port of the PoE
device (e.g. TEW-638PAP)
5. Verify that the following TPE-S160 LED are on:
Power, PoE and Link/ACT.
5
Note: Take note of the power requirements for your non-PoE device. The TPE-112GS
only supports non-PoE devices with an output power of 5V, 7.5V, 9V or 12V DC.
Using a non-PoE device with the TPE-S160 and the TPE-112GS (PoE Splitter)
1. Select the voltage (5V, 7.5V, 9V or 12V) on the
TPE-112GS that is required for your non-PoE
device.
5. Verify that the following TPE-S160 panel lights
are on: Power, PoE and Link/ACT.
2. Connect an Ethernet cable from a port (1~16)
on the TPE-S160 switch to the PoE IN port on
the TPE-112GS.
3. Connect the built-in Ethernet cable on the
TPE-112GS to the non-PoE device's LAN port
(e.g. TEW-637AP).
4. Connect the provided Jumper cable to your
non-PoE device's power jack (e.g.TEW-637AP)
and to the TPE-112GS's power jack.
6
The Switch can be mounted in an EIA standard-size, 19-inch rack, which can be placed
in a wiring closet with other equipment.
Rack Mount
1. Attach the mounting brackets to both sides of
the chassis and secure them with the provided
screws.
2. Carefully position the chassis onto the rack.
Align the bracket to the screw holes on the
rack, then use the screws provided with the
equipment rack to mount the chassis.
Technical Specifications
7
Hardware
Standard
ŸIEEE 802.3 10Base-T
ŸIEEE802.3u 100Base-TX
ŸIEEE 802.3af Power over Ethernet
ŸIEEE 802.3x Flow Control
16 x 10/100Mbps Auto-MDIX PoE ports
On/Off power switch
ŸEthernet: 10/20Mbps (half/full duplex)
ŸFast Ethernet: 100/200Mbps (half/full duplex)
1.5Mbits
4K MAC entries
3.2Gbps
100~240VAC 50/60Hz, internal universal switching power
Power, Link/Activity, PoE Act/Status
Ÿ6 Watts max. (no Power Device (PD) connected)
Ÿ260 Watts max. (16 PoE devices connected)
ŸOperating: 0° ~ 45°C (32° ~ 113°F)
ŸStorage: -10° ~ 70°C (14° ~ 158°F)
Ports
Power Switch
Data Transfer Rates
Data RAM Buffer
Address Table
Switch Fabric
Power
Diagnostic LEDs
Power Consumption
Temperature
10%- 95% (non-condensing)
440 x 220 x 44 mm (117.3 x 8.7 x 1.7 in.)
3.1 kg (6.9 lb)
CE, FCC
ŸUp to 15.4 watts per port; PD classification
ŸPolymer switch for short protection
ŸPoE: pin 3,6 for power (+) and pin 1,2 for power (-)
Humidity
Dimensions
Certifications
Weight
PoE
Power over Ethernet
Troubleshooting
8
1. After connecting the Switch to a power outlet, the LEDs do not turn on.
1. Check the connection of the power cord to the TPE-S160 and the power outlet.
2. Verify that the power switch is set to the On position.
3. Check that the power outlet is receiving power.
2. After I connect my PCs to the Switch, I am unable to share files.
1. Check the LEDs on the Switch. Make sure the Link/ACT LED is on.
2. Check the network cable. The minimum length of the cable is 1.5 meters and
the maximum length of the cable is 100 meters.
3. Disable any software firewall program.
4. Verify that you have file sharing enabled. Please contact your Operating
System support for more information.
3. After I connect my PCs to the Switch, I can only get onto the Internet from one
computer.
The Switch was not designed to share Internet between multiple computers. You
need to get an Internet router such as the TW100-S4W1CA.
4. My 802.3af Powered device does not power on when I plug the device into the
Switch. What should I do?
1. Verify that the PoE device supports IEEE 802.3af protocol.
2. Verify that the power switch is set to the on position.
3. Power cycle the PoE switch. Move the power switch to the off position. Wait 15
seconds, then move the power switch back to the on position.
4. Plug the device into a different port on the PoE switch.
5. Try using another RJ-45 network cable.
5. Where is the uplink port located on the Switch?
Since all the ports on the Switch are Auto-MDIX, any of the ports can be used as
an uplink port.
If you still encounter problems or have any questions regarding the TPE-S160 please
contact Trendnet's Technical Support Department.
