TRENDnet TK-207K - KVM Switch - USB Instructions de montage

- 2 -

ABOUT THIS GUIDE

The TK-207K/TK-407K 2-Port/4-Port USB KVM Switch will

allow you to access, control, boot and reboot multiple USB-

enabled computers. For PCs running Windows systems, it

provides an innovative and easy-to-use KVM Client Switching

Software -- a small windows client application to facilitate your

KVM switching operations such as PC selection and hotkey

sequence programming, auto-scan, auto-scan delay time

programming,

- 3 -

Package Contents

Unpack the package and check all the items carefully, and be certain

that you have:

♦1 x TK-207K or TK-407K USB KVM Switch.

♦1 x Utility CD-ROM

♦Multi-Language Quick Installation Guide

♦2 or 4 Sets of USB KVM Cables

If any item contained is damaged or missing, please contact your local

dealer immediately. Also, keep the box and packing materials in

case you need to ship the unit in the future.

System Requirements

♦Operating System:

Microsoft Windows 98SE/ME/2000/XP/2003.

Apple Mac OS (with Apple Talk support).

♦For Web Configuration:

Java-enabled web browser, such as Microsoft® Internet

Explorer 5.0 and Netscape Navigator 6.0.

- 4 -

General Features

♦Management 2 Computers

♦Supports Microsoft IntelliMouse, Optiocal Mouse, Logitech

NetMouse and more

♦Supports Windows 98SE/ME/2000/XP/2003 Server and Linux

♦Multi-Platform support for PC, Mac G3/G4, iMac and Mac Mini

(Mac OS only supports push button functions)

♦Support high video quality, up to 2048 x 1536 resolution

♦User definable Hot-Key (for Windows Only)

♦Hot-Pluggable

♦Auto-Scan & LED Display

♦Port selection via Hot-Key, push button and Windows-Based

Client Switching Software

- 5 -

Installing the Print Server

Insert the Installation CD-ROM into your computer’s CD-ROM drive

to initiate the Auto-Run program, and the menu screen will appear as

below.

1. Click Client Switch Software from the Auto-Run menu screen.

The welcome screen appears as below. Click Next >.

- 6 -

2. When completed, click Finish.

- 7 -

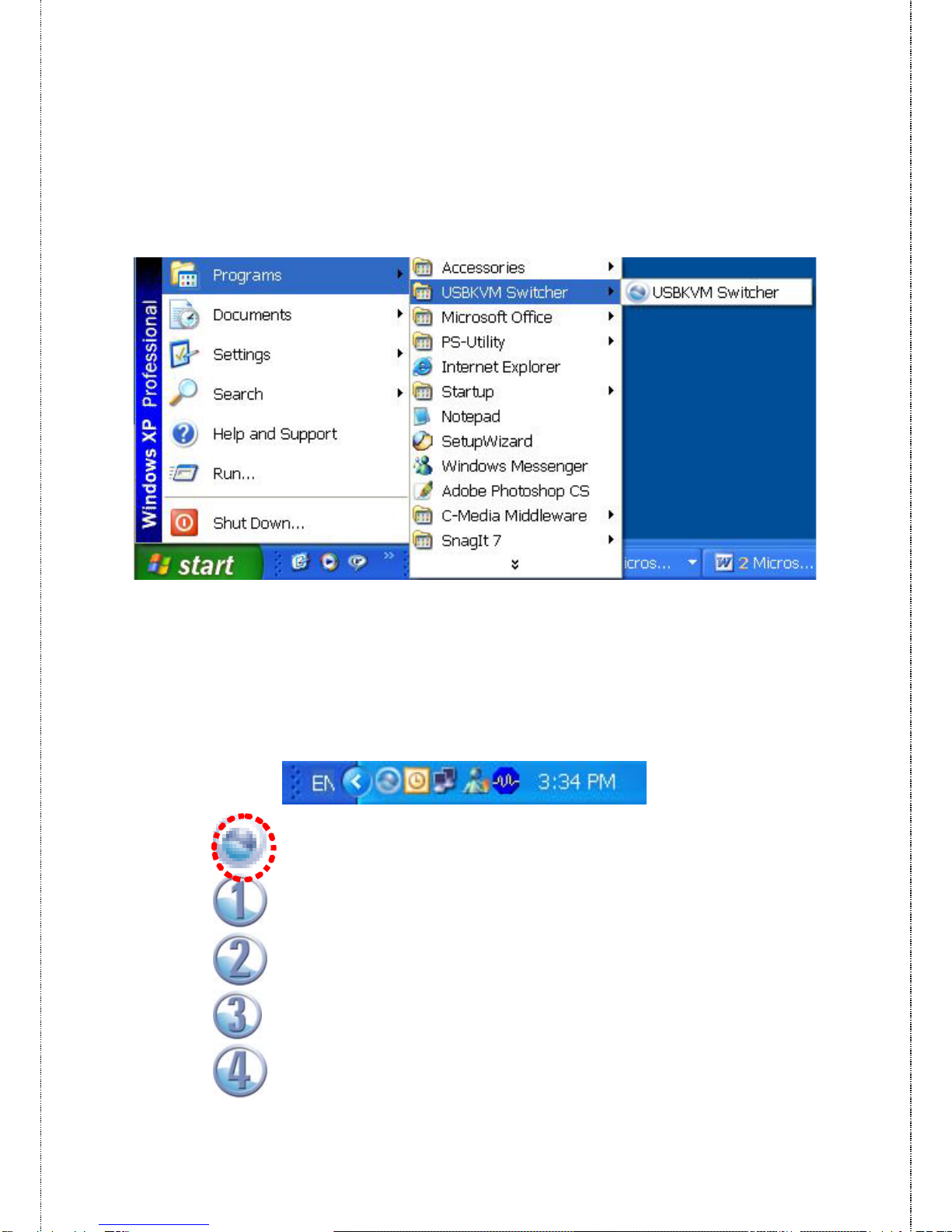

3. After installing the utility, the Client Switch Utility is

automatically installed to your computer, and creates a folder in

Start\Program\USBKVM Switcher.

4. After the installation is completed, you will see a KVM Switch

icon on the system tray of your window desktop. Just right click

to evoke the operation menu and double-click to evoke

configuration box. For operation details of the KVM Switcher

software, please refer to the Operation Quick Reference.

: No live connection detected

: Current active PC channel is on port 1

: Current active PC channel is on port 2

: Current active PC channel is on port 3

: Current active PC channel is on port 4

- 8 -

5. Connect the shared USB keyboard, mouse, monitor to your KVM

Switch.

6. Connect each KVM PC port to a computer via included USB

KVM Cables. After you have connected the KVM and computers

properly, the KVM Switch is ready to use.

NOTE:

•The KVM Switcher Utility only supports Windows operating

system on PC Platforms. For the other platform such as

Linux, you can still use the keyboard hotkey “ScrLK +

ScrLK” to switch between PCs. Mac OS only supports

push buttons function.

•Some computers with USB interface might need to manual

enable the USB option in the BIOS setting before using

any USB device. If your USB interface does not work,

please check the USB option Status in BIOS.

If you are using the Windows 98(SE) and has not installed a USB

mouse yet, it is highly recommend that you connect the USB

mouse directly to computer first before it connects to KVM Switch.

- 9 -

Operate the KVM Switch Utility

There are three methods to control your KVM Switch for PC:

(1) face-panel push button

(2) hotkey sequence

(3) KVM Client Switch Utility.

Face-panel button

The face-panel button allows you a direct control over KVM

switching operation. Simply press the button to switch to the

corresponding PC port.

You can use the face-panel button to switch to an empty port that is

not connected with any computer. Normally, if you use keyboard

hotkeys or the KVM Switcher software, you will not be able to switch

to an empty port.

Keyboard hotkeys

User-definable hotkeys for PC selection:

Hotkey sequence = Ctrl + Alt + [command key]*

Universal hotkey for PC toggle-switching:

* Please refer to next section for keys that are qualified to be used as

a command key

- 10 -

NOTE:

•Both the universal hotkey, ScrLk + ScrLk and the user-

definable hotkey, Ctrl + Alt + [command key] WILL NOT

allow you to switch to an empty port that is not connected

with any computer. To force your KVM to switch to an empty

port, just press the face-panel button to switch.

Universal Hotkey sequence = ScrLk + ScrLk

* For other operating systems on PC such as Linux, you can still

use this special hotkey to facilitate PC switching. This special

hotkey is not available for Mac. However, you can press button to

switch in any case.

•Each keystroke within a hotkey sequence should be pressed

within 2 seconds. Otherwise, the hotkey sequence will not be

validated.

•After perform port switching, you have to wait till the KVM

Switch icon shows forth the target port before you can

perform next switching again. The KVM Switch icon could be

found on the system tray of your Windows desktop after its

installation.

•All the hotkeys are only functional after your PCs are booting

into the OS. If you want to switch PC in the BIOS/preboot

stage, press the face-panel button to switch.

KVM Switcher Software (only for Windows platform)

In addition to PC switching, the KVM Switch Software also allows

you more advanced functions such as described in the next section….
