TRENDnet TEG-S2400I - DATA SHEETS Manuel d'installation et d'exploitation

TEG-S2600i

Quick Installation Guide

TEG-S2400i

Table of Contents

Version 10.31.05

Français .....................................................................................................

Troubleshooting ........................................................................................

1. Avant de commencer .........................................................................

2. Comment effectuer les connexions ...................................................

3. Utilisation du Switch ..........................................................................

TEG- 2400i/TEG- 2600i

Guide d'installation rapide

Pilote sur CD-ROM

Cordon d'alimentation courant alternatif

Câble RS-232

Kit de montage

S S

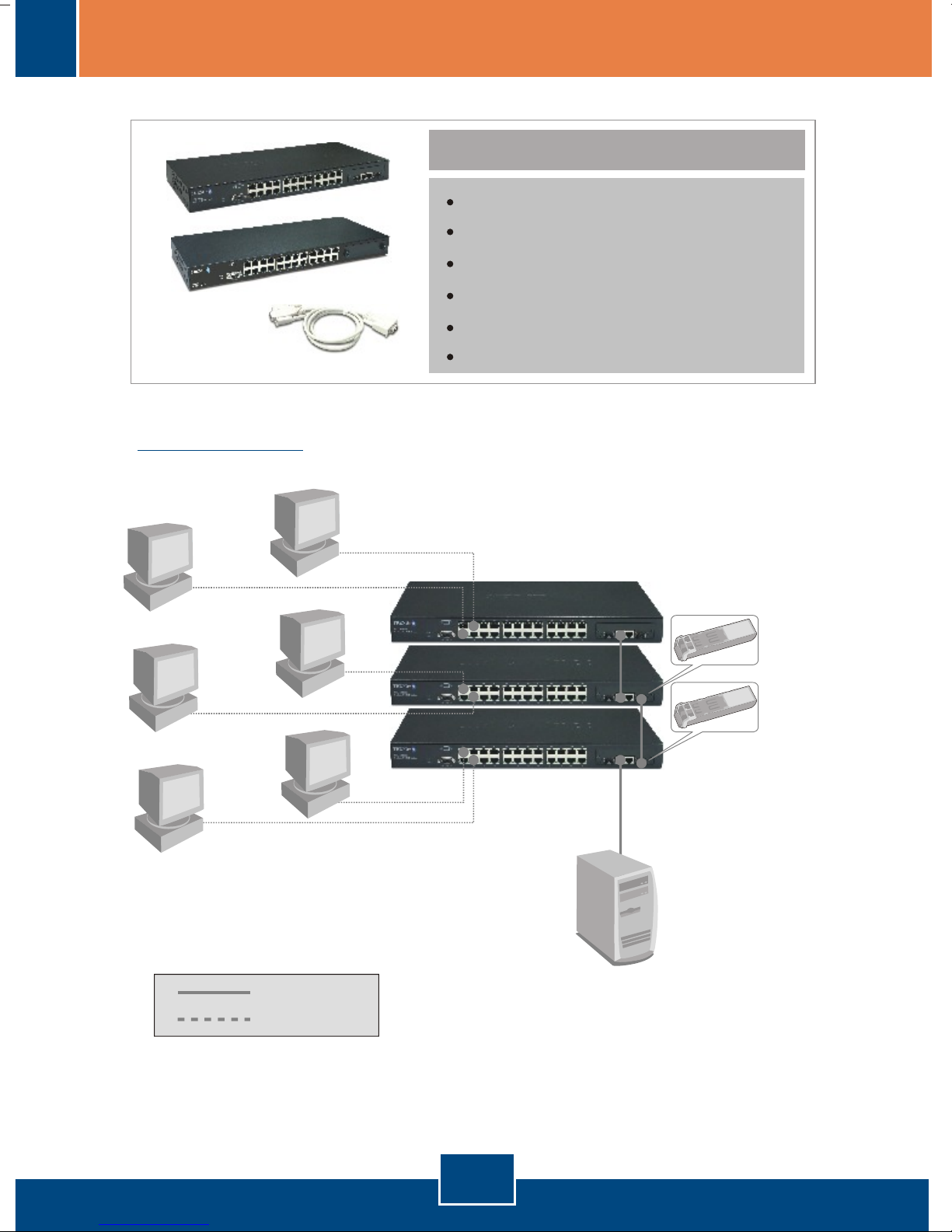

Contenu de l'emballage

Application

1. Avant de commencer

Français

Workstations with

Fast Ethernet Card

(TE100-PCIWN)

1000Mbps

100Mbps

TEG-S2400i/TEG-S2600i

Server with

Copper Gigabit PCI Adapter

(TEG-PCITXR)

Multi-mode

Mini GBIC Module

(TEG-MGBSX)

2. Branchez le câble réseau à l'avant du

switch.et à vote PC.

1. Branchez le cordon d'alimentation à l'arrière

du TEG-S2400i/TEG-S2600i.

3. Vérifiez que le voyant PWR est vert et ne

clignote pas.

Français

2. Comment effectuer les connexions

1. Allez sur Start (Démarrer) >

Settings (Paramètres) >

Control Pannel (Panneau de

configuration).

2. Double-cliquez sur l'icône Network

Connection (Connexions

réseau).

3. Faites un clic droit sur l'icône Local

Area Connection (Connexions au

réseau local) et cliquez ensuite sur

Properties (Propriétés).

Français

3. Utilisation du Switch

Remarque : Pour plus d'informations sur les fonctions avancées, veuillez

consulter le guide de l'utilisateur.

L'installation est maintenant complète.

4. Cliquez sur l'onglet General et

ensuite sur Properties

(Propriétés). Sélectinnez Internet

Protocol(TCP/IP) (Protocole

Internet(TCP/IP), et cliquez sur

Properties (Propriétés). Modifiez

l'adresse IP et indiquez

192.168.223.10. Cliquez ensuite

sur OK pour appliquer le

paramétrage.

5. Ouvrez votre navigateur Internet,

tapez-y http://192.168.223.100, et

enfoncez la touche Enter.

6. Nom d'utilisateur : admin

Mot de passe : 123

7. Sélectionnez l'option adéquate

permettant de configurer le switch

SNMP.

Français

Q1.

A1.

Q2.

A2.

Q3.

A3.

How come I cannot see any light from any of my LED's?

Your TEG-S2400i/TEG-S2600i is not getting any power. Make

sure that your surge protector or your outlet is getting power and make

sure that the AC Power cord is properly connected to your switch.

After connecting several workstations to the switch, I have all

workstations communicating with the server, but I cannot access the

switch's web configuration utility. What should I do?

Please change your switch's IP address to match the network

segment of your workstations. For configuring your switch's IP address,

please consult the User's Guide.

I have connected several workstations into the switch, but one

workstation does not connect to the network. The LEDs on one of the

ports remain unlit, while the rest of the ports have blinking LEDS. What

do I do?

You either have a faulty network card or a faulty network patch cable.

Make sure that your network card and network cable are functional.

If you have any questions regarding your switch please contact TRENDnet

Technical Support Department.

Troubleshooting

Certifications

This equipment has been tested and found to comply with FCC and CE Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference.

(2) This device must accept any interference received. Including interference that may cause

undesired operation.

NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV

INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS

EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO

OPERATE THE EQUIPMENT.

Waste electrical and electronic products must not

be disposed of with household waste. Please

recycle where facilities exist. Check with you Local

Authority or Retailer for recycling advice.

Limited Warranty

- 5-Year Warranty

TRENDnet warrants its products against defects in material and workmanship, under

normal use and service, for the following lengths of time from the date of purchase.

TEG-S2400i/TEG-S2600i

If a product does not operate as warranted above during the applicable warranty period,

TRENDnet shall, at its option and expense, repair the defective product or deliver to

customer an equivalent product to replace the defective item. All products that are

replaced will become the property of TRENDnet. Replacement products may be new or

reconditioned.

TRENDnet shall not be responsible for any software, firmware, information, or memory

data of customer contained in, stored on, or integrated with any products returned to

TRENDnet pursuant to any warranty.

There are no user serviceable parts inside the product. Do not remove or attempt to

service the product through any unauthorized service center. This warranty is voided if

(i) the product has been modified or repaired by any unauthorized service center, (ii) the

product was subject to accident, abuse, or improper use (iii) the product was subject to

conditions more severe than those specified in the manual.

Warranty service may be obtained by contacting TRENDnet office within the applicable

warranty period for a Return Material Authorization (RMA) number, accompanied by a

copy of the dated proof of the purchase. Products returned to TRENDnet must be pre-

authorized by TRENDnet with RMA number marked on the outside of the package, and

sent prepaid, insured and packaged appropriately for safe shipment.

WARRANTIES EXCLUSIVE: IF THE TRENDNET PRODUCT DOES NOT OPERATE

AS WARRANTED ABOVE, THE CUSTOMER’S SOLE REMEDY SHALL BE, AT

TRENDNET’S OPTION, REPAIR OR REPLACEMENT. THE FOREGOING

WARRANTIES AND REMEDIES ARE EXCLUSIVE AND ARE IN LIEU OF ALL OTHER

WARRANTIES, EXPRESSED OR IMPLIED, EITHER IN FACT OR BY OPERATION OF

LAW, STATUTORY OR OTHERWISE, INCLUDING WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. TRENDNET

NEITHER ASSUMES NOR AUTHORIZES ANY OTHER PERSON TO ASSUME FOR IT

ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION,

MAINTENANCE OR USE OF TRENDNET’S PRODUCTS.

TRENDNET SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND

EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT IN THE PRODUCT DOES

NOT EXIST OR WAS CAUSED BY CUSTOMER’S OR ANY THIRD PERSON’S

MISUSE, NEGLECT, IMPROPER INSTALLATION OR TESTING, UNAUTHORIZED

ATTEMPTS TO REPAIR OR MODIFY, OR ANY OTHER CAUSE BEYOND THE

RANGE OF THE INTENDED USE, OR BY ACCIDENT, FIRE, LIGHTNING, OR OTHER

HAZARD.

LIMITATION OF LIABILITY: TO THE FULL EXTENT ALLOWED BY LAW TRENDNET

ALSO EXCLUDES FOR ITSELF AND ITS SUPPLIERS ANY LIABILITY, WHETHER

BASED IN CONTRACT OR TORT (INCLUDING NEGLIGENCE), FOR INCIDENTAL,

CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY KIND,

OR FOR LOSS OF REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF

INFORMATION OR DATE, OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN

CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE, USE,

PERFORMANCE, FAILURE, OR INTERRUPTION OF THE POSSIBILITY OF SUCH

DAMAGES, AND LIMITS ITS LIABILITY TO REPAIR, REPLACEMENT, OR REFUND

OF THE PURCHASE PRICE PAID, AT TRENDNET’S OPTION. THIS DISCLAIMER OF

LIABILITY FOR DAMAGES WILL NOT BE AFFECTED IF ANY REMEDY PROVIDED

HEREIN SHALL FAIL OF ITS ESSENTIAL PURPOSE.

Governing Law: This Limited Warranty shall be governed by the laws of the state of

California.

Note: AC/DC Power Adapter, Cooling Fan, and Power Supply carry 1-Year Warranty

3135 Kashiwa Street

Torrance, CA 90505

USA

TRENDnet Technical Support

Product Warranty Registration

Please take a moment to register your product online.

Go to TRENDnet’s website at http://www.trendnet.com

US Canada

24/7 Tech Support

Toll Free Telephone: 1(866) 845-3673

Europe (Germany France Italy Spain Switzerland UK)

English/Espanol - 24/7

Francais/Deutsch - 11am-8pm, Monday - Friday MET

English/Espanol - 24/7

Francais/Deutsch - 11am-8pm, Monday - Friday MET

Worldwide

Telephone: +(31) (0) 20 504 05 35

Toll Free Telephone: +00800 60 76 76 67

. . . . .
