TRENDnet TEG-S16R - DATA SHEETS Manuel utilisateur

TEG-S16R

TEG-S24R

H/W: v1.0R

Quick Installation Guide

Table of Contents

Version 02.05.2008

English ......................................................................................................

Technical Specifications .............................................................................

Troubleshooting ..........................................................................................

1. Before You Start

2. Hardware Installation .........................................................................

.................................................................................

Installation Requirements

?Computer with Network adapter installed

?RJ-45 Network Cable

The power outlet should be within 1.82 meters (6 feet) of the Switch

Make sure that there is proper heat dissipation and adequate

ventilation around the Switch

Do not place heavy objects on the Switch

EIA Standard, 19 inch rack or sturdy, level surface that can support the

weight of the Switch

Package Contents

1. Before You Start

English

?TEG-S16R/TEG-S24R

Quick Installation Guide

Power Cord

Rack Mount Kit

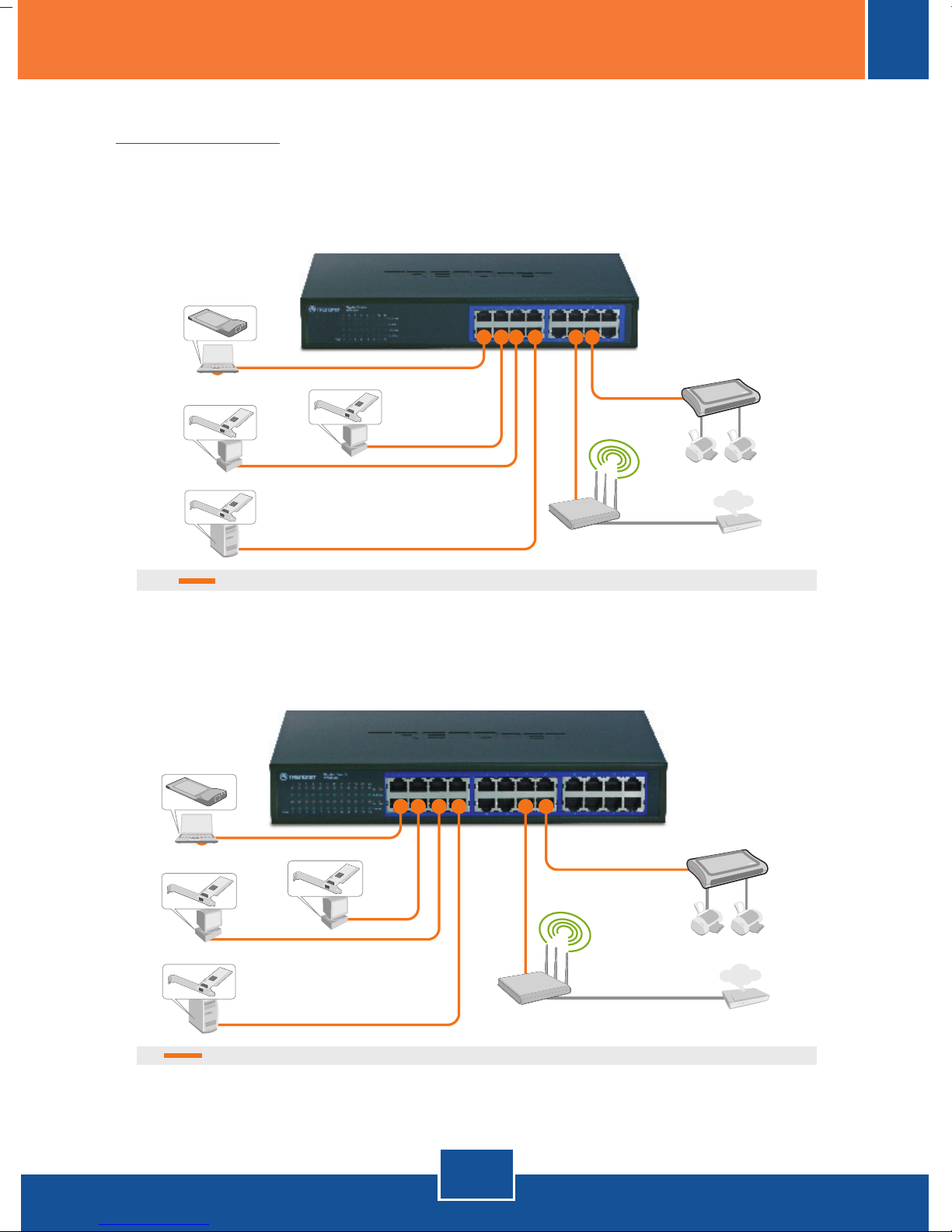

Application

English

10/100/1000Mbps

16-Port Compact Gigabit Switch

(TEG-S16R)

Printers

Workstations with PCI Adapter

(TEG-PCITXR)

Laptop with Gigabit PC Card

(TEG-PCBUSR)

Server with Gigabit PCI Adapter

(TEG-PCITXR)

10/100Mbps Multi-Port

Print Server

(TE100-P21)

300Mbps Wireless N

Gigabit Router

(TEW-633GR)

Cable /DSL Modem

Internet

10/100/1000Mbps

24-Port Compact Gigabit Switch

(TEG-S24R)

Printers

Workstations with PCI Adapter

(TEG-PCITXR)

Laptop with Gigabit PC Card

(TEG-PCBUSR)

Server with Gigabit PCI Adapter

(TEG-PCITXR)

10/100Mbps Multi-Port

Print Server

(TE100-P21)

300Mbps Wireless N

Gigabit Router

(TEW-633GR)

Cable /DSL Modem

Internet

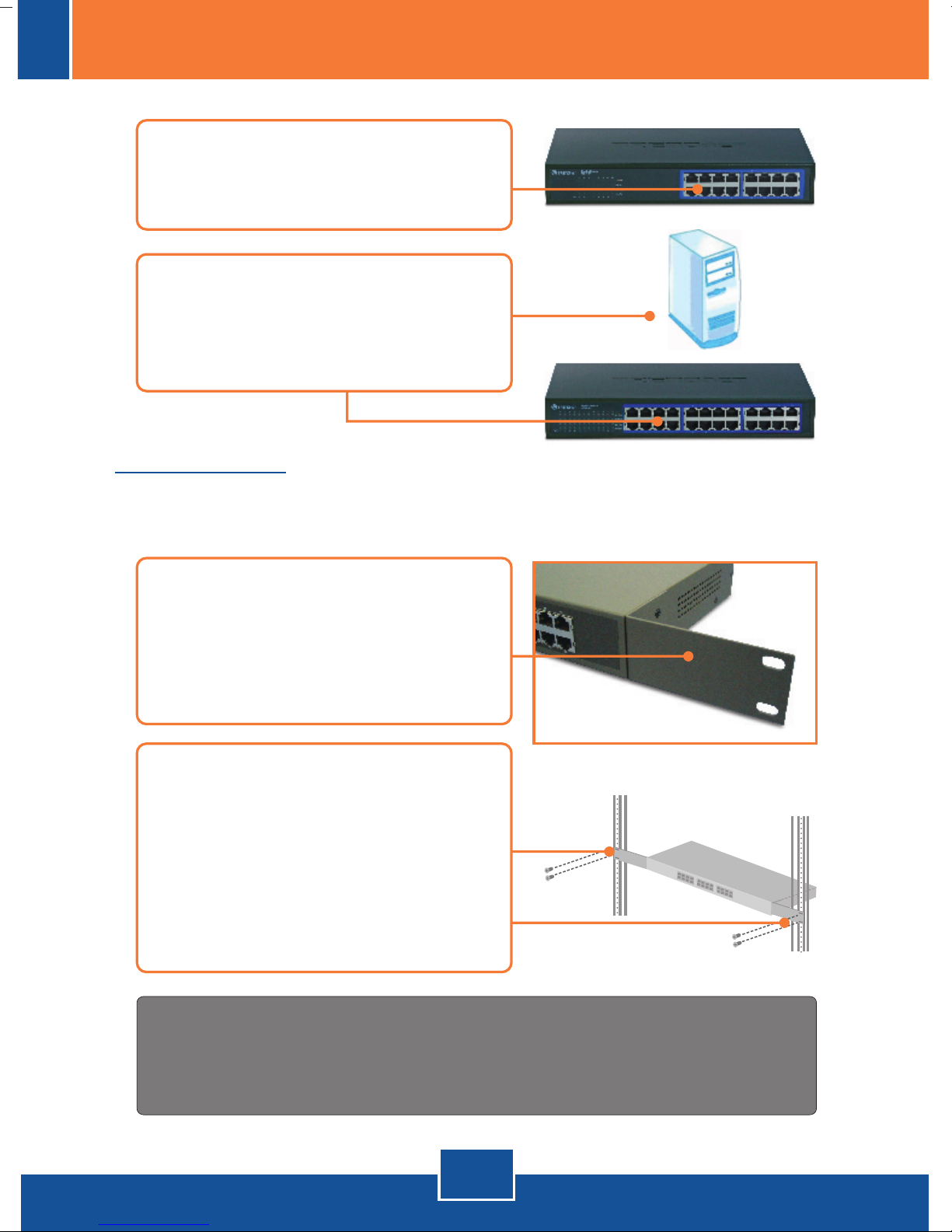

2. Hardware Installation

English

1. Connect the Power Cord to

the TEG-S16R/TEG-S24R

and then to a power outlet.

2. Connect a CAT-5e RJ-45 network

cable from the computer to an

available Ethernet port on the

TEG-S16R/TEG-S24R.

Rack Mount

The TEG-S16R/TEG-S24R can be mounted in an EIA standard-size, 19-inch

rack, which can be placed in a wiring closet with other equipment.

1. Attach the mounting brackets to

the TEG-S16R/TEG-S24R's front

panel (one on each side), and

secure them with the provided

screws.

2. Carefully position the

TEG-S16R/TEG-S24R onto the

rack. Align the bracket to the

screw holes on the rack, then use

the screws provided with the

equipment rack to mount the

chassis.

To ensure the highest level of customer service and support, please take a moment to

Thank you for choosing TRENDnet

Standards IEEE 802.3 10BASE-T Ethernet

IEEE 802.3u 100BASE-TX Fast Ethernet

IEEE 802.3ab 1000BASE-T Gigabit Ethernet

Protocol CSMA/CD

Data Transfer Rates

Ethernet: 10Mbps/20Mbps (Half / Full-Duplex)

Fast Ethernet: 100Mbps /200Mbps (Half /

Full-Duplex)

Gigabit Ethernet: 2000Mbps (Full-Duplex)

Network Cables Ethernet: UTP/STP CAT-3, 4, 5

Fast Ethernet: UTP/STP CAT- 3, 4, 5, 5e, 6

Gigabit Ethernet : UTP/STP CAT-5e, 6

Number of Ports

TEG-S16R: 16 x 10/100/1000Mbps

Auto-negotiation, Auto-MDIX ports

TEG-S24R: 24 x 10/100/1000Mbps

Auto-negotiation, Auto-MDIX ports

General

Topology

LEDs

Star

Power, Link/ACT, 10/100Mbps, 1000Mbps

Technical Specifications

Power 100-240VAC. 50/60Hz. Internal Power Supply

Power Consumption TEG-S16R: 14 Watts (Max)

TEG-S24R: 20 Watts (Max)

Temperature Operating: 0 ~ 40 C, Storage: -20 ~ 70 C° ° ° °

Dimensions (L x W x H) 280 x 180 x 45 mm (W x H x D)

Weight TEG-S16R: 1.7kg

TEG-S24R: 1.8kg

Physical and Environmental

Humidity

Certification

Operating: 10% ~ 90%, Storage: 5% ~ 90%

CE, FCC

Transmission Method Store-and-forward

MAC Address Table

RAM Buffer

Switching Fabric

8Kbytes Entries Per Device

500KB

TEG-S16R: 32Gbps

TEG-S24R: 48Gbps

MAC Address Learning Automatic update

Performance

Troubleshooting

Q1:

A1:

Q2:

A2:

Q3:

A3:

Q4:

A4:

After connecting the Switch to a power outlet, the LEDs do not turn

on.

Check the connection of the external power adapter to the

TEG-S16R/TEG-S24R and the power outlet. Also check that the power

outlet is receiving power.

When I connect a computer to the Switch's port, I am not getting

Gigabit speeds. What should I do?

Check the LED on the Switch. When the LED is off, the computer's

connection speed is 10Mbps. When the LED is green the computer's

connection speed is 100Mbps. The computer's connection speed will be

Gigabit when the LED is amber. Make sure that you have a Gigabit

Ethernet adapter installed. Also make sure to use a Cat-5e or Cat 6

Ethernet cable. Some CAT-5 cables are not rated to run in Gigabit.

After I connect my PCs to the Switch, I am unable to share files.

First, check the LEDs on the Switch. Make sure the Link/Act LED is on.

Second, check the network cable. The minimum length of the cable is 1.5

meters and the maximum length of the cable is 100 meters. Third, disable

any software firewall program. Fourth, verify that you have file sharing

enabled. Please contact your Operating System support for more

information.

After I connect my PCs to the Switch, I can only get onto the Internet

from one computer.

The Switch was not designed to share Internet between multiple

computers. You need to get an Internet router such as the TEW-633GR.

If you still encounter problems or have any questions regarding the

TEG-S16R/TEG-S24R please contact TRENDnet's Technical Support

Department.

Limited Warranty

- 5-Year Warranty

TRENDnet warrants its products against defects in material and workmanship, under

normal use and service, for the following lengths of time from the date of purchase.

TEG-S16R/TEG-S24R

If a product does not operate as warranted above during the applicable warranty period,

TRENDnet shall, at its option and expense, repair the defective product or deliver to

customer an equivalent product to replace the defective item. All products that are

replaced will become the property of TRENDnet. Replacement products may be new or

reconditioned.

TRENDnet shall not be responsible for any software, firmware, information, or memory

data of customer contained in, stored on, or integrated with any products returned to

TRENDnet pursuant to any warranty.

There are no user serviceable parts inside the product. Do not remove or attempt to

service the product through any unauthorized service center. This warranty is voided if

(i) the product has been modified or repaired by any unauthorized service center, (ii) the

product was subject to accident, abuse, or improper use (iii) the product was subject to

conditions more severe than those specified in the manual.

Warranty service may be obtained by contacting TRENDnet office within the applicable

warranty period for a Return Material Authorization (RMA) number, accompanied by a

copy of the dated proof of the purchase. Products returned to TRENDnet must be pre-

authorized by TRENDnet with RMA number marked on the outside of the package, and

WARRANTIES EXCLUSIVE: IF THE TRENDNET PRODUCT DOES NOT OPERATE

AS WARRANTED ABOVE, THE CUSTOMER’S SOLE REMEDY SHALL BE, AT

TRENDNET’S OPTION, REPAIR OR REPLACEMENT. THE FOREGOING

WARRANTIES AND REMEDIES ARE EXCLUSIVE AND ARE IN LIEU OF ALL OTHER

WARRANTIES, EXPRESSED OR IMPLIED, EITHER IN FACT OR BY OPERATION OF

LAW, STATUTORY OR OTHERWISE, INCLUDING WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. TRENDNET

NEITHER ASSUMES NOR AUTHORIZES ANY OTHER PERSON TO ASSUME FOR IT

ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION,

MAINTENANCE OR USE OF TRENDNET’S PRODUCTS.

TRENDNET SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND

EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT IN THE PRODUCT DOES

NOT EXIST OR WAS CAUSED BY CUSTOMER’S OR ANY THIRD PERSON’S

MISUSE, NEGLECT, IMPROPER INSTALLATION OR TESTING, UNAUTHORIZED

ATTEMPTS TO REPAIR OR MODIFY, OR ANY OTHER CAUSE BEYOND THE

RANGE OF THE INTENDED USE, OR BY ACCIDENT, FIRE, LIGHTNING, OR OTHER

HAZARD.

LIMITATION OF LIABILITY: TO THE FULL EXTENT ALLOWED BY LAW TRENDNET

ALSO EXCLUDES FOR ITSELF AND ITS SUPPLIERS ANY LIABILITY, WHETHER

BASED IN CONTRACT OR TORT (INCLUDING NEGLIGENCE), FOR INCIDENTAL,

CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY KIND,

OR FOR LOSS OF REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF

INFORMATION OR DATE, OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN

CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE, USE,

PERFORMANCE, FAILURE, OR INTERRUPTION OF THE POSSIBILITY OF SUCH

DAMAGES, AND LIMITS ITS LIABILITY TO REPAIR, REPLACEMENT, OR REFUND

OF THE PURCHASE PRICE PAID, AT TRENDNET’S OPTION. THIS DISCLAIMER OF

LIABILITY FOR DAMAGES WILL NOT BE AFFECTED IF ANY REMEDY PROVIDED

HEREIN SHALL FAIL OF ITS ESSENTIAL PURPOSE.

Governing Law: This Limited Warranty shall be governed by the laws of the state of

California.

Note: AC/DC Power Adapter, Cooling Fan, Cables and Power Supply carry a 1-Year

Warranty
