TRENDnet TEG-S081FMi Manuel utilisateur

1.1.

IntroductionIntroduction

The TEG-S081FMi Switch is compact desktop size switches which are

ideal solutions for Fiber network infrastructure. It provides wire-speed,

Fast Ethernet switching function that allows high-performance, low-cost

connection. The Switch features a store-and-forward switching and it can

auto-learn and MAC address on an 8K-entry MAC address table.

The TEG-S081FMi Switch is compact desktop size switches which are

ideal solutions for Fiber network infrastructure. It provides wire-speed,

Fast Ethernet switching function that allows high-performance, low-cost

connection. The Switch features a store-and-forward switching and it can

auto-learn and MAC address on an 8K-entry MAC address table.

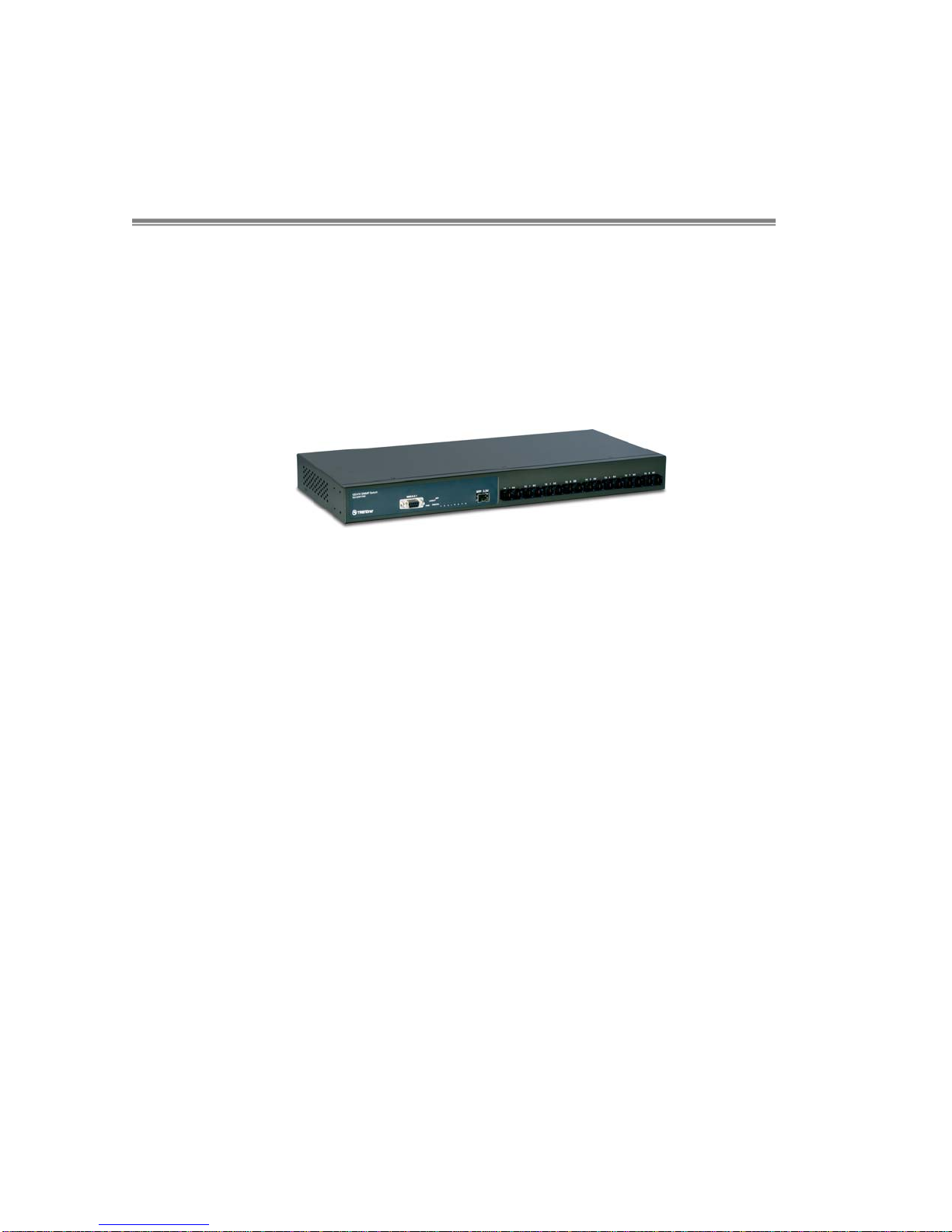

Figure 1-1. The TEG-S081FMi Switch

The Switch provides 8 100Mbps Fiber ports and one GBIC slot for

optional GBIC modules.

The fiber ports are 100Base-SC type multi-mode fiber ports support up to

2kms distance.

With their build-in Web-based Management, managing and configuring

the TEG-S081FMi Switch becomes easier. From cabinet management to

port-level control and monitoring, you can visually configure and manage

your network via Web Browser. Just click your mouse instead of typing

command strings. However, the TEG-S081FMi Switch can also be

managed via Telnet, Console, or SNMP Management.

Features

Conforms to IEEE802.3u, IEEE802.3z and IEEE802.3x

Ethernet Standards

8x 100Base-FX SC Type Fiber ports and one GBIC slot

One Console port on the front side for switch Configuration

Half-duplex mode for backpressure, and Full-duplex for flow

control

Store-and-forward switching architecture

Automatic address learning, address migration

8K-entry MAC address table

2Mbits memory buffer sharing

Performs non-blocking full wire speed

LED-indicators for Power, LNK/ACT, FDX/COL,

LNK/ACT(GBIC)

19-inch Rack-Mount size design

Intelligent Management Features

Web-based management

SNMP network management

Console and Telnet management

Port Base VLAN and IEEE 802.1q Tag VLAN, and VLAN group

up to 256 , VLAN ID up to 4K

IEEE 802.3 ad port trunk with LACP (Link Aggregation Control

protocol) supported

IEEE 802.1d Spanning Tree

MIB II (RFC 1213) supported

IP Multi-cast, IGMP Snooping, up to 256 IGMP groups

Support Quality of Service (system provides 8 levels) and Class

of service (per port Hi/Low Queue)

Port Mirror, Broadcast Filter, Static MAC Address filtering, Port

Security and GVRP supported

Package Contents

Unpack the contents of the TEG-S081FMi Switch and verify them against

the checklist below.

Switch

Power Cord

Four Rubber Feet

RS-232 cable

User Guide

TEG-S081FMi Switch Power Cord

Rubber Feet RS-232 cable User Guide

Figure 1-2. Package Contents

Compare the contents of your TEG-S081FMi switch package with the

standard checklist above. IF any item is missing or damaged, please

contact your local dealer for service.

Management Methods

The 8port Fiber Management Switch series supports following

management methods:

Console and Telnet Management

Web-based Management

SNMP Network Management

Console and Telnet Management

Console Management is done through the RS-232 Console Port.

Managing the TEG-S081FMi Switch in this method requires a direct

connection between PC and the TEG-S081FMi Switch. While Telnet

management is done over the network. Once the TEG-S081FMi Switch

is on the network, you can use Telnet to Log in and change the

configuration.

Web-based Management

The Switch provides an embedded HTML web site residing in flash

memory. It offers advanced management features and allow users to

manage the TEG-S081FMi Switch from anywhere on the network

through a standard browser such as Microsoft Internet Explorer.

SNMP Network Management

SNMP (Simple Network Management Protocol ) provides a means

to monitor and control network device, and to manage

configurations, statistic collection, performance, and security.

Hardware Description

FrontPanel

The Front Panel of the Fiber Management Switch series consist of 8x

100Mbps Fast Ethernet Fiber and GBIC ports, and the LED indicators

are also located on the frond panel of the switch.

Figure 2-1. The Front Panel of the Fiber Management Switch

Console Port : Console management can be done through the Console

Port. It requires a direct connection between the Switch and an end

station (PC ) via a RS-232 cable.

Figure 2-2. The Front Panel of the TEG-S081FMi Switch with SC

connector

Console Port

Baud Rate: 9600,N,8,1

100Base-FX Fiber Port: There are 2 types of fiber connectors

available for the TEG-S081FMi Switchas shown above. The

distance for fiber cabling can be extended up to 2 kilometers.

GBIC port : It only support 3.3V model Gigabit Transceiver for

Gigabit SX or LX.

LEDIndicators

Figure 2-3. LED Indicators

There are three LED-Indicators (LNK/ACT, FDX/COL) for each Fiber port.

The following table provides descriptions of the LED statuses and

meaning. They provide a real-time indication of systematic operation

status.

LED Status Color Description

Power On Green Power On

LNK /

ACT

On Green

The port is successfully connecting

with the device on 100Mbps.

Blinks Green The port is receiving or transmitting

data.

Off No device attached.

FDX /

COL

On Orange The port is operating in Full-duplex

mode and device is attached.

Blinks Orange Collision of Packets occurs in the port.

Off

Half-duplex mode or no device

attached.

Table 2-1. The description of LED Indicator

Rear Panel

The Console port and 3-pronged power plug are located at the Rear

Panel of the TEG-S081FMi Switch as shown in Figure 2-8. The Switches

will work with AC in the range 100-240V AC, 50-60Hz.

AC Power Plug Socket

Power on/off switch

Figure 2-7 The Rear Panel of the 8 Port 100Mbps Fiber plus one GBIC

Management Switch

Desktop Installation

Set the switch on a sufficiently large flat space with a power outlet nearby.

The surface where you put your Switch should be clean, smooth, level,

and sturdy.

Make sure there is enough clearance around the Switch to allow

attachment of cables, power cord and air circulation.

Power On

Connect the power cord to the power socket on the rear panel of the

Switch. The other side of power cord connects to the power outlet. The

internal power supply in the Switch works with AC in the voltage range

100-240VAC, frequency 50~60Hz.

Check the power indicator on the front panel to see if power is properly

supplied.

Network Application

This section provides you a few samples of network topology in which the

Switch is used. In general, the TEG-S081FMi Switch is designed to be

used as a desktop or segment switch.

SegmentApplication

For enterprise networks where large data broadcast are constantly

processed, this switch is suitable for department user to connect to the

corporate backbone.

Figure 3-2 Segment Application

You can use the TEG-S081FMi Switch to connect PCs, workstations, and

servers to each other by connecting these devices directly to the Switch.

All the devices in this network can communicate with each other.

Connecting servers to the backbone switch allow other users to access

the server’s data.

The Switch automatically learns node address, which are subsequently

used to filter and forward all traffic based on the destination address. You

can use any of the Fiber port of the Fiber Management Switch to connect

with another Switch or Hub to interconnect each of your small switched

workgroups to form a larger and long distance switched network.

Figure 3-3 Use fiber port (TEG-S081FMi Switch) to extend the distance

between workgroups
