TRENDnet TEG-2248WS - Gigabit Web Smart Switch Manuel utilisateur

The 48-Port 10/100Mbps Web Smart Switch with 4 Gigabit Ports and 2

Mini-GBIC Slots (model TEG-2248WS) delivers a 17.6Gbps switching

capacity with managed layer 2 features at a reduced cost. Support for

SNMP v1, 802.1X, STP, 802.1Q VLAN, QoS, IGMP snooping,

Broadcast Storm Control and port Trunking provides a cost effective,

scalable and secure backbone switch solution for SMB networks.

SNMP support enables the switch to provide valuable status and event

information, saving system administrators time and resources. Connect

a fiber network to the shared Mini-GBIC slots and network servers and

switches using the Gigabit RJ-45 ports. Access the Web-browser

management interface and segment up to 256 Virtual Local Area

Networks, manage network priority with 802.1p support and dedicate

bandwidth with port-based Trunking.

TEG-2248WS [B1.0R]

48-Port 10/100Mbps Web Smart Switch

with 4 Gigabit Ports and 2 Mini-GBIC Slots

TEG-2248WS

rev: 06.29.2010

• 48 x 10/100Mbps Auto-MDIX Fast Ethernet ports

• 4 x 10/100/1000Mbps Auto-MDIX Gigabit ports

• 2 x 1000Base-SX/LX Mini-GBIC slots (shared with 2 Gigabit ports)

• 17.6GBps switching capacity

• IEEE 802.3x Full Duplex Flow Control and Back Pressure

• IEEE 802.3ad Port Trunk

• IEEE 802.1D Spanning Tree Protocol

• IEEE 802.1p QoS

• IEEE 802.1X Authentication and SNMP v1 support

• Supports port based IEEE 802.1Q VLAN Tag and Asymmetric VLAN

• Store and Forward switching method

• Integrated address look-up engine with an 8K absolute MAC address table

• Supports 128K bytes RAM for data buffering

• Easy configuration via Web browser

• Front panel diagnostic LEDs

• Standard 1U (19”) rackmount size (rackmount kit included)

• 3-Year Limited Warranty

FEATURES

gigabit

Network Media

Power Supply

LAN Ports

Data Transfer Rate

Address Table

Data RAM Buffer

Power Consumption

Dimension

Temperature

Weight

Certifications

• IEEE 802.3ad Port Trunk • IEEE 802.1D Spanning Tree Protocol

• Per Unit: Power, System

• Ethernet: UTP/STP Cat. 3, 4, 5 up to 100m

• 100-240V AC, 50/60Hz internal universal power supply

• Operating: 0°C ~ 40°C (32°F ~ 104°F); storage: -10°C to 70°C (14°F to 158°F)

• CSMA/CD, Star

• 48 x 10/100Mbps Auto-MDIX Fast Ethernet ports

• 8K Entries

• 440 x 310 x 44mm (17.32 x 12.25 x 1.73in.)

• 128KBytes

• 17.6 Gbps forwarding capacity

• 2.6kg (5.78lbs)

• Operating: 10 % ~ 90 % (non-condensing); storage: 5 % ~ 90 % (non-condensing)

Diagnostic LEDs

Standard

Hardware

SPECIFICATIONS

• Ethernet: 10Mbps/20Mbps (Half/Full-Duplex)

• Per Fast Ethernet: Link/ACT, 100Mbps

• IEEE 802.3 10Base-T • IEEE 802.3u 100Base-TX • IEEE 802.3ab 1000Base-T

• 24 watts (max)

Humidity

• CE, FCC

• IEEE 802.3x Flow Control and Back Pressure

• IEEE 802.3z 1000Base-SX/LX (Mini-GBIC)

• IEEE 802.1Q VLAN Tag • IEEE 802.1X Authentication

• IEEE 802.1p QoS • SNMP v1

Protocol /Topology

• Fast Ethernet: 100Mbps/200Mbps (Half/Full-Duplex)

• Gigabit Ethernet: 2000Mbps (Full-Duplex)

Switch Fabric

• Fast Ethernet: UTP/STP Cat. 5, 5e up to 100m

• Gigabit: UTP/STP Cat. 5, 5e, 6 up to 100m

• Per Copper Gigabit port: Link/ACT, Speed (1000Mbps-green, 100Mbps-amber)

TEG-2248WS

rev: 06.29.2010

TEG-2248WS [B1.0R]

48-Port 10/100Mbps Web Smart Switch with 4 Gigabit Ports and 2 Mini-GBIC Slots

• 4 x 10/100/1000Mbps Auto-MDIX Gigabit ports

• 2 x 1000Base-SX/LX Mini-GBIC slots(shared with 2 Gigabit ports)

• Per Mini-GBIC port: Link/ACT, 1000Mbps

TRENDnet is a registered trademark. Other Brands and product names are trademarks of their respective holders. Information provided in this document pertain to TRENDnet

products and is subject to change at any time, without notice. For the most recent product information please visit

http://www.trendnet.com.

RELATED PRODUCTS

PACKAGE CONTENTS

TEG-160WS

TEG-448WS 48-Port Gigabit Web Smart Switch with 4 Shared

Mini-GBIC Slots

• Rackmount Kit

• CD-ROM (Utility & User's Guide)

16-port Gigabit Web Smart Switch w/ 2 Shared

Mini-GBIC Slots

• TEG-2248WS

• Multi-Language Quick Installation Guide

ORDERING INFORMATION

To Order Please Call:

1-888-326-6061

20675 Manhattan Place,Torrance, CA 90501 USA

Tel: 1-310-961-5500

Fax: 1-310-961-5511

Web:

Email: [email protected]

www.trendnet.com

• Power Cord

NETWORKING SOLUTIONS

TEG-240WS 24-port Gigabit Web Smart Switch with 2 Shared

Mini-GBIC slots

Optional Module

TEG-MGBS10

TEG-MGBSX Mini-GBIC Multi-Mode SX Module

Mini-GBIC Single Mode LC Module (10m)

TEG-MGBS80

TEG-MGBS40 Mini-GBIC Single Mode LC Module (40m)

Mini-GBIC Single Mode LC Module (80m)

TEG-2248WS [B1.0R]

48-Port 10/100Mbps Web Smart Switch with 4 Gigabit Ports and 2 Mini-GBIC Slots

TEG-MGBS40D35

Mini-GBIC Dual Wavelength Single-Mode LC Module

1310/1550 P

TEG-MGBS10D35

Mini-GBIC Dual Wavelength Single-Mode LC Module

1310/1550 Pair

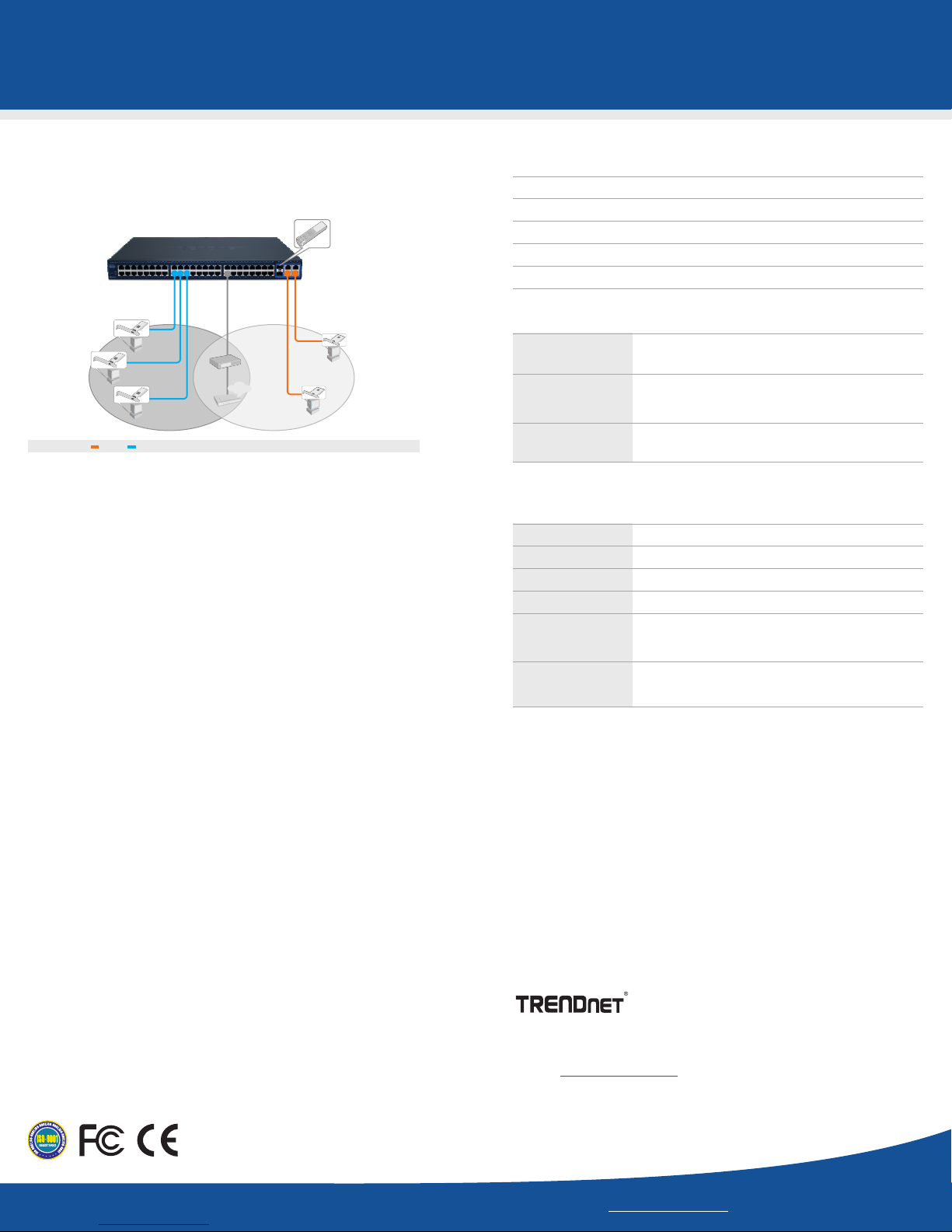

1000Mbps 10/100Mbps

Mini-GBIC Module

(TEG-MGBSX)

Workstations with

Fast Ethernet PCI Adapter

(TE100-PCIWN)

10/100Mbps

48-Port 10/100Mbps Web Smart Switch

with 4 Gigabit Ports and 2 Mini-GBIC Slots

(TEG-2248WS)

4-Port Cable/DSL

Firewall Router

(TW100-BRF114)

Internet

Workstations with

Copper Gigabit PCI Adapter

(TEG-PCITXR)

VLAN Group 2VLAN Group 1

Cable/DSL

Modem
