TRENDnet TK-802R Manuel utilisateur

Quick Installation Guide

TK-802R

Table of Contents

English 1

Troubleshooting 9

1. Before You Start 1

2. How to Install 2

3. Operation 5

Version 08.31.2009

ENGLISHFRANÇAISDEUTSCHESPAÑOL

ÐÓÑÑÊÈÉ

1. Before You Start

?PS/2 Keyboard

?PS/2 Mouse

?VGA Compatible Monitor

?PS/2 KVM cables (e.g. TK-C06, TK-C10, TK-C15)

?Windows 98SE/ME/2000/XP/2003 Server/Vista, Linux and Netware

Package Contents

?TK-802R

?Multi-Language Quick Installation Guide

?Daisy-Chain Cable

?Rack mount kit

?AC Power Adapter (9V DC, 1A)

System Requirements

ENGLISHFRANÇAISDEUTSCHESPAÑOL

ÐÓÑÑÊÈÉ

2. How to Install

1. Turn OFF all computers and their peripherals,

and then disconnect all power cords.

5. Turn ON the connected computers one-by-one

and wait until each computer's desktop

appears.

4. Use the KVM cables to connect each computer

to the KVM switch. Note: Do not use the

supplied daisy-chain cable to connect to your

computer. You must purchase these KVM

cables separately.

3. Connect the included AC Power Adapter to the

KVM switch and then to a power outlet.

2. Connect the shared PS/2 keyboard, monitor,

and PS/2 mouse to the KVM switch's Console

Port.

ENGLISHFRANÇAISDEUTSCHESPAÑOL

ÐÓÑÑÊÈÉ

Note:

1. Must use the daisy chain cable provided with the KVM switch

2. Only daisy chain the KVM switch with another TK-802R

3. Stackable up to 16 KVM switches

Daisy-Chain

9. Press Port 1 button on the first (master) switch

for 3 seconds to initialize the daisy chain.

6. Connect one end of the daisy-chain to the

Daisy chain in port on the first (master) KVM

switch.

7. Connect the opposite end of the daisy-chain

cable to the Console port on the second

switch (slave1)

8. If you have a third KVM switch, connect one

end of the daisy chain to the Daisy chain in

port on the second KVM switch (Slave 1). Then

connect the opposite end of the daisy-chain

cable to the console port on the third switch

(Slave 2). Repeat for each additional switch.

slave1

Master

slave2

ENGLISHFRANÇAISDEUTSCHESPAÑOL

ÐÓÑÑÊÈÉ

Note: DO NOT PRESS the port 1 button for 3 seconds or longer on any slave switch

because this will initialize only the switches downstream from this slave switch.

10. Turn ON the connected computers one-by-

one and wait until each computer's desktop

appears.

Rack Mount

The KVM Switch can be mounted in an EIA standard-size, 19-inch rack, which can be

placed in a wiring closet with other equipment.

Note: If you would like to mount the KVM switch to a EIA 19” equipment rack, install the

included mounting brackets to the sides of the KVM switch, secure them with the screws

provided, and then mount the KVM switch to the equipment rack with the hardware

provided by the equipment rack manufacturer.

11. Attach the mounting brackets to both sides of

the switch and secure them with the provided

screws.

12. Carefully position the switch onto the rack.

Align the bracket to the screw holes on the

rack, then use the screws provided with the

equipment rack to mount the switch.

Your installation is now complete.

To ensure the highest level of customer service and support, please take a moment to

Thank you for choosing TRENDnet.

ENGLISHFRANÇAISDEUTSCHESPAÑOL

ÐÓÑÑÊÈÉ

Note: To switch between computers, you can use the front-panel push buttons or the

Hot Key commands.

Push Buttons

Press the push buttons to switch between

computers.

LED Indicators

Bank Number: Indicates the number or sequence

of the switch when daisy chained. This number is

01 when the switch is not daisy chained.

Red LED light: KVM cable is connected and PC

is powering the KVM switch.

Green LED light: Indicates the selected PC port

is active, whether the computer is turned on or off.

3. Operation

ENGLISHFRANÇAISDEUTSCHESPAÑOL

ÐÓÑÑÊÈÉ

Hot Key Commands

A keyboard hot key command consists of at least three keystrokes:

Hot Key command = Scroll Lock + + Command key(s)

After pressing the key, you have 2 seconds to press the Scroll Lock key

again. You then have another 2 seconds to press a command key. A beep confirms that

the KVM switch is in "Hot Key" mode. If you do not press a key within 2 seconds, the

switch will exit hot key mode.

To select a specific PC port

Scroll Lock

For example, to select port 1, hit the following key sequence:

Select PC =

Port numberBank number

For example, to select port 8 of the 10 KVM switch on a series of daisy chained

TK-802R's you hit the following key sequence:

Note: When using the KVM switch standalone, type in 0 + 1 for the bank number.

For a list of all the Hot Key commands, please see the Quick Reference Sheet.

Scroll Lock Scroll Lock +

+A+B+Y+Z

Scroll Lock Scroll Lock +

+0+1+0+1

Scroll Lock Scroll Lock +

+1+0+0+8

ENGLISHFRANÇAISDEUTSCHESPAÑOL

ÐÓÑÑÊÈÉ

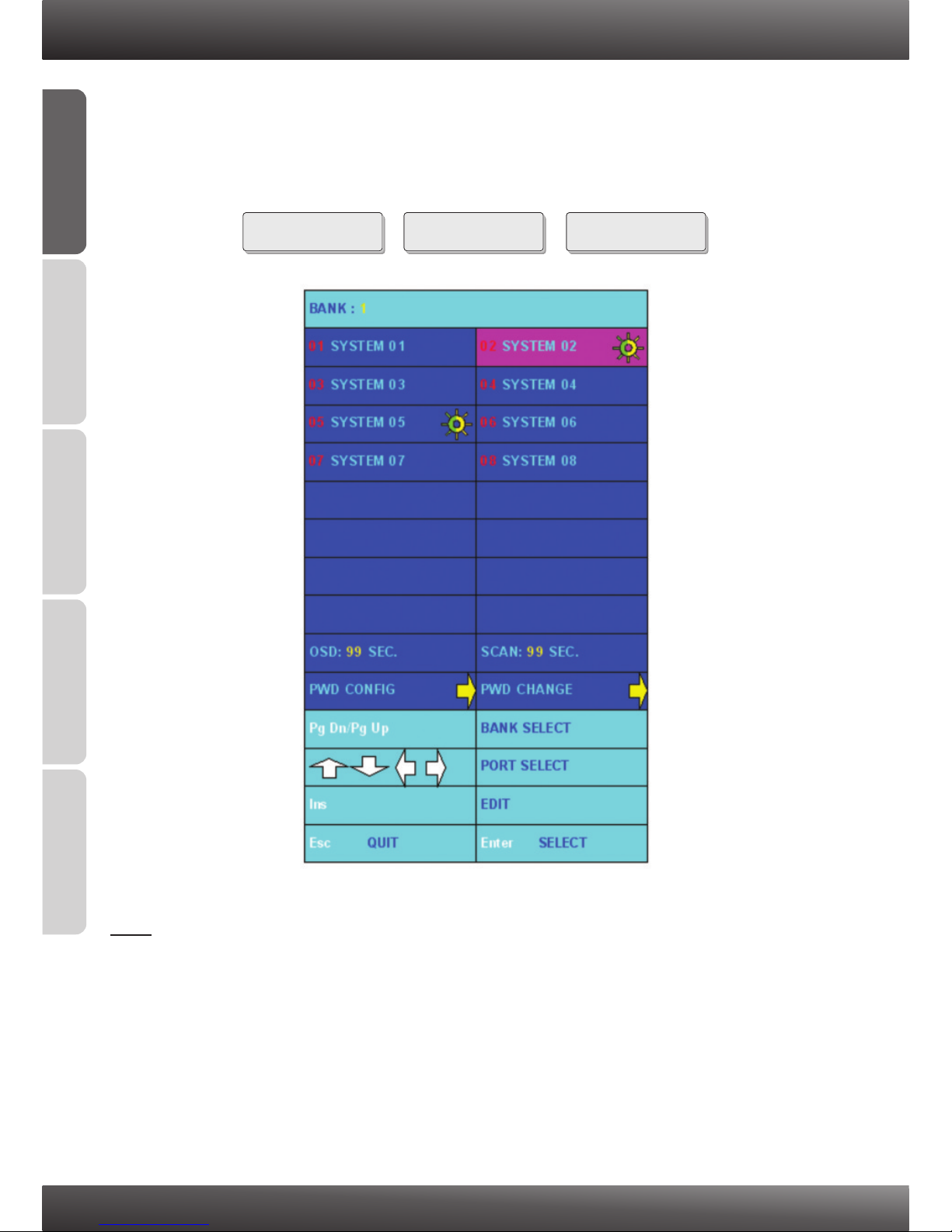

On Screen Display (OSD) Control

To activate the OSD Menu, use the following hot-key command:

Note: For detailed information about the operation of the OSD, please refer the Quick

Referece Sheet.

Scroll Lock Scroll Lock +

+Space Bar

ENGLISHFRANÇAISDEUTSCHESPAÑOL

ÐÓÑÑÊÈÉ

Press any key on keyboard

Quick Reference Sheet for TK-802R

Autoscan

Beep Sound

On/Off

Reflash

EEPROM

Next higher

channel

Next higher

bank

(Arrow up)

(Arrow down)

Use arrow keys to

select and then

hit enter

Use arrow keys to

select and then

hit enter

Use arrow keys to

select and then

hit enter

Page Up

Page Down

- - -

(ab) = bank number

(yz)= 2-digit channel number

Description

Press Push Button

for a specific port

to the switch

Select the active bank

(switch) and channel

(computer)

Select the next lower

connected channel

Only works within

active bank

Select the next higher

connected channel

Only works within

active bank

Select the next lower

bank when multiple

switches are

daisy-chained

Select the next higher

bank when multiple

switches are

daisy chained

Toggle On/Off beep

during autoscan mode

Restore to Factory

Defaults except

password

- - -

Command Hot Keys OSD Front-panel

Find PC by

Name

Change PC

Name

Use arrow keys to

select and then hit

enter

- - -

Search presence of a

specific PC by name

Change the PC Name

- - -

Scroll Lock Scroll Lock +

+A+B+Y+Z

Scroll Lock Scroll Lock +

Scroll Lock Scroll Lock Space Bar

Scroll Lock Scroll Lock End

Scroll Lock Scroll Lock +

Scroll Lock Scroll Lock Page Up

Scroll Lock Scroll Lock Page Down

Select PC

Next lower

channel

Next lower

bank

Press on button

1 for 3 seconds - - -

- - -

Use arrow keys to

navigate, then hit

enter to select and

edit name

- - -

Press any button

or key

Reset /

Initialize

Show OSD

Autoscan

Stop Autoscan

Autoscan

with

Programmable

Delay Time

Resets/reboot/initialize

daisy-chain and

activates password

protection

Activates OSD menu

Autoscan through every

connected channel for

quick browsing of each

channel

End Autoscan activity

Specify a delay within a

range of 5~99 seconds

Press any push

button

- - -

Press any button

or key
