TRENDnet TV-IP342PI Manuel utilisateur

TRENDnet User’s Guide

Cover Page

TRENDnet User’s Guide

Table of Contents

Contents

Product Overview .................................................................................. 2

Package Contents .............................................................................................................2

Features............................................................................................................................2

Product Hardware Features .............................................................................................3

Installation ............................................................................................4

Hardware Installation.......................................................................................................4

Camera Installation ..........................................................................................................6

Configuration......................................................................................... 9

Viewing Camera Basic Function .......................................................................................9

Configuring the Camera Setting .....................................................................................11

System ............................................................................................................................11

NETWORK.......................................................................................................................14

AUDIO/VIDEO SETTING ..................................................................................................25

EVENT CONFIGURATION ................................................................................................29

How to Switch the Cable Access Port.................................................... 35

How to Access the IP camera via IP Installer ......................................... 37

Troubleshooting .................................................................................. 38

TRENDnet User’s Guide

TV-IP342PI

Product Overview

TV-IP343PI

Package Contents

TV-IP342PI

Multi-Language Quick Installation Guide

CD-ROM (Utility, Software & User's guide)

Power adapter (12V DC. 1A) (1.5M / 5 ft.)

Network cable (1.5 M/ 5 ft.)

RJ-45 coupler

Camera Mounting hardware

Features

The Outdoor 2MP Full HD PoE Day/Night Dome Network Camera, model TV-IP342PI,

offers 15 m (50 feet) night vision, an IP66 weather rating, tamper detection, and 3x

manual optical zoom for installation flexibility. Record full 1080p HD video (1920 x 1080)

at 30 fps in a space saving H.264 compression format. Manage up to 32 TRENDnet

cameras with included complimentary software and mobile apps.

Resolution

Record 2 Megapixel Full 1080p HD, 1920 x 1080 at 30 fps, in the space saving H.264

compression format

Multi-Language Interface

Support for English, French, Spanish, German, and Russian

Time and Text Stamp

Enable time and additional identifying text stamp overlays

IPv6

IPv6 support

ONVIF

ONVIF v2.20 and v1.01 compliant

Dynamic DNS Support

Support for dyn.com, no-ip.com, and iptecno.com

Samba Support

Record video to a defined network storage device

Tamper Detection

TRENDnet User’s Guide

TV-IP342PI

Receive tamper detection video clips via email, ftp, or save to network storage device or

Micro-SD card

D-WDR

Improved image quality in high contrast light environments with Digital Wide Dynamic

Range technology

Image Rotation

90 degree and 180 degree rotation for wall and ceiling installations

Motion Detection

Create up to 3 motion detection windows with separate sensitivity settings and event

triggers

Privacy Masks

Create up to three privacy masks to conceal sensitive areas

Product Hardware Features

Camera Overview

IR Lens: IR lens for the camera.

Weatherproof Housing:Housing is rated with IP66.

IR Lens

Weatherproof housing

TRENDnet User’s Guide

TV-IP342PI

Camera Connectors

Ethernet/PoE Port: Plugs the network cable to connect to your local area

network (LAN). If you are using the PoE, you must have the network cable

connect to your PoE switch or PoE Injector.

Power Connector: Connects the power adapter to supply power to the camera

if using non-PoE connection

Speaker Out: Connects an external audio device (such as the active speaker) to

deliver sound via the camera.

Microphone In: Connects an external microphone to receive the on-the-spot

sound where the camera is installed.

BNC Video Out: Connect a CRT monitor or handheld monitor.

GPIO Port: Connect external device. Please refer to I/O setting paragraph. It's

also used for IP camera reset. Please refer to Factory Default paragraph.

Installation

Hardware Installation

Viewing Angle

Choose a location that has good angle to shoot the image you expect to see. The motion

detection area should also be considered when installing the camera.

Manual Pan/Tilt

The camera can manual pan/tilt to your desired location.

Vari-Focal Lens

The camera equipped with external vari-focus lens control. Achieve clear focus by

adjusting the zoom/focus button.

Power

Connector

Speaker

Out

Microphone

GPIO

Port

Ethernet /PoE

Port

BNC

Video Out

TRENDnet User’s Guide

TV-IP342PI

Waterproofing

The camera is designed to be waterproof. However, you need to protect the connectors

from water damage. For example, you can tape the junction points of the connectors

while you connect the cables or purchase a weatherproof cable/power cord protector.

Vandal Dome Installation Tips

In order to ensure IP66 waterproof level, please install the vandal dome according to the

instructions.

a. The unused cable outlet hole must be closed and the waterproof connector on the

used hole must be firmly locked.

b. We recommend the bottom of housing be set and firmly sealed on a smooth flat

surface.

c. When mounting the camera housing on a ceiling or wall, please use the screws with

the black rubber o-rings. Without the o-ring, water may seep into the machine.

d. Turn and loosen the control stick, shift right and left to adjust the vari-focal lens

until the image becomes clear, then turn and tighten the stick to fix it.

e. Before closing the dome cover, make sure that the black rubber band sticks to the

inside of the cover completely. If the rubber band is crooked or uneven, it may

cause the camera to no longer be waterproof.

f. Lock the screws on the dome cover tightly to ensure there's no gap between the lid

and the base.

Note: When connecting cables into machine, it is recommended to use a hose to include

all the cables inside instead of plugging in several cables separately. Water may seep

through a gap from bundled cables. You can also seal the connector hole with silicone

after installation.

TRENDnet User’s Guide

TV-IP342PI

Camera Installation

1. Insert the Installation CD-ROM into your computer’s CD-ROM drive to initiate the

Auto-Run program. Click the Install Camera.

3. Write down the MAC ID of the camera.

4. Plug in and connect the power adapter to the camera. If you are using the PoE to

supply power to the camera, please skip to the next step. Click Next when you are

done.

5. Connect a network cable to the camera’s network port and then to your router. If

you are using PoE, please ensure the cable is connected to a PoE switch or PoE

injector.

TRENDnet User’s Guide

TV-IP342PI

6. Wait while searching the cameras.

7. The founded cameras will show on the screen. The camera already selected by

default if you have only one camera installed. If you have more than one camera in

the same Network, you will need to identify the camera by the MAC ID. Click Next.

8. Select "DHCP" option to assign an IP by DHCP server or Select "Fixed IP" to set IP

address manually. Click Next.

9. If you select "Fixed IP", fill out the IP address, subnet mask, default gateway, DNS

server. Please ensure that the IP address of the camera and the computer must

within the same network. Click Next.

TRENDnet User’s Guide

TV-IP342PI

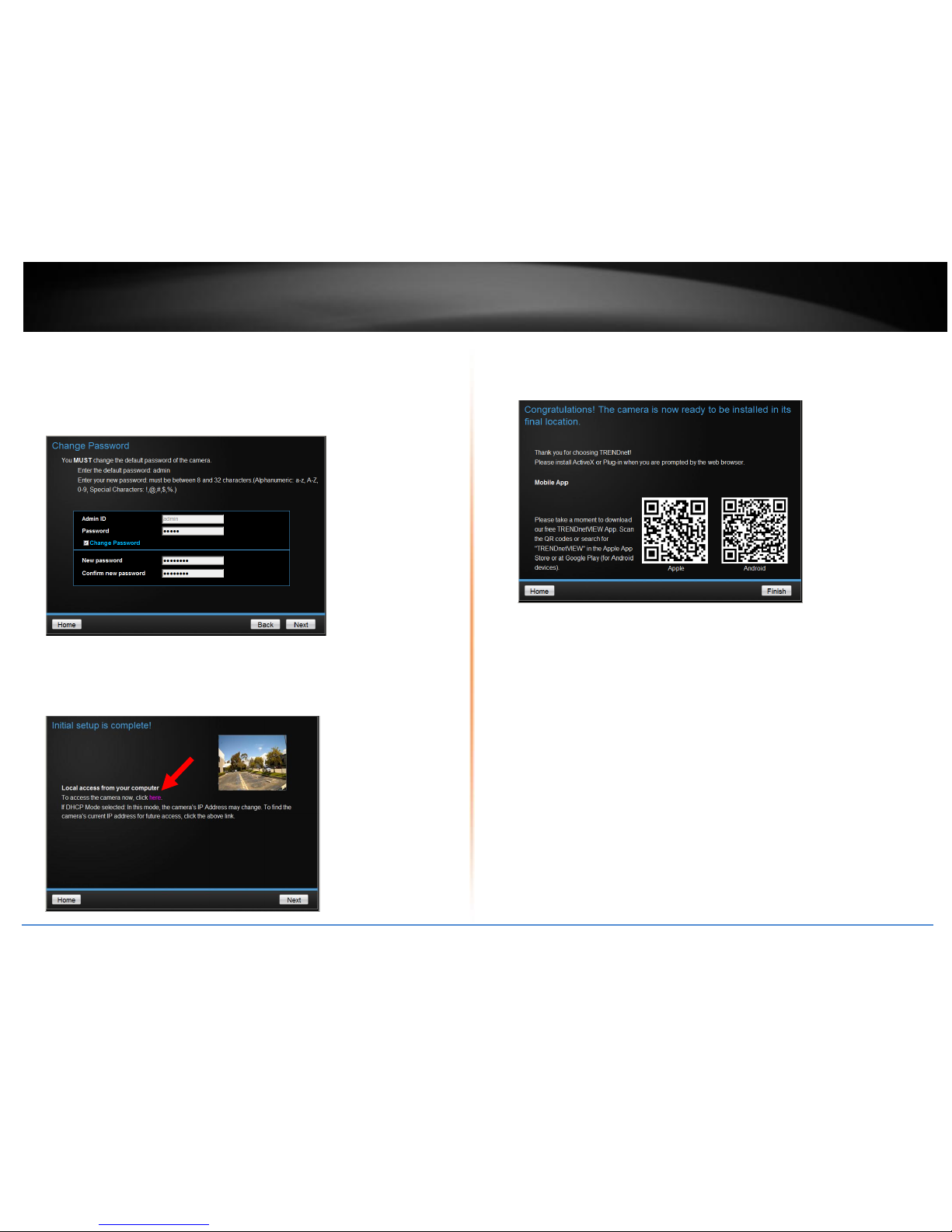

10. Type in the Password. The default password is “admin”. You must change the

default password of the camera. Enter the default password: admin and enter the

new password. The password must be between 8 and 32 characters.

(Alphanumeric: a-z, A-Z, 0-9), and confirm the new password by entering the

password twice.

11. Click the hyperlink to access to the camera’s web page or click Next. It is

recommended that you access the IP camera now if it was using a DHCP

connection.

12. Click Finish to exit the program or click Home to return to the main screen.

This device also supports the Mobile App. Using your mobile device to scan the QR

code to install the App.

TRENDnet User’s Guide

TV-IP342PI

Configuration

Viewing Camera Basic Function

Open the Web browser on your computer (example showed in this User’s Guide is

based on the Internet Explorer). In the Address bar, type the IP address you got from

"Camera Installation" chapter or found by IP Installer, and then press [Enter].

When the login window appears, enter the User name (admin) and Password and press

OK to access to the main screen of the camera’s Web Configuration.

Note: if you are initially access to the camera, you will be prompted to install a new

plug-in for the camera. Permission request depends on the Internet security settings of

your computer. Click Allow and Install to process.

After you login into the live screen of the camera, the main page will appear as below:

The live screen of the IP camera configuration provides you with many useful

information and functions, including:

SETUP : Click the button to configure the camera.

SNAPSHOT: Click the button to take a snapshot. The snapshot will pop up another

window for your review first. Right click the mouse to save the snapshot at the

desire destination.

System Information: It shows current system Date, Time, Video Resolution, and

Video Refreshing Rate.

Digital Zoom: The drop down menu has 3 images size available, 1/2x, 1x and 2x. The

default is 1/2x.

Streaming Profile: Use the drop down menu to select Streaming 1 & Streaming 2

video. (If the streaming 2 setting is closed on “AUDIO/VIDEO SETTING >> Video”,

this option will not appear)










