PREFACE

Thank you for purchasing the TV-IP110/TV-IP110W Wire/Wireless

Internet Camera Server, a powerful and high-quality image network camera.

The camera can be installed as a standalone system within your application

environment easily and quickly, and supports remote management function

so that you can access and control it using a Web browser on your PC.

This guide will provide you more information of instruction and

illustrations on how to use your camera, which includes:

Chapter 1 Introduction to Your Camera describes the features of the

camera. You will also know the components and functions of

the camera.

Chapter 2 Hardware Installation helps you install the camera according

to your application environment. You can use this camera at

home, at work, at any where you want.

Chapter 3 Accessing the Camera lets you start using your camera

without problem. The camera can be set up easily and work

within your network environment instantly.

Chapter 4 Configuring the Camera guides you through the

configuration of the camera using the web browser on your PC.

Chapter 5 Using SecurView™ shows you the detail instructions on

operating SecurView™ software.

Chapter 6 Appendix provides the specification of the camera and some

useful information for using your camera.

NOTEThe illustrations and configuration values in this guide are for

reference only. The actual settings depend on your practical

application of the camera.

- 2 -

Contents

PREFACE .........................................................................1

CHAPTER 1.....................................................................4

INTRODUCTION TO YOUR CAMERA...............4

1.1 CHECKING THE PACKAGE CONTENTS ...................................4

TV-IP110 (FRONT/BACK VIEW) ....................................................5

TV-IP110W (FRONT/BACK VIEW).................................................6

1.3 FEATURES AND BENEFITS .....................................................8

1.4 SYSTEM REQUIREMENT.........................................................9

CHAPTER 2...................................................................10

HARDWARE INSTALLATION..............................10

2.1 INSTALLING THE CAMERA STAND.......................................10

2.2 CONNECTING THE CAMERA TO LAN...................................11

2.3 APPLICATIONS OF THE CAMERA..........................................12

CHAPTER 3...................................................................13

ACCESSING THE CAMERA..................................13

3.1 USING IP SETUP ..................................................................13

3.2 ACCESSING TO THE CAMERA...............................................18

3.3 CONFIGURING THE IP ADDRESS OF THE PC ........................21

CHAPTER 4...................................................................22

CONFIGURING THE CAMERA ...........................22

4.1 USING THE WEB CONFIGURATION ......................................22

4.2 USING SMART WIZARD .......................................................23

4.3 BASIC SETUP .......................................................................27

4.4 NETWORK SETTINGS ...........................................................31

4.5 SETTING UP VIDEO ..............................................................38

4.6 EVENT SERVER CONFIGURATION........................................41

4.7 MOTION DETECT.................................................................44

4.8 EVENT CONFIG....................................................................46

4.9 TOOLS .................................................................................51

4.10 INFORMATION .....................................................................53

CHAPTER 5...................................................................54

- 3 -

SECURVIEW™ SOFTWARE..................................54

5.1 INSTALLATION ...............................................................54

5.2 USING INSTALLATION ..................................................59

ITEM FEATURES ............................................................................59

TO REMOVE A CAMERA ................................................................69

TO LINK TO THE WEB PAGE OF THE CAMERA...............................70

TO RECORD VIDEO........................................................................71

TO CONFIGURE THE RECORDING SETTINGS...................................76

TO PLAYBACK THE RECORDED VIDEO ..........................................78

TO SET UP MOTION DETECTION OPTIONS ......................................78

ACCOUNT .....................................................................................81

OTHER..........................................................................................81

INFORMATION...............................................................................82

CHAPTER 6...................................................................83

APPENDIX.....................................................................83

A.1 SPECIFICATION....................................................................83

- 4 -

CHAPTER 1

INTRODUCTION TO YOUR

CAMERA

1.1 Checking the Package Contents

Check the items contained in the package carefully. You should have the

following:

TV-IP110/TV-IP110W Network Camera.

Multi-Language Quick Installation Guide

Utility CD-ROM

Detachable External Antenna (for TV-IP110W only)

Camera Stand

RJ-45 Ethernet Cable

AC Power Adapter (5VDC, 2.5A)

NOTE: If there is any item damage or missing, please contact your

local authorized deal for replacement.

- 5 -

1.2 Getting to Know Your Camera

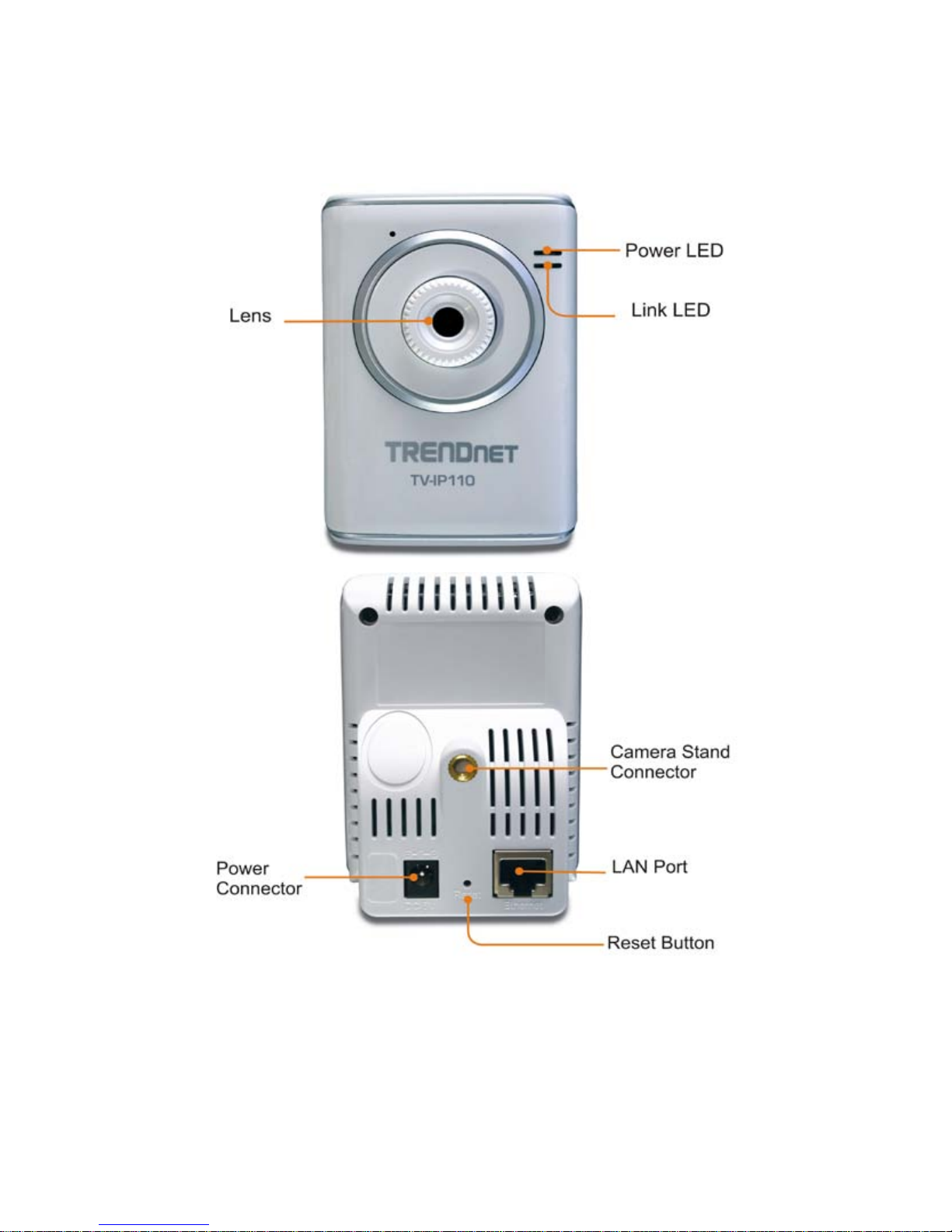

TV-IP110 (Front/Back View)

- 6 -

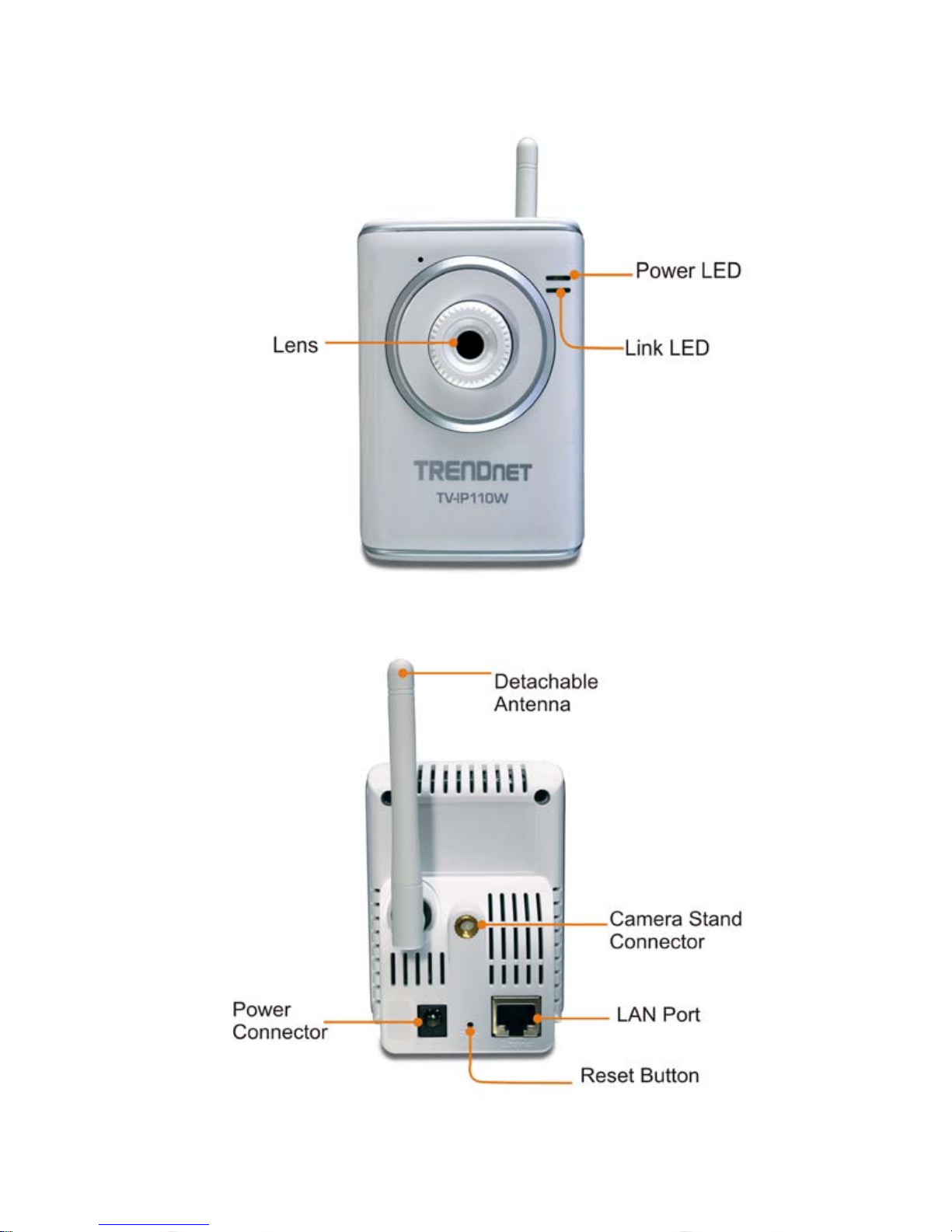

TV-IP110W (Front/Back View)

- 7 -

-Power LED: A steady orange light indicates the camera is

powered on.

-Link LED: A flash green light indicates the camera’s network

connection correctly.

-Detachable Antenna (TV-IP110W only):

The detachable external antenna allows you to adjust its position to

obtain the maximum signal.

-Camera Stand Connection: Connects the camera with the camera

stand.

-Power Connector: Connects the AC power adapter to supply

power to the camera.

-LAN Port: It is used to connect the network RJ-45 cable, which

supports the NWay protocol so that the camera can detect the

network speed automatically.

-Reset Button: Reset will be initiated when the reset button is

pressed once. The power LED begins to flash.

Factory Reset will be initiated when the reset button is pressed continuously

for three seconds or when Power LED begins to light up. Release the reset

button and the Power LED will begin to flash.

- 8 -

1.3 Features and Benefits

Surveillance Supported

Enable motion detection and setup automated email alerts and upload

FTP for security.

Remote Control Supported

By using a standard Web browser or the bundled SecurView software

application, the administrator can easily change the configuration of the

camera via Intranet or Internet. In addition, the camera can be upgraded

remotely when a new firmware is available. The users are also allowed

to monitor the image and take snapshots via the network.

Multiple Platforms Supported

The camera supports multiple network protocols, including TCP/IP,

SMTP e-mail, HTTP, and other Internet related protocols. Therefore,

you can use the camera in a mixed operating system environment, such

as Windows 2000, XP, and Vista.

Multiple Applications Supported

Through the remote access technology, you can use the cameras to

monitor various objects and places for your own purposes.

For example, babies at home, patients in the hospital, offices and banks,

and more. The camera can capture both still images and video clips, so

that you can keep the archives and restore them at any time.

- 9 -

1.4 System Requirement

Networking

LAN: 10Base-T Ethernet or 100Base-TX Fast Ethernet.

WLAN: IEEE 802.11b/g. (For TV-IP110W)

Accessing the Camera using Web Browser

Platform: Microsoft® Windows® 2000/XP/Vista/Windows 7

Macintosh OSX

CPU: Intel Pentium III 350MHz or above

RAM: 128MB

Resolution: 800x600 or above

User Interface: Microsoft® Internet Explorer 6.0 or above

Accessing the Camera using SecurView

Platform: Microsoft® Windows® 2000/XP/Vista/Windows 7

Hardware Requirement:

1 camera connected: Intel Pentium III 800MHz; 512MB RAM

2 ~ 4 cameras connected: Intel Pentium 4 1.3GHz; 512MB RAM

5 ~ 8 cameras connected: Intel Pentium 4 2.4GHz; 1GB RAM

9 ~ 16 cameras connected: Intel Pentium 4 3.4GHz; 2GB RAM

Resolution: 1024x768 or above

NOTEIf you connect multiple cameras to monitor various places

simultaneously, you are recommended to use a computer with

higher performance.
