TRENDnet TE100-MP2U Manuel utilisateur
TE100-MP1U
TE100-MP2U
TEW-MP2U
Quick Installation Guide
Table of Contents
Table of Contents
Version 04.06.07
English ......................................... ..............................................................................................................
Troubleshooting ...........................................................................................................................................
1
1
3
4
6
8
10
11
12
14
1. Before You Start ................................................
2. How to Connect .................................................................................................................................
3. Configure the Print Server .................................................................................................................
4. Configure Wireless Settings (TEW-MP2U only) ................................................................................
5. Printing ..............................................................................................................................................
6. Faxing ................................................................................................................................................
7. Scanning ...........................................................................................................................................
8. Storage ..............................................................................................................................................
................................. ...............................................
1. Before You Start
English
1
Package Contents
System Requirements
Note:
1. Do not install MFP Server Control Center, connect printer to print server and connect
the computer to the print server until instructed to do so.
2. The MFP Server Control Center must be installed on each computer in order to use
your multi-function printer.
Application
54Mbps 802.11g Wireless 2-Port
Multi-Function USB 2.0 Print Server
(TEW-MP2U)
Notebook with
Wireless PC Card
(TEW-421PC)
Workstation with
Wireless PCI Adapter
(TEW-423PI)
Cable/DSL Modem
Internet
Multi-Functional
USB 2.0 Printer
External USB 2.0
Storage Drive
54Mbps 802.11g
Wireless Firewall Router
(TEW-432BRP)
Cable/DSL
Modem
1 or 2 Port 10/100Mbps
USB 2.0 Print Server
(TE100-MP1U/TE100-MP2U)
Multi-Function
Workstations with Fast Ethernet Adapter
(TE100-PCIWN)
Multi-Functional
USB 2.0 Printer
Cable/DSL 4-Port
Broadband Router
(TW100-S4W1CA)
Internet
External USB 2.0
Storage Drive
English
2
2. How to Connect
Note: Please refer to your printer's manual for printer installation instructions.
3. Connect a RJ-45 network cable
from a Switch/Router to the LAN
port of the Print Server.
5. Power ON printer.
1. Install the printer drivers to your
computer. Then shutdown the
printer and disconnect the printer
from your computer.
2. Connect the Power Adapter to
the Print Server and then to a
power outlet.
4. Connect the USB Printer to the
USB port of the Print Server.
6. Verify the Power, Link and USB1
or USB2 LEDs are lit on the Print
Server.
English
3
1. Insert the Utility CD-ROM into
your computer's CD-ROM Drive
and then click Install Utility.
3. Configure the Print Server
2. Follow the InstallShield Wizard
instructions. Then click Finish.
3. Click the Print Server and click
Configure Server.
4. Enter the User name and
Password, and then click Login.
User Name: admin
Password: admin
English
4
Print Server configuration is now complete.
For detailed information regarding the TE100-MP1U/TE100-MP2U
configuration and advanced settings, please refer to the User's Guide on the
Utility CD-ROM or TRENDnet's website at www.trendnet.com
5. Click TCP/IP. Assign the Print
Server a Static IP address and
then click Apply.
Note: The IP Address must match
the same network segment as your
computer.
7. Cllick Close.
6. Click Yes to restart the Print
Server.
Note: For the TEW-MP2U, proceed to section 5.
Register Your Product
To ensure the highest level of customer service and support, please take a moment to
register your product Online at: www.TRENDnet.com/register
Thank you for choosing TRENDnet
English
5
English
6
4. Configure Wireless Settings (TEW-MP2U only)
1. Click the Print Server and click
Configure Server.
2. Enter the User name and
Password, and then click Login.
User Name: admin
Password: admin
3. Click Wireless. Select your
Region or Domain to meet your
country's regulations. Enter the
SSID of your wireless network. If
encryption is enabled on your
wireless network, select WEP or
WPA-PSK and enter your
encryption key. Then click Apply.
If you do not know your encryption
key, contact your network
administrator or logon to your
wireless router.
4. Click Yes to restart the Print
Server.
English
7
5. Cllick Close.
7. Verify the WLAN LED is lit on the
Print Server.
6. Unplug the power to the Print
Server, disconnect the Ethernet
cable to the Print Server, wait 15
seconds, then plug power to the
Print Server back in.
Print Server wireless configuration is now complete.
For detailed information regarding the TEW-MP2U configuration and advanced
settings, please refer to the User's Guide on the Utility CD-ROM or
TRENDnet's website at www.trendnet.com
Register Your Product
To ensure the highest level of customer service and support, please take a moment to
register your product Online at: www.TRENDnet.com/register
Thank you for choosing TRENDnet
English
8
5. Printing
Note:
1. For LPR, IPP and Manual connect printing instructions, please refer to the
User Guide. The User Guide is included on the Utility CD-ROM.
2. A computer using LPR or IPP printing and a computer using NetUSB printing
can not print documents to the same printer simultaneously.

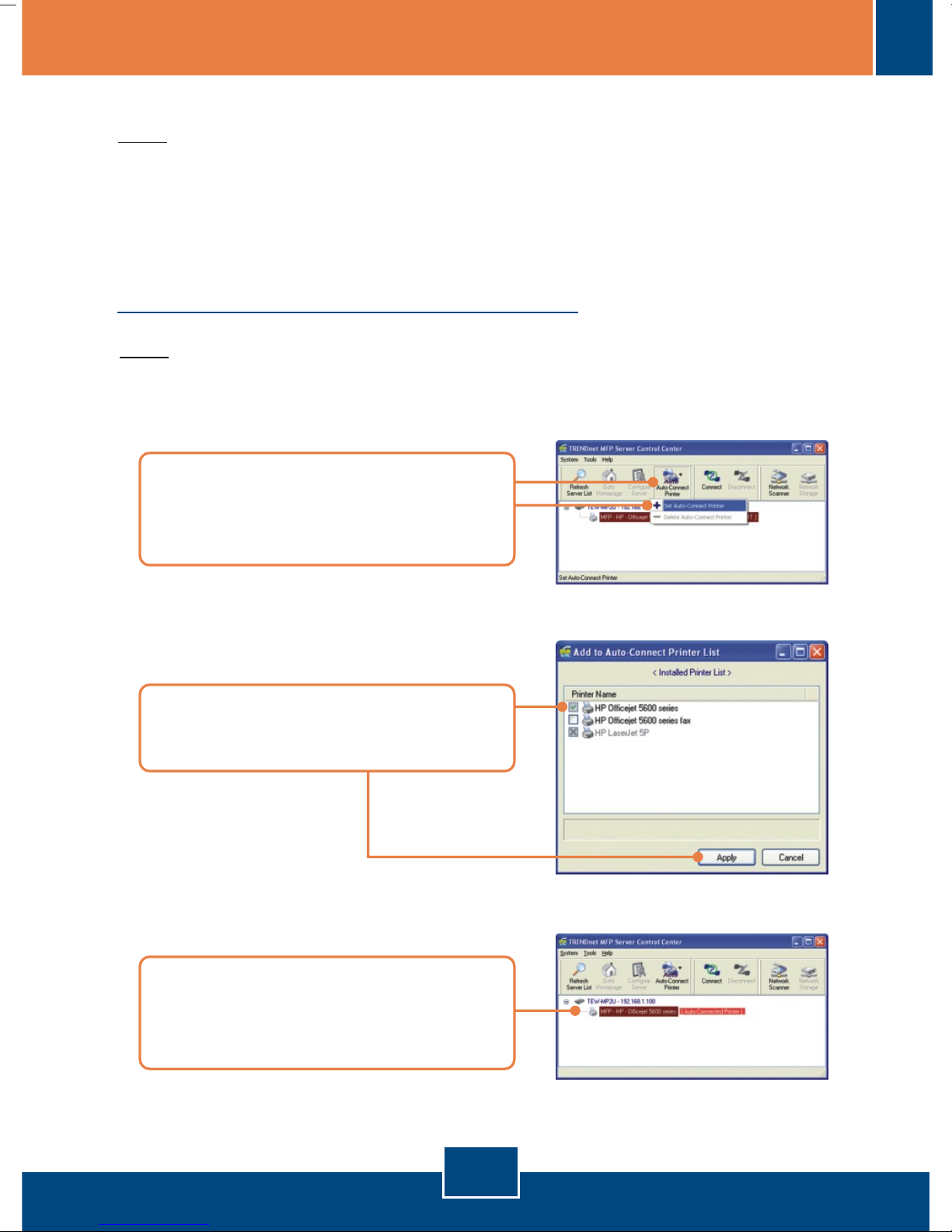

Setup for Auto Connect Printing
1. Select the printer. Click
AutoConnect Printer and click
Set AutoConnect Printer
2. Select the desired printer or fax
and click Apply.
Note: Only one user can print at a time in Auto Connect mode. Once a user
has finished printing, another user can print or scan to the printer.
3. The USB MFP Server Control
Center will now show the printer as
an AutoConnected Printer.
