Quick Installation Guide

1. Print Server Layout

TE100-P2U1P

Before you start the installation, you will need

- Parallel or USB printer(s).

- One computer with Windows Operating System and connected to your

network.

LThis Quick Installation Guide contains

brief instructions of the followings:

• Print Server Installation & Setup

• Network Printer Setup for Windows

95/98/Me/NT/2000/XP

For Unix, Netware and Mac. (Apple) environments,

please refer to the User’s Guide in the Manual folder

on the CD-ROM.

USB LED

Parallel LED

Status LED

Reset button

Power Adapter jack

LAN port

USB 1 port

USB 2 port

Parallel port

LAN status LED

Page 2

2. Hardware Installation

- Power off the Print Server and Printers.

- Connect the Print Server’s printer port to the printers.

- Connect the RJ45 cable to the LAN port and to your network hub or switch.

- Plug the AC power adapter into the power connector on the back of the

Print Server.

- Power on the printer.

- Installation Completed.

3. Software Installation (For Win95/98/ME/NT/2000/XP)

1. Insert the Utility CD into your CD-ROM.

2. The Autorun program starts and the following window appears.

If the setup program does not start automatically, run Autorun.exe in the

root folder from the CD-Rom

3. Choose Install Setup Utility, the program will automatically install Setup

Wizard into your computer.

Page 3

4. After the installation completes, the Setup Wizard window would appear,

Click on Network Print Server Setup Wizard to configure Print Server

settings and add Printer to the PC.

In the future, you can go to Start

Program

Network Print Server

SetupWizard to run the program again

5. Click NEXT, the wizard will automatically discover the print server, if it can

not be found, try Refresh.

Page 4

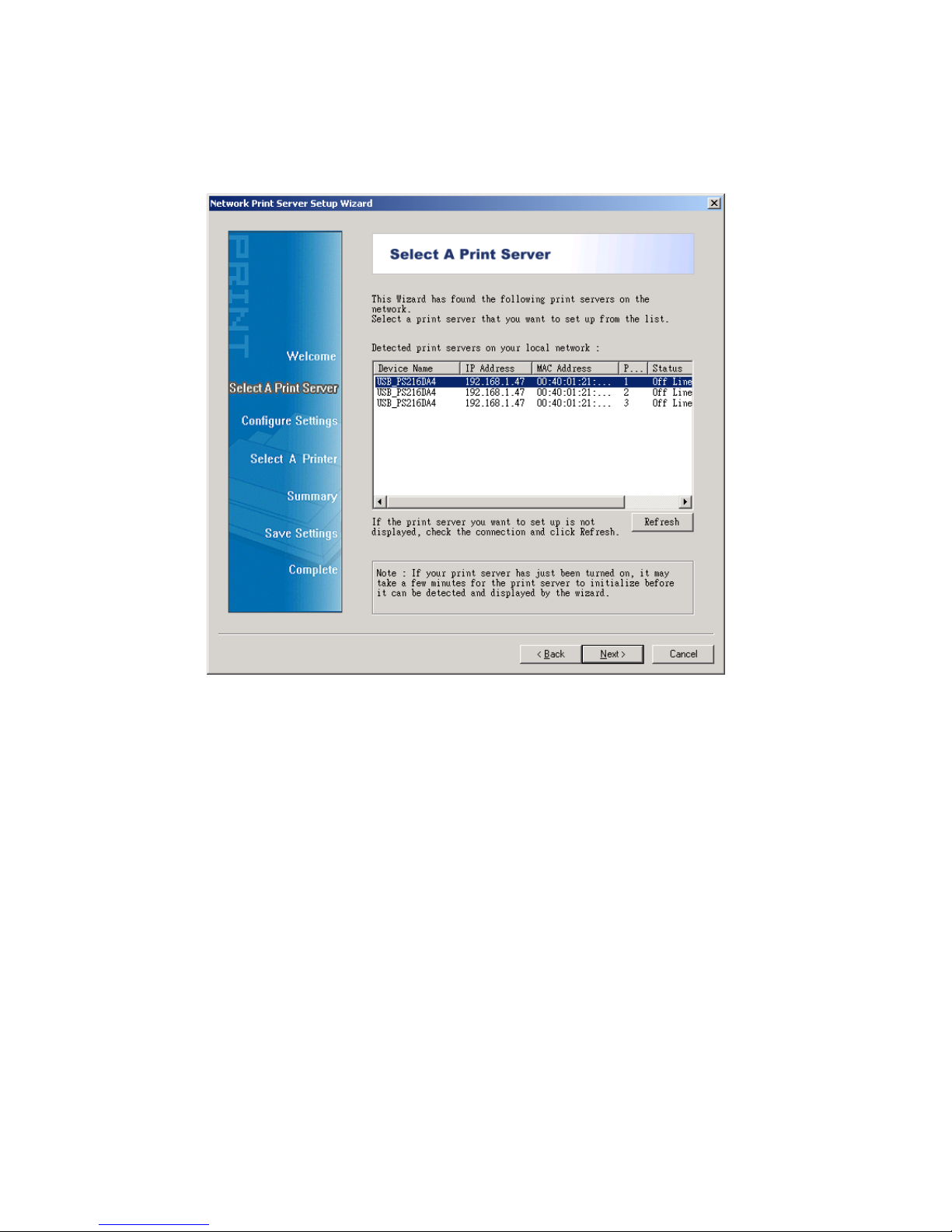

6. The Print Server will appear in the list, select the print server you want to

configure and click NEXT.

The printer name will display 3 times with different port number. Select Port 1

to configure the printer on Parallel port, select Port 2 to configure the printer on

USB 1 port, select Port 3 to configure the printer on USB 2 port.

Page 5

7. Select YES if you want to change the configuration and press NEXT to

continue.

8. Configure TCP/IP settings. If you have a DHCP server on the network,

select “Obtain an IP address automatically”, or click “Specify and IP

address” and input the IP, Mask, and Gateway IP addresses. Click “Next”.

Page 6

9. TCP/IP settings are saved, click Next to start install the printer for your PC.

10. Click Next and choose the printer you want to install. You can also add a

new printer in this step.

Page 7

If the printer is not listed under Printer Name, click on Add New Printer and

follow the below instruction.

11. Click Next and setup program will display the summary of your printer’s

configuration.

fter new printer is

added the printe

will be listed unde

the Print Name

section, select the

printer and clic

NEXT.

Page 8

12. Click Finish to complete the printer installation

13. Please repeat the steps to configure each Printer.

14. Installation Completed.

Technical Support

You can find the most recent software and user documentation on the

TRENDware website. TRENDware provides free technical support for all

customers for the duration of the warranty period on this product.

TRENDware Technical Support (USA)

Tel: +1-310-891-1100

Fax: +1-310-891-1111

E-mail: [email protected]

www.trendware.com

Support Hours: 7:30AM ~ 6:00PM,

Monday ~ Friday (except holidays)
