TRENDnet TE100-MP1UN Manuel utilisateur

TE100-MP1UN

H/W: V1.0R

Quick Installation Guide

Table of Contents

Version 09.16.08

English ......................................... ..............................................................................................................

Troubleshooting ...........................................................................................................................................

1. Before You Start ................................................

2. How to Install .....................................................................................................................................

3. Printing ..............................................................................................................................................

4. Faxing ...............................................................................................................................................

5. Scanner .............................................................................................................................................

................................. ...............................................

1. Before You Start

English

Package Contents

System Requirements

Note:

1. Do not perform the following unless instructed to do so:

1. Install the utility

2. Connect printer to Print Server

3. Connect computer to Print Server

2. The utility must be installed on each computer in order to use your multi-

function printer.

?Utility CD-ROM

?Multi-Language Quick Installation

Guide

E100-MP1UN

ower Adapter (5V, 2A)

?CPU: 300Mhz or above/ 800Mhz or above (Windows Vista)

?Memory: 256MB RAM or above/ 512MB RAM or above (Window Vista)

?Windows 2000/XP/2003 Server/Vista (32bit)

CD-ROM Drive

Application

Cable/DSL

Modem

1-Port Multi-Function Print Server

(TE100-MP1UN)

Workstations with Fast Ethernet Adapter

(TE100-PCIWN)

Multi-Functional

USB 2.0 Printer

4-Port Gigabit Firewall Router

(TWG-BRF114)

Internet

2. How to install

Note: Please refer to your printer's manual for printer installation instructions.

1. Install the printer drivers to your

computer. Then power down the

printer and disconnect the printer

from your computer.

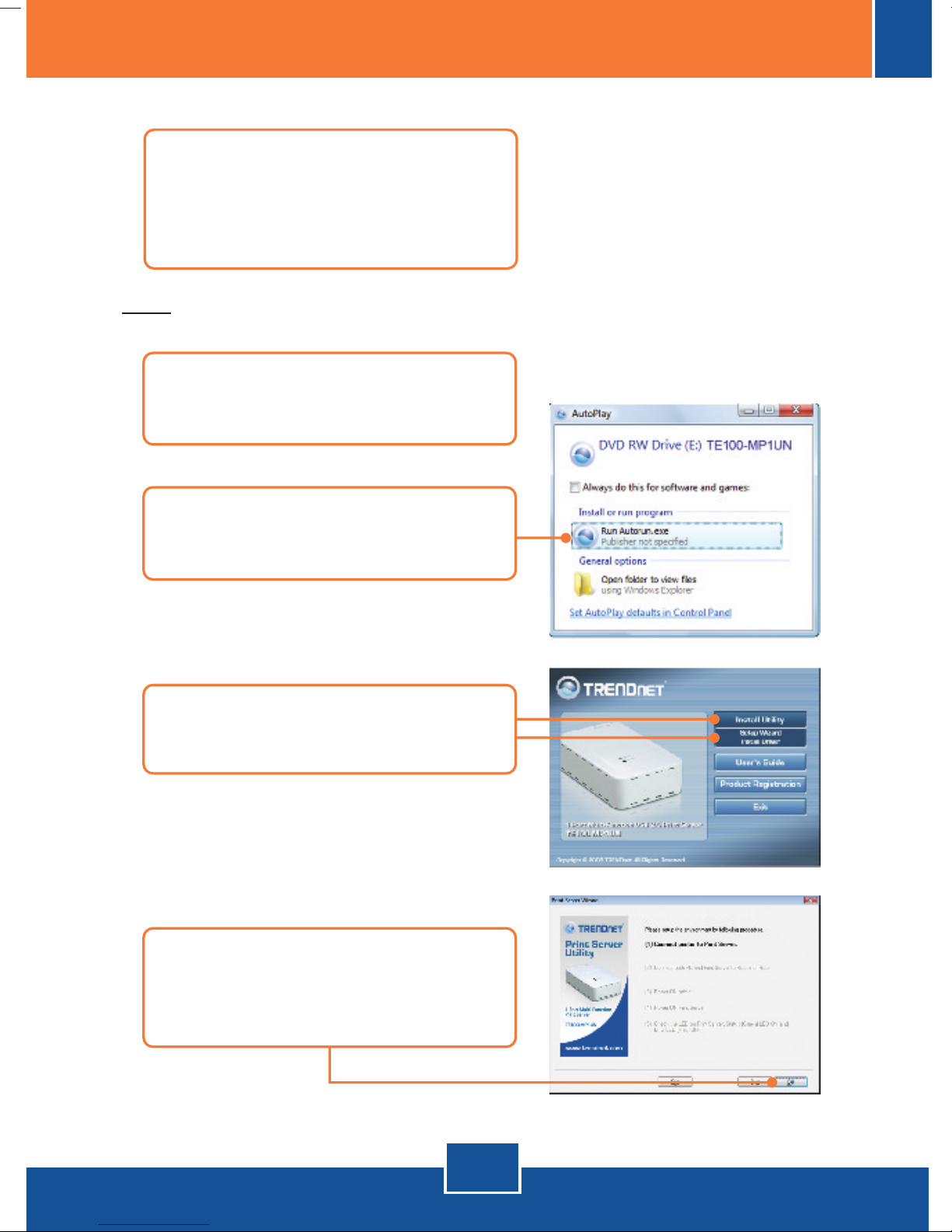

2. Insert the Utility CD-ROM into your

CD-ROM drive.

4. Click Install Utility. Then click

Setup Wizard.

English

3. Click Run Autorun.exe (Windows

Vista only).

5. Connect the USB Printer to the

USB port on the Print Server.

Then click OK.

6. Connect a RJ-45 network cable

from a Switch/Router to the LAN

port of the Print Server.

7. Connect a RJ-45 network cable

from a Switch/Router to the

Ethernet port on your computer

and then click OK.

English

9. Connect the AC Power Adapter to

the Print Server and then to a

power outlet. Then click OK.

10. Verify the Status LED is on and

the Error LED if off on the Print

Server. Then click Yes.

8. Power ON your printer and then

click OK.

English

11. Select the print server and then

click Next.

12. Configure the IP address of the

print server to be in the same

subnet as your network and then

click Next.

13. Copy down the IP address and

then click Next.

14. Click Finish.

English

17. Click Finish.

18. Click on Resource and then click

Connect.

15. Click Yes.

16. Click Next and then follow the

InstallShield Wizard instructions.

English

19. The printer driver wizard appears.

Follow the printer driver wizard to

install the printer.

20. Click OK.

Print Server configuration is now complete.

For detailed information regarding the TE100-MP1UN configuration and

advanced settings, please refer to the User's Guide on the Utility CD-ROM or

TRENDnet's website at www.trendnet.com

To ensure the highest level of customer service and support, please take a moment to

Thank you for choosing TRENDnet

English

3. Printing

Note: Only one user can use the print server at a time. Once a user has

finished using the print server, another user can use it.

2. Status will now show the client

computer and IP address that is

currently using the printer.

3. User can now start printing.

1. Click on Resource and then click

Connect.

4. Click Disconnect.

English

4. Faxing

Note: Only one user can use the print server at a time. Once a user has

finished using the print server, another user can use it.

2. Status will now show the client

computer and IP address that is

currently using the printer.

1. Click on Resource and then click

Connect.

3. User can now start Faxing. Follow

the Multifunction printer software

instructions for faxing.

4. Click Disconnect.
