TRENDnet TFM-CF56 Manuel utilisateur

TFM-CF56

CompactFlash 56K Modem Card

Quick Installation Guide

For Pocket PC

—2—

The Federal Communications Commission Statement

This equipment has been tested and found to comply with the

limits for a Class B digital device, pursuant to part 15 of the FCC

Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference

will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which

can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the

following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that

to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

—3—

You are cautioned that changes or modifications not expressly

approved by the party responsible for compliance could void your

authority to operate the equipment.

COPYRIGHTS & TRADEMARKS

Microsoft, Windows and the Windows logo are registered

trademarks of the Microsoft Corporation. All other trademarks

and brand names are the property of their respective proprietors.

—4—

Contents

?? Package Contents ……………………………… 5

?? Hardware Installation ……………………………. 6

?? Configuring a Modem Connection on Your Pocket

PC …………………………………………………… 7

?? Setting up your Pocket PC for POP3 Email…… 11

?? Connecting to ActiveSync using a Modem…… 14

—5—

Package Contents

Please ensure that the following items are included in your package. If

any items are missing contact your dealer.

?? CompactFlash 56K Modem Card

?? Analog Phone Cable

?? Quick Installation Guide

—6—

Hardware Installation

1. Firmly insert the CF Modem card

into the CompactFlash slot on

top

of your pocket PC with the 50-

connector facing the

CompactFlash slot. You will hear

a click when firmly connected.

2. Please Press YES to skip the

warning message.

3. Connect the analog phone

cable to RJ-11 of the CF

modem. And insert the other

end of the analog phone cable

into a standard telephone

outlet.

—7—

Configuring a Modem Connection on Your Pocket PC

1. On your Pocket PC, tap the Start button

and choose Settings.

2. Tap the Connections tab and choose

Modem icon. Note: Consult with your

network administrator for specific

settings.

3. Tap New Connection…

—8—

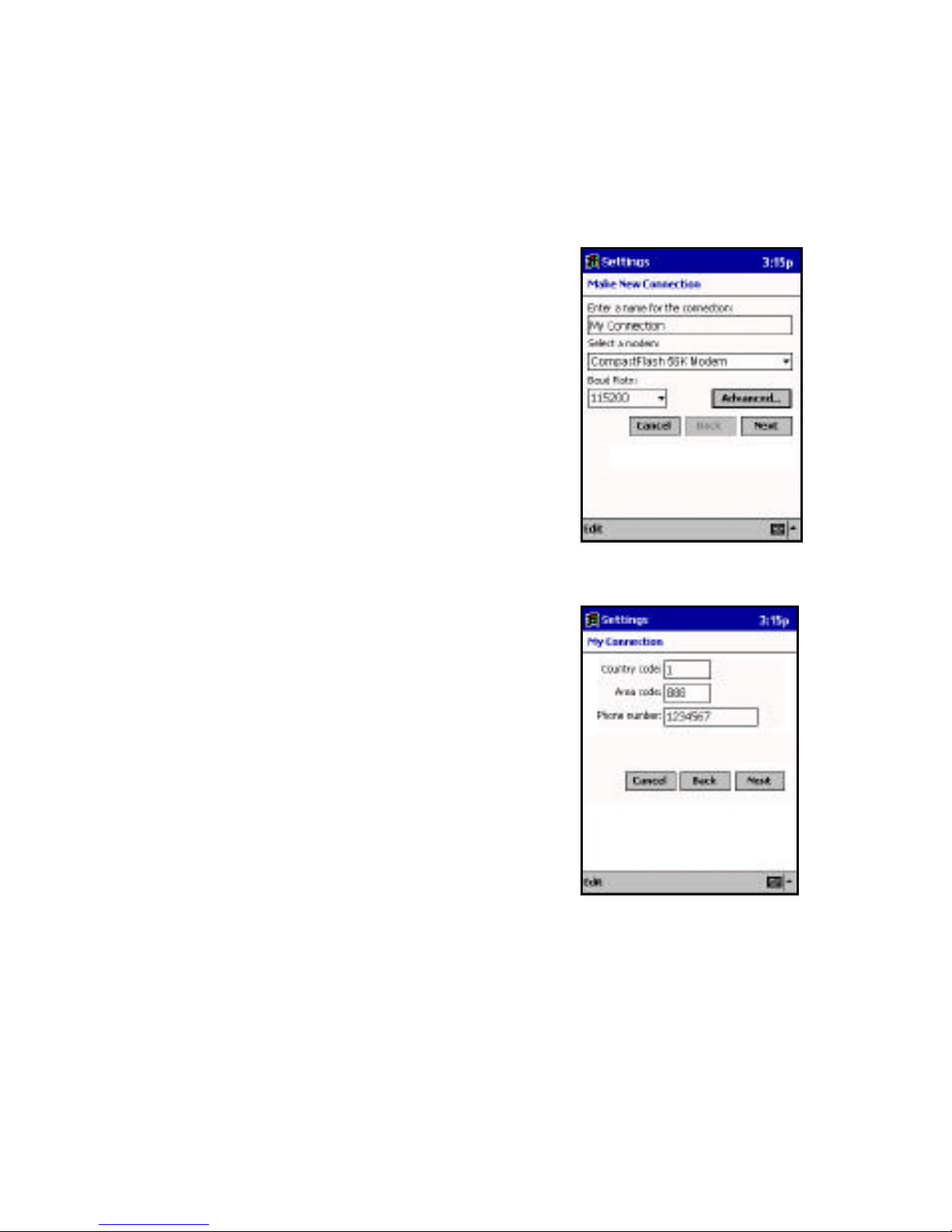

4. Type in a name in the Enter a name

for the connection text box.

5. Choose CompactFlash56K

Modem from the Select a modem

list.

6. Choose Baud Rate for your CF

modem. For example: 115200. Tap

the Advanced button.

7. Tap the Name Servers tab.

8. According to your ISP account,

input appropriate address if

necessary.

9. Tap OK at top left to continue.

—9—

10. Tap the Next button.

11. Type in your local ISP access number.

12. Tap Next to continue.

—10 —

13. Tap Finish to finish.
