Travis Industries Answer Manuel utilisateur

Answer / 1250i 1 Piece Surround Panel

See SKUs Below



Page 1 of 2 17601907 - Printed 9/15/15 © Travis Industries, Inc.

SKUs

Height Width

Custom Panel 96100593 Custom Custom

Small Panel 96100440 28.5” 40”

Medium Panel 96100441 30.5” 42”

Packing List

Panel

(2) Panel Mounting Brackets

(6) 10-24 Pan Head Screws



(6) 10-24 Nuts

(4) 10-24 Thread Forming Screws (Hex Head)

Drill Bit

Installation

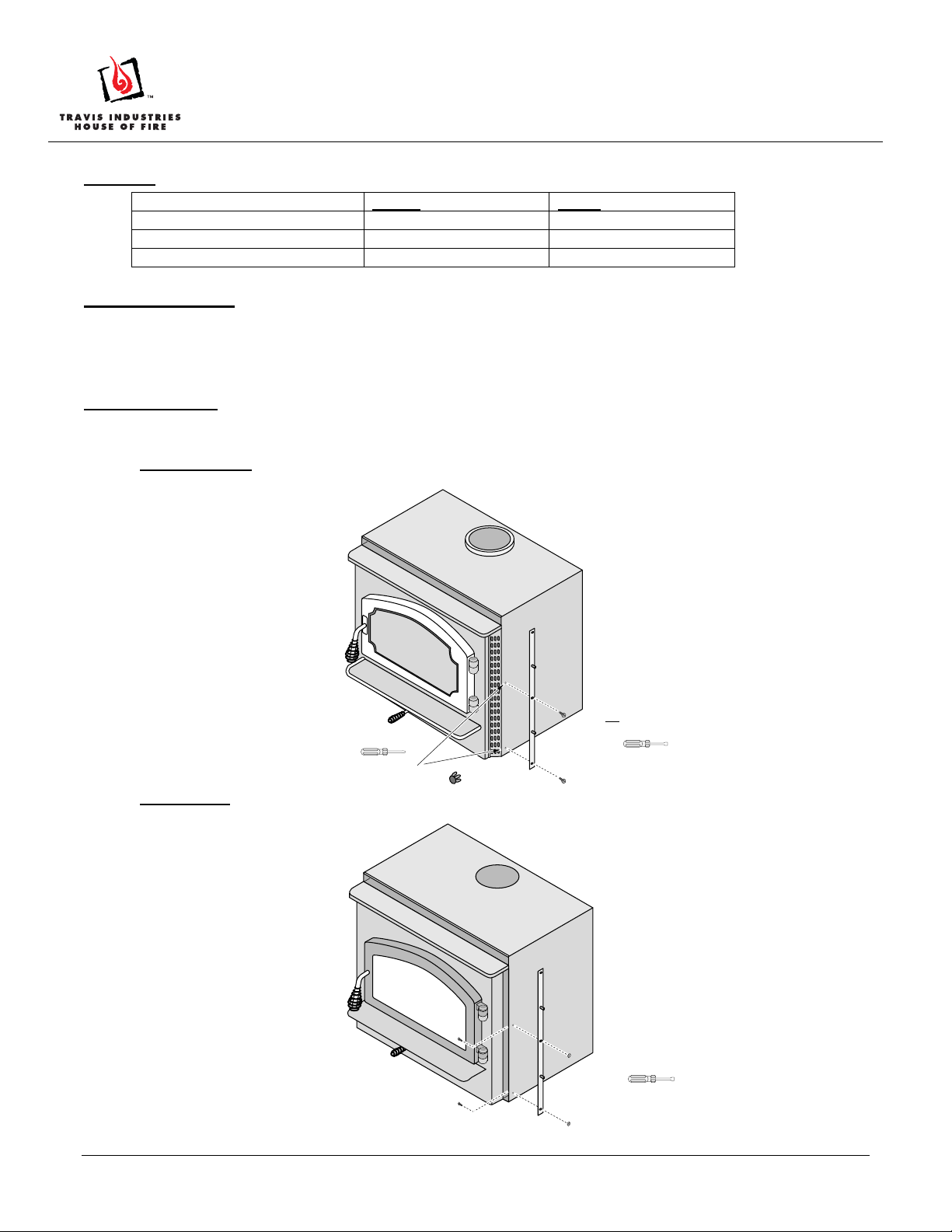

1. The insert should be in position, but pulled out slightly to allow access to the sides and top of the insert.

2. Answer Inserts - attach the side brackets to the side of the insert using the included 10-24 thread

forming screws (see illustration below).

1250 Inserts – attach the side brackets to the side of the insert using the pan head screws and nuts

included with the insert (note how the screws install from the inside – see illustration below).

Remove Button Plugs

(pry out with a screwdriver)

5/16" Nutdriver

Attach the brackets with the

included screws.

Hint: pre-thread the holes

prior to installing the brackets.

5/16" Nutdriver

Attach the brackets with the

screws and nuts (included

with the stove).

Answer / 1250i 1 Piece Surround Panel

See SKUs Below



Page 2 of 2 17601907 - Printed 9/15/15 © Travis Industries, Inc.

3. Use the included drill bit to drill a hole into the top convection channel as shown in the illustration below.

Use the included pan head screws and nuts to fully secure the side brackets.

4. Place the insert into position (flue attached). Attach the surround panel as shown below.

Use the bracket as a template to

drill the upper mounting hole

(use included drill bit). Secure

the bracket using the pan head

screws and nuts.
