Transition Networks SISTM1040-262D-LRT Manuel utilisateur

Transition Networks, Inc.

Worldwide Headquarters:

10900 Red Circle Drive

Minnetonka, MN 55343 USA

tel: 952.941.7600 / 800.526.9267

fax: 952.941.2322

[email protected]

http://www.transition.com

All trade marks are the property of their respective owners.

Technical information is subject to change without notice.

Specifications

Standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3u,

IEEE 802.3z, IEEE 802.3x

Data Rate Copper (ports 1-16): 10/100Mbps

Copper (ports 17-18): 10/100/1000Mbps

SFP: 100/1000Mbps

Filtering Addresses 8K MAC Addresses

Data Memory Buffer 1Mb

Backplane 7.2Gbps

Status LEDs PWR 1 (Power): ON = primary power connected

PWR 2 (Power): ON = backup power connected

FAULT: ON = power input failure on PWR1 or PWR2

LNK/ACT: ON = Link; FLASHING = data transmitting

FDX/COL: ON = Full duplex mode;

FLASHING = collisions occuring

Dimensions Width: 2.8" [72 mm]

Depth: 4.1" [105 mm]

Height: 6.0" [152 mm]

Ingress Protection IP 30

Input Power 12 to 48 VDC;

redundant inputs with reverse polarity protection

Power Consumption 9 Watts

Environment -40 to +75°C extended operating temperature;

5% – 95% humidity non-condensing;

0 – 10,000 ft. altitude

-40 to +85°C storage temperature

Shipping Weight 3 lbs. [1.36 kg]

Safety UL, cUL, CE/EN60950-1,

UL Class 1 Div 2 for hazardous environment

EMI Compliance CISPR22/EN55022; EN60950 Class A; FCC Class A; CE

Mark; CE EN61000-4-2; CE EN61000-4-3; CE EN-

61000-4-4; CE EN61000-4-5; CE EN61000-4-6; CE

EN61000-4-8; CE EN61000-4-11; CE EN61000-4-12;

CE EN61000-6-2; CE EN61000-6-4

Environmental IEC60068-2-32 (Free fall); IEC60068-2-27 (Shock);

IEC60068-2-6 (Vibration)

Warranty Lifetime

Transition Networks’ managed

Industrial Switches are hardened

devices designed to reliably op-

erate in harsh environments

such as those found on factory

floors, outdoor enclosures or

other hazardous environments.

Ordering Info

Extended Operating Temperature:

-40°C to +75°C

SISTM1040-262D-LRT

(16) 10/100BASE-TX (RJ-45)

[100 m/328 ft.]

with (2) 10/100/1000BASE-T (RJ-45)

or 100/1000BASE-X SFP Combo ports

Optional Accessories

(sold separately)

SFP Modules (see pages 163-169)

External AC/DC Power Supply:

SPS-UA12DHT

100-240 VAC input

(-25° C to + 70° C operating temperature)

SISTM1040-262D-LRT

industrial switch

AUTO NEG AUTO CROSS

Class 1 Div 2 Industrial Switch

10/100BASE-TX Managed

Industrial

Features

Auto-Negotiation

AutoCross™

Full Wire Speed Performance

with 7Gbps Backplane

Combo SFP ports support

100Base-FX and 1000Base-X SFPs

10/100/1000Base-T Combo RJ-45

Extended (-40°C to 75°C)

Operating Temperature

Dry Contact Relay Alarm Output

Dual, Redundant, Auto-Sensing

12-48VDC Power Inputs

Reverse Polarity Power Input

and Overload Current Protection

DIN Rail Mounting and Wall

Mount Brackets Included

Class 1 Div 2

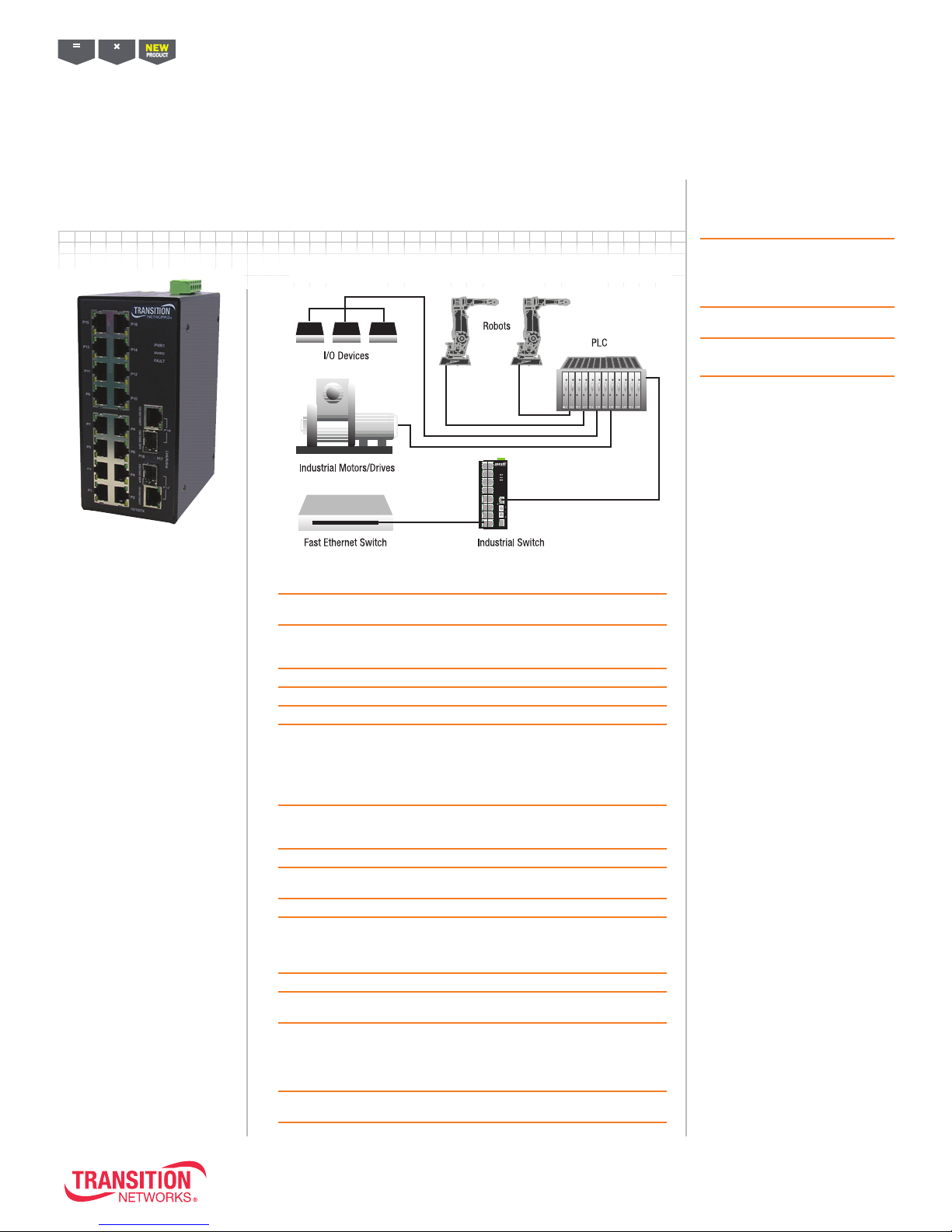

Utilize Ethernet Connectivity in Industrial Automation

(16) 10/100Base-TX ports + (2) 10/100/1000Base-T

or 100/1000Base-X SFP Combo Ports

Management Features

VLAN

Port Based VLAN

802.1 Q Tag VLAN

Port Trunk with LACP

QoS (Quality of Service)

IEEE 802.1p Class of Service,

Per port provides

4 priority queues

Port Based, Tag Based and Type

of Service Priority

Port Mirror

Monitor traffic in switched

networks

Security

Port Sercurity : MAC address

entries/filter

IP Security : IP address security

management to prevent

unauthorized intruder

Login Security :

IEEE802.1X/RADIUS

IGMP Query mode for

Multi Media Application

Support multicast filter X-Ring

Support X-ring, Dual Homing,

Couple Ring and Dual Ring

Topology. Provide redundant

backup feature and recovery

time below 20ms

Management

SNMP v1 v2c, v3/Web/Telnet/CLI

DHCP Client/DHCP Server

TFTP Firmware Upgrade

TFTP Configuration

Backup/Restore
