Transition Networks ARCNET AR-CF-02 Manuel utilisateur

MEDIA CONVERTER TECHNICAL SPECIFICATIONS

Standards ANSI/ATA 878

Delay 300ns one-way

Case dimensions 4.75" x 3.0" x 1.0" (119mm x 76mm x 25mm)

Shipping Weight 2 pounds (0.9 kilograms)

Environment Temperature: 0-40°C (32° to 104° F )

Humidity 10-90%, non condensing

Altitude 0-10,000 feet

Warranty Five years

Power Supply Requirements Replace power supply with only the equivalent

input rating (see below) and output rating (regulated 9VDC at 0.2 A).

TN PN Requirement Location

3525 240 volts, 50 hertz United Kingdom

3525 230 volts, 50 hertz Europe

3518 120 volts, 60 hertz USA/Canada/Mexico

3514 100 volts, 50-60 hertz Japan

3525 240 volts, 50 hertz Australia

NOTE: This product also can be powered by the Transition Networks E-MCR series media

converter rack.

Compliance Information

UL Listed

C-UL Listed (Canada)

CISPR/EN55022 Class A

FCC Regulations

This equipment has been tested and found to comply with the limits for a class A digital device, pursuant

to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful

interference when the equipment is operated in a commercial environment. This equipment generates,

uses, and can radiate radio frequency energy and, if not installed and used in accordance with the

instruction manual, may cause harmful interference to radio communications. Operation of this

equipment in a residential area is likely to cause harmful interference, in which case the user will be

required to correct the interference at the user’s own expense.

Canadian Regulations

This digital apparatus does not exceed the Class A limits for radio noise for digital apparatus set out on

the radio interference regulations of the Canadian Department of Communications.

European Regulations

Warning

This is a Class A product. In a domestic environment this product may cause radio interference in which

case the user may be required to take adequate measures.

graphic, electronic, or mechanical – without written permission from TRANSITION Networks.

Trademark Notice

ARCNET is a registered trademark of Datapoint Corporation.

All registered trademarks and trademarks are the property of their respective owners. 33095.B

The TRANSITION Networks ARCNET®Coax Copper/Fiber Media Converter

(AR-CF-02) extends the signal distance of an ARCNET®segment or node

linkupto2kilometers over fiber*, up to 600 meters over coax cable in a star

topology, and up to 300 meters over coax cable in a bus topology.

A switch on the media converter allows the media converter to be used to

terminate the link or node signal.

STATUS LEDS

Power Steady green LED indicates connection to external AC power.

Coax Blinking green LED

indicates network

traffic on coaxial cable

link.

Fiber Blinking green LED

indicates network traffic on fiber link.

*Consider carefully the network constraints imposed by the maximum latency

response time of installed equipment. Some equipment cannot handle the extended

response time that 2 kilometers of fiber introduces.

Minneapolis, MN 55344 USA

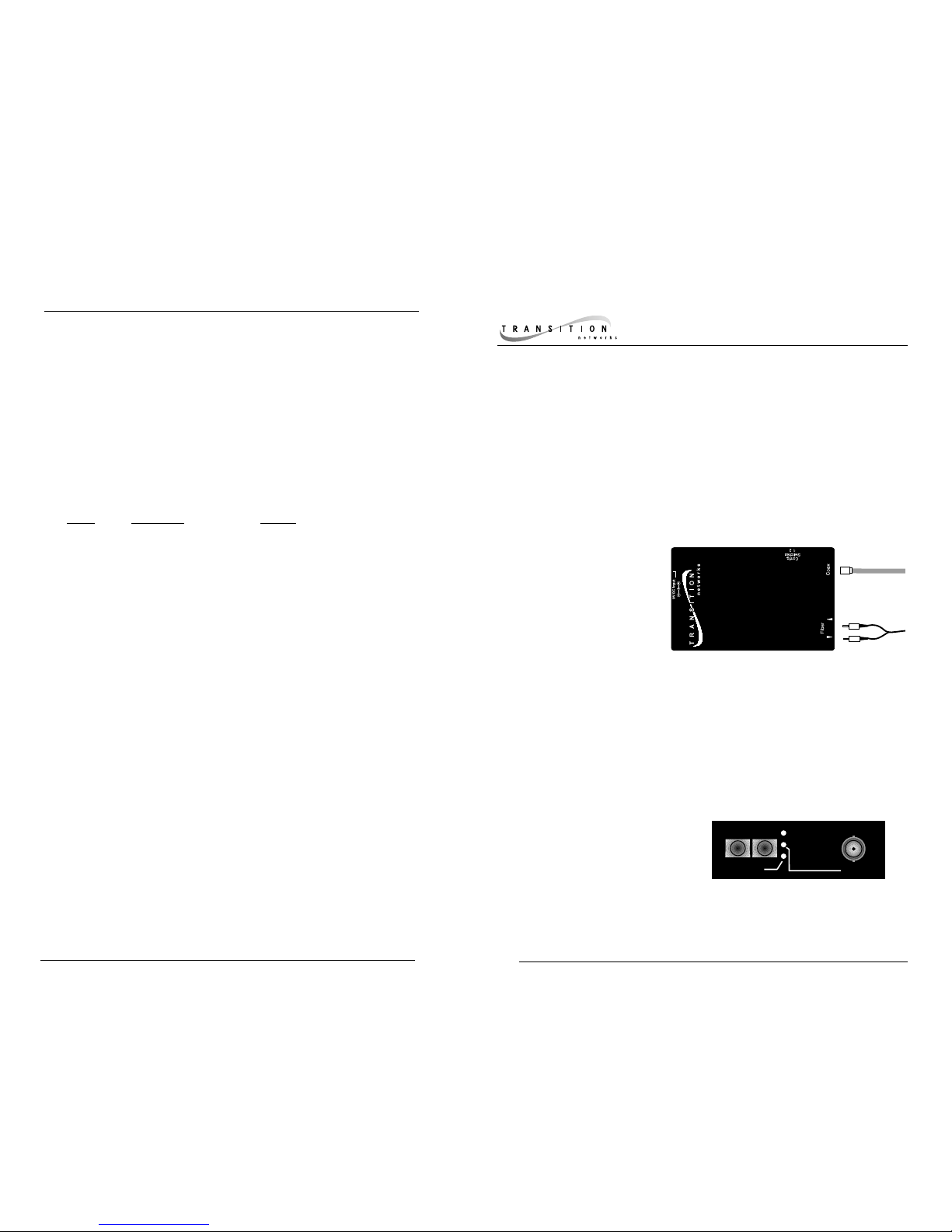

ARCNET®Coax Copper/Fiber Media Converter

AR-CF-02, AR-CF-02(SC), AR-CF-02(SM)

USER’S GUIDE

10BASE-T

Fiber

Power

Coax

AR-CF-02

Provides a BNC

connector to coaxial

cable and a set of RX

(receive) and TX

(transmit) ST connectors

to multimode fiber-optic

cable.

AR-CF-02(SC)

Provides a BNC connector to

coaxial cable and an RX (receive)

and TX (transmit) SC connector to

multimode fiber-optic cable.

AR-CF-02(SM)

Provides a BNC connector to

coaxial cable and an RX (receive)

ST and TX (transmit) SC connector

to singlemode fiber-optic cable.

AR-CF-02

ArcNet

Fiber to Coax

Media Converter

Installation NOTES

Install Coax Copper

STAR TOPOLOGY

• MAXIMUM coax segment to active hub is 600 meters (2000

feet) on RG-62 cable; minimum does not apply.

BUS TOPOLOGY

• Devices attached to coax bus must be located AT LEAST six

(6) feet apart.

• MAXIMUM coax bus length is 300 meters (1000 feet);

minimum is 1.8 meters (6 feet).

• Device(s) attached to EACH END of bus must be terminated.

NOTE: If the media converter is installed at one end of the

bus, use the configuration switch to terminate the media

converter.

CONFIGURATION SWITCH

NOTE: Set configuration switch (located on the side of media converter)

according to site installation requirements:

Switch 1 NOT USED

Switch 2 UP = OFF Media converter TRANSFERS signal

DOWN = ON Media converter TERMINATES signal.

Install Fiber

• Connect one end of first fiber cable to AR-CF-02 media

converter TX connector.

• Connect other end of that fiber cable to second AR-CF-02

media converter RX connector.

• Connect one end of second fiber cable to AR-CF-02 media

converter RX connector.

• Connect other end of that fiber cable to AR-CF-02 media

converter TX connector.

Power

• Locate correct power supply adapter for site installation.

• Connect media converter power connector at end of power

supply adapter cord to AR-CF-02 media converter power

receptacle.

• Connect 2-prong or 3-prong external power connector on

other end of power supply adapter cord to external AC power.

CABLE SPECIFICATIONS

The physical characteristics of the cable must meet or exceed the following:

FIBER CABLE

MULTIMODE

Fiber Optic Cable Recommended: 62.5 / 125 µm multimode fiber

Fiber Optic Transmitter Power: min: -19.0 dBm max: -14.0 dBm

Fiber Optic Receiver Sensitivity: min: -32.5 dBm max: -14.0 dBm

Wavelength: 850nM

Bit error rate: ≤10-9

Maximum Cable Distance: 2 kilometers

SINGLEMODE

Fiber Optic Cable Recommended: 9 µm singlemode fiber

Fiber Optic Transmitter Power: min: -27.0 dBm max: -17.0 dBm

Fiber Optic Receiver Sensitivity: min: -32.5 dBm max: -13.0 dBm

Wavelength: 1300nM

Bit error rate: ≤10-9

Maximum Cable Distance: 8 kilometers

COAX CABLE/STAR TOPOLOGY

RG-62 Cable

Cable Characteristics:

Cable type: Coaxial RG-62/u

Impedance: 75 Ω@ 10 MHz

Mutual Capacitance: 13 pF/ft ±20% @ 10 MHz

Maximum Attenuation: 5.5 dB/1000 feet

Maximum Cable Distance: 600 meters (2000 feet)

Minimum Distance/Connection: 0 meters (0 feet)

RG-59 Cable

Cable Characteristics:

Cable type: Coaxial RG-59/u

Impedance: 93 Ω@ 10 MHz

Mutual Capacitance: 13 pF/ft ±20% @ 10 MHz

Maximum Attenuation: 7.0 dB/1000 feet

Maximum Cable Distance: 450 meters (1500 feet)

Minimum Distance/Connection: 0 meters (0 feet)

COAX CABLE/BUS TOPOLOGY

RG-62 Cable

Cable Characteristics:

Cable type: Coaxial RG-62/u

Impedance: 93 Ω@ 10 MHz

Mutual Capacitance: 13 pF/ft ±20% @ 10 MHz

Maximum Attenuation: 5.5 dB/1000 feet

Maximum Cable Distance: 300 meters (1000 feet)

Minimum Distance/Connection: 1.8 meters (6 feet)

AR-CF-02
