Transition Networks J/RS232-CF-01(SC) Manuel utilisateur

User’s Guide

J/RS232-xx-01

Stand-Alone Media Converter

• Just Convert-It

• RS-232 to Fiber

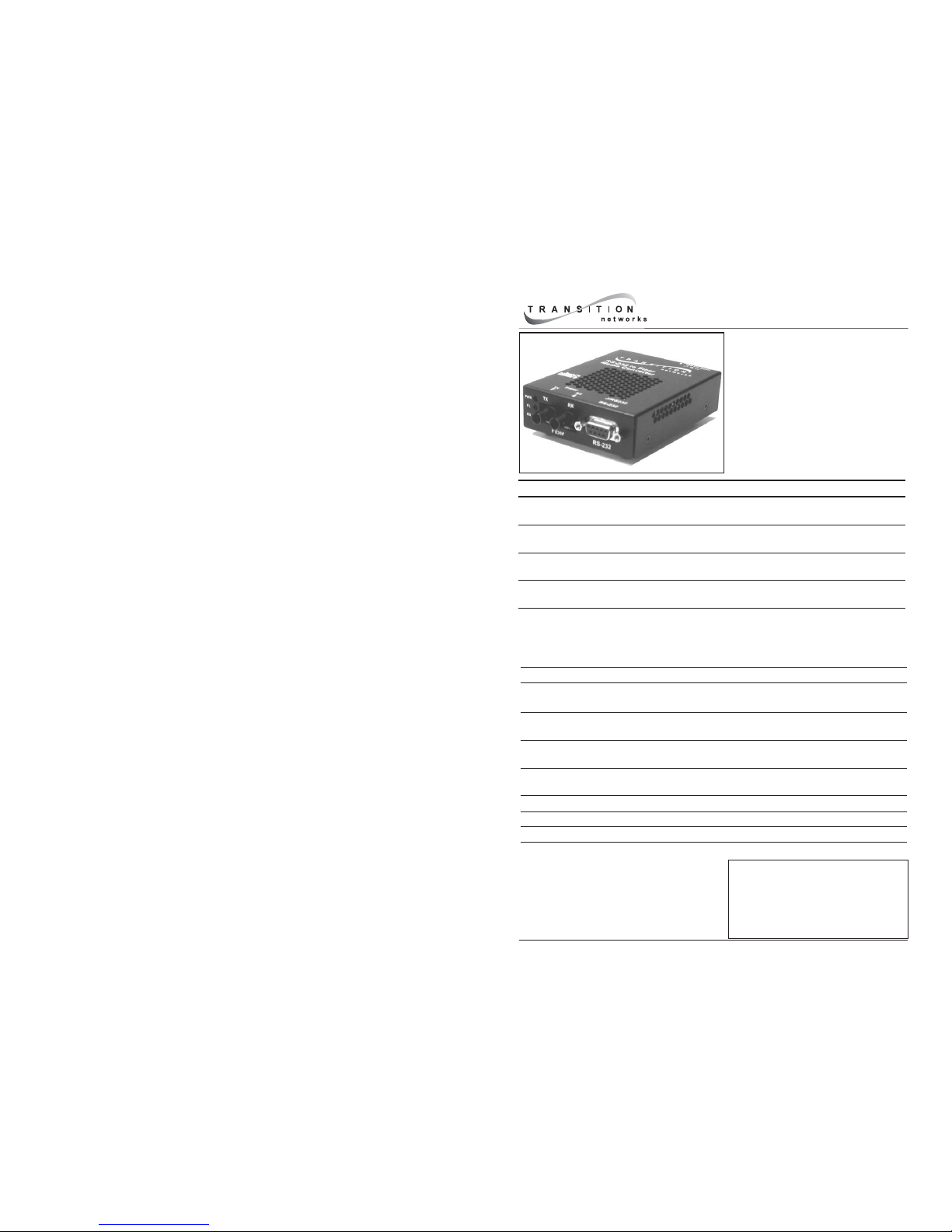

Transition Networks J/RS232-xx-01

series media converter connects RS-

232 cable to fiber-optic cable at data

rates up to 120 kB/s asynchronous.

Installation . . . . . . . . . . . . . . . . . .2

Operation . . . . . . . . . . . . . . . . . . .4

Cable Specifications . . . . . . . . . . .5

Technical Specifications . . . . . . . .6

Troubleshooting . . . . . . . . . . . . . .7

Compliance Information . . . . . . . .8

Part Number Port One - RS-232 Port Two - Fiber-Optic

J/RS232-CF-01 RS-232 (female, DCE)

15 m (50 ft)*

ST, 1300 nm multimode

2 km (1.2 miles)*

J/RS232-CF-01(SC) RS-232 (female, DCE)

15 m (50 ft)*

SC, 1300 nm multimode

2 km (1.2 miles)*

J/RS232-TF-01 RS-232 (male, DTE)

15 m (50 ft)*

ST, 1300 nm multimode

2 km (1.2 miles)*

J/RS232-TF-01(SC) RS-232 (male, DTE)

15 m (50 ft)*

SC, 1300 nm multimode

2 km (1.2 miles)*

* Typical maximum cable distance. Actual distance is dependent upon the

physical characteristics of the network installation.

Optional Accessories: (sold separately)

Part Number Description

SPS-1872-SA Optional External Power Supply; 18-72VDC Stand-Alone

Output: 12.6VDC, 1.0 A

SPS-1872-CC Optional External Power Supply; 18-72VDC Piggy-back;

Output: 12.6VDC, 1.0 A

E-MCR-04 12-Slot Media Converter Rack (includes universal internal power

supply) 17 x 15 x 5 in. (432 x 381 x 127 mm)

WMBS Optional Wall Mount Brackets

Length: 3.2 in. (81 mm), Fits converter length: 3.9 in. (99 mm)

WMBV Optional Vertical Mount Bracket; 5.0 in. (127 mm)

WMBD Optional DIN Rail Mount Bracket; 5.0 in. (127 mm)

WMBD-FS Optional DIN Rail Mount Bracket (flat, small); 3.1in. (79 mm)

J/RS232-xx-01

24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600

Installation

DTE and DCE

Each J/RS232-xx-01 model is configured as a:

•DTE (Data Terminal Equipment) with a male RS-232 port, or a

•DCE (Data Communication Equipment) with a female RS-232 port.

So, the type of media converter and the application in which it is used

determines which type of RS-232 cable is needed:

•Straight-through configuration cable, or

•Null-modem configuration cable.

NOTE: The J/RS232-xx-01 only uses pins 2, 3 and 5.

Install the RS-232 Cable

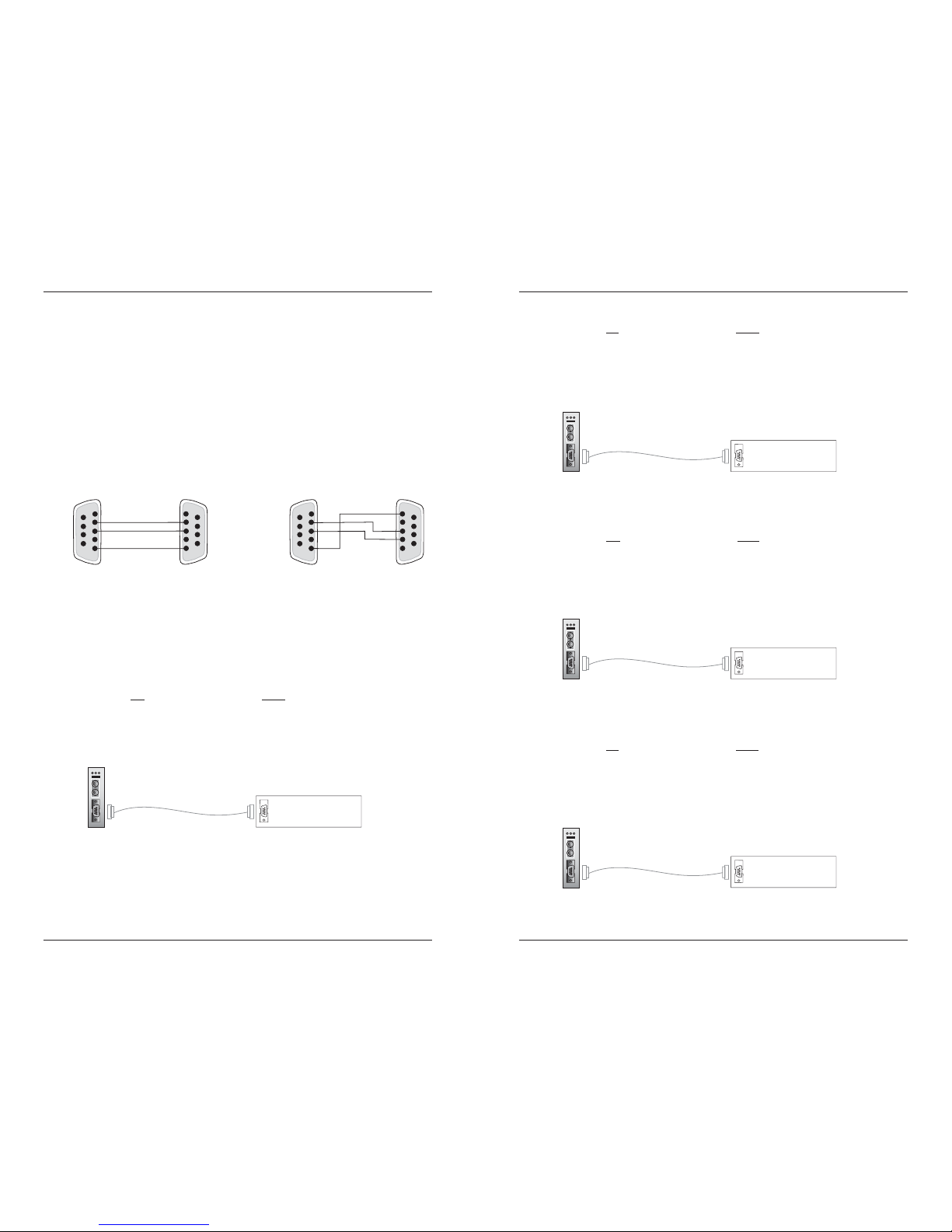

Sections 1-4 (below and on page 3) illustrate which type of RS-232 cable

should be used for the various applications:

1. J/RS232-CF-01 Media Converter / DCE Device

Use a null-modem RS-232 cable with a male connector when connecting

a J/RS232-CF-01 or J/RS232-CF-01(SC) media converter to a DCE device.

-RS232-CF-01 or J-RS232-CF-01(SC)

(DCE configuration with a female RS-232 port)

DCE device

null-modem

RS-232 cable with a male connector

Null-modem configuration cable

with handshaking signaling

Straight-through configuration cable

with handshaking signals

[email protected] -- Click the “Transition Now” link for a live Web chat.

Installation -- Continued

2. J/RS232-TF-01 Media Converter / DCE Device

Use a straight-through RS-232 cable with a female connector when

connecting a J/RS232-TF-01 or J/RS232-TF-01(SC) media converter to a

DCE device.

3. J/RS232-CF-01 Media Converter / DTE Device

Use a straight-through RS-232 cable with a male connector when

connecting a J/RS232-CF-01 or J/RS232-CF-01(SC) media converter to a

DTE device.

4. J/RS232-TF-01 Media Converter / DTE Device

Use a null-modem RS-232 cable with a female connector when

connecting a J/RS232-TF-01 or J/RS232-TF-01(SC) media converter to a

DTE device.

-RS232-TF-01 or J-RS232-TF-01(SC)

(DTE configuration with a male RS-232 port)

DCE device

straight-through

RS-232 cable with a female connector

-RS232-CF-01 or J-RS232-CF-01(SC)

(DCE configuration with a female RS-232 port)

DTE device

straight-through

RS-232 cable with a male connector

-RS232-TF-01 or J-RS232-TF-01(SC)

(DTE configuration with a male RS-232 port)

DTE device

null-modem

RS-232 cable with a female connector

J/RS232-xx-01

24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600

Installation -- Continued

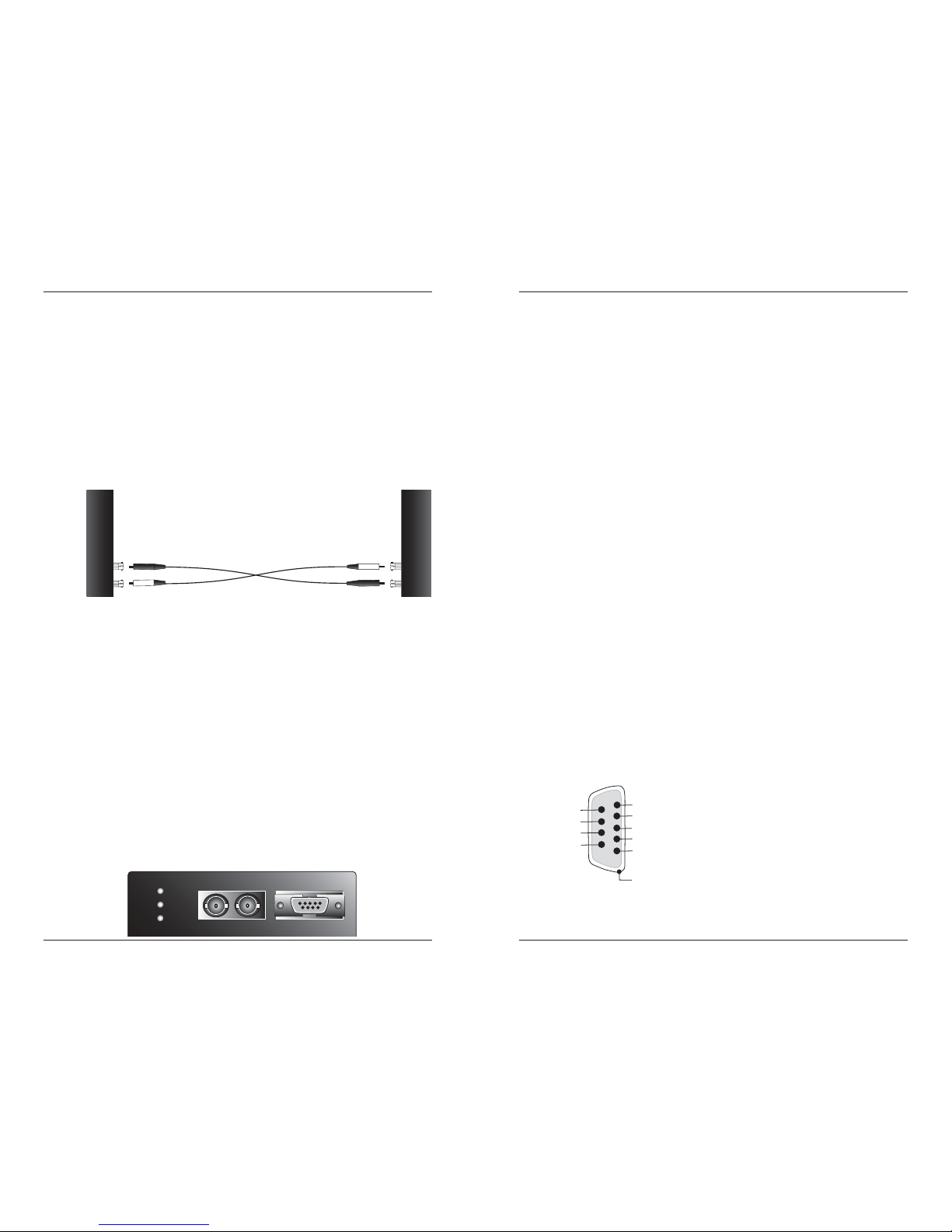

Install the Fiber Cable

1. Locate or build fiber cable with male, two-stranded TX to RX connectors

installed at both ends.

2. Connect the fiber cables to the first J/RS232-xx-01 media converter as

described:

• Connect the male TX cable connector to the female TX port.

• Connect the male RX cable connector to the female RX port.

3. Connect the fiber cables to the other J/RS232-xx-01 media converter as

described:

• Connect the male TX cable connector to the female RX port.

• Connect the male RX cable connector to the female TX port.

Connect the fiber cable

to the first media converter

as shown.

Connect the fiber cable

to the second media

converter, as shown

Power the Media Converter

NOTE: The external power supply provided with this product is UL listed by

the power supply’s manufacturer.

• Connect the barrel connector on the power adapter to the media

converter’s power port (located on the back of the media converter).

• Connect the power adapter plug to AC power. Verify that the media

converter is powered by observing the illuminated LED power indicator

light. (For DC power see the SPS1872-xx DC external power supply.)

Fiber

RS-232

PWR

Operation

Use the status LEDs to monitor the media converter operation in the network.

RX On = A link has been established with the RS-232 connector.

Flashing = The RS-232 connector is receiving data.

FL On = A link has been established with the fiber connector.

PWR On = The media converter is connected to external power.

[email protected] -- Click the “Transition Now” link for a live Web chat.

RS-232 Cable

Gauge: 24 to 22 AWG

Maximum data rate: 120 Kb/s, asynchronous

Maximum Cable Distance: 15 m (50 ft)

RS-232 Signals:

NOTE: The J/RS232-xx-01 only uses pins 2, 3 and 5.

Receive Data

Transmit Data

Signal Groun

Cable Specifications

The physical characteristics must meet or exceed IEEE 802.3™ specifications.

Fiber Cable

Bit Error Rate: <10-9

Multimode fiber (recommended): 62.5/125 µm

Multimode fiber (optional): 100/140, 85/140, 50/125 µm

J/RS232-CF-01 1300 nm multimode

Fiber Optic Transmitter Power: min: -19.0 dBm max: -14.0 dBm

Fiber Optic Receiver Sensitivity: min: -30.0 dBm max: -14.0 dBm

Link Budget: 11.0 dB

J/RS232-CF-01(SC) 1300 nm multimode

Fiber Optic Transmitter Power: min: -19.0 dBm max: -14.0 dBm

Fiber Optic Receiver Sensitivity: min: -30.0 dBm max: -14.0 dBm

Link Budget: 11.0 dB

J/RS232-TF-01 1300 nm multimode

Fiber Optic Transmitter Power: min: -19.0 dBm max: -14.0 dBm

Fiber Optic Receiver Sensitivity: min: -30.0 dBm max: -14.0 dBm

Link Budget: 11.0 dB

J/RS232-TF-01(SC) 1300 nm multimode

Fiber Optic Transmitter Power: min: -19.0 dBm max: -14.0 dBm

Fiber Optic Receiver Sensitivity: min: -30.0 dBm max: -14.0 dBm

Link Budget: 11.0 dB

The fiber optic transmitters on this device meets Class I Laser safety

requirements per IEC-825/CDRH standards and complies with 21

CFR1040.10 and 21CFR1040.11.

J/RS232-xx-01

24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600

Technical Specifications

For use with Transition Networks Model J/RS232-xx-01 or equivalent

Data Rate 120 Kb/s, asynchronous

Dimensions 3.0" x 3.9" x 1.0" (76 mm x 99 mm x 25 mm)

Shipping Weight 6 oz. (181 g) (approximately)

Power Consumption 3 Watts

Power Supply 12 VDC, 0.5 A (North America)

12 VDC, 0.41 A (Europe, Japan, Latin America)

12 VDC, 1.25 A (N. Z., Australia, U.K., South Africa)

(The external power supply provided with this product

is UL listed by the power supply’s manufacturer.)

MTBF (approximate) 49,000 hours (MIL217F2 V5.0) (MIL-HDBK-217F)

129,000 hours (Bellcore7 V5.0)

Environment Tmra*: 0 to 50°C (32° to 122°F )

Storage Temp: -15° to 65°C (5° to 149°F)

Humidity: 5 to 95%, non condensing

Altitude: 0 to 10,000 feet

Warranty Lifetime

*Manufacturer’s rated ambient temperature.

The information in this user’s guide is subject to change. For the most up-to-date

information on the J/RS232-xx-01 media converter, view the user’s guide on-line

at: www.transition.com.

Product is certified by the manufacturer to comply with DHHS Rule 21/CFR,

Subchapter J applicable at the date of manufacture.

CAUTION: Visible and invisible laser radiation when open. Do not stare into

the beam or view directly with optical instruments.

CAUTION: Use of controls, adjustments or the performance of procedures other

than those specified herein may result in hazardous radiation exposure.

[email protected] -- Click the “Transition Now” link for a live Web chat.

Troubleshooting

If the media converter fails, isolate and correct the failure by determining the

answers to the following questions and then taking the indicated action:

1. Is the PWR (power) LED on the media converter illuminated?

• Is the power adapter the proper type of voltage and cycle frequency

for the AC outlet? (See “Technical Specifications” on page 6.)

• Is the power adapter properly installed in the media converter and in

the AC outlet?

• Does the grounded AC outlet provide power?

• Contact Tech Support: 1-800-260-1312, Int’l: 00-1-952-941-7600.

YES

• Proceed to step 2.

2. Is the RX (RS-232) LED illuminated?

• Check the RS-232 cable for proper connection.

• Contact Tech Support: 1-800-260-1312, Int’l: 00-1-952-941-7600.

YES

• Proceed to step 3.

3. Is the FL (fiber) LED illuminated?

• Check the fiber cables for proper connection.

• Verify that the TX and RX cables on the media converter are

connected to the RX and TX ports, respectively, on the remote media

converter.

• Contact Tech Support: 1-800-260-1312, Int’l: 00-1-952-941-7600.

YES

• Contact Tech Support: 1-800-260-1312, Int’l: 00-1-952-941-7600.

Technical support is available 24 hours a day.

US and Canada: 1-800-260-1312

International: 00-1-952-941-7600

Chat live via the Web with Transition Networks Technical Support.

Log onto www.transition.com and click the Transition Now link.

Transition Networks provides seminars via live web-based training.

Log onto www.transition.com and click the Learning Center link.

Ask a question anytime by sending an e-mail to our technical support staff.

[email protected]

Transition Networks; 6475 City West Parkway; Minneapolis, MN 55344, USA

telephone: 952-941-7600; toll free: 800-526-9267; fax: 952-941-2322

Trademark Notice

All trademarks and registered trademarks are the property of their respective owners.

reproduced or used in any form or by any means - graphic, electronic, or mechanical -

without written permission from Transition Networks. Printed in the U.S.A.

Compliance Information

CISPR22/EN55022 Class A + EN55024; CE Mark

FCC Regulations

This equipment has been tested and found to comply with the limits for a Class A digital

device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment is operated in a commercial

environment. This equipment generates, uses, and can radiate radio frequency energy and, if

not installed and used in accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment in a residential area is

likely to cause harmful interference, in which case the user will be required to correct the

interference at the user's own expense.

Canadian Regulations

This digital apparatus does not exceed the Class A limits for radio noise for digital apparatus

set out on the radio interference regulations of the Canadian Department of Communications.

Le présent appareil numérique n'émet pas de bruits radioélectriques dépassant les limites

applicables aux appareils numériques de la Class A prescrites dans le Règlement sur le

brouillage radioélectrique édicté par le ministère des Communications du Canada.

European Regulations

Warning This is a Class A product. In a domestic environment this product may cause

radio interference in which case the user may be required to take adequate measures.

Achtung! Dieses ist ein Gerät der Funkstörgrenzwertklasse A. In Wohnbereichen können

bei Betrieb dieses Gerätes Rundfunkstörungen auftreten. In diesem Fäll ist der Benutzer für

Gegenmaßnahmen verantwortlich.

Attention! Ceci est un produit de Classe A. Dans un environment domestique, ce produit

risque de créer des interférences radioélectriques, il appartiendra alors à l'utilsateur de

prende les measures spécifiques appropriées.

Declaration of Conformity

Name of Mfg: Transition Networks

6475 City West Parkway, Minneapolis MN 55344 USA

Model: J/RS232-xx-01 Series Media Converter

Part Number: J/RS232-CF-01, J/RS232-CF-01(SC),

J/RS232-TF-01, J/RS232-TF-01(SC)

Regulation: EMC Directive 89/336/EEC

Purpose: To declare that the J/RS232-xx-01 to which this declaration refers

is in conformity with the following standards.

CISPR 22:1998; EN 55022:1998 Class A; EN 55024:1998; FCC Part 15 Subpart

B; 21 CFR Subpart J

I, the undersigned, hereby declare that the equipment specified above conforms to the

above Directive(s) and Standard(s).

_August 4, 2003_____

Stephen Anderson, Vice-President of Engineering Date

33285.C

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Transition Networks Convertisseur de média

Transition Networks

Transition Networks C4TEF10XX-10X Manuel utilisateur

Transition Networks

Transition Networks F-SM-MM-06(XL) Manuel utilisateur

Transition Networks

Transition Networks C/E-100BTX-FX-05(LH) Manuel utilisateur

Transition Networks

Transition Networks CFMFF1314-210 Manuel utilisateur

Transition Networks

Transition Networks CFETF1011-205 Manuel utilisateur

Transition Networks

Transition Networks E-MCR-02 Manuel utilisateur

Transition Networks

Transition Networks RS485-CF-0x Manuel utilisateur

Transition Networks

Transition Networks J/E-CX-TBT-02 Manuel utilisateur

Transition Networks

Transition Networks E-100BTX-FRL-03(SC) E-100BTX-FRL-03(SM) Manuel utilisateur

Transition Networks

Transition Networks SBFTF1011-260 Manuel utilisateur

Transition Networks

Transition Networks CSDTF3011-110 Manuel utilisateur

Transition Networks

Transition Networks E-R-TX-FX-01(SC) Manuel utilisateur

Transition Networks

Transition Networks SGFEB10 Series Manuel utilisateur

Transition Networks

Transition Networks SPSVT26xx-100 Manuel utilisateur

Transition Networks

Transition Networks SBFTF10xx-1xx Manuel utilisateur

Transition Networks

Transition Networks SFMFF1314-280 Manuel utilisateur

Transition Networks

Transition Networks SBFTF1011-120 Manuel utilisateur

Transition Networks

Transition Networks SISTG10 211-LR Series Manuel utilisateur

Transition Networks

Transition Networks CBFTF1011-120 Manuel utilisateur

Transition Networks

Transition Networks RS232-CF-01 Manuel utilisateur

Transition Networks

Transition Networks SGETF1013-110 Manuel utilisateur

Transition Networks

Transition Networks SPS-1872-CC Manuel utilisateur

Transition Networks

Transition Networks TR-CF-01 Manuel utilisateur

Transition Networks

Transition Networks SBFTF10XX-15X Manuel utilisateur

Manuels Convertisseur de média populaires d'autres marques

SoundTraxx

SoundTraxx Blunami BLU-2200 Manuel utilisateur

SPROLINK

SPROLINK VA1 Manuel utilisateur

Acclaim Lighting

Acclaim Lighting DDC-1-AC Manuel utilisateur

Nikon

Nikon AF-S TC-20E III Manuel utilisateur

Axis

Axis AXIS Q7406 Manuel utilisateur

Omega

Omega TAC80B-J Manuel utilisateur

Zoom

Zoom Thunderbolt TAC-2R Manuel utilisateur

OST

OST iConverter 10/100M Manuel utilisateur

Vertiv

Vertiv Netsure Manuel utilisateur

birddog

birddog MINI Manuel utilisateur

Roland

Roland GI-10 Manuel utilisateur

Wallenstein

Wallenstein WX310 Manuel utilisateur

Pace

Pace MSS 200-1 Manuel utilisateur

Solar Converters

Solar Converters EQ 12/24-50 Manuel utilisateur

CYP

CYP EL-7400V Manuel utilisateur

TIE

TIE MIDI 1i1o Manuel utilisateur

DCS

DCS Vivaldi Upsampler Manuel utilisateur

Westermo

Westermo MCW-211 SERIES Manuel utilisateur
