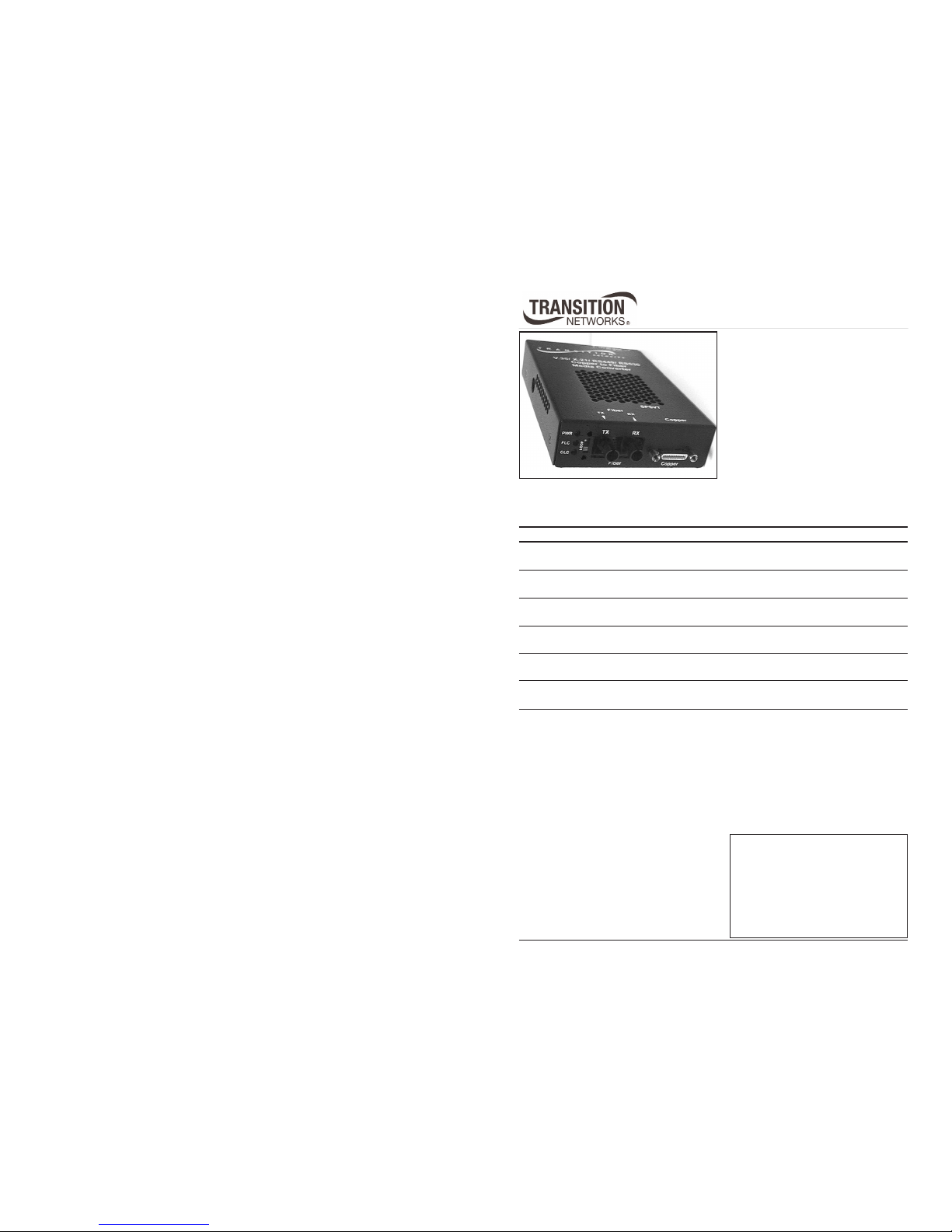

User’s Guide

SPSVT26xx-10x

Stand Alone Media Converter

• High-Speed Serial

• V.35/X.21/RS449/RS530/RS232

• Copper to Fiber

Transition Networks SPSVT26xx-10x

series high-speed serial copper-to-fiber

media converter connect V.35, X.21,

RS-449, RS-530, or RS-232 signals on

copper cable, at speeds up to 10 Mb/s, through a universal 26-pin serial interface

connector to fiber-optic cable. Transition Networks also supplies cables for

connecting network equipment to the SPSVT26xx-10x series media converter.

Cable Options . . . . . . . . . . . . . . .3

Installation . . . . . . . . . . . . . . . . . .4

Operation . . . . . . . . . . . . . . . . . . .9

Cable Specifications . . . . . . . . . .10

Technical Specifications . . . . . . .12

Troubleshooting . . . . . . . . . . . . .13

Compliance Information . . . . . . .16

Part Number Port One - Copper Port Two - Duplex Fiber-Optic

SPSVT2611-100 Universal 26-pin

serial interface*

ST, 1300 nm multimode

2 km (1.2 miles)**

SPSVT2613-100 Universal 26-pin

serial interface*

SC, 1300 nm multimode

2 km (1.2 miles)**

SPSVT2614-100 Universal 26-pin

serial interface*

SC, 1310 nm single mode

20 km (12.4 miles)**

SPSVT2615-100 Universal 26-pin

serial interface*

SC, 1310 nm single mode

40 km (24.9 miles)**

SPSVT2616-100 Universal 26-pin

serial interface*

SC, 1310 nm single mode

60 km (37.3 miles)**

SPSVT2617-100 Universal 26-pin

serial interface*

SC, 1550 nm single mode

80 km (49.7 miles)**

* For typical maximum cable distance, see the chart on page 3.

** Typical maximum cable distance. Actual distance is dependent upon the

physical characteristics of the network installation.

The chassis version of this media converter is CPSVT26xx-10x. For more

information, see the user’s guide for the CPSVT26xx-10x on-line at

www.transition.com

SPSVT26xx-10x

24-hour Technical Support: 1-800-260-1312 International: 00-1-952-941-7600

* For typical maximum cable distance, see the chart on page 3.

** Typical maximum cable distance. Actual distance is dependent upon the

physical characteristics of the network installation.

Optional Accessories (sold separately)

Part Number Port One - Copper Port Two - Single Fiber-Optic

SPSVT2629-100 Universal 26-pin

serial interface*

SC, single mode 1310 TX / 1550nm RX

20 km (12.4 miles)**

SPSVT2629-101 Universal 26-pin

serial interface*

SC, single mode 1550 TX / 1310nm RX

20 km (12.4 miles)**

The SPSVT2629-100 and the -101 are intended to be installed

in the same network where one is the local converter and the

other is the remote converter.

SPSVT2629-102 Universal 26-pin

serial interface*

SC, single mode 1310 TX / 1550nm RX

40 km (24.8 miles)**

SPSVT2629-103 Universal 26-pin

serial interface*

SC, single mode 1550 TX / 1310nm RX

40 km (24.8 miles)**

The SPSVT2629-102 and the -103 are intended to be installed

in the same network where one is the local converter and the

other is the remote converter.

Part Number Description

SPS-1872-SA Optional External Power Supply; 18-72VDC Stand-Alone

Output: 12.6VDC, 1.0 A

SPS-1872-PS Optional External Power Supply; 18-72VDC Piggy-back;

Output: 12.6VDC, 1.0 A

E-MCR-04 12-Slot Media Converter Rack (includes universal internal power

supply) 17 x 15 x 5 in. (432 x 381 x 127 mm)

WMBL Optional Wall Mount Brackets; 4.0 in. (102 mm)

WMBV Optional Vertical Mount Bracket; 5.0 in. (127 mm)

WMBD Optional DIN Rail Mount Bracket; 5.0 in. (127 mm)

WMBD-F Optional DIN Rail Mount Bracket (flat); 3.3in. (84 mm)

Cable Options

Supported Cable Options

The table below lists the interface standards and the cable options that are

supported for the SPSVT26xx-10x media converter.

Each cable (available from Transition Networks) is 3 meters in length and has

a male universal 26-pin serial connector at one end. The connector at the

other end is listed in the table.

Maximum Cable Lengths

The table below lists the recommended maximum cable lengths for each of the

cable options at various data rates.

[email protected] -- Click the “Transition Now” link for a live Web chat. 3

Part Number Function Connector Type

35DTE-3 V.35 DTE 34-pin Rectangular Male

35DCE-3 V.35 DCE 34-pin Rectangular Female

21DTE-3 X.21 DTE 15-pin D-sub Male

21DCE-3 X.21 DCE 15-pin D-sub Female

232DTE-3 RS-232 DTE 25-pin D-sub Male

232DCE-3 RS-232 DCE 25-pin D-sub Female

449DTE-3 RS-449 DTE 37-pin D-sub Male

449DCE-3 RS-449 DCE 37-pin D-sub Female

530DTE-3 RS-530 DTE 25-pin D-sub Male

530DCE-3 RS-530 DCE 25-pin D-sub Female

Data Rate: V.35, RS-449, or RS-530 X.21 RS232C

10 Mb/s 10 m (35 ft.) N/A N/A

6 Mb/s 19 m (65 ft.) N/A N/A

2 Mb/s 45 m (150 ft.) 15 m (50 ft.) N/A

1 Mb/s 90 m (300 ft.) 30 m (100 ft.) N/A

512 Kb/s 180 m (600 ft.) 60 m (200 ft.) N/A

256 kb/s 365 m (1200 ft.) 120 m (400 ft.) N/A

128 Kb/s 730 m (2400 ft.) 240 m (800 ft.) N/A

56 Kb/s 910 m (3000 ft.) 480 m (1600 ft.) 3 m (10 ft.)

1.2 Kb/s 910 m (3000 ft.) 910 m (3000 ft.) 15 m (50 ft.)

N/A = Not Applicable. The rates are not specified for the interface in question.

SPSVT26xx-10x

24-hour Technical Support: 1-800-260-1312 International: 00-1-952-941-7600

0 - TT = Receive CLK 8 - 768 Kb/s

1 - 56 Kb/s 9 - 1024 Kb/s

2 - 64 Kb/s A - 1544 Kb/s

3 - 112 Kb/s B - 2048 Kb/s

4 - 128 Kb/s C - 3072 Kb/s

5 - 256 Kb/s D - 4096 Kb/s

6 - 384 Kb/s E - 6144 Kb/s

7 - 512 Kb/s F - Asynchronous Mode*

Installation

CAUTION: Wear a grounding device and observe electrostatic discharge

precautions when setting the switches and jumpers. Failure to observe this

caution could result in damage to, and subsequent failure of, the media

converter.

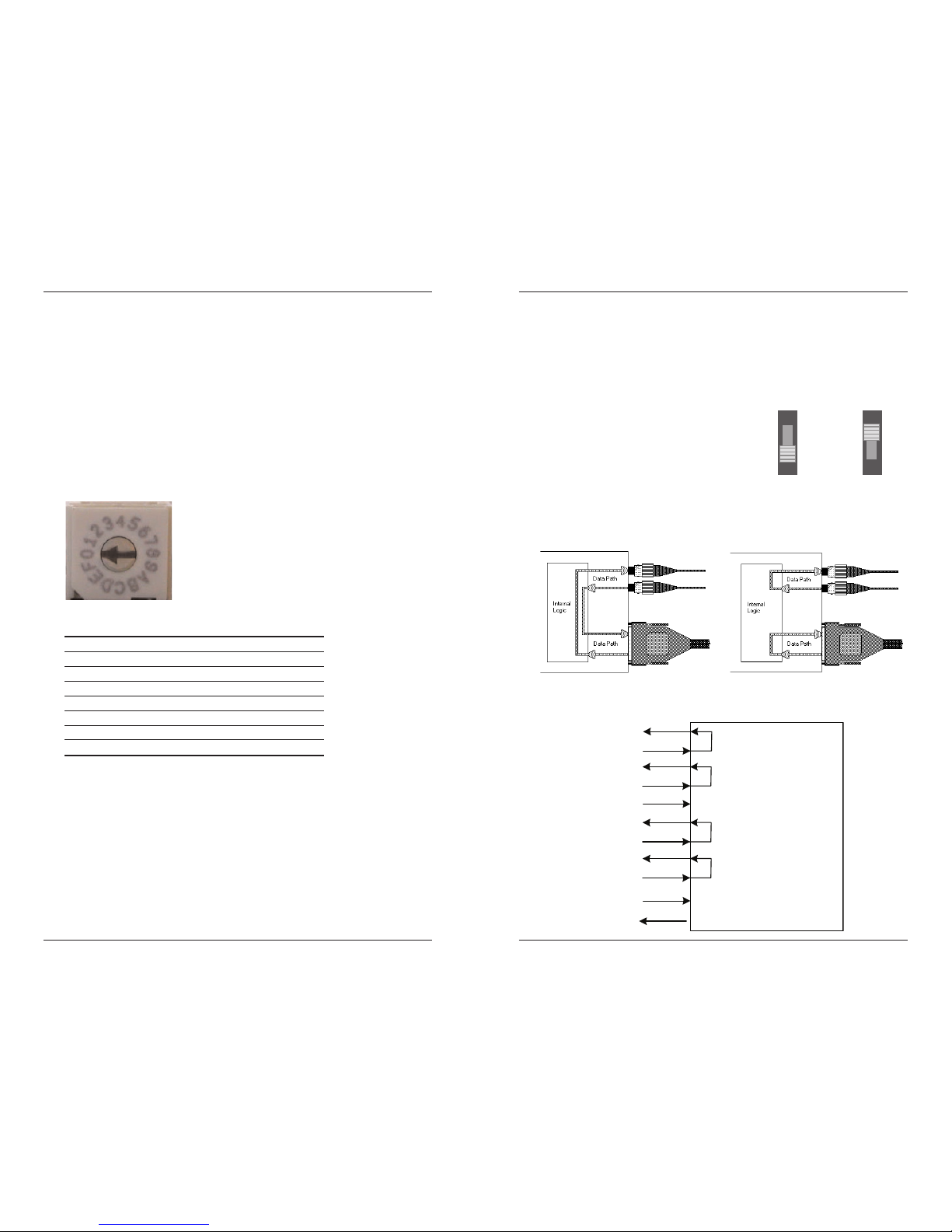

Set the Terminal Timing Switch

The 16-position terminal timing switch, located on the side of the media

converter, allows the network administrator to configure the media converter

for various network conditions.

To set the terminal timing switch, insert a small, flat-blade screwdriver or a

similar device into the recessed arrow on the switch. Gently rotate the switch

to the position required for the site installation.

This table lists the conditions for each setting of the terminal timing switch:

* Setting “F” overrides the software mode (see page 6) and sets the media

converter to asynchronous mode.

[email protected] -- Click the “Transition Now” link for a live Web chat. 5

Installation -- Continued

Set the Loop-Back Switch

The loop-back switch is located on the front panel of the media converter and

is used to debug network faults. (See page 14 in the “Troubleshooting”

section for examples.)

To set the switch, use a small flatblade

screwdriver or a similar device.

Norm Set the switch to “Norm” for

normal operation.

Loop Set the switch to “Loop” to

enable both fiber and copper

loop-back.

The two drawings below illustrate the data path for both normal mode and

loop-back mode:

Normal Mode Loop-Back Mode

The drawing below indicates the data path during loop-back mode for each of

the pins on the copper 26-pin connector.

TxD (1,14)

(To DCD on other Converter)

(From DCD on other Converter)

Loop Back Mode

High Speed Serial Converter

RxD (3,16)

TxCE (24,11)

RxC (17,9)

TxC (15,12)

RTS (4,19)

CTS (5,13)

DTR (20,23)

DRS (6,22)

DCD (8,10)

LL(18)

Normal

Operation:

Norm

Loop

Fiber and Coppe

Loop-Back:

Norm

Loop

SPSVT26xx-10x

24-hour Technical Support: 1-800-260-1312 International: 00-1-952-941-7600

Installation -- Continued

Set the Jumpers

The SPSVT26-10x has three jumpers located on the circuit board inside the

media converter housing. To set any of the three jumpers:

1. Using a small screwdriver, remove the four (4) screws that secure the

cover and carefully remove the cover from the media converter.

2. Locate the jumper(s) on the circuit board. (See pages 6 and 7.)

3. Using small needle-nosed pliers or similar device, move the jumper(s) to

the desired position(s). (See pages 6 and 7.)

4. Carefully replace the cover on the media converter and replace the four

(4) screws that secure the cover to the media converter.

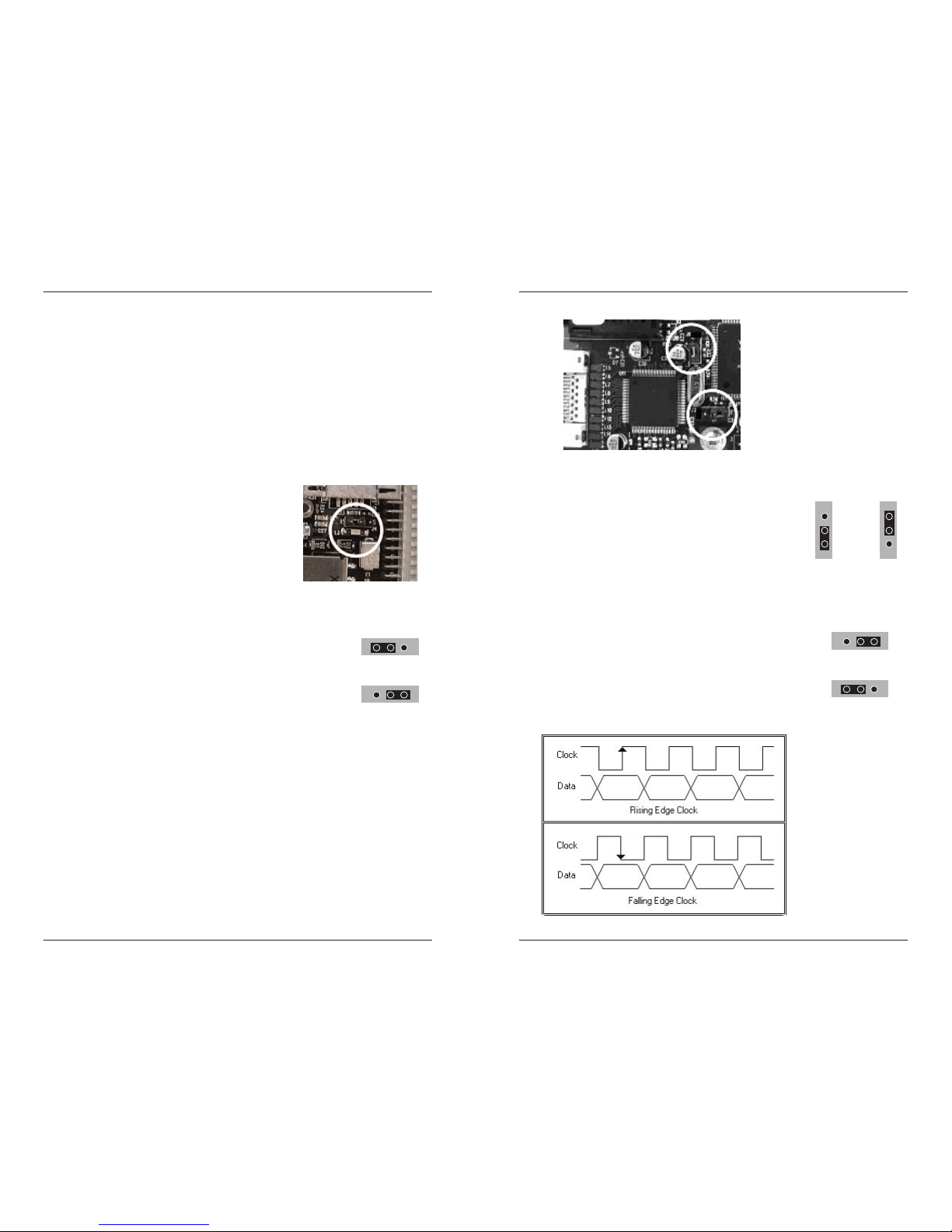

Hardware/Software Jumper (J4)

The Hardware/Software jumper (J4) is located on

the circuit board and is the jumper that is

nearest the rear connector of the media

converter (see the photo to the right).

Hardware The terminal timing switch controls the terminal timing

function. The loop-back switch controls the loop-back

function.

Software The terminal timing switch and the loop-

back switch are disabled. These two

functions are controlled by the most-

recently saved, on-board microprocessor

settings.

NOTE: Setting the terminal timing switch to “F” overrides the software mode

and sets the media converter to asynchronous mode. (See page 4.)

Remote Management

The SPSVT26xx-10x stand-alone media converter can be remotely managed

by the CPSVT26xx-10x, the chassis version of the media converter.

For example, a local CPSVT2611-100 converter (that is installed in a managed

Transition Networks PointSystem™ chassis) is connected, via fiber, to a

remote SPSVT2611-100 converter. An example of a managed single-fiber

network has a local CPSVT2629-100 converter connected, via fiber, to a

remote SPSVT2629-101.

NOTE: In a managed network, both the local and remote media converters

must be set to “software” mode (see above).

For more information, see the SNMP section in the CPSVT26xx-10x user’s

guide on-line at: www.transition.com.

Software Mode

Hardware Mode

Rear Connector

[email protected] -- Click the “Transition Now” link for a live Web chat. 7

Installation -- Continued

Receive (RX) Clock Polarity Jumper (J6)

The RX Clock Polarity jumper (J6), located near the front panel of the circuit

board, selects the polarity of the receive clock.

Position A The receive data is sampled on the

rising edge of the receive clock.

Position B The receive data is sampled on the

falling edge of the receive clock.

Transmit (TX) Clock Polarity Jumper (J7)

The TX Clock Polarity jumper (J7), also located near the front panel of the

circuit board, selects the polarity of the transmit clock.

Position A The transmit data is sampled on the

rising edge of the receive clock.

Position B The transmit data is sampled on the

falling edge of the receive clock.

This drawing illustrates “rising edge” and “falling edge” for clock polarity.

Position B

Position A

Position B

Position A

J7- TX Clock Polarity Jumper

J6- RX Clock Polarity Jumper

Front Panel

SPSVT26xx-10x

24-hour Technical Support: 1-800-260-1312 International: 00-1-952-941-7600

Installation -- Continued

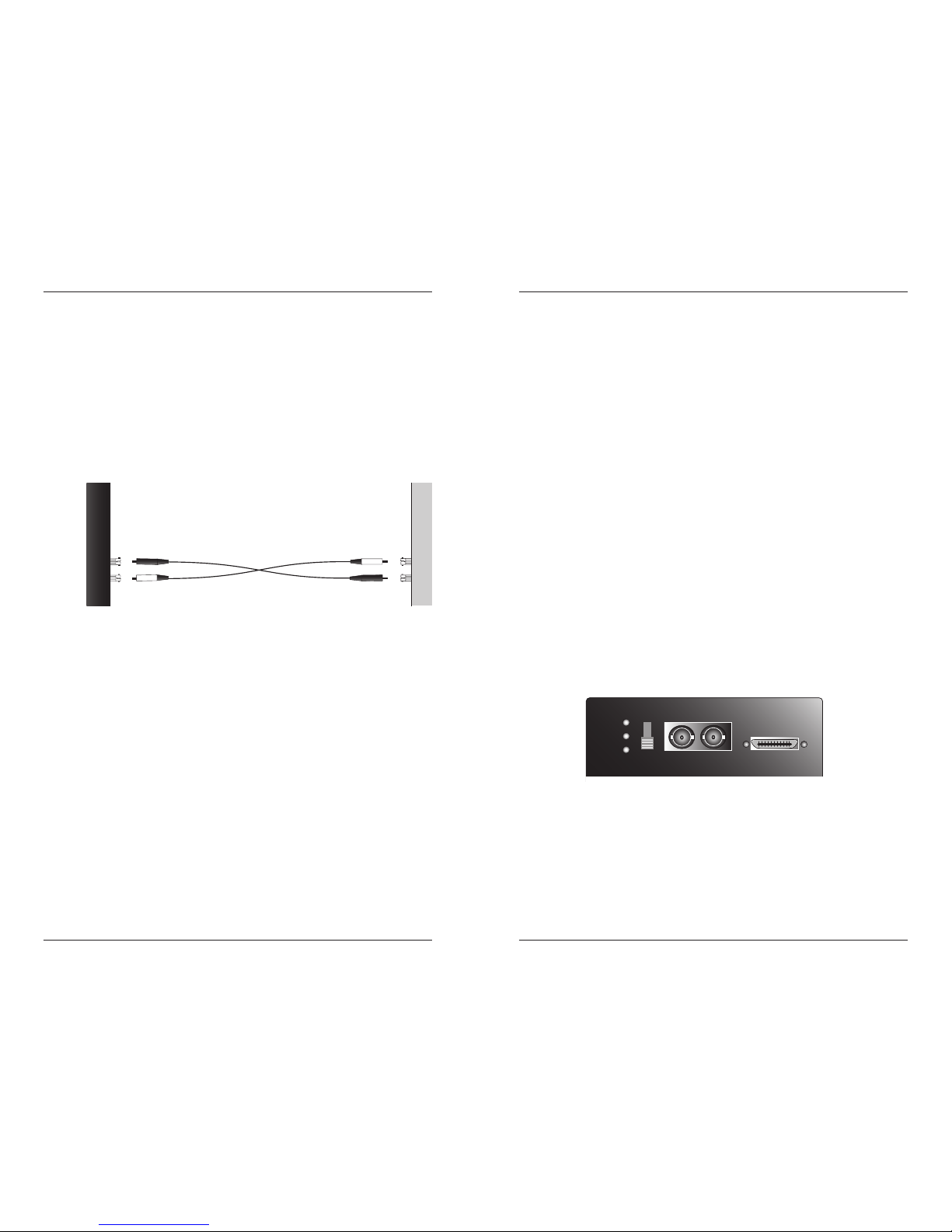

Install the Fiber Cable

1. Locate or build fiber optic cable with male, two-stranded TX to RX

connectors installed at both ends.

2. Connect the fiber cables to the SPSVT26xx-10x media converter as

described:

• Connect the male TX cable connector to the female TX port.

• Connect the male RX cable connector to the female RX port.

3. Connect the fiber cables to the other device (another media converter,

hub, etc.) as described:

• Connect the male TX cable connector to the female RX port.

• Connect the male RX cable connector to the female TX port.

Install the Copper Cable

1. Connect the high-speed serial cable to the media converter by

connecting the cable’s copper connector to the converter’s copper port.

2. Ensure that the cable screwlocks are tightened securely. Failure to

observe this caution could cause data transfer to fail.

3. Connect the other end of the high-speed serial cable to the other network

device (cable router, CSU, etc.).

Connect the fiber cable

to the media converter

as shown.

Connect the fiber cable

to the other device

(media converter,

hub, etc.) as shown

[email protected] -- Click the “Transition Now” link for a live Web chat. 9

Installation -- Continued

Power the Media Converter

1. Install the power adapter cord to the back of the media converter.

2. Connect the power adapter plug to AC power.

3. Verify that the media converter is powered by observing the illuminated

LED power indicator light.

Consult the user’s guide for the Transition Networks SPS1872-xx DC external

power supply for powering the media converter.

Operation

Status LEDs

Use the status LEDs to monitor the SPSVT26xx-10x media converter

operation in the network.

PWR (on) The media converter is connected to external power.

FL (on) The fiber link is up.

(flashing) The fiber link is in loop-back mode.

CL (on) The copper link is up.

(flashing) The copper link is in loop-back mode.

(In asynchronous mode, the CL LED may flash if the data rates fall

below 300 cycles per second.)

Fiber

Copper

PWR

LOOPNORM

SPSVT26xx-10x

24-hour Technical Support: 1-800-260-1312 International: 00-1-952-941-7600

Cable Specifications

Fiber Cable

Bit Error Rate: <10-9

Single mode fiber (recommended): 9 µm

Multimode fiber (recommended): 62.5/125 µm

Multimode fiber (optional): 100/140, 85/140, 50/125 µm

SPSVT2611-100 1300 nm multimode

Fiber Optic Transmitter Power: min: -19.0 dBm max: -14.0 dBm

Fiber Optic Receiver Sensitivity: min: -30.0 dBm max: -14.0 dBm

Link Budget: 11.0 dB

SPSVT2613-100 1300 nm multimode

Fiber Optic Transmitter Power: min: -19.0 dBm max: -14.0 dBm

Fiber Optic Receiver Sensitivity: min: -30.0 dBm max: -14.0 dBm

Link Budget: 11.0 dB

SPSVT2614-100 1310 nm single mode

Fiber-optic Transmitter Power: min: -15.0 dBm max: -8.0 dBm

Fiber-optic Receiver Sensitivity: min: -31.0 dBm max: -8.0 dBm

Link Budget: 16.0 dB

SPSVT2615-100 1310 nm single mode

Fiber Optic Transmitter Power: min: -8.0 dBm max: -2.0 dBm

Fiber Optic Receiver Sensitivity: min: -34.0 dBm max: -7.0 dBm

Link Budget: 26.0 dB

SPSVT2616-100 1310 nm single mode

Fiber-optic Transmitter Power: min: -5.0 dBm max: 0.0 dBm

Fiber-optic Receiver Sensitivity: min: -34.0 dBm max: -7.0 dBm

Link Budget: 29.0 dB

SPSVT2617-100 1550 nm single mode

Fiber-optic Transmitter Power: min: -5.0 dBm max: 0.0 dBm

Fiber-optic Receiver Sensitivity: min: -34.0 dBm max: -7.0 dBm

Link Budget: 29.0 dB

SPSVT2629-100 1310 nm (TX) / 1550 nm (RX) simplex

Fiber-optic Transmitter Power: min: -13.0 dBm max: -6.0 dBm

Fiber-optic Receiver Sensitivity: min: -32.0 dBm max: -3.0 dBm

Link Budget: 19.0 dB

SPSVT2629-101 1550 nm (TX) / 1310 nm (RX) simplex

Fiber-optic Transmitter Power: min: -13.0 dBm max: -6.0 dBm

Fiber-optic Receiver Sensitivity: min: -32.0 dBm max: -3.0 dBm

Link Budget: 19.0 dB

SPSVT2629-102 1310 nm (TX) / 1550 nm (RX) simplex

Fiber-optic Transmitter Power: min: -8.0 dBm max: -3.0 dBm

Fiber-optic Receiver Sensitivity: min: -33.0 dBm max: -3.0 dBm

Link Budget: 25.0 dB

SPSVT2629-103 1550 nm (TX) / 1310 nm (RX) simplex

Fiber-optic Transmitter Power: min: -8.0 dBm max: -3.0 dBm

Fiber-optic Receiver Sensitivity: min: -33.0 dBm max: -3.0 dBm

Link Budget: 25.0 dB

The fiber optic transmitters on this device meet Class I Laser safety requirements

per IEC-825/CDRH standards and comply with 21 CFR1040.10 and

21CFR1040.11.

[email protected] -- Click the “Transition Now” link for a live Web chat. 11

Cable Specifications -- Continued

Copper Cable

• Copper twisted-pair, 28 AWG, 120 Ohm, 12 pf/foot capacitance (max)

• Nominal DC resistance: 65.0 ohms per 1000 feet (each conductor)

• Shield type: Aluminum Foil-Polyester Tape/Braid Shield with drain wire

• Standard Cable length: 3 m (10 ft.)

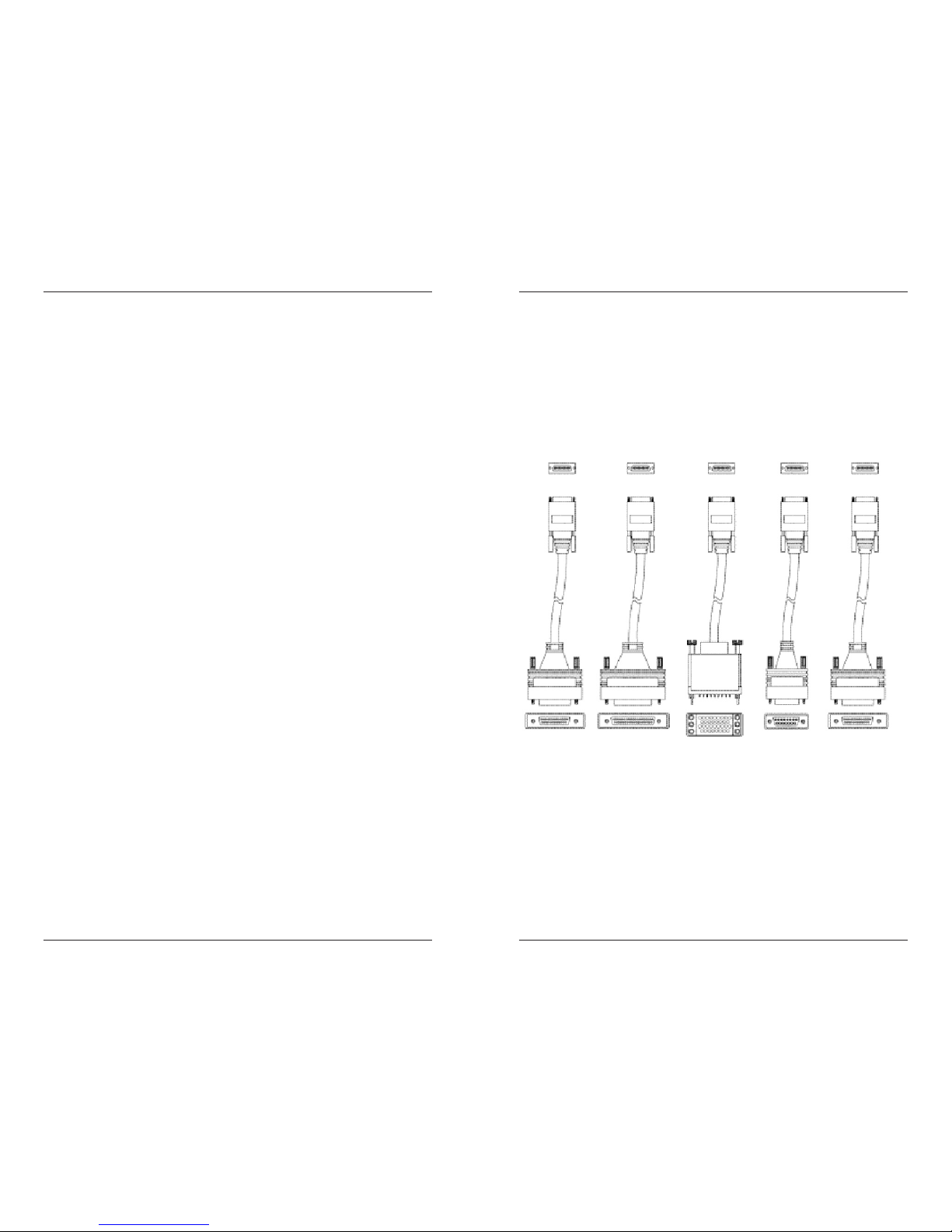

The five high-speed serial cables (available from Transition Networks) that are

compatible with the 26-pin copper port on the SPSVT26xx-10x media

converter are pictured below.

RS-232 RS-449 V.35 X.21 RS-530

NOTE: Please refer to the cable specifications documentation on-line at

www.transition.com.

SPSVT26xx-10x

24-hour Technical Support: 1-800-260-1312 International: 00-1-952-941-7600

Technical Specifications

For use with Transition Networks Model SPSVT26xx-10x or equivalent

Standards: V.35, RS-530, RS-449, RS-232, X.21

Data Rate: 1.2 Kb/s to 10 Mb/s

Dimensions: 3.25" x 1.0" x 4.8" (82mm x 25mm x 122mm)

Weight: 10 oz. (283 g) (approximate)

Power Consumption: 5.0 Watts

MTBF (w/ power supply): 47,739 hours (MIL217F2 V5.0) (MIL-HDBK-217F)

129,217 hours (Bellcore7 V5.0)

Power Supply: 12VDC, 1.25A, 100-240 VAC (~1.0A), 15W max

(UL Listed, C-UL Listed, 6D44 E170507)

Environment: Tmra*: 0 to 50°C (32 to 122°F)

Storage Temperature: -15 to 65°C (5 to 149°F)

Humidity: 10 to 90%, non condensing

Altitude: 0 to 10,000 feet

Warranty: Lifetime

*Manufacturer’s rated ambient temperature.

The information in this user’s guide is subject to change. For the most up-to-date

information on the SPSVT26xx-10x media converter, see the user’s guide on-line

at www.transition.com.

Product is certified by the manufacturer to comply with DHHS Rule 21/CFR,

Subchapter J applicable at the date of manufacture.

CAUTION: Visible and invisible laser radiation when open. Do not stare into

beam or view directly with optical instruments.

CAUTION: Use of controls, adjustments or the performance of procedures other

than those specified herein may result in hazardous radiation exposure.

[email protected] -- Click the “Transition Now” link for a live Web chat.

Troubleshooting

If the media converter fails, isolate and correct the fault by determining the

answers to the following questions and then taking the indicated action:

1. Is the PWR LED on the media converter illuminated?

• Is the power adapter the proper type of voltage and cycle frequency

for the AC outlet?

• Is the power adapter installed in the converter and in the outlet?

• Contact Tech Support: 800-260-1312, Int’l: 00-1-952-941-7600.

YES

• Proceed to step 2.

2. Is the CL LED on the media converter illuminated?

• Are the copper cables connected properly?

• Is the device attached to the media converter via the copper cable

working properly?

• Contact Tech Support: 800-260-1312, Int’l: 00-1-952-941-7600.

YES

• Proceed to step 3.

3. Is the FL LED on the media converter illuminated?

• Check the fiber cables for proper connection.

• Verify that the TX and RX cables on the media converter are

connected to the RX and TX ports, respectively, on the other device.

• Are both media converters (connected via the fiber cables) in the

same mode (synchronous or asynchronous)?

• Contact Tech Support: 800-260-1312, Int’l: 00-1-952-941-7600.

YES

• Proceed to step 4.

4. Are the CL and FL LEDs on the media converter flashing

(indicating loop-back mode)?

• Disable the loop-back function. In hardware mode, set the loop-

back switch to NORM (normal). In software mode, click “disable” in

the loop-back function.

• Contact Tech Support: 800-260-1312, Int’l: 00-1-952-941-7600.

YES

• Proceed to step 5.

5. Is data transfer failing?

YES

• Are the clock input and output polarity correct?

• Are the correct copper cables installed for the data format?

• Is the mode on the other device correct (synchronous/asynchronous)?

• Contact Tech Support: 800-260-1312, Int’l: 00-1-952-941-7600.

• Proceed to step 6.

SPSVT26xx-10x

24-hour Technical Support: 1-800-260-1312 International: 00-1-952-941-7600

FiberCopper Copper

Local

Converter

w/ SNMP Management

Remote

Converter

Bit Error Test

Equipment

Remote

Device

FiberCopper Copper

Local

Converter

w/ SNMP Management

Remote

Converter

Bit Error Test

Equipment

Remote

Device

FiberCopper Copper

Local

Converter

w/ SNMP Management

Remote

Converter

Bit Error Test

Equipment

Remote

Device

FiberCopper Copper

Local

Converter

w/ SNMP Management

Remote

Converter

Bit Error Test

Equipment

Remote

Device

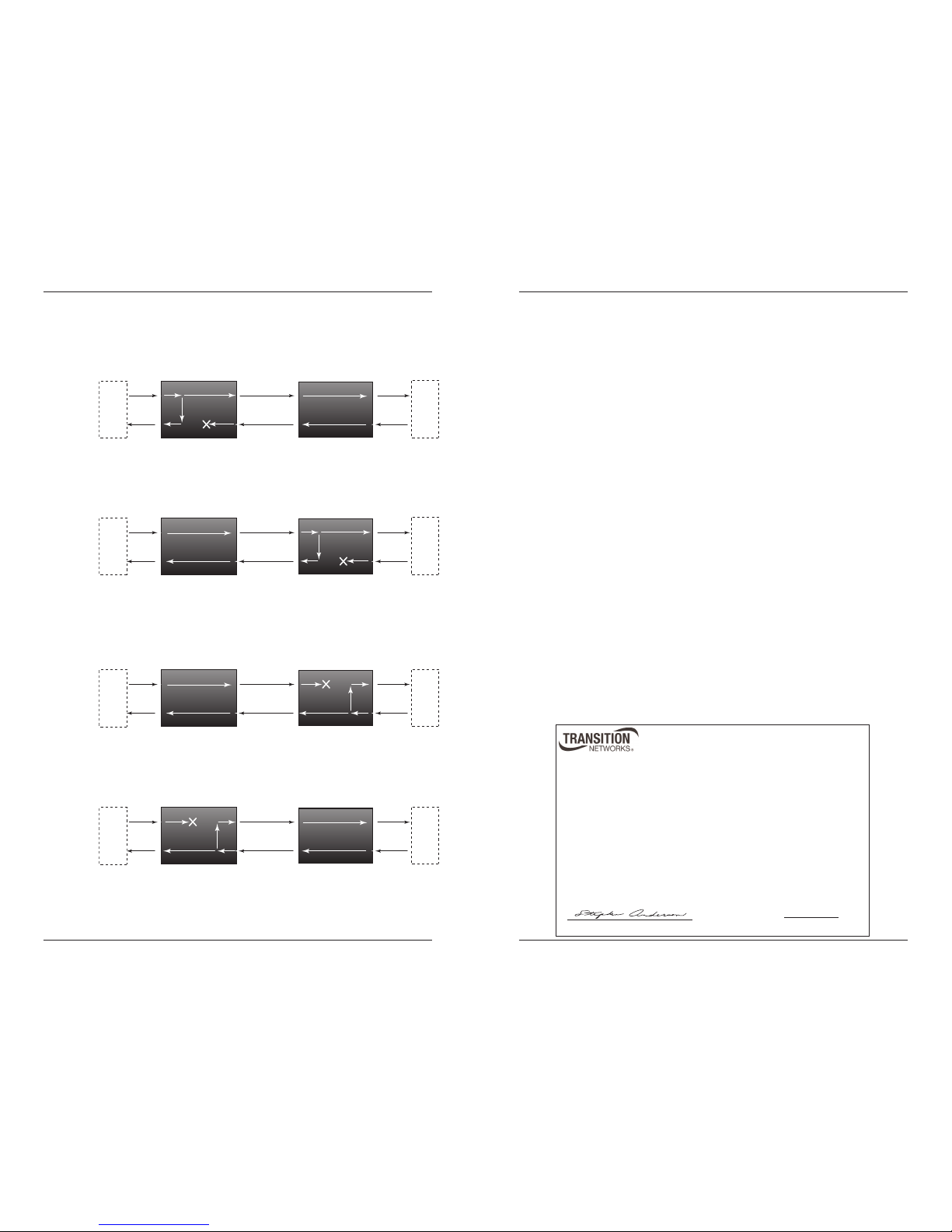

6. Is data transfer failing?

YES

• Verify the local copper connection by starting a local copper loop-

back (hardware mode: set the loop-back switch on the local media

converter to “loop”, software mode: enter the local copper loop-back

command) and then use a bit error test unit to run a bit error test.

• Verify the local fiber connection by starting a remote fiber loop-back

(hardware mode: set the loop-back switch on the remote media

converter to “loop”, software mode: enter the remote fiber loop-back

command) and then use a bit error test unit to run a bit error test.

• Verify the remote copper connection by starting a remote copper

loop-back (hardware mode: set the loop-back switch on the remote

media converter to “loop”, software mode: enter the remote copper

loop-back command) and then use a bit error test unit to run a bit

error test.

• Verify remote fiber connection by starting a local copper loop-back

(hardware mode: setting the loop-back switch on the local media

converter to “loop”, software mode: enter the local fiber loop-back

command) and then use a bit error test unit to run a bit error test.

• Contact Tech Support: 800-260-1312, Int’l: 00-1-952-941-7600.

Declaration of Conformity

Name of Mfg: Transition Networks

6475 City West Parkway, Minneapolis MN 55344 U.S.A.

Model: SPSVT26xx-10x Series Media Converters

Part Number(s): SPSVT2611-100, SPSVT2613-100, SPSVT2614-100,

SPSVT2615-100, SPSVT2616-100, SPSVT2617-100,

SPSVT2629-100, SPSVT2629-101, SPSVT2629-102,

SPSVT2629-103

Regulation: EMC Directive 89/336/EEC

Purpose: To declare that the

SPSVT26xx-10x

to which this declaration refers is

in conformity with the following standards.

CISPR 22:1993; EN 55022:1998+A1:2000 Class A; EN 55024: 1998; FCC Part 15

Subpart B; 21CFR subpart J; EN 61000-3-2:1995:A14:2000; EN 61000-3-3:1995

I, the undersigned, hereby declare that the equipment specified above conforms to the above

Directive(s) and Standard(s).

August 1, 2007_____

Stephen Anderson, Vice-President of Engineering Date

[email protected] -- Click the “Transition Now” link for a live Web chat. 15

Technical Support

Technical support is available 24 hours a day.

US and Canada: 1-800-260-1312

International: 00-1-952-941-7600

Transition Now

Chat live via the Web with Transition Networks Technical Support.

Log onto www.transition.com and click the Transition Now link.

Web-Based Seminars

Transition Networks provides seminars via live web-based training.

Log onto www.transition.com and click the Learning Center link.

E-Mail

Ask a question anytime by sending an e-mail to our technical support staff.

[email protected]

Address

Transition Networks

6475 City West Parkway

Minneapolis, MN 55344, U.S.A.

telephone: 952-941-7600

toll free: 800-526-9267

fax: 952-941-2322

Compliance Information

CISPR22/EN55022 Class A + EN55024

CE Mark

FCC Regulations

This equipment has been tested and found to comply with the limits for a Class A digital

device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment is operated in a commercial

environment. This equipment generates, uses, and can radiate radio frequency energy and, if

not installed and used in accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment in a residential area is

likely to cause harmful interference, in which case the user will be required to correct the

interference at the user's own expense.

Canadian Regulations

This digital apparatus does not exceed the Class A limits for radio noise for digital apparatus

set out on the radio interference regulations of the Canadian Department of Communications.

Le présent appareil numérique n'émet pas de bruits radioélectriques dépassant les limites

applicables aux appareils numériques de la Class A prescrites dans le Règlement sur le

brouillage radioélectrique édicté par le ministère des Communications du Canada.

European Regulations

Warning

This is a Class A product. In a domestic environment this product may cause radio

interference in which case the user may be required to take adequate measures.

Achtung !

Dieses ist ein Gerät der Funkstörgrenzwertklasse A. In Wohnbereichen können bei Betrieb

dieses Gerätes Rundfunkstörungen auftreten. In diesem Fäll ist der Benutzer für

Gegenmaßnahmen verantwortlich.

Attention !

Ceci est un produit de Classe A. Dans un environment domestique, ce produit risque de créer

des interférences radioélectriques, il appartiendra alors à l'utilsateur de prende les measures

spécifiques appropriées.

Trademark Notice

All trademarks and registered trademarks are the property of their respective owners.

means - graphic, electronic, or mechanical - without written permission from Transition

Networks.

Printed in the U.S.A. 33236.C

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Transition Networks Convertisseur de média

Transition Networks

Transition Networks SBFTF10xx-1xx Manuel utilisateur

Transition Networks

Transition Networks ARCNET AR-CF-01(SC) Manuel utilisateur

Transition Networks

Transition Networks M/GE-PSW-SX-01 Manuel utilisateur

Transition Networks

Transition Networks C4TEF1011-100 Manuel utilisateur

Transition Networks

Transition Networks CBFTF1011-110 Manuel utilisateur

Transition Networks

Transition Networks J/E-CX-TBT-02 Manuel utilisateur

Transition Networks

Transition Networks FBRM1XXX-1XX Manuel utilisateur

Transition Networks

Transition Networks C/RS485-CF-01(SC) Manuel utilisateur

Transition Networks

Transition Networks SISTF10xx-111-LR(T) Manuel utilisateur

Transition Networks

Transition Networks J/E-CX-TBT-01 Manuel utilisateur

Transition Networks

Transition Networks SFMFF1314-280 Manuel utilisateur

Transition Networks

Transition Networks S4110-4848 Manuel utilisateur

Transition Networks

Transition Networks E-100BTX-FX-05(LC) Manuel utilisateur

Transition Networks

Transition Networks C/F-SM-MM-04(LH) Manuel utilisateur

Transition Networks

Transition Networks M/GE-xSW-SFP-01-xx-U Series Manuel utilisateur

Transition Networks

Transition Networks 10BASE-2 Manuel utilisateur

Transition Networks

Transition Networks METTF1011-120 Manuel utilisateur

Transition Networks

Transition Networks CGFEB1013-100 Manuel utilisateur

Transition Networks

Transition Networks CRS2F31-100 Series Manuel utilisateur

Transition Networks

Transition Networks C/E-PSW-SX-01(SC) Manuel utilisateur

Transition Networks

Transition Networks SGETF1024-105 Manuel utilisateur

Transition Networks

Transition Networks NANOMETER E-100BTX-SX-01 Manuel utilisateur

Transition Networks

Transition Networks TR-CF-01 Manuel utilisateur

Transition Networks

Transition Networks M/GE-PSW-LX-01 Manuel utilisateur

Manuels Convertisseur de média populaires d'autres marques

SoundTraxx

SoundTraxx Blunami BLU-2200 Manuel utilisateur

SPROLINK

SPROLINK VA1 Manuel utilisateur

Acclaim Lighting

Acclaim Lighting DDC-1-AC Manuel utilisateur

Nikon

Nikon AF-S TC-20E III Manuel utilisateur

Axis

Axis AXIS Q7406 Manuel utilisateur

Omega

Omega TAC80B-J Manuel utilisateur

Zoom

Zoom Thunderbolt TAC-2R Manuel utilisateur

OST

OST iConverter 10/100M Manuel utilisateur

Vertiv

Vertiv Netsure Manuel utilisateur

birddog

birddog MINI Manuel utilisateur

Roland

Roland GI-10 Manuel utilisateur

Wallenstein

Wallenstein WX310 Manuel utilisateur

Pace

Pace MSS 200-1 Manuel utilisateur

Solar Converters

Solar Converters EQ 12/24-50 Manuel utilisateur

CYP

CYP EL-7400V Manuel utilisateur

TIE

TIE MIDI 1i1o Manuel utilisateur

DCS

DCS Vivaldi Upsampler Manuel utilisateur

Westermo

Westermo MCW-211 SERIES Manuel utilisateur
