Installation Guide

Gigabit Smart Switch

TL-SG2216/TL-SG2424/TL-SG2424P/TL-SG2452

Enterprise Networking Solution



Specifications are subject to change without notice. is a registered trademark

of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks of their

respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make

any derivative such as translation, transformation, or adaptation without permission from TP-LINK

http://www.tp-link.com



This equipment has been tested and found to comply with the limits for a Class A digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference when the equipment is operated in a commercial environment. This

equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in

accordance with the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful interference in which case

the user will be required to correct the interference at his own expense.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two

conditions:

This device may not cause harmful interference.1)

This device must accept any interference received, including interference that may cause2)

undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could

void the user’s authority to operate the equipment.



This is a Class A product. In a domestic environment, this product may cause radio interference, in

which case the user may be required to take adequate measures.



The User Guide and CLI Reference Guide (CLI Reference Guide is not available for

TL-SG2452) of the product are provided on the resource CD. To obtain the latest

product information, please visit the official website: http://www.tp-link.com



This Installation Guide describes the hardware characteristics, installation methods

and the points that should be attended to during installation. This Installation

Guide is structured as follows:

Chapter 1 Introduction. This chapter describes the external components of

the Switch.

Chapter 2 Installation. This chapter illustrates how to install the Switch.

Chapter 3 Lightning Protection. This chapter illustrates how to prevent

lightning damage.

Chapter 4 Connection. This chapter illustrates how to do the physical connec-

tion of the Switch.

Chapter 5 Configuration. This chapter instructs you to configure the Switch via

Web Interface and CLI commands.

Appendix A Troubleshooting.

Appendix B Hardware Specifications.

Appendix C Technical Support.



This Installation Guide is for:

Network Engineer Network Administrator



Due to the similarity in structure of the Gigabit Smart Switch series, in this

Installation Guide we take TL-SG2216 as an example to illustrate Chapter 2

Installation, Chapter 3 Lightning Protection, Chapter 4 Connection and Chapter 5

Configuration.

This Guide uses the specific formats to highlight special messages. The following

table lists the notice icons that are used throughout this guide.

Remind to be careful. A caution indicates a potential which may result in device

damage.

Remind to take notice. The note contains the helpful information for a better

use of the product.

Related Document

III Contents



Chapter 1 Introduction ———————————— 01

1.1 Product Overview.....................................01

1.2 Appearance................................................... 01

Chapter 2 Installation ———————————— 07

2.1 Package Contents.....................................07

2.2 Safety Precautions....................................07

2.3 Installation Tools......................................09

2.4 Product Installation ..................................10

Chapter 3 Lightning Protection ———————— 12

3.1 Cabling Reasonably ..................................12

3.2 Connect to Ground ...................................14

3.3 Equipotential Bonding...............................15

3.4 Use Lightning Arrester ..............................16

Chapter 4 Connection ———————————— 18

4.1 Ethernet Port ...........................................18

4.2 SFP Port ..................................................18

4.3 Verify Installation .....................................19

4.4 Power On ................................................19

4.5 Initialization.............................................19

Chapter 5 Conguration ——————————— 20

5.1 Congure the Switch via GUI ....................20

5.2 Congure the Switch Using CLI .................21

Appendix A Troubleshooting—————————— 23

Appendix B Hardware Specications —————— 24

Appendix C Technical Support ————————— 25

Gigabit Smart Switch

Introduction





TP-LINK Gigabit Smart Switch, designed for workgroups and departments, provides

wire-speed performance and abundant layer 2 management features. It provides a

variety of service features and multiple powerful functions with high security.

The EIA-standardized framework and smart configuration capacity can provide flexible

solutions for a variable scale of networks. QoS and IGMP snooping/filtering optimize

voice and video application. Link aggregation increases aggregated bandwidth,

optimizing the transport of business critical data. SNMP, RMON, WEB/Telnet Log-in

bring abundant management policies (TL-SG2452 doesn't support the Telnet function).

TP-LINK Gigabit Smart Switch integrates multiple functions with excellent performance,

and is friendly to manage, which can fully meet the need of the users demanding

higher networking performance.

TL-SG2424P Smart PoE Switch is also a Power Sourcing Equipment (PSE*). All the Auto-

Negotiation RJ45 ports on the switch support Power over Ethernet (PoE*) function,

which can automatically detect and supply power with those powered devices (PDs*)

complying with IEEE 802.3af and IEEE 802.3at.

*PSE: a device (switch or hub for instance) that will provide power in a PoE setup.

*PoE: This technology describes a system to transmit electrical power, along with data,

to remote devices over standard twisted-pair cable in an Ethernet.

*PD: a device powered by a PSE and thus consumes energy. Examples include

powering IP telephones, wireless LAN access points, network cameras, network hubs,

embedded computers etc.



Front Panel



The front panel of TL-SG2216 is shown as the following figure.

LEDs

10/100/1000Mbps RJ45 Port

SFP Port

Reset

Front Panel of TL-SG2216Figure 1-1

Gigabit Smart Switch

The front panel of TL-SG2424 is shown as the following figure.

LEDs

10/100/1000Mbps RJ45 Port

SFP Port

Reset

Front Panel of TL-SG2424Figure 1-2

Reset

Press this button for five seconds or above to reset the software setting back to

factory default settings.

LEDs

LED Status Indication

Power On The Switch is powered on

Off The Switch is powered off or power supply is abnormal

System

On The Switch is working abnormally

Flashing The Switch is working normally

Off The Switch is working abnormally

Link/Act

On There is a device linked to the corresponding port but no

activity

Flashing The corresponding port is transmitting or receiving data

Off There is no device linked to the corresponding port

1000Mbps

On A 1000Mbps device is connected to the corresponding port

Off A 10/100Mbps device or no device is connected to the

corresponding port

10/100/1000Mbps RJ45 Port

Designed to connect to the device with a bandwidth of 10Mbps, 100Mbps or

1000Mbps. Each has a corresponding Link/Act LED and a 1000Mbps LED.

SFP Port

Designed to install the SFP module. TL-SG2216/TL-SG2424 Switch features 2/4 SFP

transceiver slots that are shared with the associated RJ45 ports. The associated

two ports are referred as a “Combo”port, which means they cannot be used

simultaneously, otherwise only SFP port works.

Introduction

Gigabit Smart Switch

Introduction

The front panel of TL-SG2424P is shown as the following figure.

Reset

LEDs

10/100/1000Mbps RJ45 Port

SFP Port

LED Mode Switch Button

Front Panel of TL-SG2424PFigure 1-3

LEDs

TL-SG2424P has an LED mode switch button which is for switching the LED

status indication. When the Speed LED is on, the port LED is indicating the data

transmission rate. When the PoE LED is on, the port LED is indicating the power

supply status. By default the Speed LED is on. Pressing the mode switch button, the

Speed LED will turn off and the PoE LED will light up. Then the PoE LED will turn off

after being on for 60 seconds and the Speed LED will light up again.

When the Speed LED is on, the port LED is indicating the data transmission rate.

LED Status Indication

Power

On The Switch is powered on

Off The Switch is powered off or power supply is abnormal

Flashing Power supply is abnormal

System Flashing The Switch works properly

On/Off The Switch works improperly

10/100/

1000Mbps

Green On A 1000Mbps device is connected to the corresponding

port, but no activity

Flashing Data is being transmitted or received

Yellow On A 10/100Mbps device is connected to the corresponding

port, but no activity

Flashing Data is being transmitted or received

Off No device is connected to the corresponding port

When the PoE LED is on, the port LED is indicating the power supply status.

LED Status Indication

Power

On The Switch is powered on

Off The Switch is powered off or power supply is abnormal

Flashing Power supply is abnormal

System Flashing The Switch works properly

On/Off The Switch works improperly

Gigabit Smart Switch

Introduction

LED Status Indication

PoE Max

On The remaining PoE power≤7W

Flashing The remaining PoE power keeps ≤7W after this LED is

on for 2 minutes

Off The remaining PoE power≥

10/100/

1000Mbps

Green

On The port is supplying power normally

Flashing The supply power exceeds the correponding port's

maximum power

Yellow On Overload or short circuit is detected

Flashing Power-on self-test has failed

Off No PoE power supply is provided on the port

LED Mode Switch Button

Press this button to switch the LED status indication between Speed and PoE.

Reset

Press this button for five seconds or above to reset the software setting back to

factory default settings.

10/100/1000Mbps RJ45 Port

Designed to connect to the device with a bandwidth of 10Mbps, 100Mbps or

1000Mbps. Each has a corresponding 1000Mbps LED.

SFP Port

Designed to install the SFP module. TL-SG2424P Switch features 4 SFP transceiver

slots that are shared with the associated RJ45 ports. The associated two ports are

referred as a “Combo”port, which means they cannot be used simultaneously,

otherwise only SFP port works.

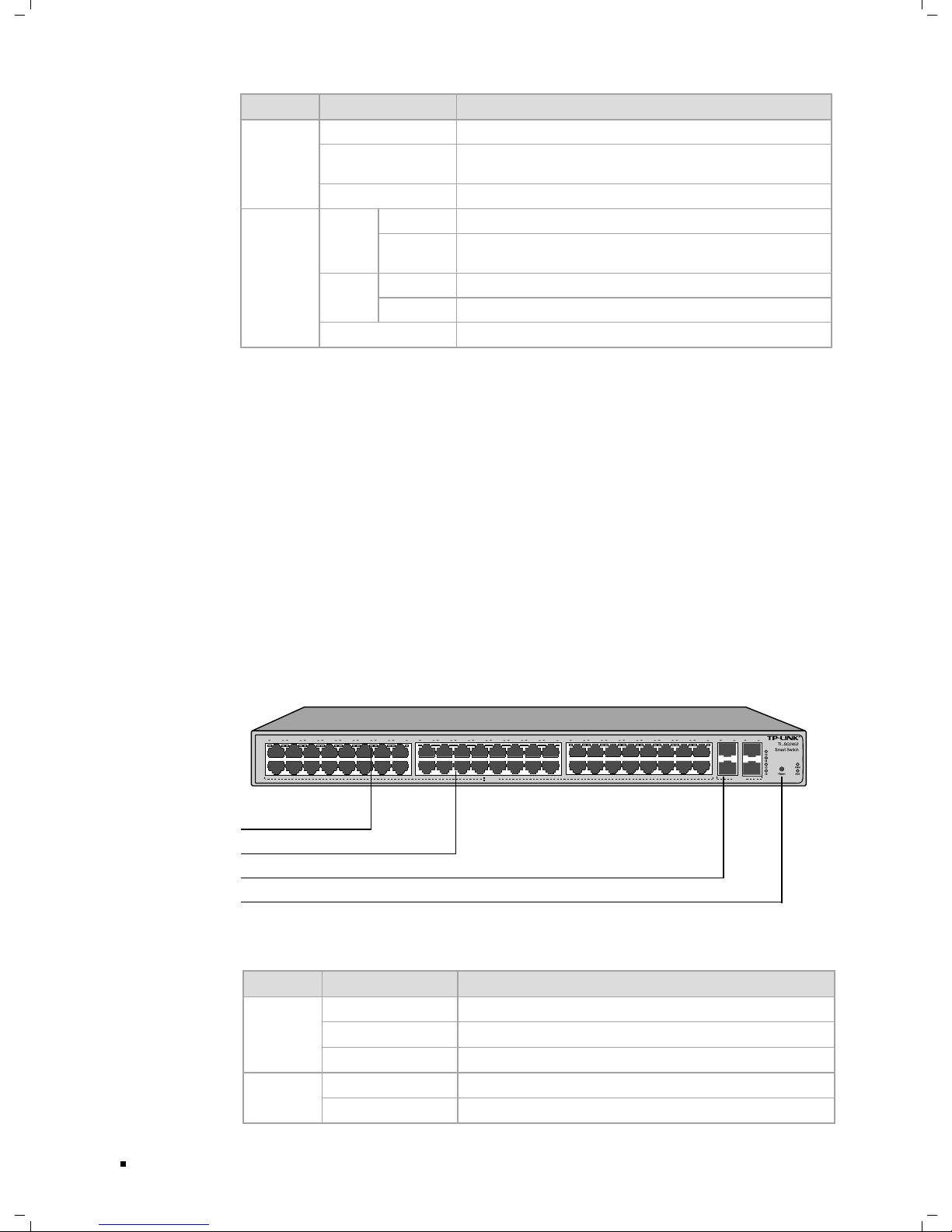

The front panel of TL-SG2452 is shown as the following figure.

SFP Port

Reset

10/100/1000Mbps RJ45 Port

30 32 34 36 38 40 42 44 46 48

246810 12 14 16 18 20 22 24 26 28 29 31 33 35 37 39 41 43 45 47

25 271 3579

11 13 15 17 19 21 23 50

51 52

100Mbps

10Mbps

1000Mbps

10/100Mbps 1000Base-X

30 32 34 36 38 40 42 44 46 48

246810 12 14 16 18 20 22 24 26 28 29 31 33 35 37 39 41 43 45 47

25 271 3579

11 13 15 17 19 21 23 50 51 52

1000Mbps

10/100Mbps

1000Mbps

10/100Mbps

1000Base-X

LEDs

Front Panel of TL-SG2452Figure 1-4

LEDs

LED Status Indication

PWR

On The Switch is powered on

Off The Switch is powered off or power supply is abnormal

Flashing Power supply is abnormal

SYS Flashing The Switch works properly

On/Off The Switch works improperly

Gigabit Smart Switch

LED Status Indication

10/100/

1000Mbps

Green On A 1000Mbps device is connected to the corresponding

port, but no activity

Flashing Data is being transmitted or received

Yellow On A 10/100Mbps device is connected to the corresponding

port, but no activity

Flashing Data is being transmitted or received

Off No device is connected to the corresponding port

10/100/1000Mbps RJ45 Port

Designed to connect to the device with a bandwidth of 10Mbps, 100Mbps or

1000Mbps. Each has a corresponding 1000Mbps LED.

SFP Port

Designed to install the SFP module. TL-SG2452 features 4 individual SFP ports.

Reset

Press this button for five seconds or above to reset the software setting back to

factory default settings.

Port Feature

Model 10/100/1000Mbps RJ45 Port SFP Port

TL-SG2216 16 2

TL-SG2424 24 4

TL-SG2424P 24 4

TL-SG2452 48 4

Note:For TL-SG2216/TL-SG2424/TL-SG2424P, when using the SFP port with a

100M module or a gigabit module, you need to log on to the GUI (Graphical User

Interface) of the Switch and congure its corresponding Speed and Duplex mode on

Switching→Port→Port Config page. For 100M module, please select 100MFD

while select 1000MFD for gigabit module. By default, the Speed and Duplex mode of

SFP port is 1000MFD. TL-SG2452 supports 1000M SFP module connection only.

Rear Panel

The rear panel of TL-SG2216 is shown as the following figure.

Grounding Terminal

Power Socket

Rear PanelFigure 1-5 of TL-SG2216

Introduction

Gigabit Smart Switch

The rear panel of TL-SG2424 is shown as the following figure.

Grounding Terminal

Power Socket

Rear PanelFigure 1-6 of TL-SG2424

The rear panel of TL-SG2424P is shown as the following figure.

Grounding Terminal

Power Socket

Rear PanelFigure 1-7 of TL-SG2424P

The rear panel of TL-SG2452 is shown as the following figure.

Grounding Terminal

Power Socket

Rear Panel of TL-SG2452Figure 1-8

Grounding Terminal

The Switch already comes with lightning protection mechanism. You can also ground

the Switch through the PE (Protecting Earth) cable of AC cord or with Ground Cable.

For detailed information, please refer to Chapter 3 Lightning Protection.

Power Socket

Connect the female connector of the power cord here, and the male connector to

the AC (Alternating Current) power outlet. Please make sure the voltage of the

power supply meets the requirement of the input voltage.

Caution: Please use the provided power cord.

Introduction

Autres manuels pour TL-SG2424P

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels TP-Link Changer

TP-Link

TP-Link TL-SF1008P Manuel d'instructions d'installation

TP-Link

TP-Link JetStream T1500G-8T Manuel d'instructions d'installation

TP-Link

TP-Link TL-SL2428 Manuel utilisateur

TP-Link

TP-Link JetStream T1500-28PCT Manuel utilisateur

TP-Link

TP-Link Tapo S210 Manuel utilisateur

TP-Link

TP-Link TL-SG2216 Manuel utilisateur

TP-Link

TP-Link JetStream TL-SL3428 Manuel utilisateur

TP-Link

TP-Link UH700 Manuel utilisateur

TP-Link

TP-Link JetStream TL-SL3428 Mode d’emploi

TP-Link

TP-Link TL-SL5428E Manuel utilisateur

TP-Link

TP-Link JetStream TL-SG3210XHP-M2 Manuel utilisateur

TP-Link

TP-Link JetStream TL-SG3424 Manuel utilisateur

TP-Link

TP-Link Tapo S500D Manuel utilisateur

TP-Link

TP-Link TL-SL5428E Manuel utilisateur

TP-Link

TP-Link TL-SL2210WEB Manuel utilisateur

TP-Link

TP-Link SG6654X Manuel utilisateur

TP-Link

TP-Link JetStream T2700G-28TQ Manuel utilisateur

TP-Link

TP-Link TL-SF1016DS Manuel utilisateur

TP-Link

TP-Link TL-SF1005P Manuel utilisateur

TP-Link

TP-Link TL-SG1024DE Manuel utilisateur

TP-Link

TP-Link TL-SF1005D Manuel utilisateur

TP-Link

TP-Link JetStream L2 Lite TL-SG3210 Mode d’emploi

TP-Link

TP-Link TL-SF1006P Manuel utilisateur

TP-Link

TP-Link TL-SF1005LP Manuel utilisateur

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur
