Installation Guide

L2 Managed Switch

TL-SG3210/TL-SG3216/TL-SG3424/TL-SG3424P

Enterprise Networking Solution



Specifications are subject to change without notice. is a registered trademark of TP-LINK

TECHNOLOGIES CO., LTD. Other brands and product names are trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any derivative such

as translation, transformation, or adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD. Copyright

http://www.tp-link.com



This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part

15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when

the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at his own expense.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

This device may not cause harmful interference.1)

This device must accept any interference received, including interference that may cause undesired operation.2)

Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s

authority to operate the equipment.



This is a Class A product. In a domestic environment, this product may cause radio interference, in which case the

user may be required to take adequate measures.

Related Document



The User Guide and CLI Reference Guide of the product are provided on the resource

CD.

To obtain the latest product information, please visit the official website:

http://www.tp-link.com



This Installation Guide describes the hardware characteristics, installation methods and

the points that should be attended to during installation.

This Installation Guide is structured as follows:

Chapter 1 Introduction. This chapter describes the external components of the

Switch.

Chapter 2 Installation. This chapter illustrates how to install the Switch.

Chapter 3 Lightning Protection. This chapter illustrates how to prevent lightning

damage.

Chapter 4 Connection. This chapter illustrates how to do the physical connection of

the Switch.

Chapter 5 Configuration. This chapter instructs you to configure the Switch via Web

Interface and CLI commands.

Appendix A Troubleshooting.

Appendix B Hardware Specifications.

Appendix C Technical Support.

III



This Installation Guide is for:

Network Engineer

Network Administrator



Due to the similarity in structure of TP-LINK JetStream L2 Managed Switch series,

in this Installation Guide we take TL-SG3216 as an example to illustrate Chapter 2

Installation, Chapter 3 Lighting Protection and Chapter 4 Connection.

This guide uses the specific formats to highlight special messages. The following table

lists the notice icons that are used throughout this guide.

Remind to be careful. A caution indicates a potential which may

result in device damage.

Remind to take notice. The note contains the helpful

information for a better use of the product.

Audience



Contents

Chapter 1 Introduction ———————————— 01

1.1 Product Overview.........................................01

1.2 Appearance .................................................01

Chapter 2 Installation ————————————— 05

2.1 Package Contents.........................................05

2.2 Safety Precautions........................................05

2.3 Installation Tools..........................................07

2.4 Product Installation ......................................07

Chapter 3 Lightning Protection ———————— 09

3.1 Cabling Reasonably ......................................09

3.2 Connect to Ground .......................................11

3.3 Equipotential Bonding...................................12

3.4 Use Lightning Arrester ..................................13

Chapter 4 Connection ————————————— 14

4.1 Ethernet Port ...............................................14

4.2 SFP Port ......................................................14

4.3 Console Port ................................................15

4.4 Verify Installation .........................................15

4.5 Power On ..................................................15

4.6 Initialization.................................................16

Chapter 5 Conguration———————————— 17

5.1 Congure the Switch via GUI ........................17

5.2 Congure the Switch Using CLI .....................18

Appendix A Troubleshooting—————————— 23

Appendix B Hardware Specications —————— 24

Appendix C Technical Support ————————— 25

L2 Managed Switch





TP-LINK JetStreamTM L2 Managed Switch, designed for workgroups and departments,

provides wire-speed performance and abundant layer 2 management features. It

provides a variety of service features and multiple powerful functions with high security.

The EIA-standardized framework and smart configuration capacity can provide flexible

solutions for a variable scale of networks. ACL, 802.1x and Dynamic ARP Inspection

provide robust security strategies. QoS and IGMP snooping/filtering optimize voice and

video application. Link aggregation (LACP) increases aggregated bandwidth, optimizing

the transport of business critical data. SNMP, RMON, WEB/CLI/Telnet Log-in bring

abundant management policies. TP-LINK JetStreamTM L2 Managed Switch integrates

multiple functions with excellent performance, and is friendly to manage, which can

fully meet the need of the users demanding higher networking performance.

TL-SG3424P Managed PoE Switch is also a Power Sourcing Equipment (PSE*). All

the Auto-Negotiation RJ45 ports on the switch support Power over Ethernet (PoE*)

function, which can automatically detect and supply power with those powered devices

(PDs*) complying with IEEE 802.3af and IEEE 802.3at.

*PSE: a device (switch or hub for instance) that will provide power in a PoE setup.

*PoE: This technology describes a system to transmit electrical power, along with data,

to remote devices over standard twisted-pair cable in an Ethernet.

*PD: a device powered by a PSE and thus consumes energy. Examples include

powering IP telephones, wireless LAN access points, network cameras, network hubs,

embedded computers etc.



Front Panel

■

The front panel of TL-SG3210 is shown as the following figure.

LEDs

Console Port

10/100/1000Mbps RJ45 Port

SFP Port

Front Panel of TL-SG3210Figure 1-1

Introduction

L2 Managed Switch

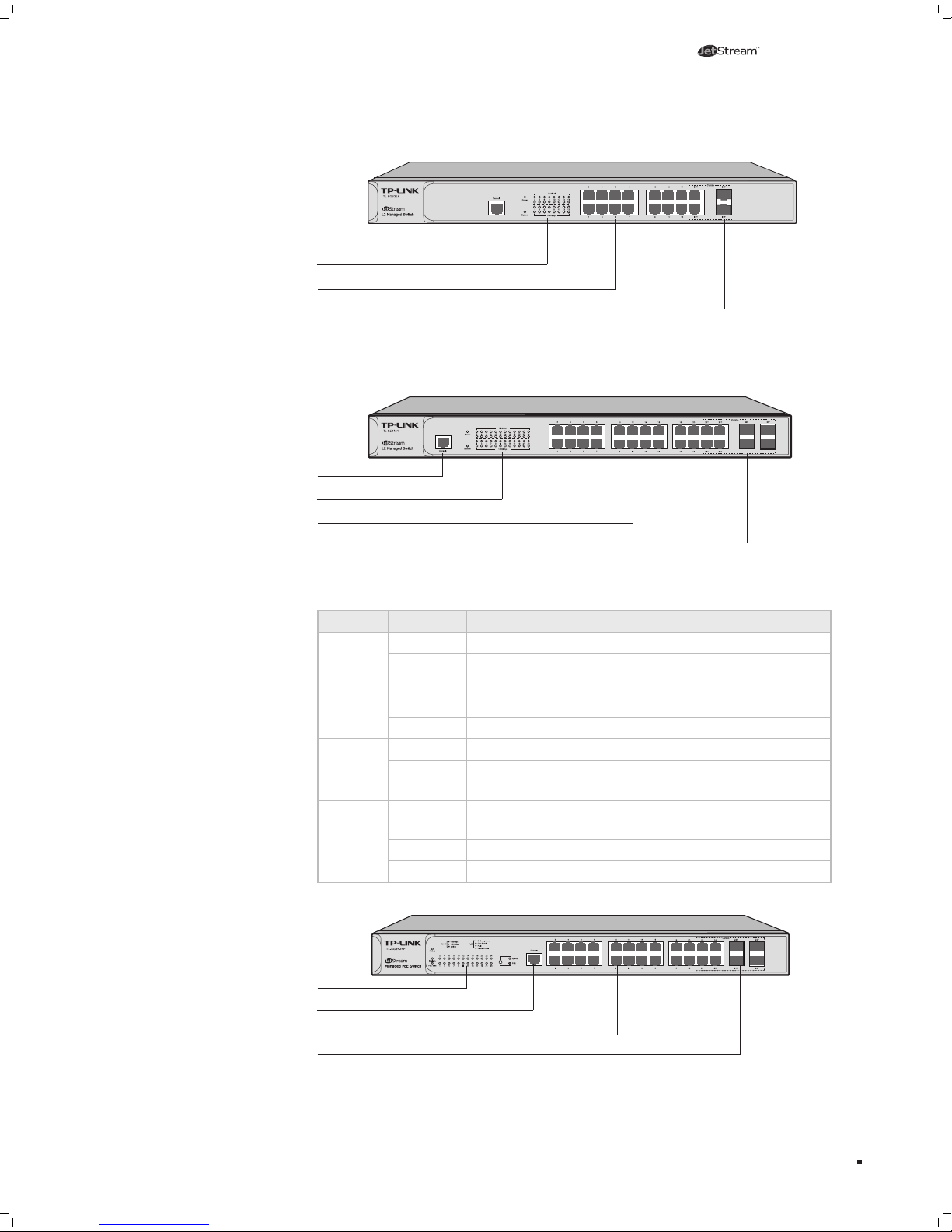

The front panel of TL-SG3216 is shown as the following figure.

Console Port

LEDs

10/100/1000Mbps RJ45 Port

SFP Port

Front Panel of TL-SG3216Figure 1-2

The front panel of TL-SG3424 is shown as the following figure.

21F 23F

Console Port

LEDs

10/100/1000Mbps RJ45 Port

SFP Port

Front Panel of TL-SG3424Figure 1-3

LEDs

LED Status Indication

Power

On The Switch is powered on.

Off The Switch is powered off or power supply is abnormal.

Flashing Power supply is abnormal.

System Flashing The Switch works properly.

On/Off The Switch works improperly.

1000Mbps

On A 1000Mbps device is connected to the corresponding port.

Off A 10/100Mbps device or no device is connected to the

corresponding port.

Link/Act

On A device is connected to the corresponding port, but no

activity.

Flashing Data is being transmitted or received.

Off No device is connected to the corresponding port.

The front panel of TL-SG3424P is shown as the following figure.

Console Port

LEDs

10/100/1000Mbps RJ45 Port

SFP Port

Front Panel of TL-SG3424PFigure 1-4

Introduction

L2 Managed Switch

TL-SG3424P has an LED mode switch button which is for switching the LED

status indication. When the Speed LED is on, the port LED is indicating the data

transmission rate. When the PoE LED is on, the port LED is indicating the power

supply status. By default the Speed LED is on. Pressing the mode switch button, the

Speed LED will turn off and the PoE LED will light up. Then the PoE LED will turn off

after being on for 60 seconds and the Speed LED will light up again.

When the Speed LED is on, the port LED is indicating the data transmission rate.

LED Status Indication

Power

On The Switch is powered on.

Off The Switch is powered off or power supply is abnormal.

Flashing Power supply is abnormal.

System Flashing The Switch works properly.

On/Off The Switch works improperly.

10/100/

1000 Mbps

Port LED

Green On A 1000 Mbps device is connected to the corresponding

port, but no activity.

Flashing Data is being transmitted or received.

Yellow On A 10/100 Mbps device is connected to the corresponding

port, but no activity.

Flashing Data is being transmitted or received.

Off No device is connected to the corresponding port.

When the PoE LED is on, the port LED is indicating the power supply status.

LED Status Indication

Power

On The Switch is powered on.

Off The Switch is powered off or power supply is abnormal.

Flashing Power supply is abnormal.

System Flashing The Switch works properly.

On/Off The Switch works improperly.

PoE Max

On The remaining PoE power≤7W.

Flashing The remaining PoE power keeps ≤7W after this LED is

on for 2 minutes.

Off The remaining PoE power≥

7W.

10/100/

1000 Mbps

Port LED

Green

On The port is supplying power normally.

Flashing The supply power exceeds the correponding port's

maximum power.

Yellow On Overload or short circuit is detected.

Flashing Power-on self-test has failed.

Off No PoE power supply is provided on the port.

Note: TL-SG3216/TL-SG3424/TL-SG3424P Switch features some “Combo”ports. A

“Combo”port consists of a RJ45 port and a SFP port, and the two ports share the

same LED.

Port Feature

Model 10/100/1000Mbps

RJ45 Port Console Port SFP Port

TL-SG3210 8 1 2

TL-SG3216 16 1 2

TL-SG3424/TL-SG3424P 24 1 4

Introduction

L2 Managed Switch

10/100/1000Mbps Port

Designed to connect to the device with a bandwidth of 10Mbps, 100Mbps or

1000Mbps. Each has a corresponding 1000Mbps LED.

Console Port

Designed to connect with the serial port of a computer or terminal for monitoring

and configuring the Switch.

SFP Port

Designed to install the SFP module. TL-SG3216/TL-SG3424/TL-SG3424P Switch

features some SFP transceiver slots that are shared with the associated RJ45 ports.

The associated two ports are referred as a “Combo”port, which means they cannot

be used simultaneously, otherwise only SFP port works. TL-SG3210 features two

individual SFP ports.

Note: For TL-SG3216/TL-SG3424/TL-SG3424P, when using the SFP port with a

100M module or a gigabit module, you need log on to the GUI (Graphical User

Interface) of the Switch and congure its corresponding Speed and Duplex mode on

Switching→Port→Port Cong page. For 100M module, please select 100MFD while

select 1000MFD for gigabit module. By default, the Speed and Duplex mode of SFP port

is 1000MFD. TL-SG3210 supports 1000M SFP module connection only.

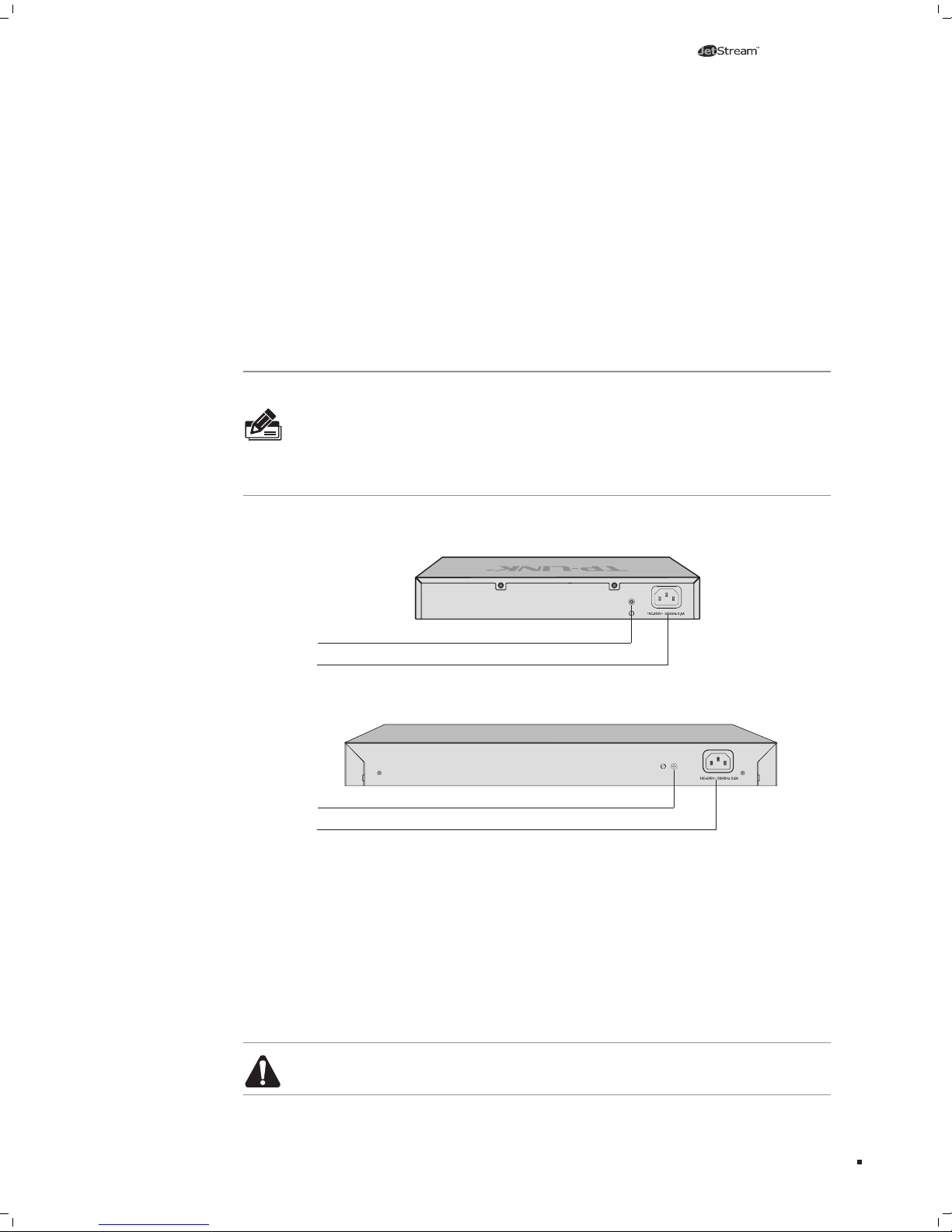

Rear Panel

■

The rear panel of TL-SG3210 is shown as the following figure.

Grounding Terminal

Power Socket

Rear Panel of TL-SG3210Figure 1-5

The rear panel of TL-SG3216/TL-SG3424/TL-SG3424P is shown as the following figure.

Grounding Terminal

Power Socket

Rear Panel of TL-SG3216/TL-SG3424/TL-SG3424PFigure 1-6

Grounding Terminal

The Switch already comes with lightning protection mechanism. You can also ground

the Switch through the PE (Protecting Earth) cable of AC cord or with Ground Cable.

For detailed information, please refer to Chapter 3 Lightning Protection.

Power Socket

Connect the female connector of the power cord here, and the male connector to

the AC power outlet. Please make sure the voltage of the power supply meets the

requirement of the input voltage (100-240V~ 50/60Hz).

Caution: Please use the provided power cord.

Introduction

L2 Managed Switch





Make sure that the package contains the following items. If any of the listed items is

damaged or missing, please contact your distributor.

One Resource CD

One Switch One Power Cord, One Console

Cable and one Ground Cable

This Installation Guide

Two mounting brackets and

the ttings



To avoid any device damage and bodily injury caused by improper use, please observe

the following rules.

Safety Precautions

■

Keep the power off during the installation.

■

Wear an ESD-preventive wrist strap, and make sure that the wrist strap has a good

■

skin contact and is well grounded.

Use only the power cord provided with the Switch.

■

Make sure that the supply voltage matches the specifications indicated on the rear

■

panel of the Switch.

Ensure the vent hole is well ventilated and unblocked.

■

Do not open or remove the cover of the Switch.

■

Before cleaning the device, cut off the power supply. Do not clean it by the waterish

■

cloth, and never use any other liquid cleaning method.

Site Requirements

■

To ensure normal operation and long service life of the device, please install it in an

environment that meets the requirements described in the following subsection.

Temperature/Humidity

ȭ

ȭ

Installation

Autres manuels pour JetStream TL-SG3424

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels TP-Link Changer

TP-Link

TP-Link TL-SF1024M Manuel utilisateur

TP-Link

TP-Link POE150S Manuel utilisateur

TP-Link

TP-Link TL-SG105PP-M2 Manuel utilisateur

TP-Link

TP-Link TL-SG1005P Manuel utilisateur

TP-Link

TP-Link JetStream T1600G-28TS Manuel utilisateur

TP-Link

TP-Link TL-SF1008D Manuel utilisateur

TP-Link

TP-Link JetStream TL-SL3428 Manuel utilisateur

TP-Link

TP-Link HS200 Manuel utilisateur

TP-Link

TP-Link Tapo H100 Manuel utilisateur

TP-Link

TP-Link JetStream T1500G-10MPS Guide de démarrage rapide

TP-Link

TP-Link TL-SG1016DE Manuel utilisateur

TP-Link

TP-Link TL-SF1008P Manuel utilisateur

TP-Link

TP-Link TL-SL2452WEB - Web Smart Switch Manuel utilisateur

TP-Link

TP-Link JetStream TL-SG3424 Manuel utilisateur

TP-Link

TP-Link JetStream T1500G-8T Manuel utilisateur

TP-Link

TP-Link T2500G-10MPS Manuel utilisateur

TP-Link

TP-Link TL-SG1016D Manuel utilisateur

TP-Link

TP-Link TL-SG105 Manuel d'instructions d'installation

TP-Link

TP-Link TL-SG108PE Manuel utilisateur

TP-Link

TP-Link T2500-28TC Manuel utilisateur

TP-Link

TP-Link TL-SF1048 Manuel utilisateur

TP-Link

TP-Link TL-SF1005D Manuel utilisateur

TP-Link

TP-Link TL-SG108PE Manuel utilisateur

TP-Link

TP-Link JetStream T1500G-10MPS Manuel utilisateur

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur
