TP-Link TL-SG1016DE Manuel utilisateur

Installation Guide

16/24-Port Gigabit Easy Smart Switch

TL-SG1016DE/TL-SG1024DE

Business Networking Solution

Specifications are subject to change without notice. is a registered trademark

of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks of their

respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make

any derivative such as translation, transformation, or adaptation without permission from TP-LINK

http://www.tp-link.com

FCC STATEMENT

This equipment has been tested and found to comply with the limits for a Class A digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference when the equipment is operated in a commercial environment. This

equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in

accordance with the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful interference in which case

the user will be required to correct the interference at his own expense.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two

conditions:

1) This device may not cause harmful interference.

2) This device must accept any interference received, including interference that may cause

undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could

void the user’s authority to operate the equipment.

CE Mark Warning

This is a Class A product. In a domestic environment, this product may cause radio interference, in

which case the user may be required to take adequate measures.

Related Document

III Convention

Conventions

Due to the similarity in structure of the 16/24-Port Gigabit Easy Smart Switch

series, in this Installation Guide we take TL-SG1016DE as an example to illustrate

Chapter 2 Installation, Chapter 3 Lightning Protection and Chapter 4 Connection

and Chapter 5 Configuration.

This Guide uses the specific formats to highlight special messages. The following

table lists the notice icons that are used throughout this guide.

Remind to be careful. A caution indicates a potential which may result in

device damage.

Remind to take notice. The note contains the helpful information for a

better use of the product.

Contents

Chapter 1 Introduction ——————————— 01

1.1 Product Overview...................................................................01

1.2 Appearance...............................................................................01

Chapter 2 Installation ———————————— 03

2.1 Package Contents ...................................................................03

2.2 Safety Precautions ..................................................................03

2.3 Installation Tools......................................................................05

2.4 Product Installation................................................................06

Chapter 3 Lightning Protection ———————— 08

3.1 Cabling Reasonably................................................................08

3.2 Connect to Ground.................................................................10

3.3 Equipotential Bonding..........................................................11

3.4 Use Lightning Arrester..........................................................12

Chapter 4 Connection ——————————— 14

4.1 Ethernet Port ............................................................................14

4.2 Verify Installation ....................................................................14

4.3 Power On....................................................................................14

4.4 Initialization ..............................................................................15

Chapter 5 Conguration

——————————— 16

Appendix A Troubleshooting ————————— 18

Appendix B Hardware Specications —————— 19

Appendix C Technical Support ————————— 20

16/24-Port Gigabit Easy Smart Switch

Chapter 1 Introduction

1.1 Product Overview

The 16/24-Port Gigabit Easy Smart Switch is an ideal upgrade from an unmanaged

switch, designed for Small and Medium Business networks that require simple network

management. Network administrators can effectively monitor traffic via Port Mirroring,

Loop Prevention and Cable Test features. To optimize traffic on your business

network, they offer both port and tag based QoS to keep latency-sensitive traffic

moving smoothly and jitter-free. Additionally, port-based, tag-based and MTU VLAN

can improve security and meet more network segmentation requirements. Moreover,

with the innovative energy-efficient technology, they are eco-friendly solution for your

business network.

1.2 Appearance

■Front Panel

The front panel of TL-SG1016DE is shown as the following figure.

Reset

10/100/1000Mbps RJ45 Port

LEDs

Figure 1-1 Front Panel of TL-SG1016DE

The front panel of TL-SG1024DE is shown as the following figure.

2468 10 12 14 16 24222018

13 11 13 15 17 19 21 2357 9

246810 12 14 16 18 20 22 24

1357911131517192123

TL-SG1024DE

24-Port Gigabit Easy Smart Switch

Reset

10/100/1000Mbps RJ45 Port

LEDs

Figure 1-2 Front Panel of TL-SG1024DE

Introduction

16/24-Port Gigabit Easy Smart Switch

Introduction

LEDs

LED Status Indication

Power On The switch is powered on

Off The switch is powered off or power supply is abnormal

Link/Act

On There is a device linked to the corresponding port but

no activity

Flashing The corresponding port is transmitting or receiving data

Off There is no device linked to the corresponding port

1000Mbps

On A 1000Mbps device is connected to the corresponding

port

Off A 10/100Mbps device or no device is connected to the

corresponding port

Reset

Press this button for five seconds or above to reset the software setting back to

factory default settings.

10/100/1000Mbps RJ45 Port

Designed to connect to the device with a bandwidth of 10Mbps, 100Mbps or

1000Mbps. Each has a corresponding Link/Act LED and a 1000Mbps LED.

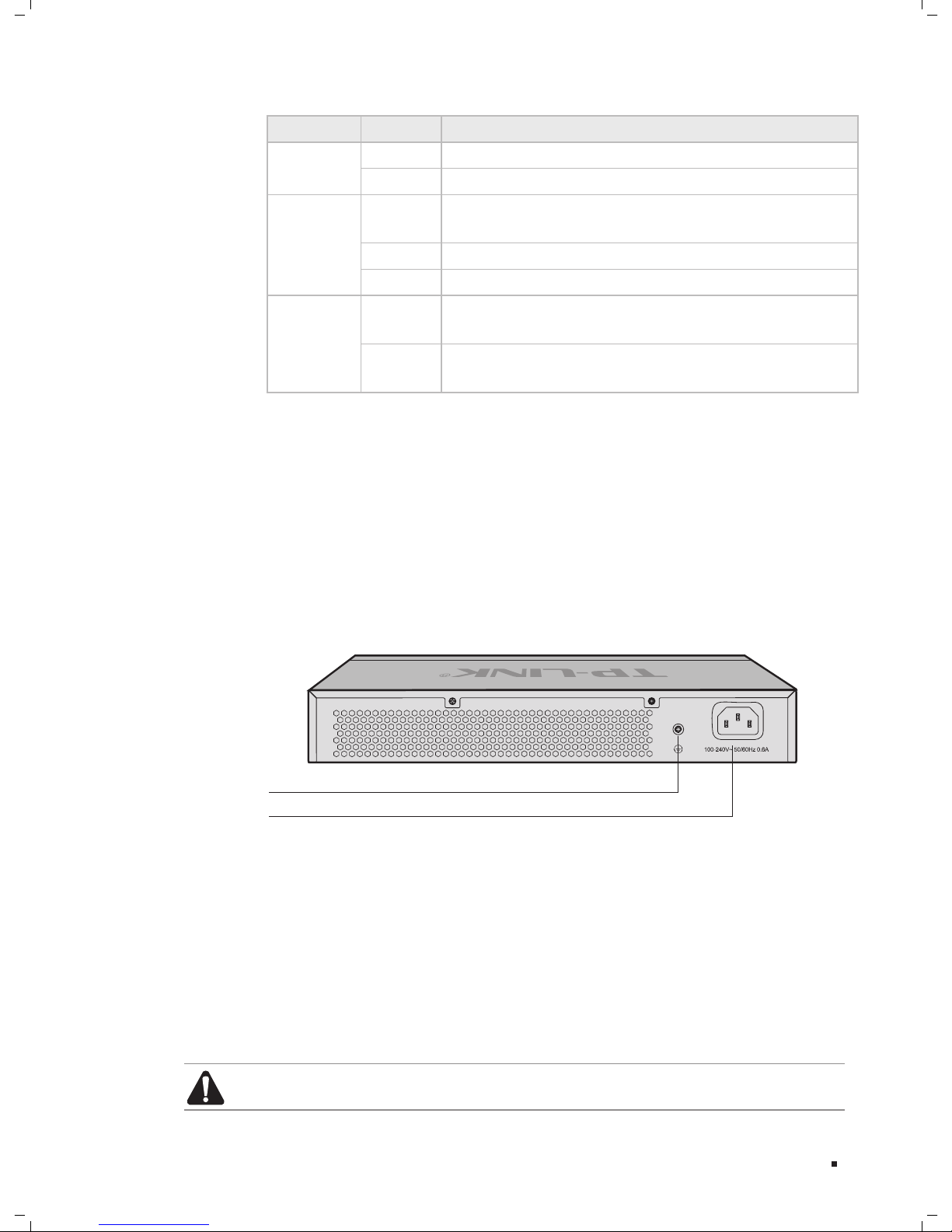

■Rear Panel

The rear panel of TL-SG1016DE/TL-SG1024DE is shown as the following figure.

Grounding Terminal

Power Socket

Figure 1-3 Rear Panel of TL-SG1016DE/TL-SG1024DE

Grounding Terminal

The switch already comes with lightning protection mechanism. You can also ground

the switch through the PE (Protecting Earth) cable of AC cord or with Ground Cable.

For detailed information, please refer to Chapter 3 Lightning Protection.

Power Socket

Connect the female connector of the power cord here, and the male connector to

the AC (Alternating Current) power outlet. Please make sure the voltage of the

power supply meets the requirement of the input voltage.

Caution: Please use the provided power cord.

16/24-Port Gigabit Easy Smart Switch

Chapter 2 Installation

2.1 Package Contents

Make sure that the package contains the following items. If any of the listed items is

damaged or missing, please contact your distributor.

One Resource CD

One Switch One Power Cord This Installation Guide

Two mounting brackets and the

ttings

2.2 Safety Precautions

To avoid any device damage and bodily injury caused by improper use, please observe

the following rules.

■Safety Precautions

■Keep the power off during the installation.

■Wear an ESD-preventive wrist strap, and make sure that the wrist strap has a good

skin contact and is well grounded.

■Use only the power cord provided with the switch.

■Make sure that the supply voltage matches the specifications indicated on the rear

panel of the switch.

■Ensure the vent hole is well ventilated and unblocked.

■Do not open or remove the cover of the switch.

■Before cleaning the device, cut off the power supply. Do not clean it by the waterish

cloth, and never use any other liquid cleaning method.

Installation

16/24-Port Gigabit Easy Smart Switch

■Site Requirements

Temperature/Humidity

ȭ

ȭ

Please keep a proper temperature and humidity in the equipment room. Too high/low

humidity may lead to bad insulation, electricity leakage, mechanical property changes

and corrosions. Too high temperature may accelerate aging of the insulation materials

and can thus significantly shorten the service life of the device. For normal temperature

and humidity of the device, please check the following table.

Environment Temperature Humidity

Operating 0℃~ 40℃10% ~ 90%RH Non-condensing

Storage -40℃~ 70℃5% ~ 90%RH Non-condensing

Clearness

The dust accumulated on the switch can be absorbed by static electricity and result

in poor contact of metal contact points. Some measures have been taken for the

device to prevent static electricity, but too strong static electricity can cause deadly

damage to the electronic elements on the internal circuit board. To avoid the effect of

static electricity on the operation of the switch, please attach much importance to the

following items:

■Dust the device regularly, and keep the indoor air clean.

■Keep the device well grounded and ensure static electricity has been transferred.

Electromagnetic Interference

Electronic elements including capacitance and inductance on the device can be affected

by external interferences, such as conducted emission by capacitance coupling,

inductance coupling, and impedance coupling. To decrease the interferences, please

make sure to take the following measures:

■Use the power supply that can effectively filter interference from the power grid.

■Keep the device far from high-frequency, strong-current devices, such as radio

transmitting station.

■Use electromagnetic shielding when necessary.

Installation

16/24-Port Gigabit Easy Smart Switch

Lightning Protection

Extremely high voltage currents can be produced instantly when lightning occurs and the air

in the electric discharge path can be instantly heated up to 20,000℃. As this instant current

is strong enough to damage electronic devices, more effective lightning protection measures

should be taken.

■Ensure the rack and device are well earthed.

■Make sure the power socket has a good contact with the ground.

■Keep a reasonable cabling system and avoid induced lightning.

■Use the signal SPD (Surge Protective Device) when wiring outdoor.

Note: For detailed lightning protection measures, please refer to Chapter 3

Lightning Protection.

Installation Site

When installing the device on a rack or a flat workbench, please note the following

items:

■The rack or workbench is flat and stable, and sturdy enough to support the weight

of 5.5kg at least.

■The rack or workbench has a good ventilation system. The equipment room is well

ventilated.

■The rack is well grounded. Keep the power socket less than 1.5 meters away from

the device.

2.3 Installation Tools

■Phillips screwdriver

■ESD-preventive wrist wrap

■Cables

Note: These tools are not provided with our product. If needed, please self purchase

them.

Installation

Autres manuels pour TL-SG1016DE

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels TP-Link Changer

TP-Link

TP-Link KS205 Manuel utilisateur

TP-Link

TP-Link TL-SF1008P Manuel utilisateur

TP-Link

TP-Link JetStream T3700G-52TQ Mode d’emploi

TP-Link

TP-Link TL-SG1008 Manuel utilisateur

TP-Link

TP-Link KS220M Manuel utilisateur

TP-Link

TP-Link JetStream T1500G-10MPS Manuel utilisateur

TP-Link

TP-Link TL-SG1024 Manuel utilisateur

TP-Link

TP-Link Jetstream L2 TL-SG5412F Manuel utilisateur

TP-Link

TP-Link JetStream TL-SG3216 Manuel utilisateur

TP-Link

TP-Link JetStream T1600G-28TS Manuel utilisateur

TP-Link

TP-Link TL-SL2218 Manuel utilisateur

TP-Link

TP-Link Jetstream L2 TL-SG5412F Manuel utilisateur

TP-Link

TP-Link TL-SF1005D Manuel utilisateur

TP-Link

TP-Link TL-SF1008D - 10/100M FAST ETHERNET SWITCH Manuel utilisateur

TP-Link

TP-Link TL-SL5428E Manuel utilisateur

TP-Link

TP-Link Omada SG3210X-M2 Manuel utilisateur

TP-Link

TP-Link TL-SX1008 V1 Manuel utilisateur

TP-Link

TP-Link P1200-08 Manuel d'utilisation

TP-Link

TP-Link TL-SL2428 Manuel utilisateur

TP-Link

TP-Link UC400 Manuel utilisateur

TP-Link

TP-Link TL-RP108GE Manuel utilisateur

TP-Link

TP-Link JetStream TL-SG5412F Manuel utilisateur

TP-Link

TP-Link JetStream TL-SG3424 Manuel utilisateur

TP-Link

TP-Link Tapo S500D Manuel utilisateur

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur
